Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10
Electronic Fuel Injection System
12 part groups · 4 illustrations

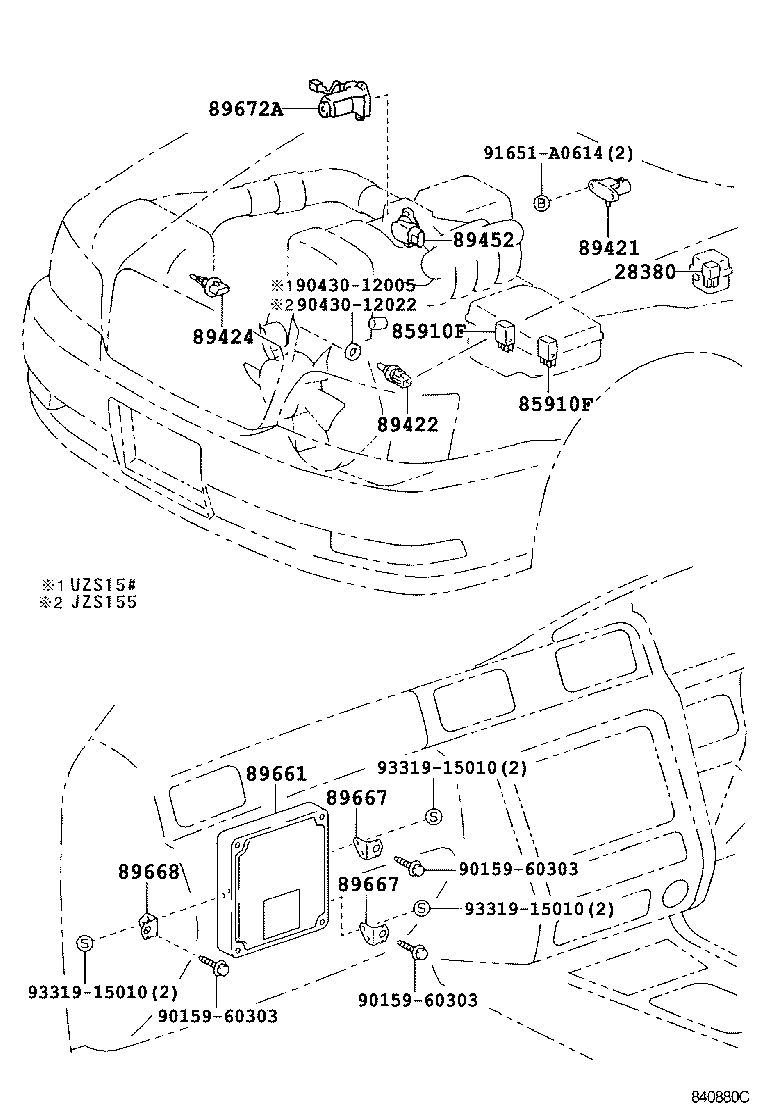

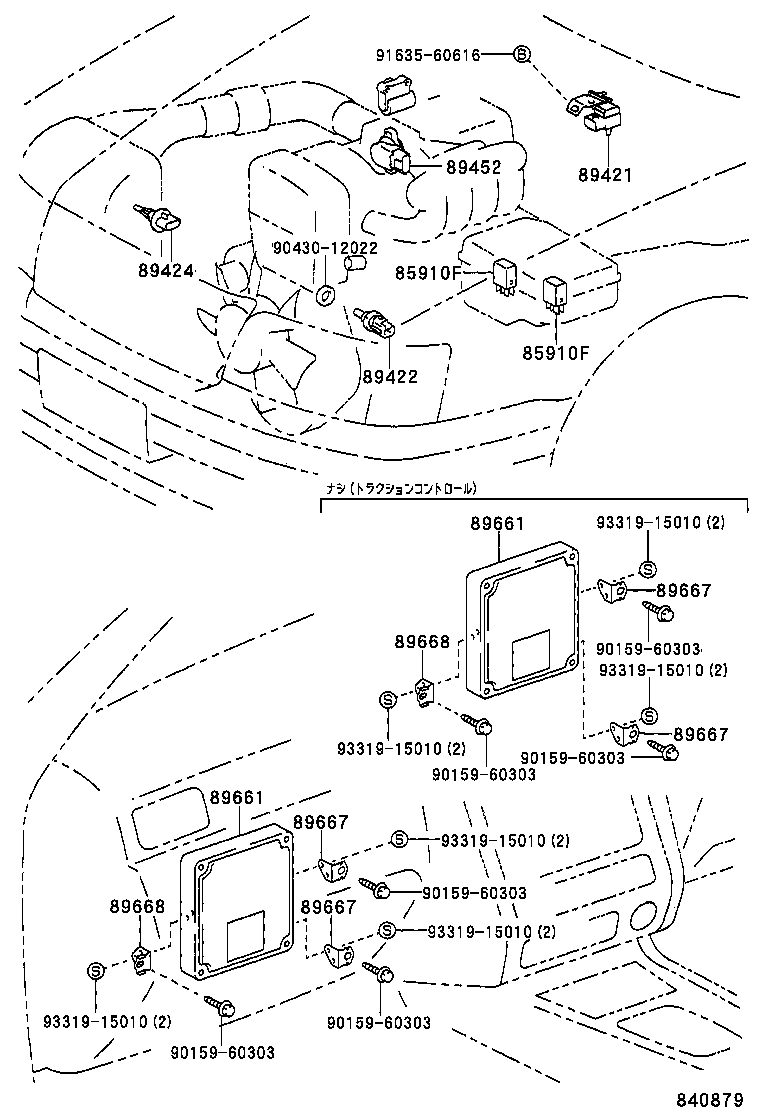

Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 28515 | Resistor, Solenoid |
| 85910F | Relay, Computer (FOR EFI) |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
| 89672A | Motor, Throttle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
