Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

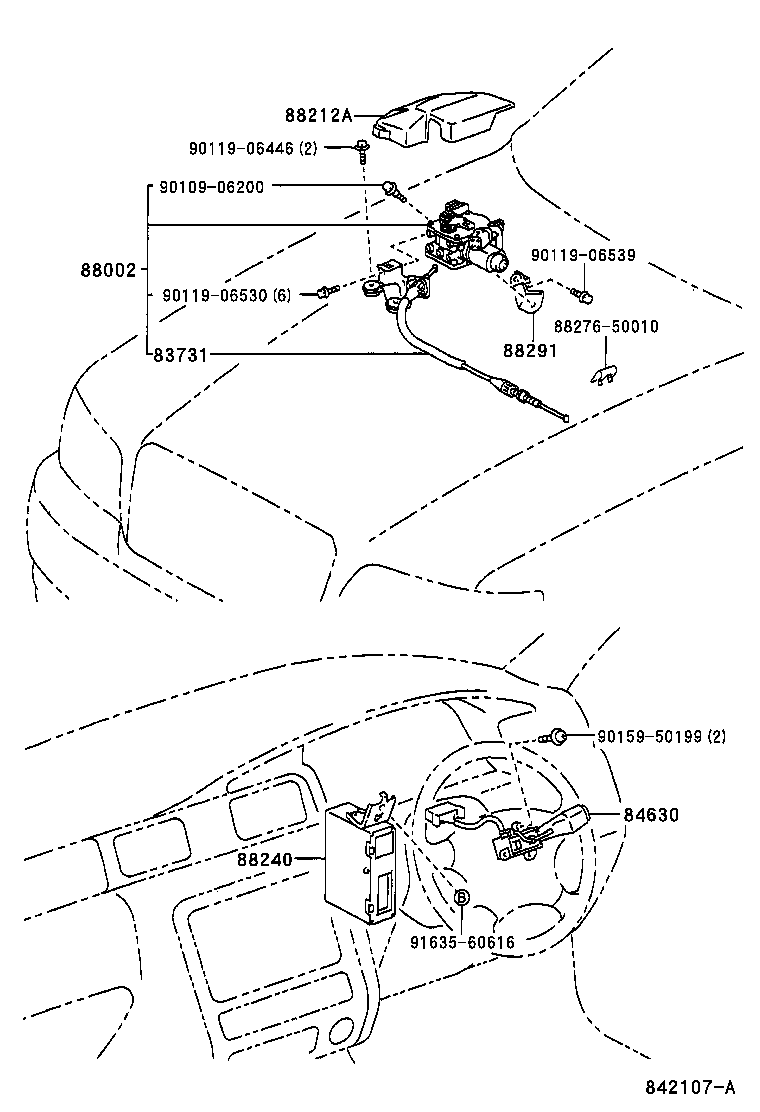

Cruise Control (AUTO DRIVE)
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83731 | Cable, Cruise Control |
| 84630 | Switch Assy, Cruise Control Main |
| 88002 | Cruise Control(AUTO DRIVE) Set |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88212A | Cover, Cruise Control Actuator |
| 88240 | Computer Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
