Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

19 part groups · 7 illustrations

Illustrations

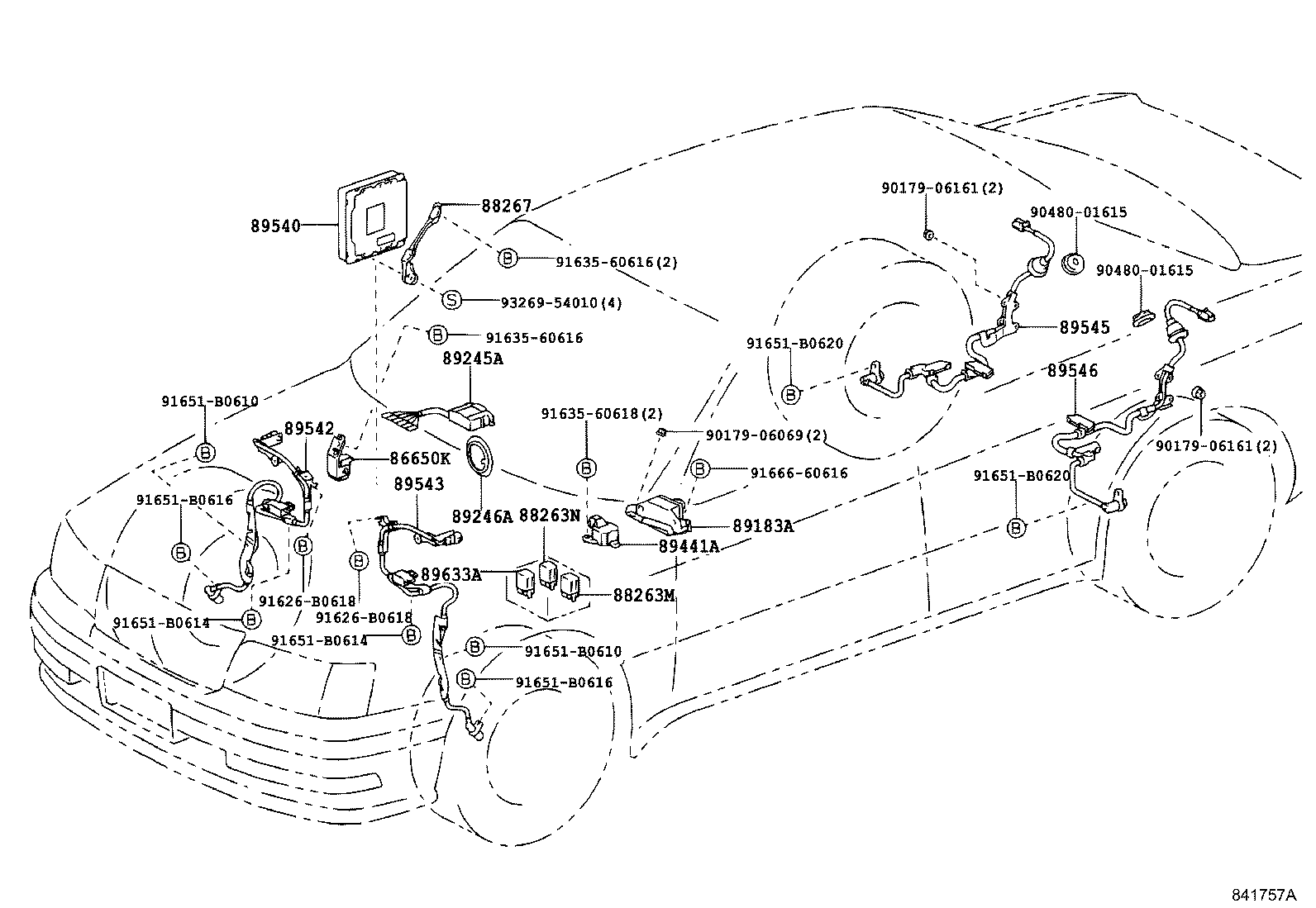

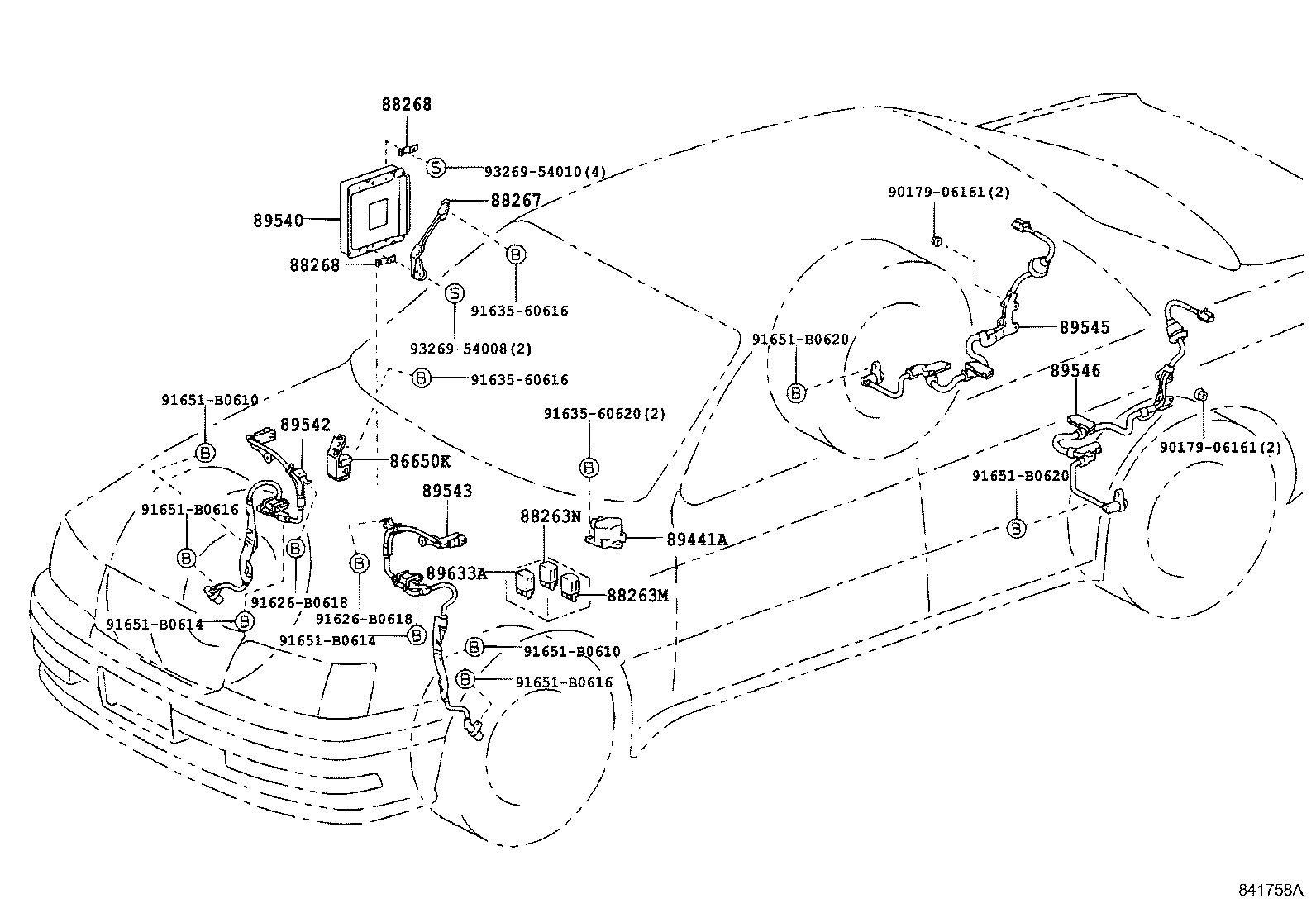

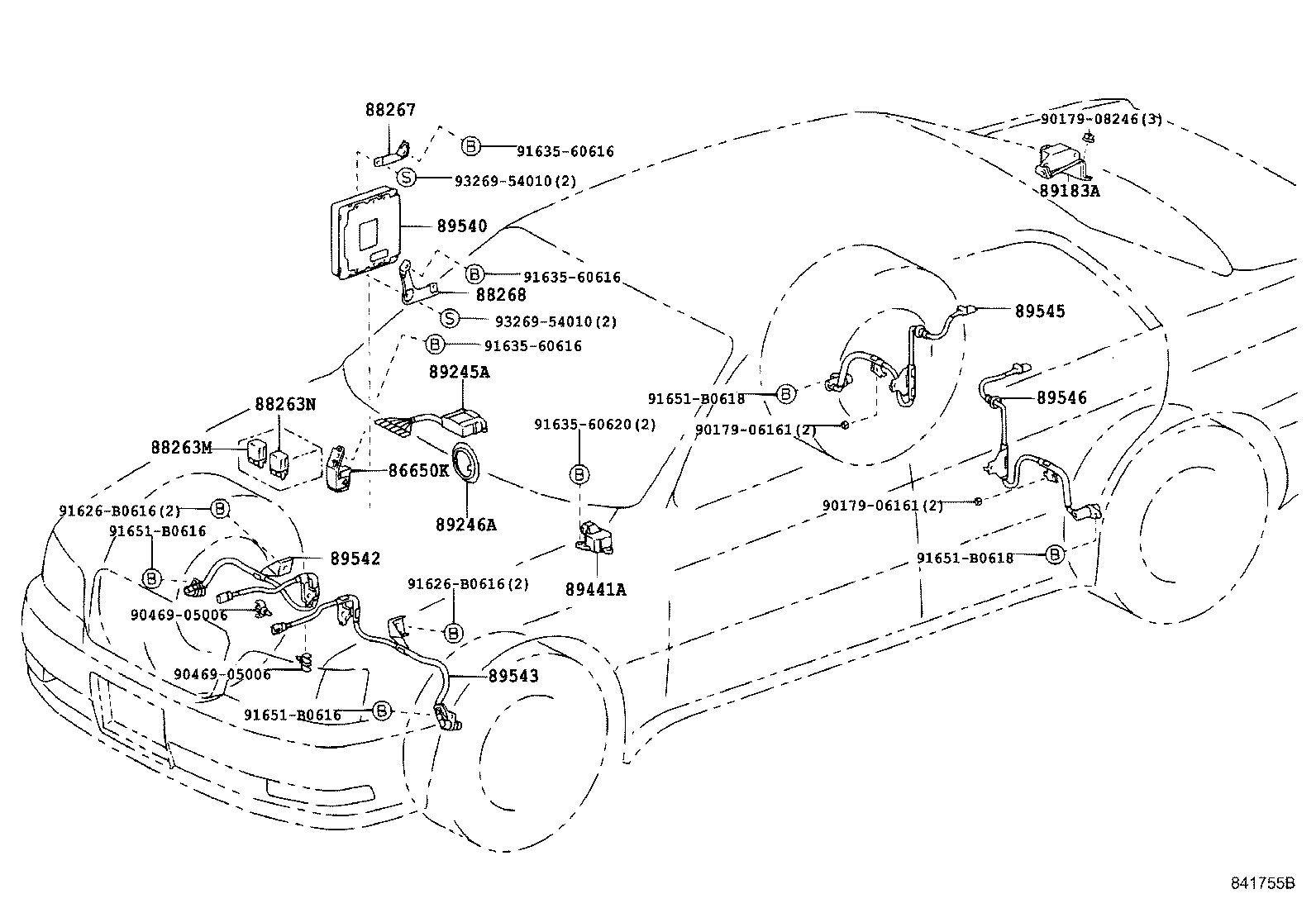

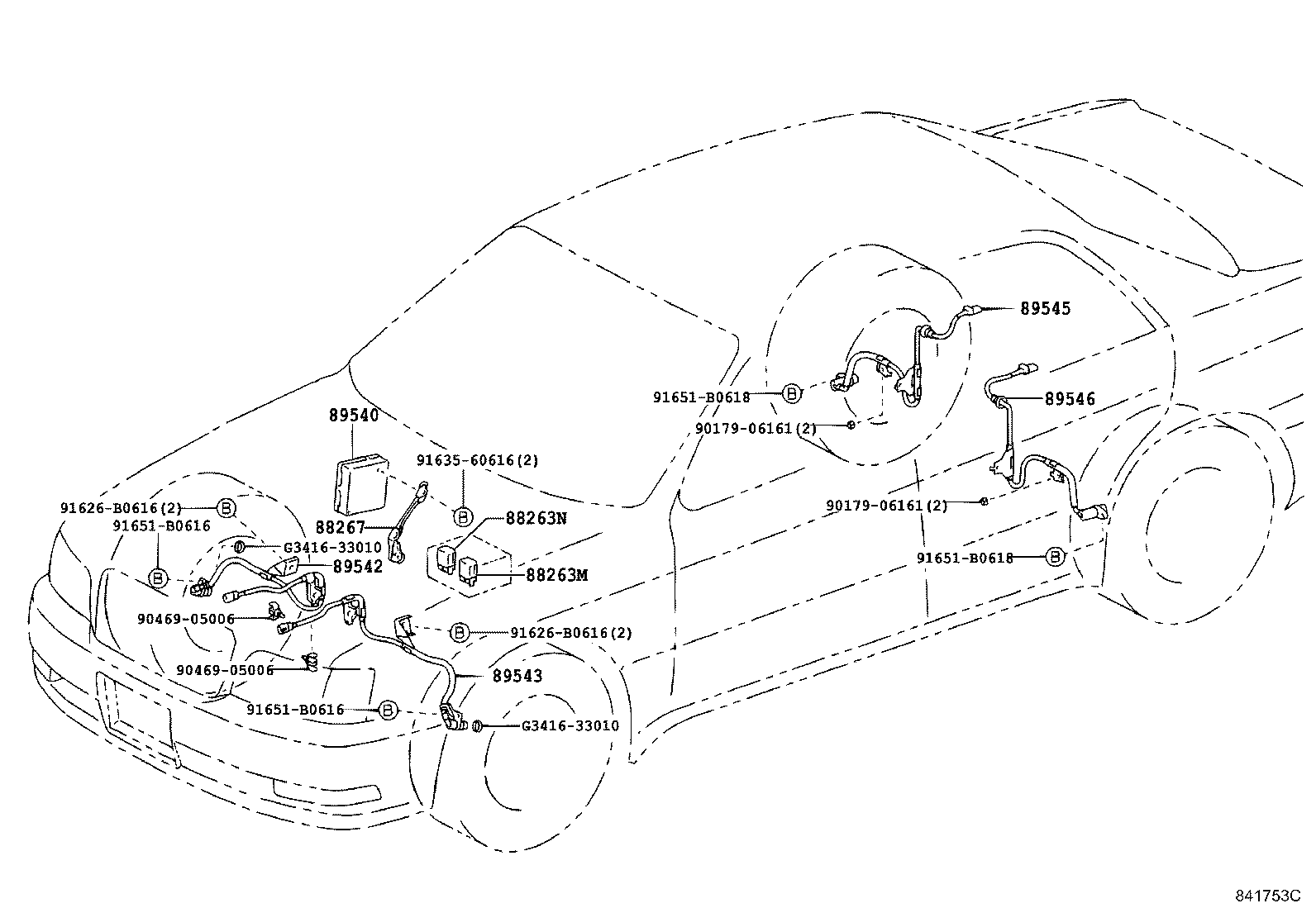

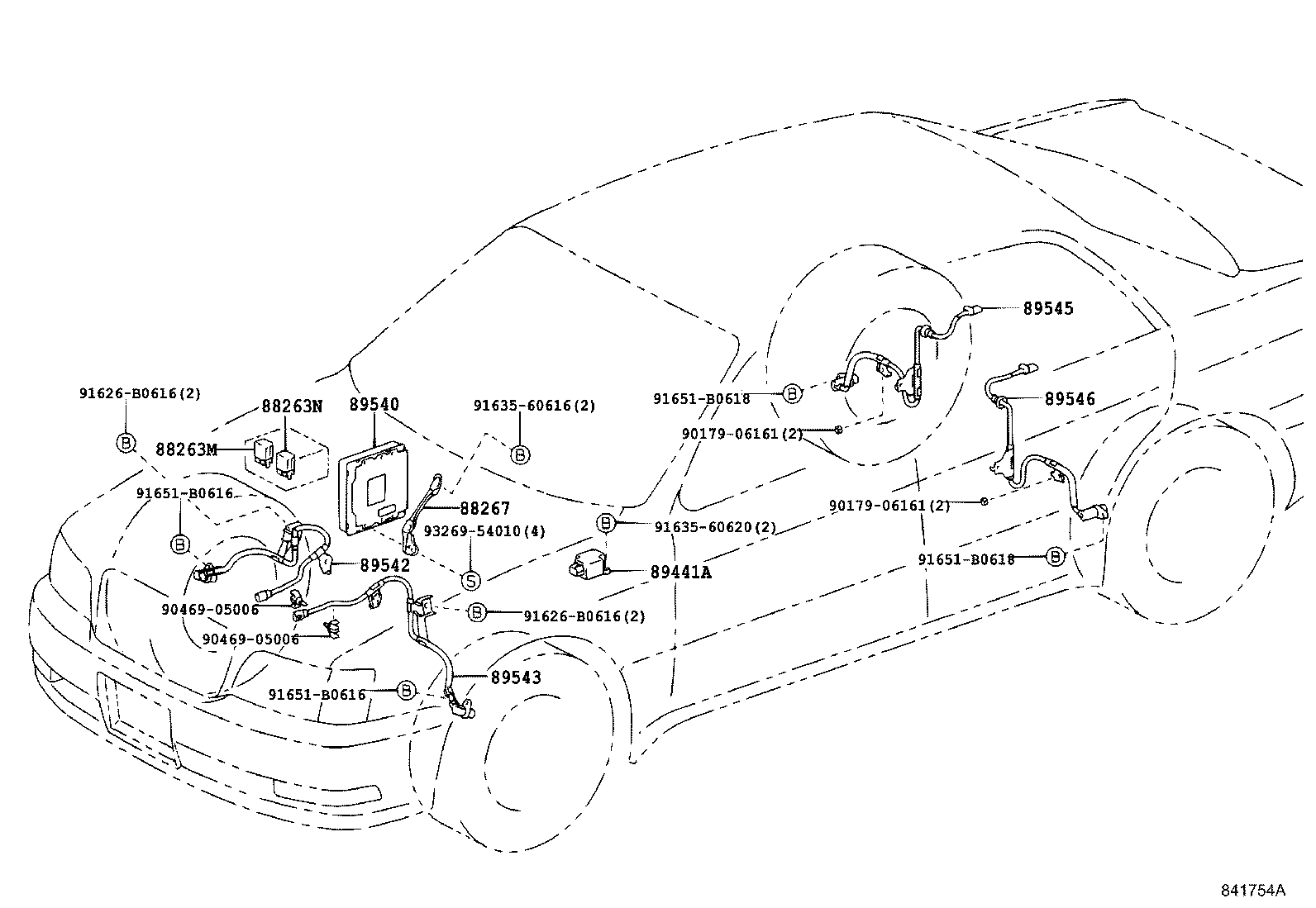

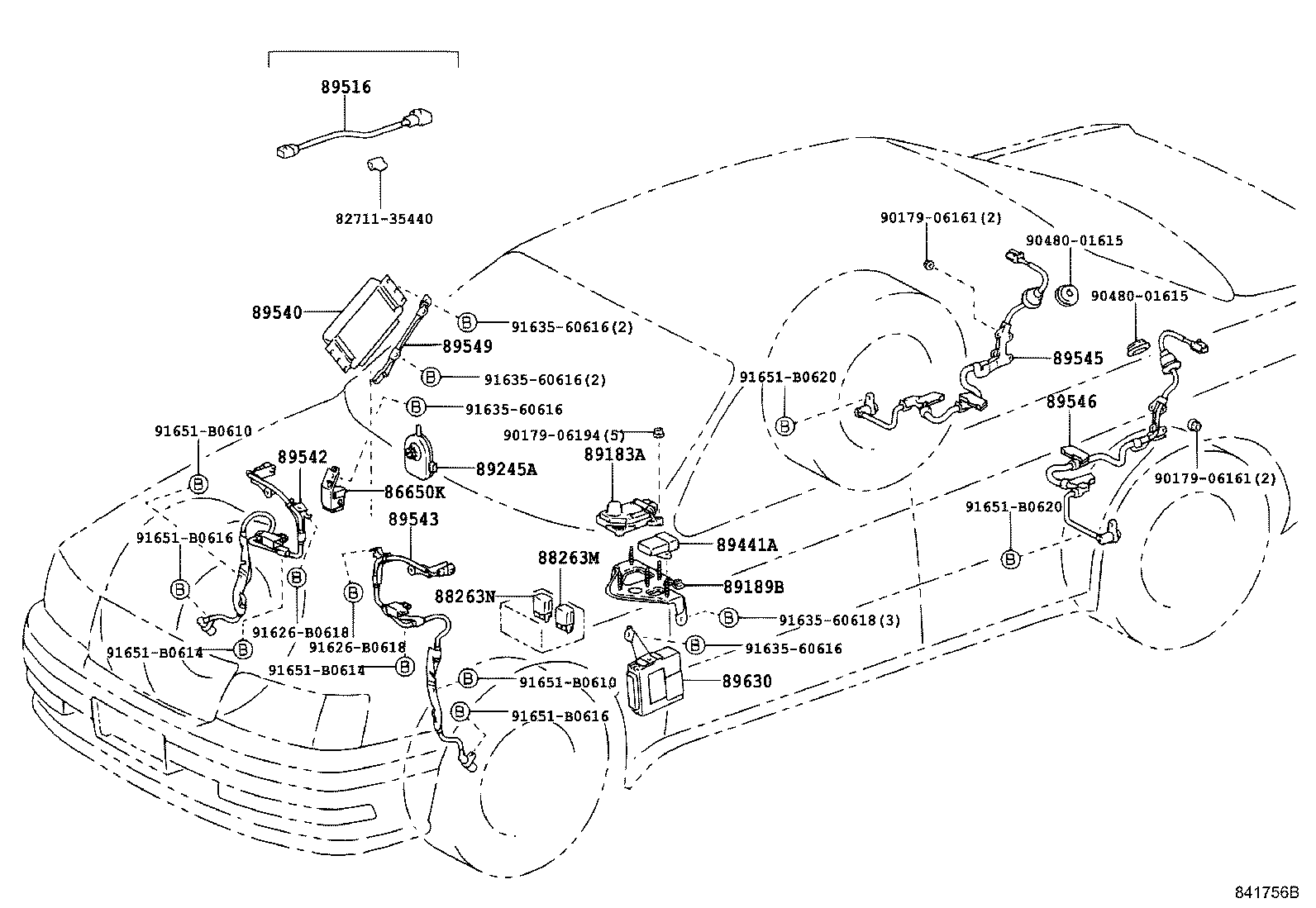

Figure 840877B 840877B 1995-08 → 1997-07 Figure 841753C 841753C 1997-07 → — Figure 841754A 841754A 1997-07 → — Figure 841755B 841755B 1997-07 → — Figure 841756B 841756B 1997-07 → — Figure 841757A 841757A 1997-07 → — Figure 841758A 841758A 1997-07 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89245A Sensor, Steering
89246A Disc, Sensor Steering
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89630 Computer Assy, Translate
89633A Relay, Traction Control OR Vsc
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
