Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

5 part groups · 2 illustrations

Illustrations

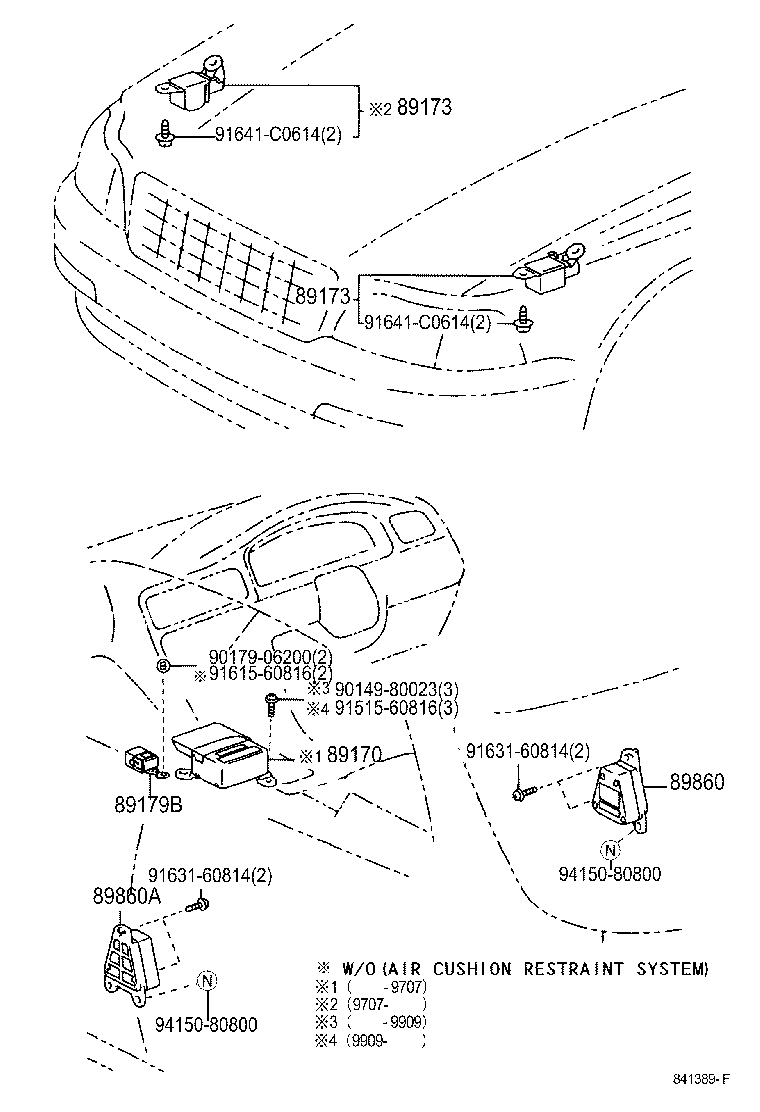

Figure 844572 844572 1995-08 → 1999-09 Figure 841389F 841389F 1995-08 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173 Sensor, Airbag, Front
89179B Sensor, Collision Detection
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
