Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 7 illustrations

Illustrations

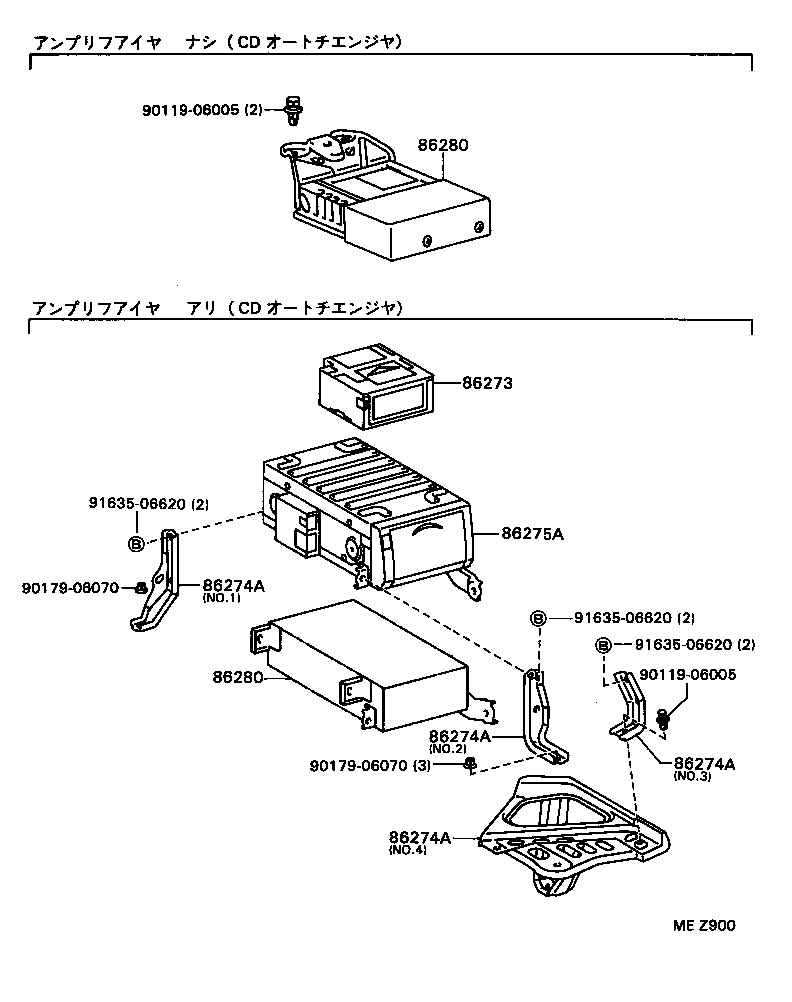

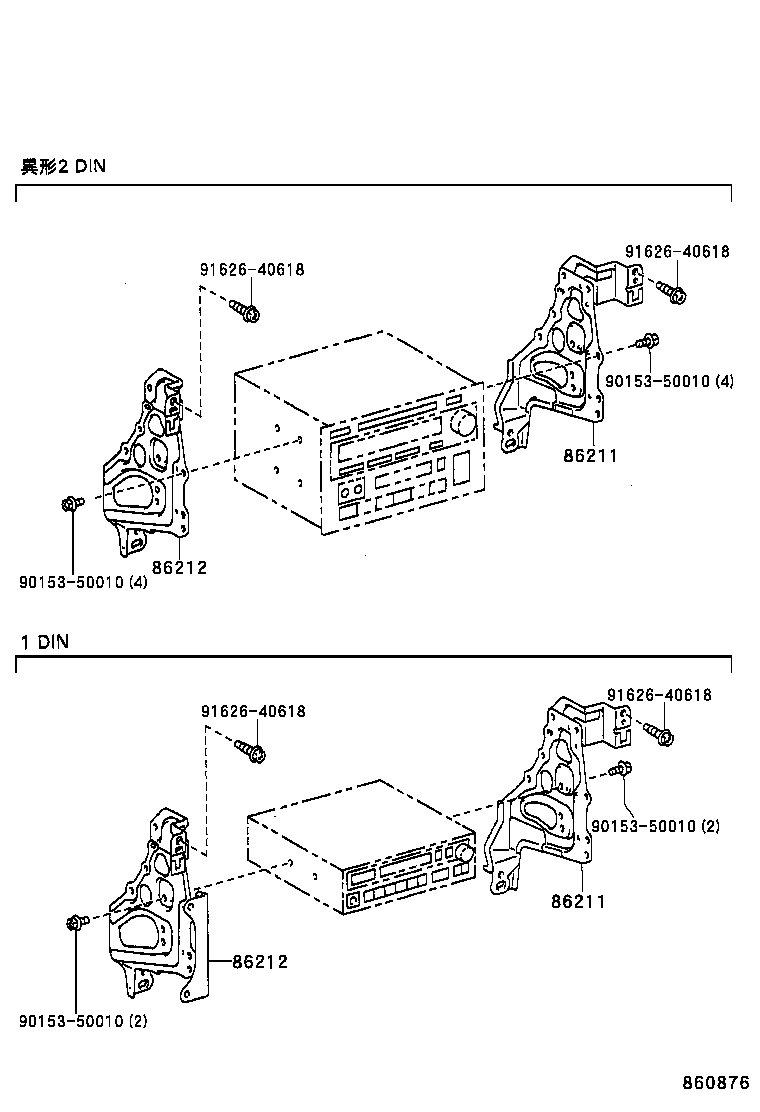

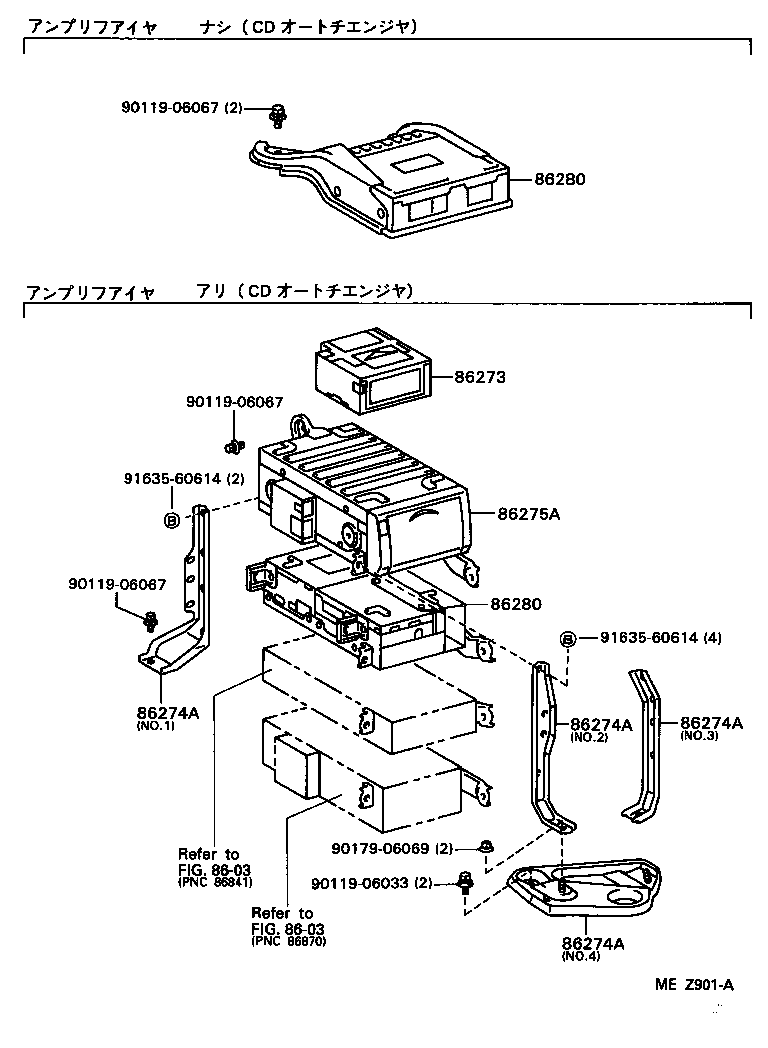

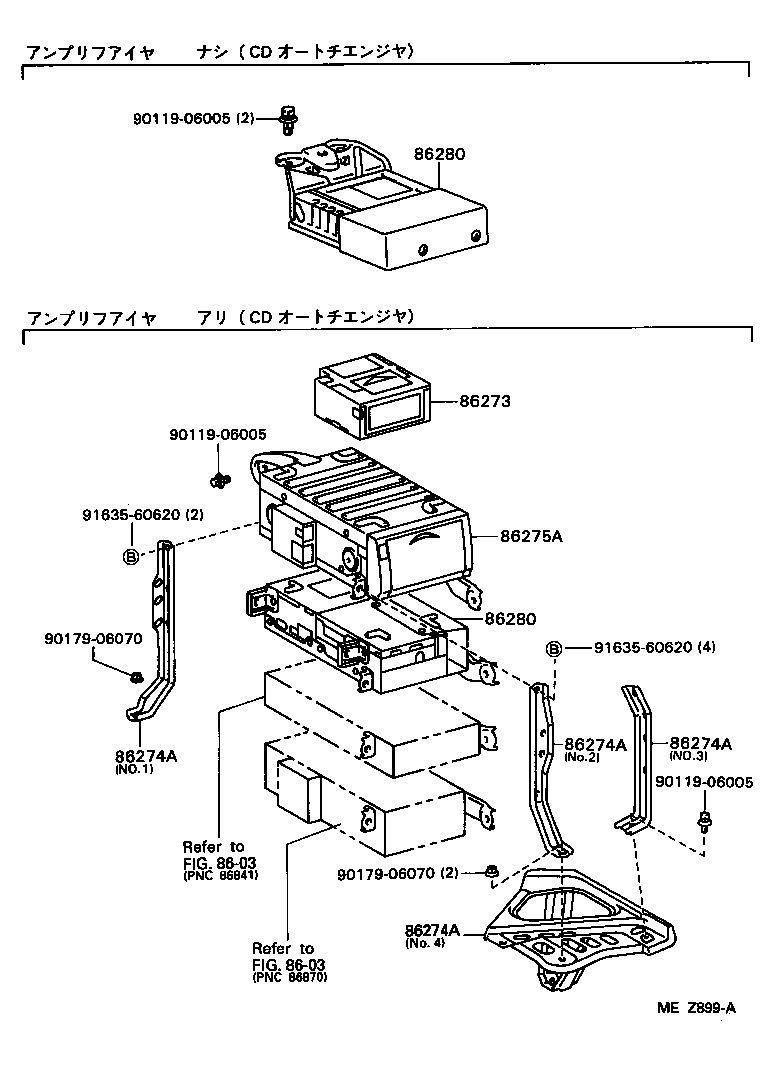

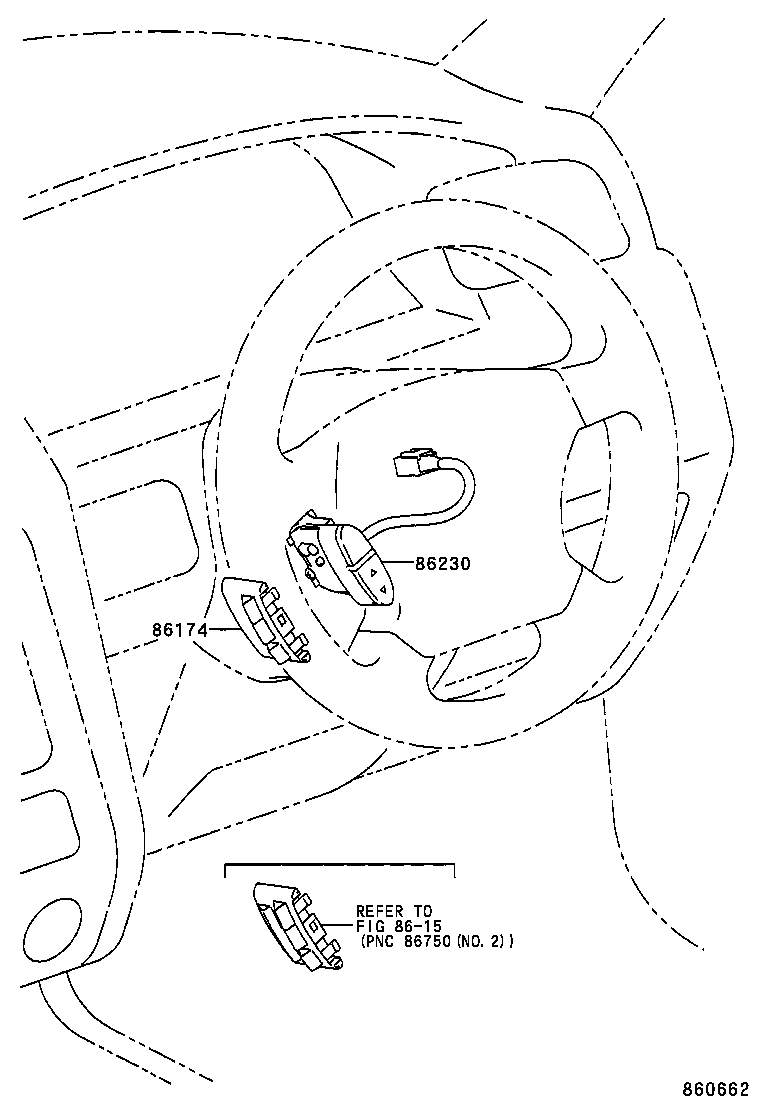

Figure 860390 860390 1995-08 → — Figure 860876 860876 1995-08 → — Figure MEZ899A MEZ899A 1995-08 → — Figure MEZ900 MEZ900 1995-08 → — Figure MEZ901A MEZ901A 1995-08 → — Figure 860662 860662 1997-07 → — Figure 860775C 860775C 1995-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86174 Case, Switch & Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86230 Controller Assy, Stereo Component
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
