Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

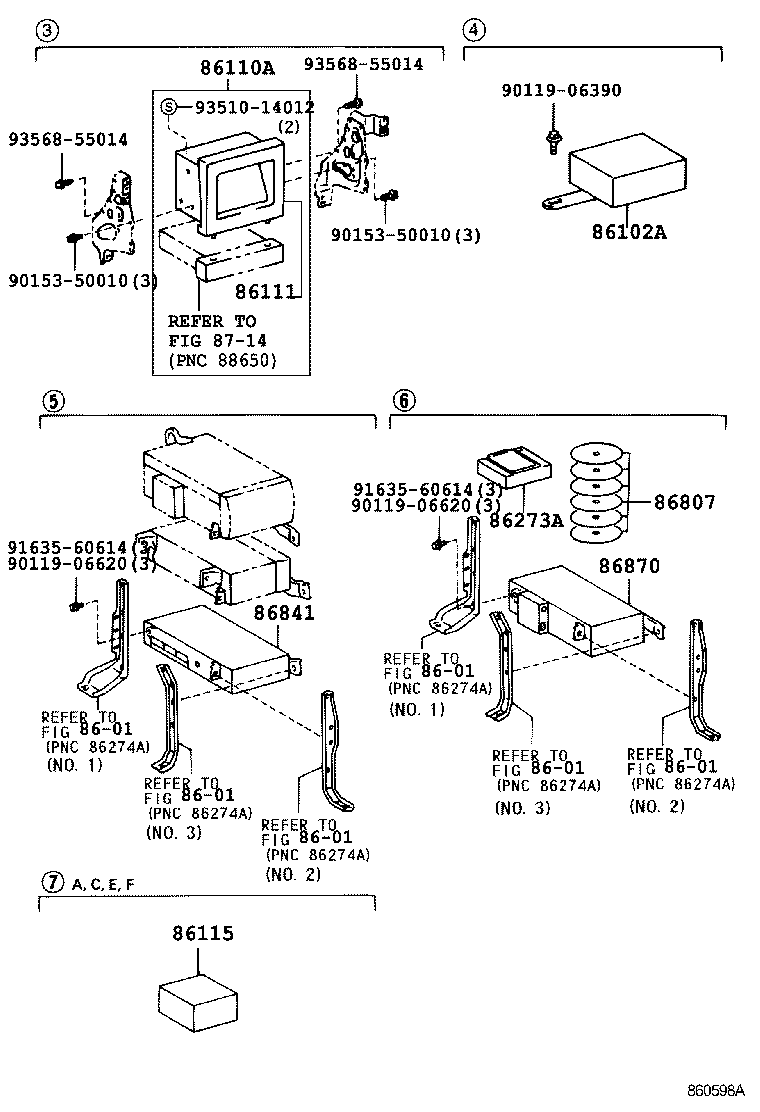

Navigation & Front Monitor Display
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86102A | Selector Sub-assy, Antenna |
| 86110A | Controller Assy, Multi-display |
| 86111 | Multi-display |
| 86115 | Tray, Multi-display Computer |
| 86191 | Terminal, Video(VIDEO ADAPTER) |
| 86273A | Magazine, Disc Player |
| 86807 | Disc Kit, Cd-rom |
| 86841 | Computer, Navigation |
| 86851 | Receiver, Navigation |
| 86860A | Antenna, Navigation |
| 86862 | Bracket, Navigation Antenna |
| 86870 | Player Assy, Cd-rom |

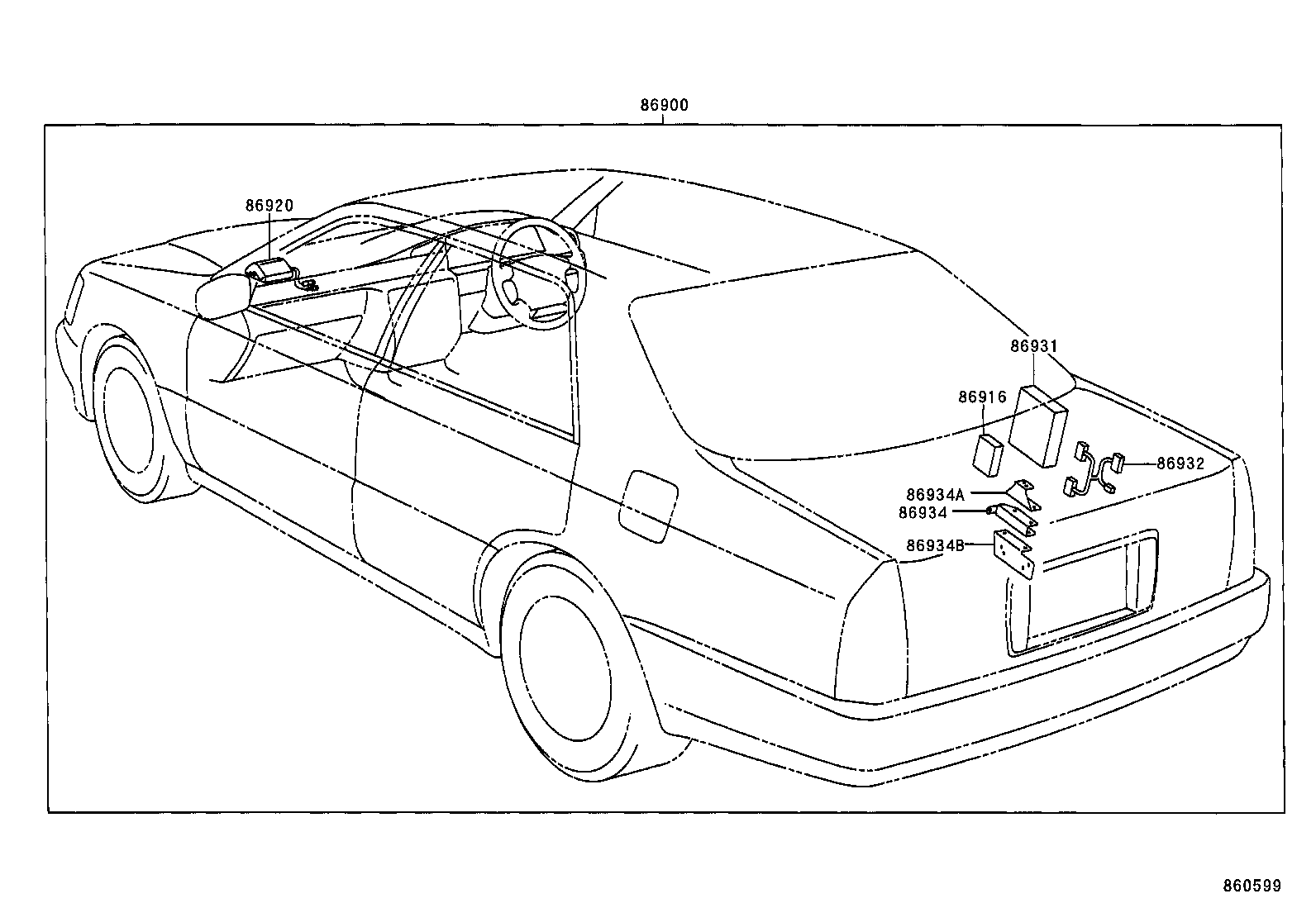

| 86900 | Computer Assy, Traffic Information |
| 86914 | Receiver, Radio Beacon |
| 86915 | Transceiver, Optical Beacon |
| 86916 | Separator, Traffic Information FM |
| 86920 | Antenna Assy, Traffic Information |
| 86931 | Computer, Traffic Information |
| 86932 | Wire, Traffic Information |
| 86934 | Bracket, Traffic Information, NO.1 |
| 86934A | Bracket, Traffic Information, NO.2 |
| 86934B | Bracket, Traffic Information, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
