Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

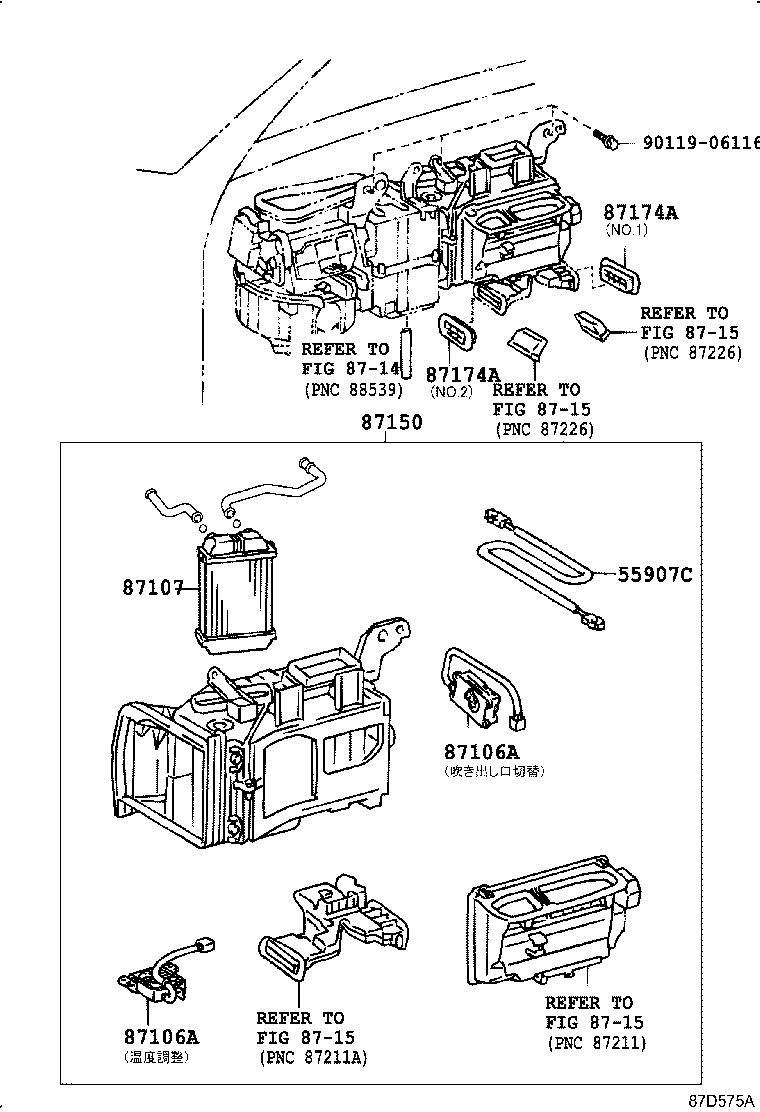

Heating & Air Conditioning - Heater Unit & Blower
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87121A | Bracket, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87165 | Control, Blower Motor, NO.1 |
| 87174A | Guide, Air Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
