Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10

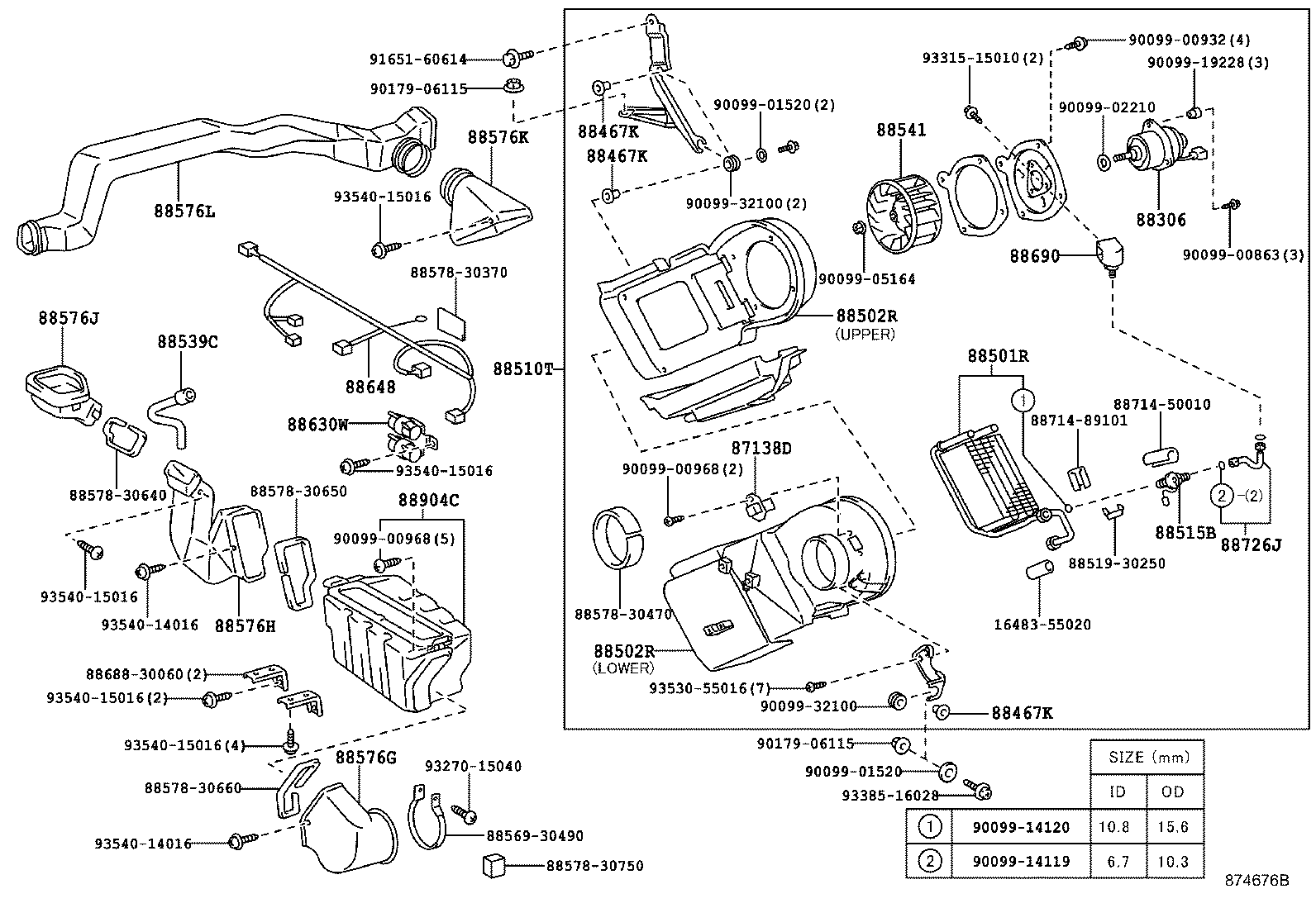

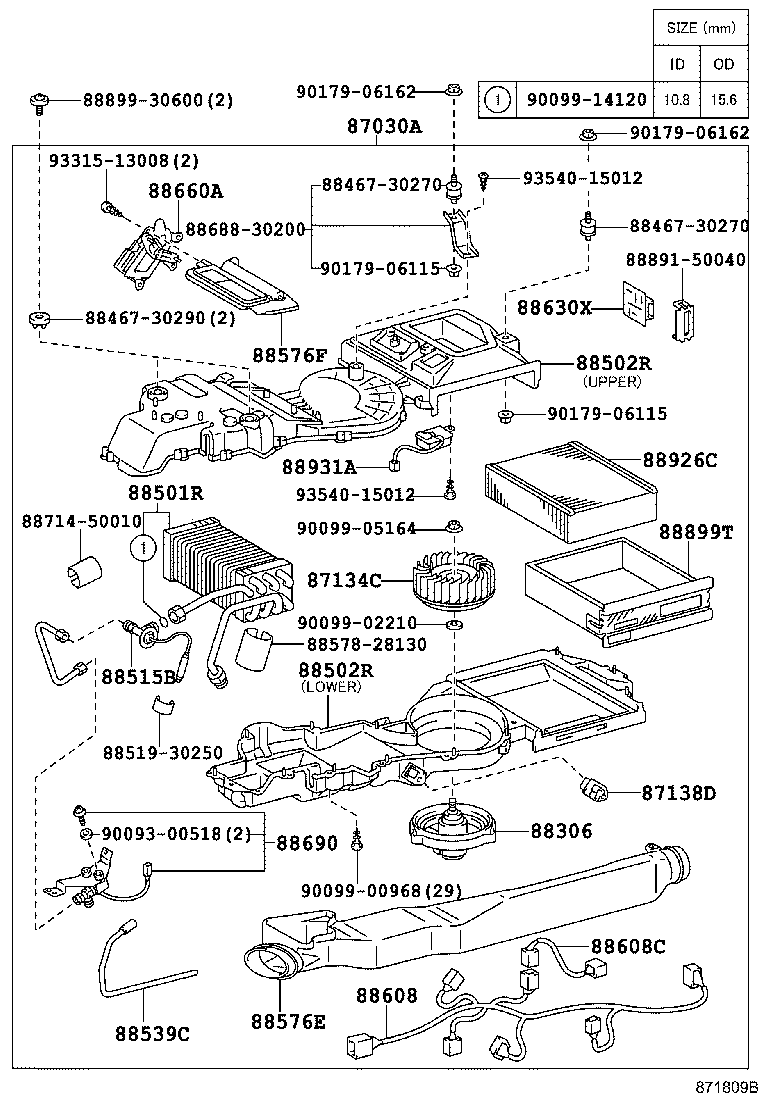

Heating & Air Conditioning - Cooler Unit

44 part groups · 4 illustrations

PNC	Description
87030A	Unit Assy, Cooling, Rear
87134C	Fan, Blower(FOR COOLING UNIT)
87138D	Resistor, Blower (REAR)
87529	Plate, Air Filter Caution
88306	Motor Sub-assy, Cooler Blower, NO.1
88467K	Insulator, Condenser Mounting
88501	Evaporator Sub-assy, Cooler, NO.1
88501R	Evaporator Sub-assy (REAR)
88502R	Case Sub-assy, Cooling Unit
88508	Filter Sub-assy, Clean Air
88510	Unit Assy, Cooler
88510T	Unit Assy, Cooling (REAR)
88515	Valve, Cooler Expansion
88515B	Valve, Rear Cooling Unit Expansion
88539	Hose, Cooler Unit Drain, NO.1
88539C	Hose, Cooler Unit Drain, NO.2
88541	Fan, Blower
88576E	Duct, Cooler Air, NO.1
88576F	Duct, Cooler Air, NO.2
88576G	Duct, Cooler Air, NO.3
88576H	Duct, Cooler Air, NO.4
88576J	Duct, Cooler Air, NO.5
88576K	Duct, Cooler Air, NO.6
88576L	Duct, Cooler Air, NO.7
88608	Harness Sub-assy, Wiring Air Conditioner
88608C	Harness Sub-assy, Wiring Air Indicator, NO.2
88625	Thermistor, Cooler, NO.1
88630	Relay Assy, Cooler
88630W	Relay Assy
88630X	Relay Assy
88648	Wiring, Cooler, NO.1
88650	Amplifier Assy, Cooler Stabilizer
88660A	Servo Assy, Air Conditioner, NO.1
88690	Valve Assy, Cooler Magnet
88710A	Tube Assy, Air Conditioner
88723A	Label, Cooler Service Caution
88726J	Pipe, Cooler Refrigerant Liquid, J
88880B	Filter Assy, Clean Air
88891S	Cover, Cooler, NO.1
88899K	Plate, Cover
88899T	Frame, Rear Cooler
88904C	Case Sub-assy, Air Pulifier
88926C	Filter Air Purifier
88931A	Sensor, Smoke

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
