Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 9 illustrations

Illustrations

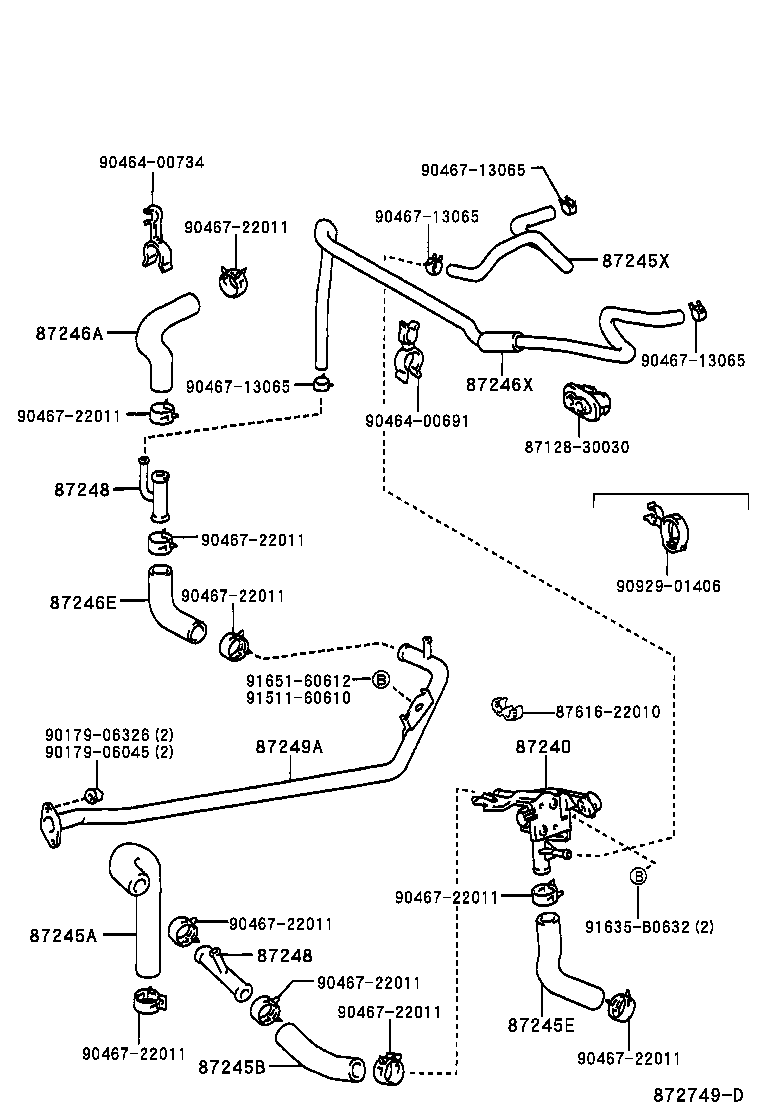

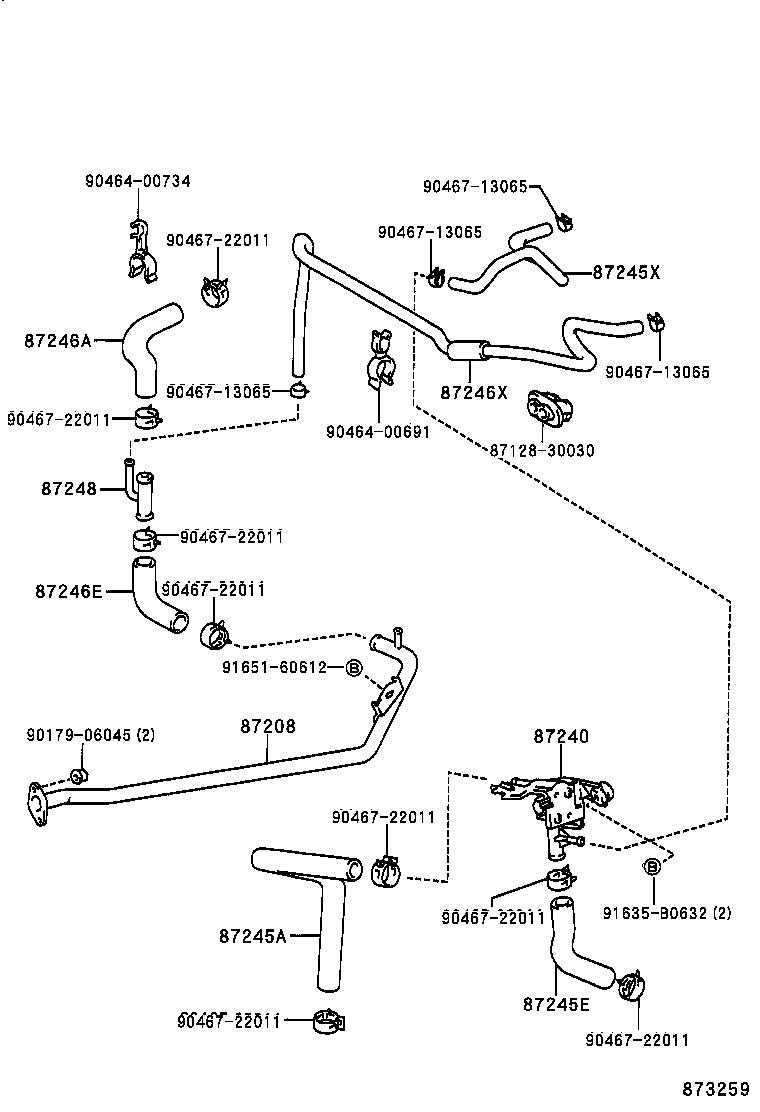

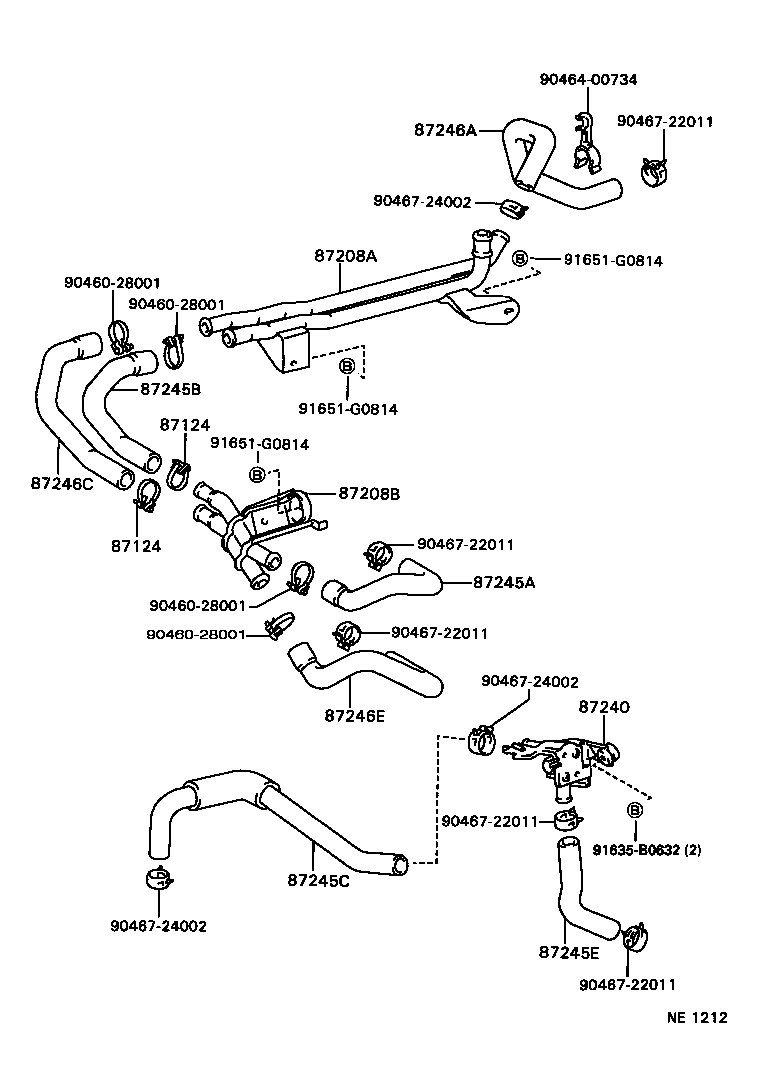

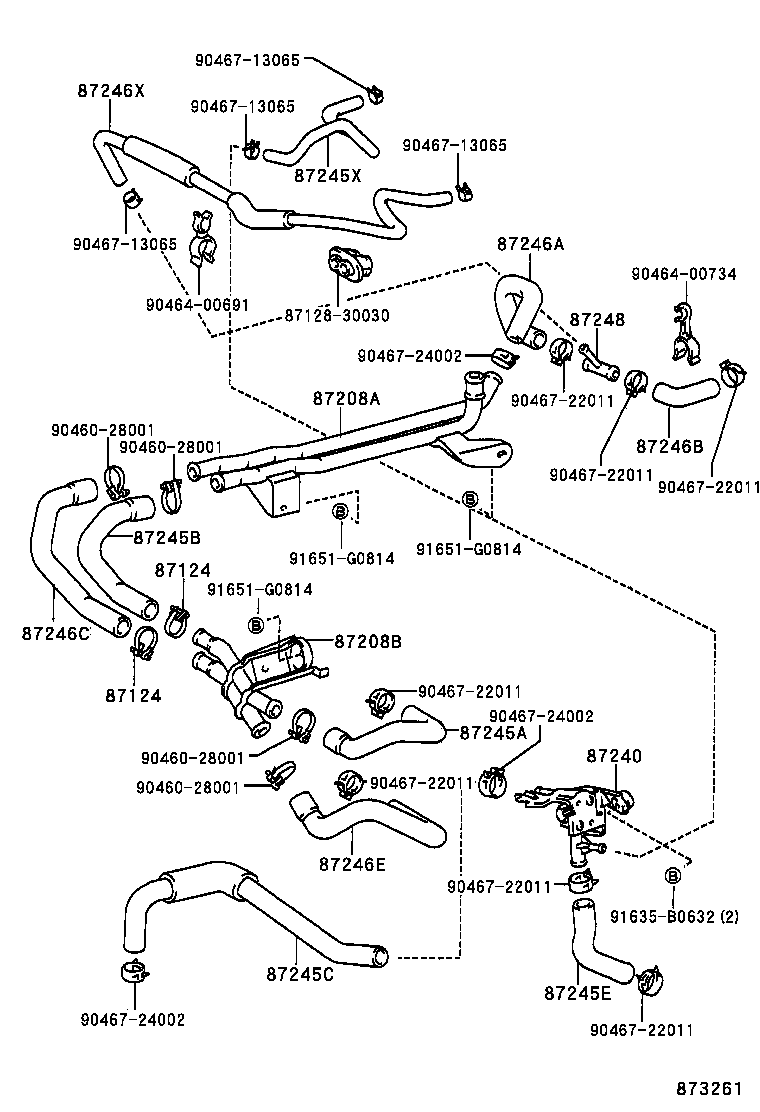

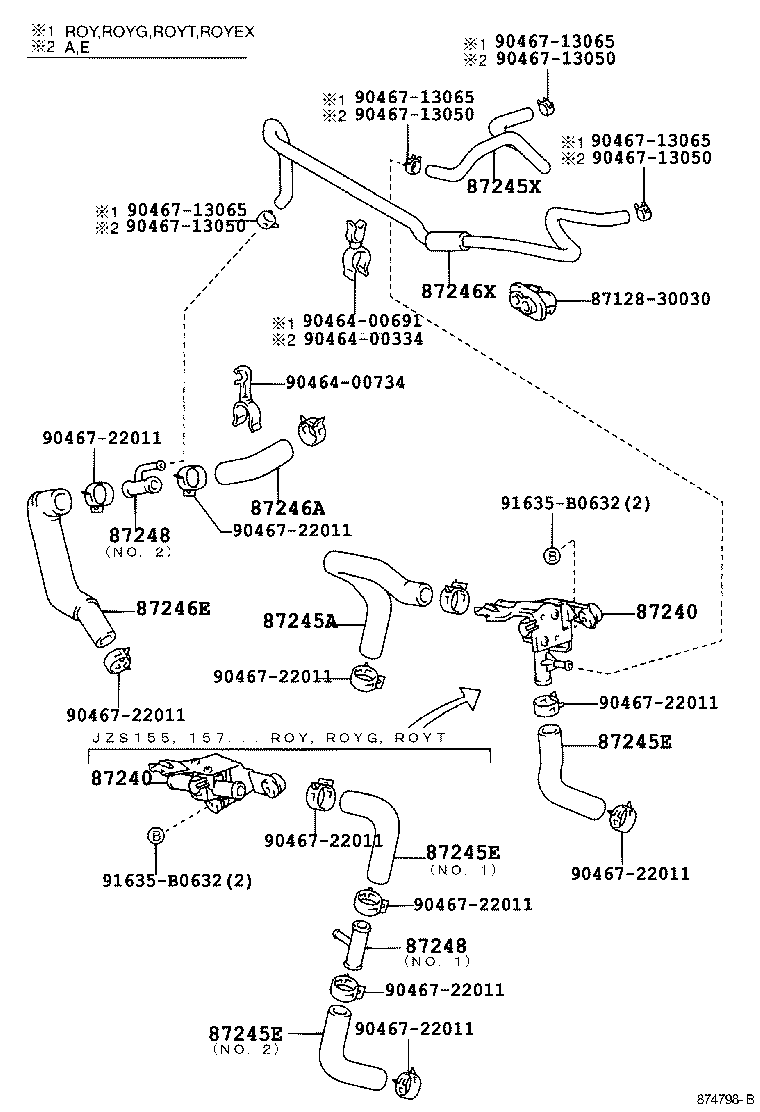

Figure 87A366B 87A366B 1995-08 → — Figure 873259 873259 1995-08 → 1998-08 Figure 872749D 872749D 1998-08 → — Figure 87F109 87F109 1995-08 → — Figure 874798B 874798B 1995-08 → — Figure NE1212 NE1212 1995-08 → — Figure 873261 873261 1995-08 → — Figure NE1214 NE1214 1995-08 → — Figure 871915B 871915B 1995-08 → —

Part groups

PNCDescription
87124 Clamp, Heater
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246E Hose, Heater Water, Outlet E
87246X Hose, Heater Water
87248 Pipe Sub-assy, Water
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
