Heating & Air Conditioning - Cooler Piping

47 part groups · 12 illustrations

Illustrations

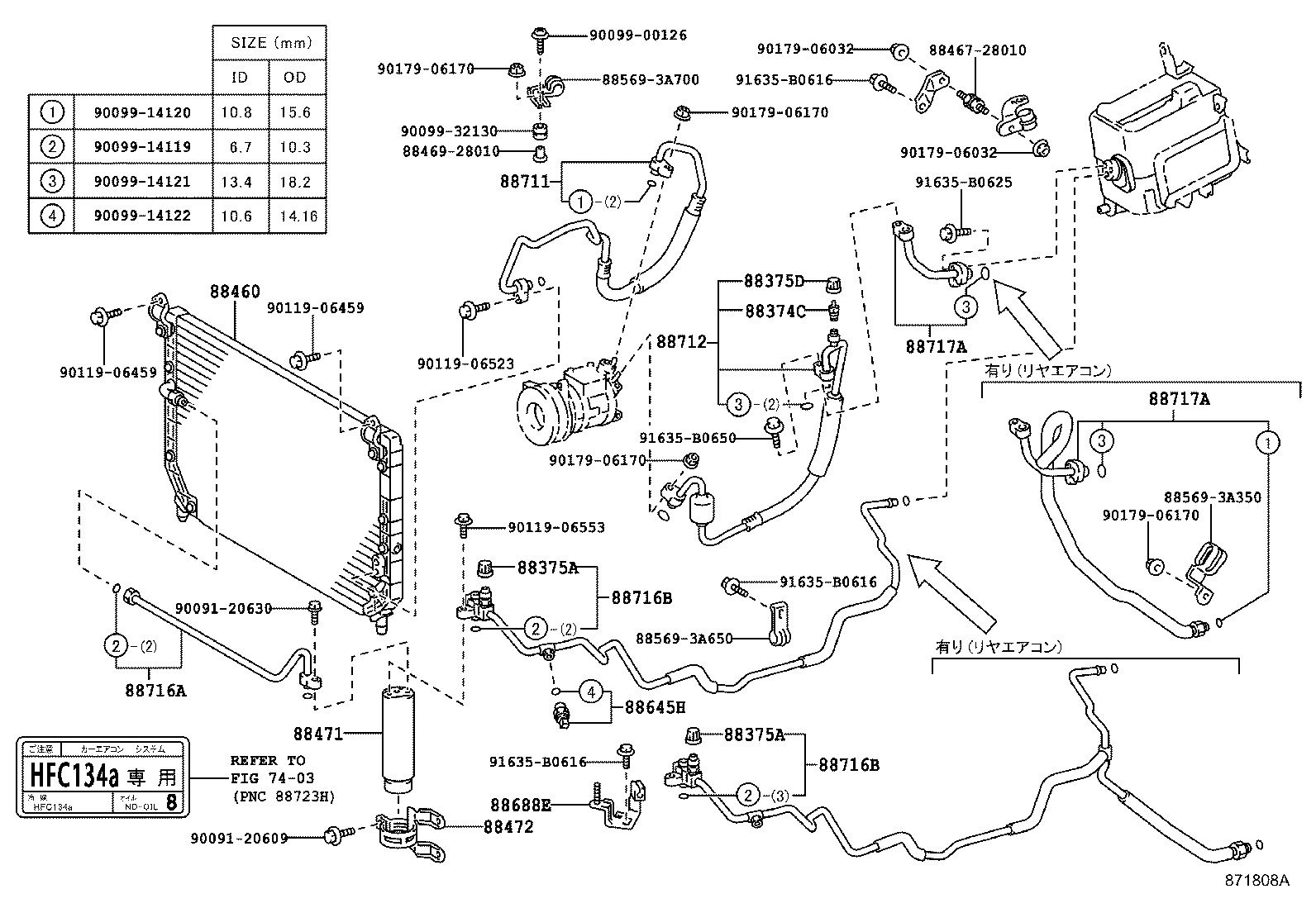

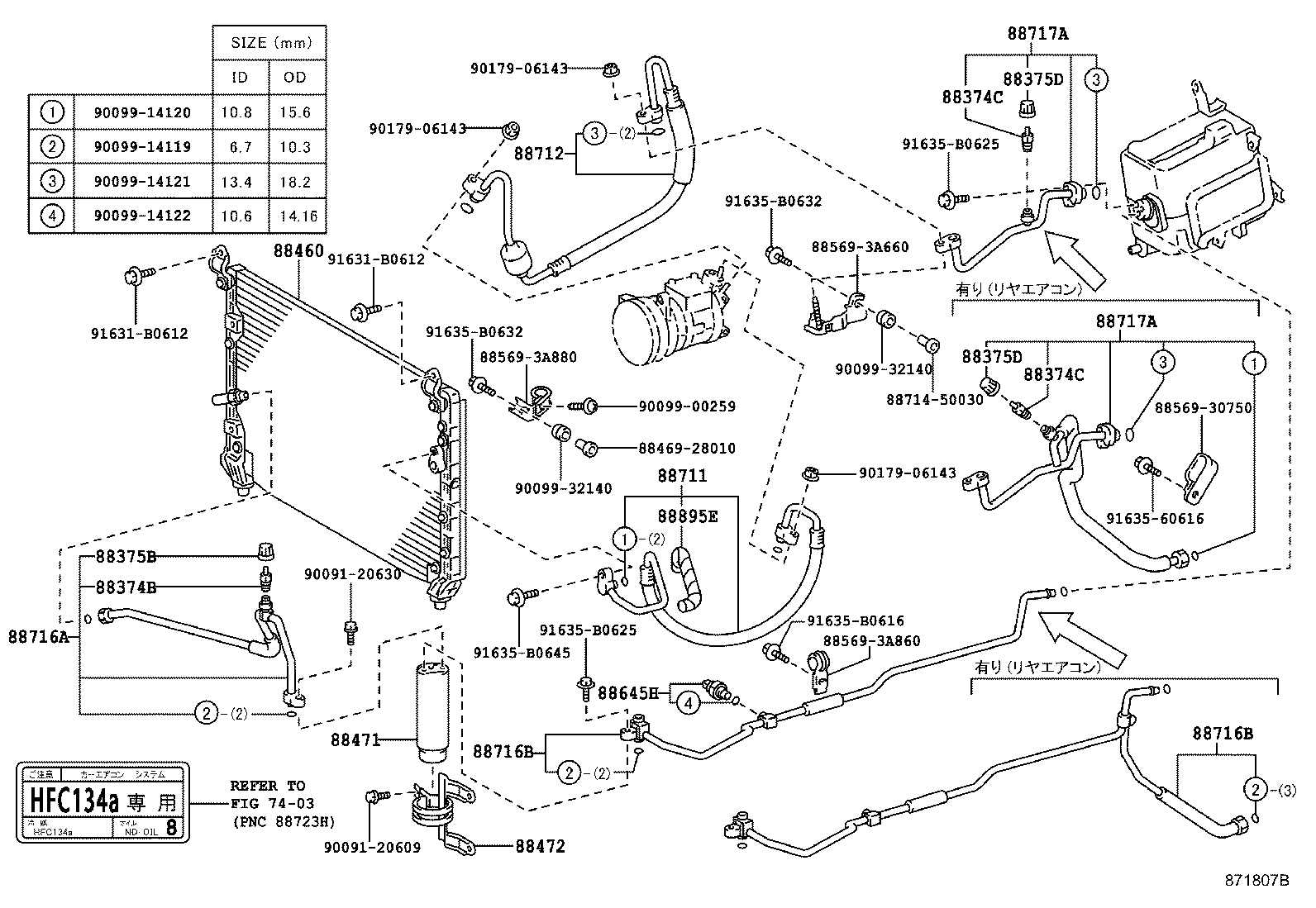

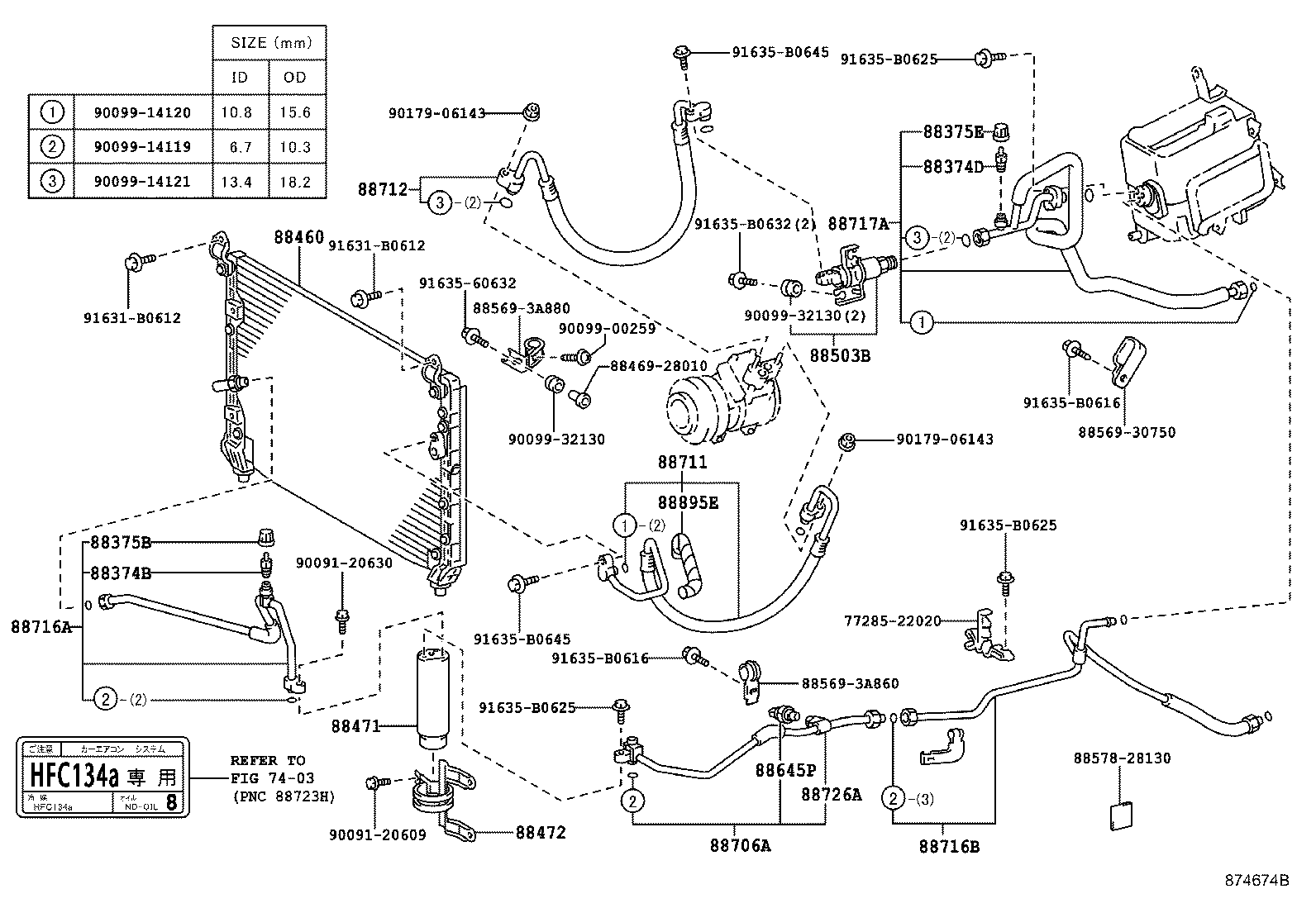

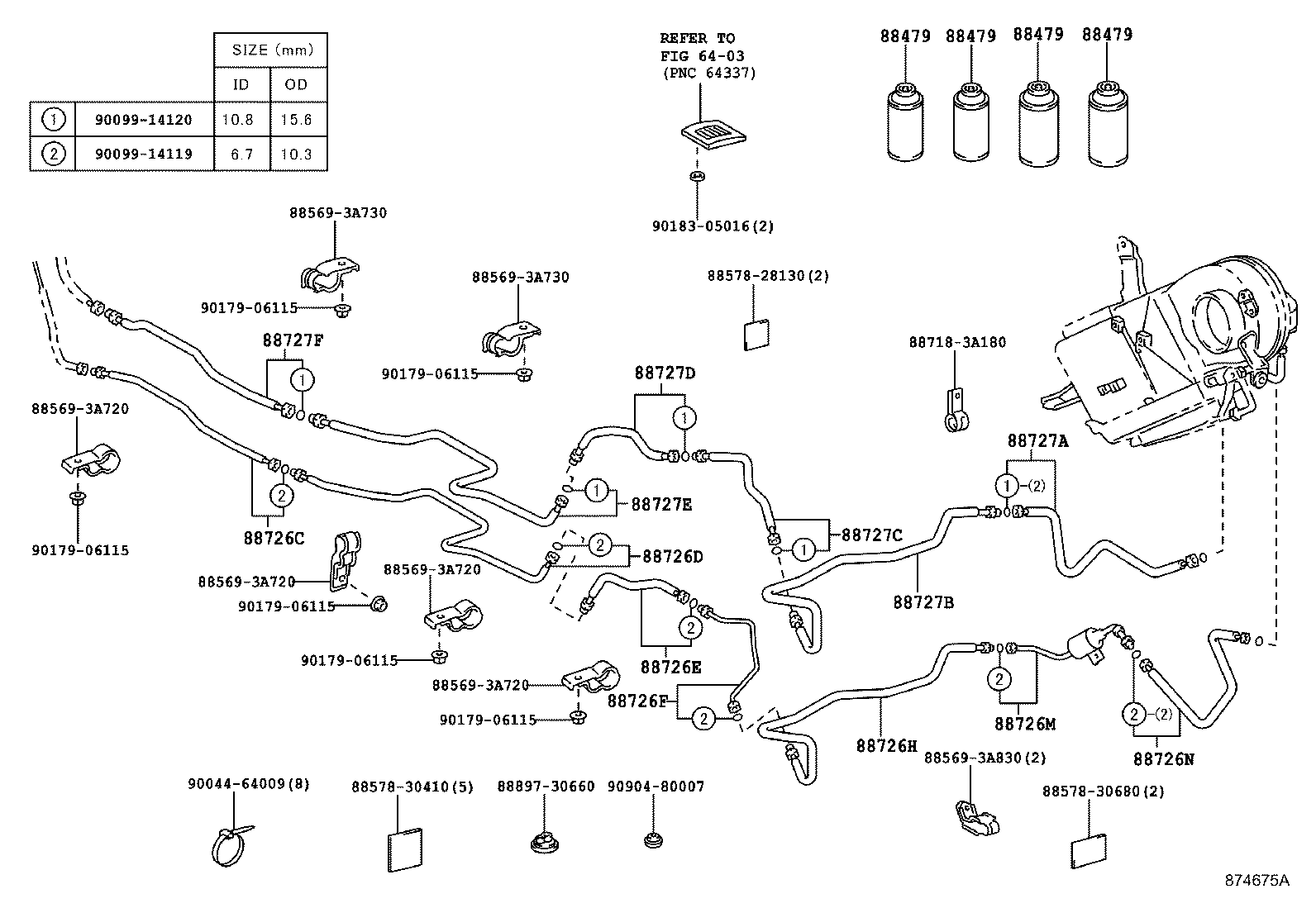

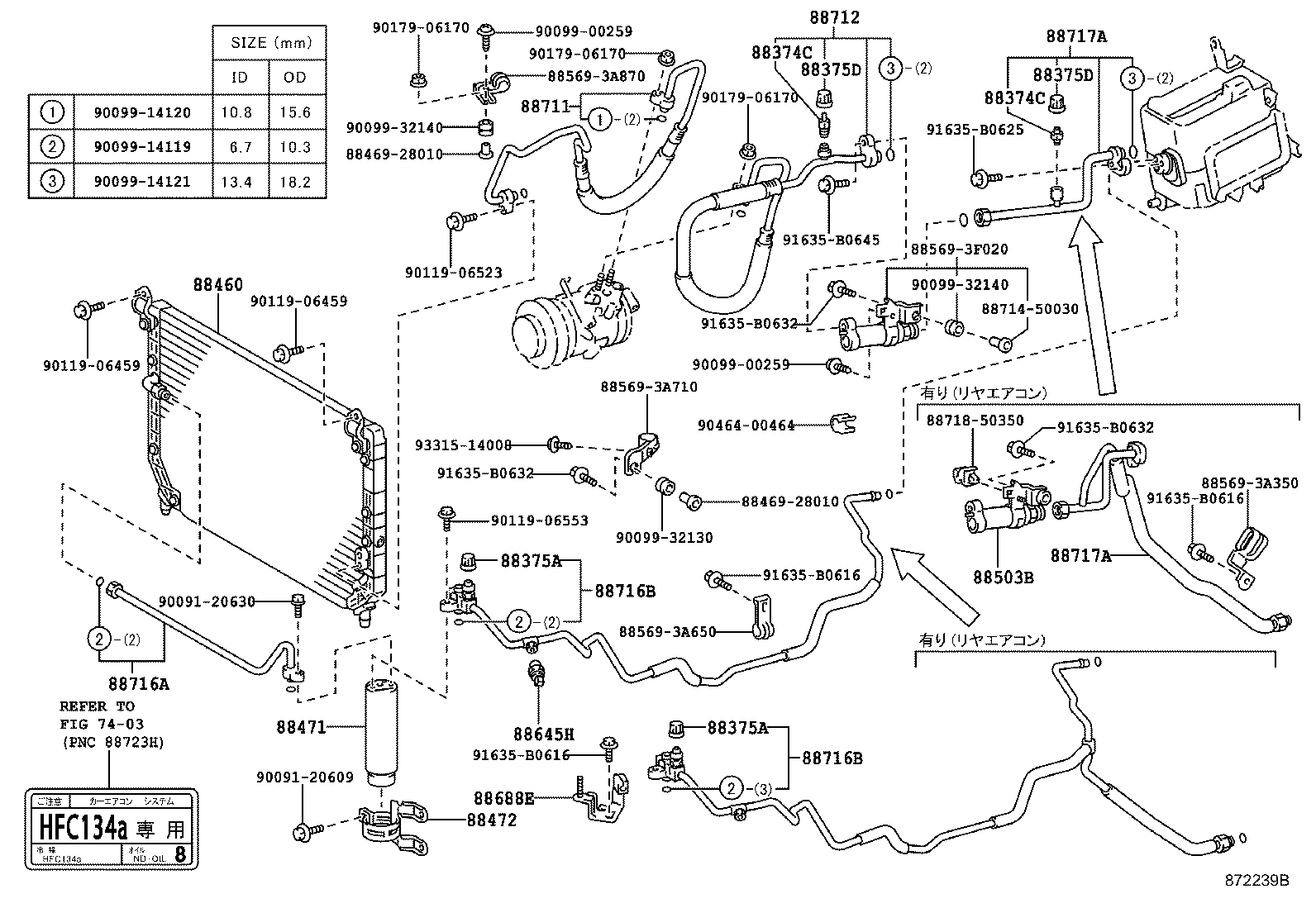

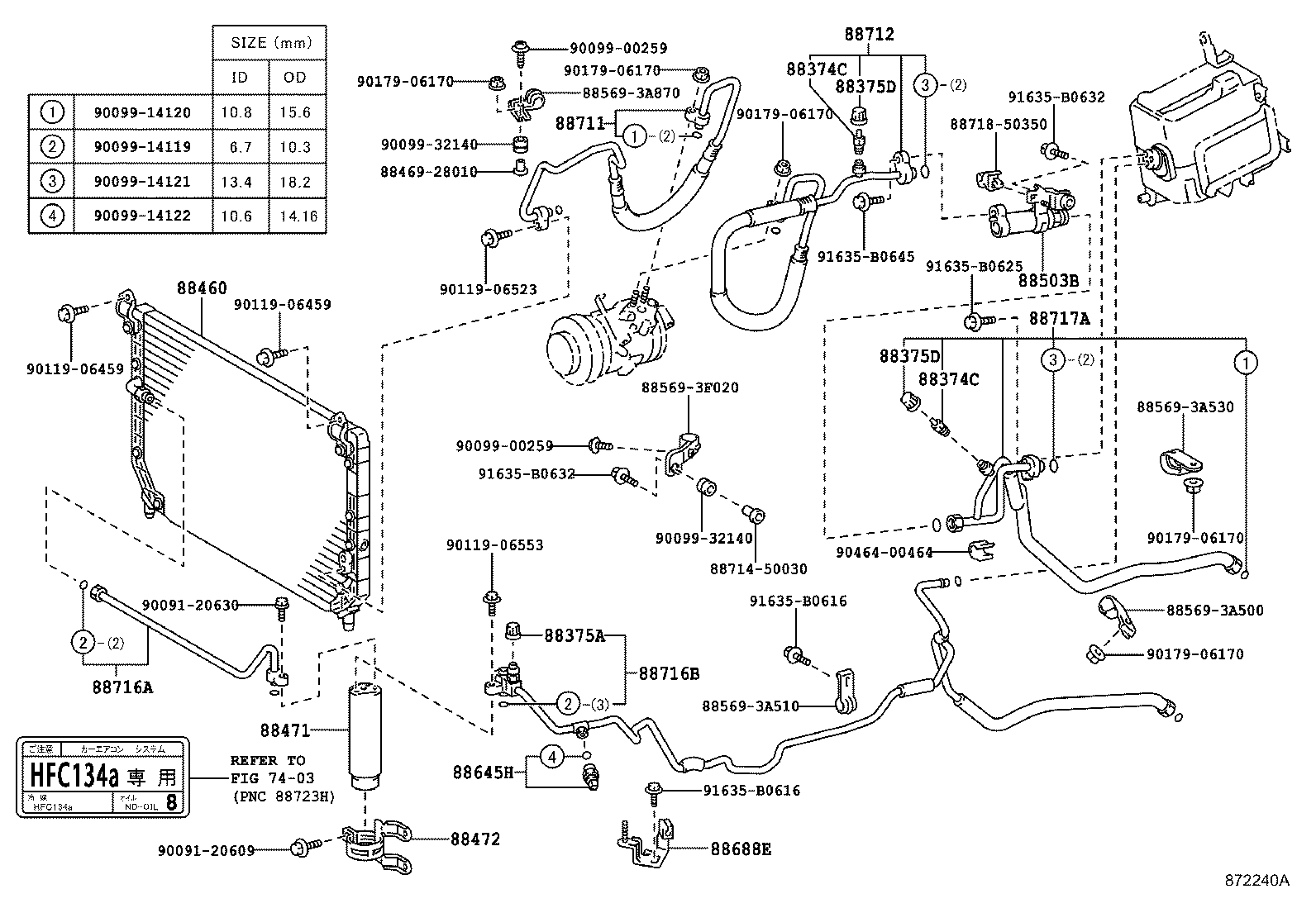

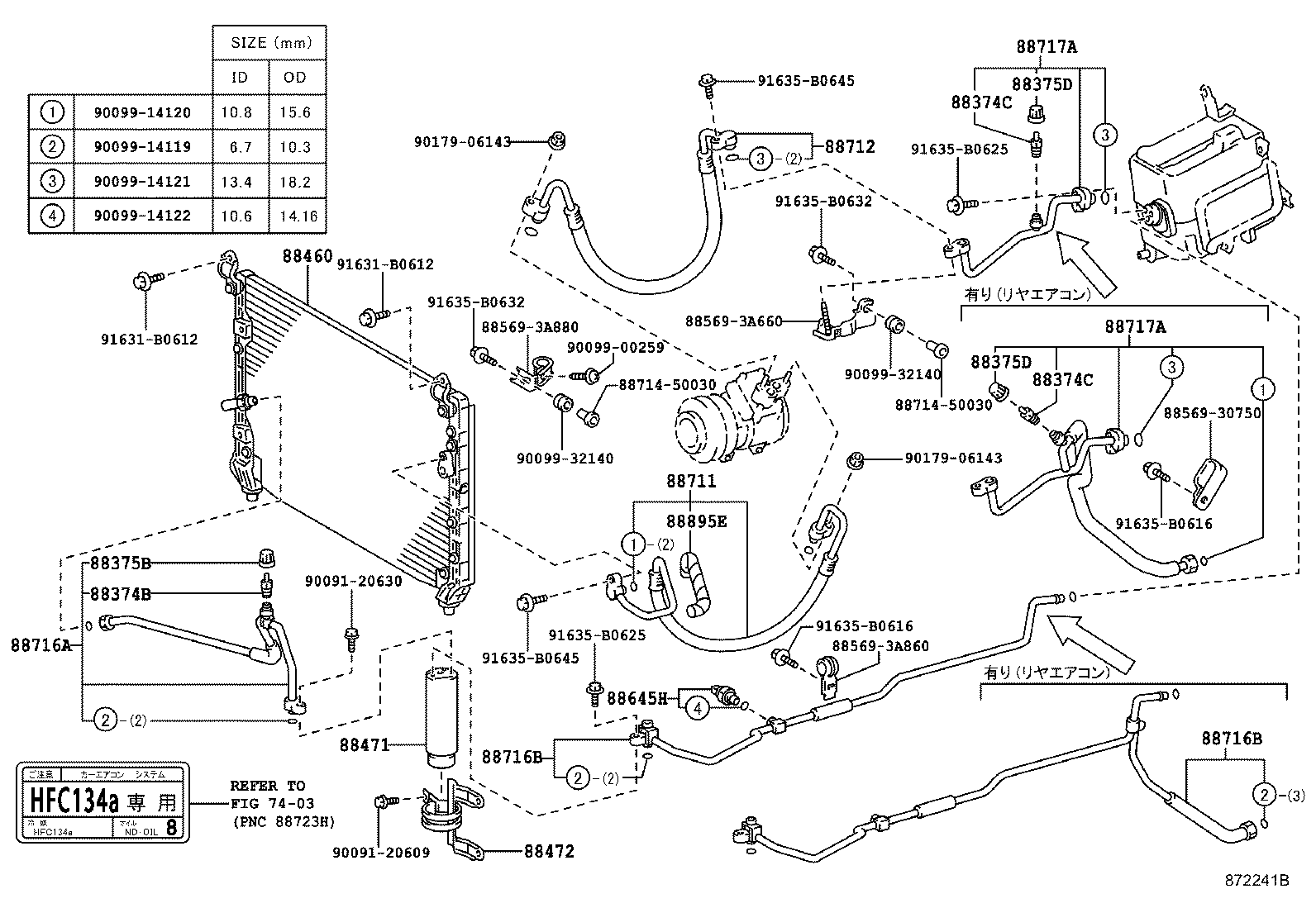

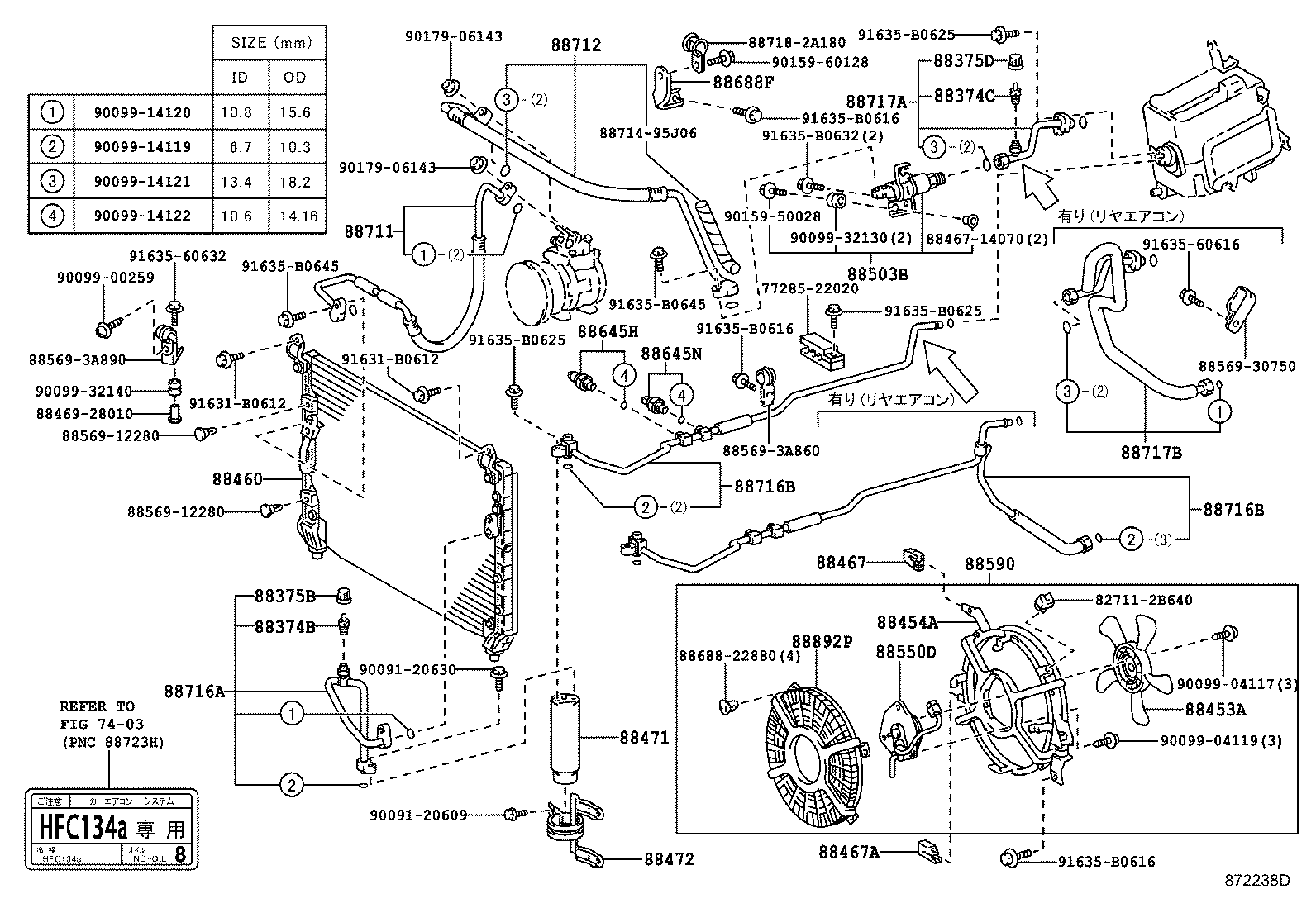

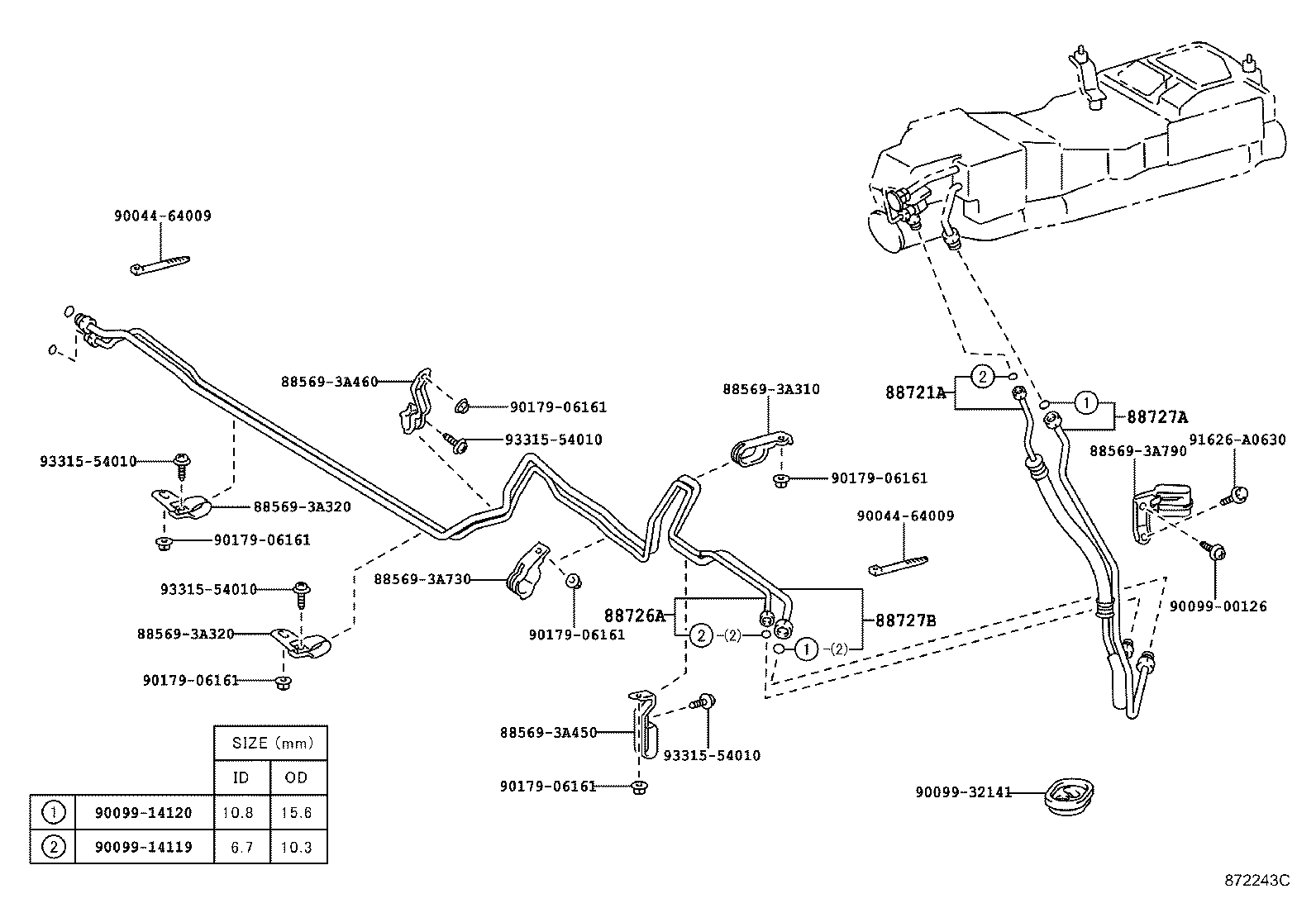

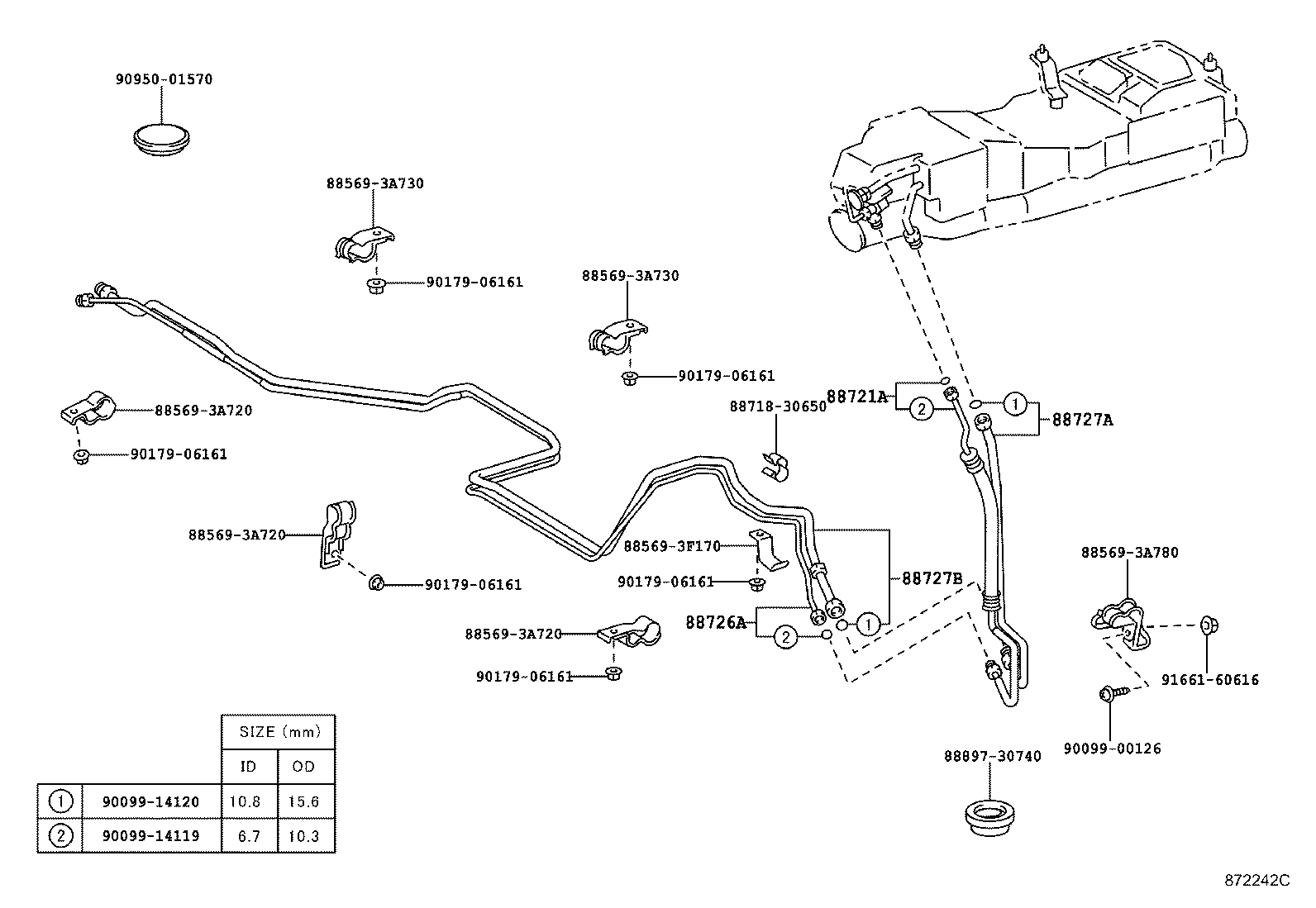

Figure 872237A 872237A 1995-08 → 1997-07 Figure 872237A 872237A 1997-07 → — Figure 872241B 872241B 1997-07 → — Figure 871807B 871807B 1995-08 → — Figure 871808A 871808A 1995-08 → — Figure 872238D 872238D 1995-08 → — Figure 872239B 872239B 1995-08 → — Figure 872240A 872240A 1995-08 → — Figure 874674B 874674B 1995-12 → — Figure 872242C 872242C 1995-08 → — Figure 872243C 872243C 1995-08 → — Figure 874675A 874675A 1995-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375E Plug
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503B Regulator Sub-assy, Pressure
88550D Motor Assy, Blower
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88645N Switch, Pressure NO.2
88645P Switch, Pressure, NO.3
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88721A Hose, Liquid, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88726E Pipe, Cooler Refrigerant Liquid, E
88726F Pipe, Cooler Refrigerant Liquid, F
88726H Pipe, Cooler Refrigerant Liquid, H
88726M Pipe, Cooler Refrigerant Liquid, M
88726N Pipe, Cooler Refrigerant Liquid, N
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88727E Pipe, Cooler Refrigerant Suction, E
88727F Pipe, Cooler Refrigerant Suction, F
88892P Net, Fan Shroud
88895E Insulator, Return Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
