Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

23 part groups · 9 illustrations

Illustrations

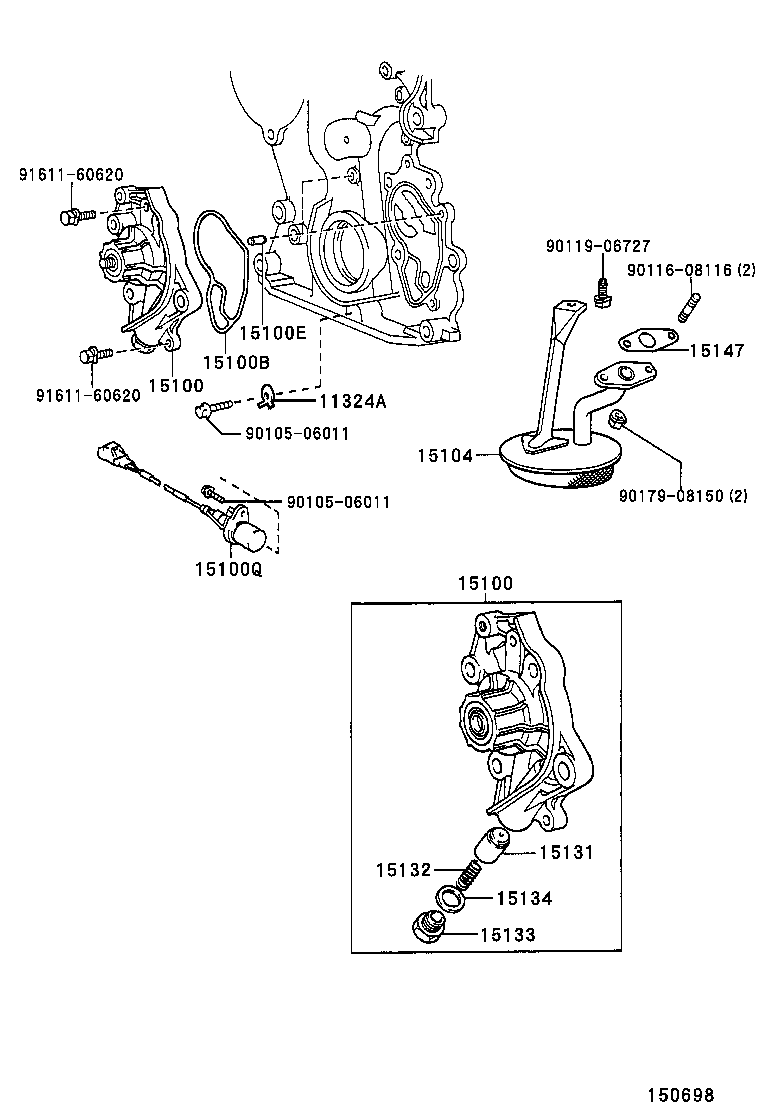

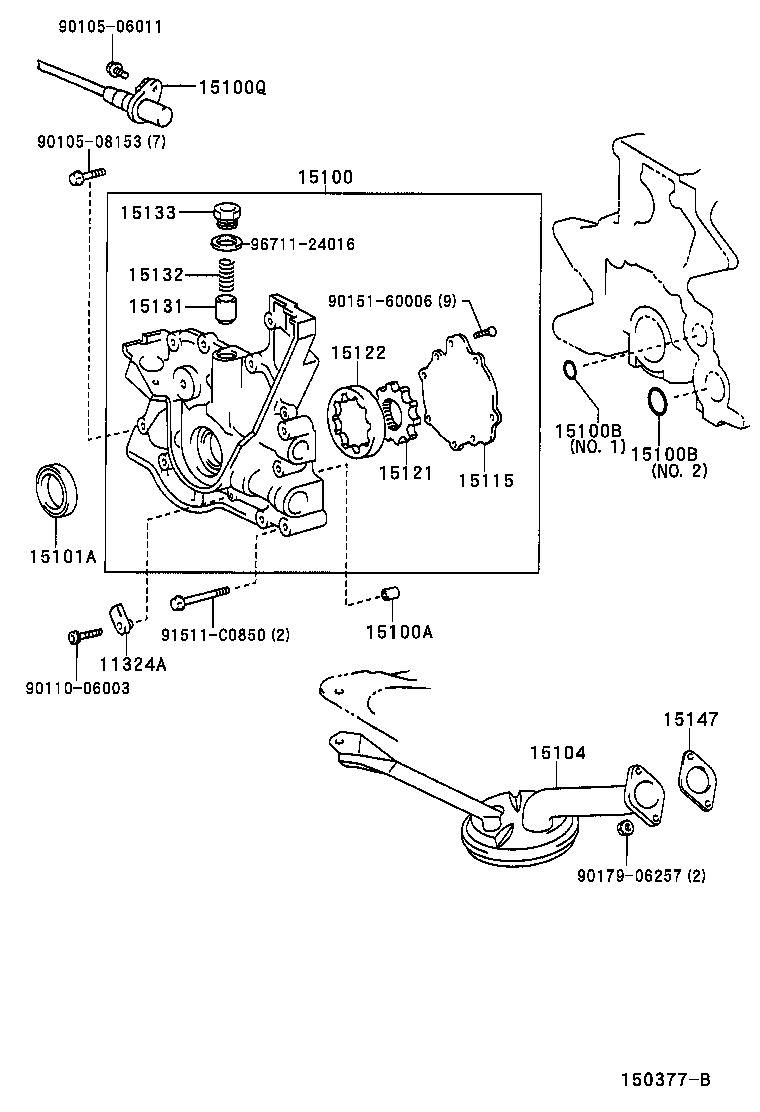

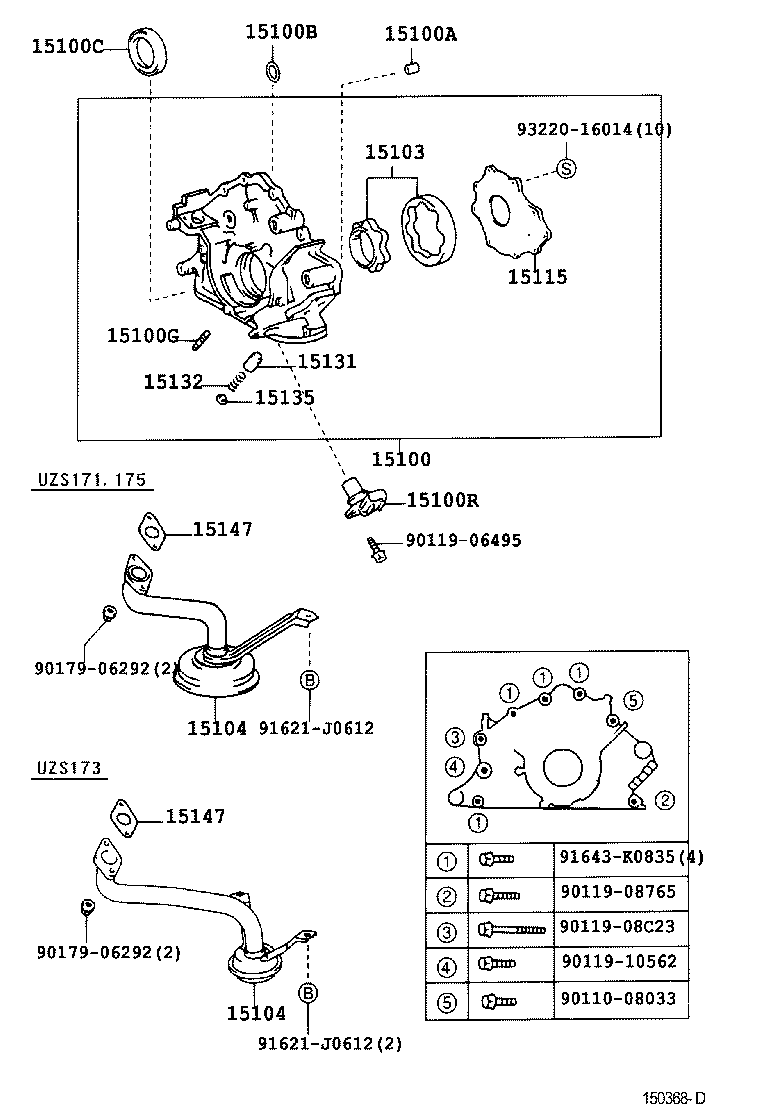

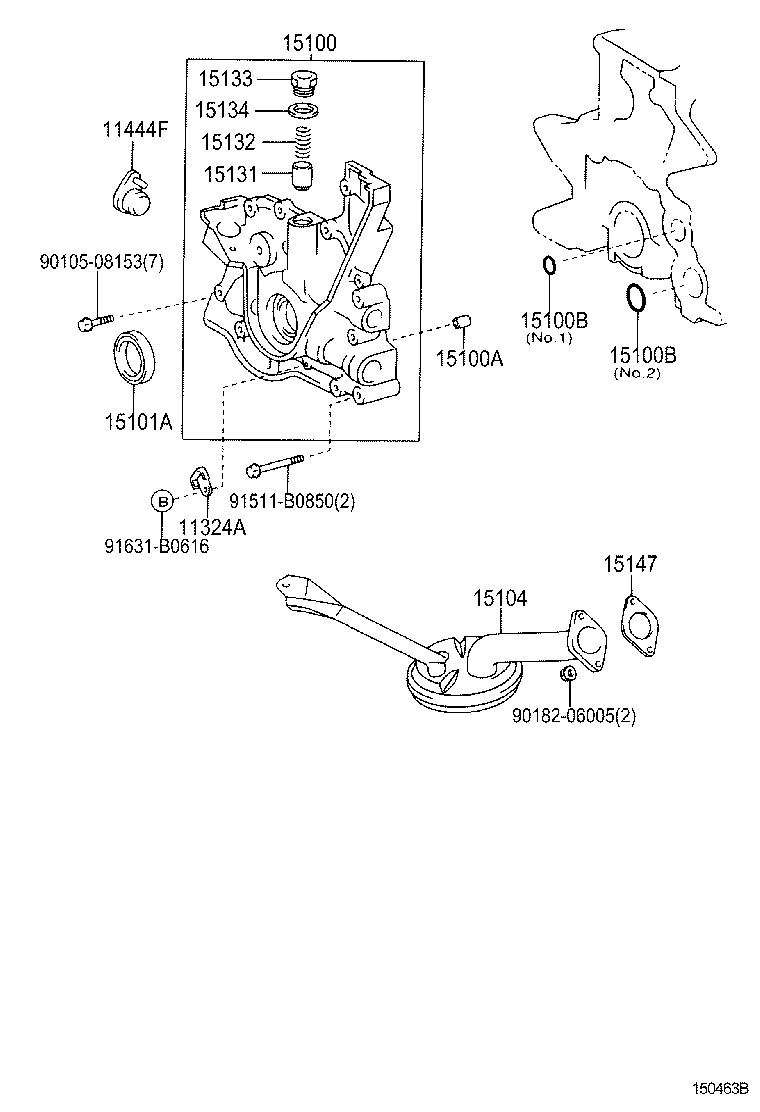

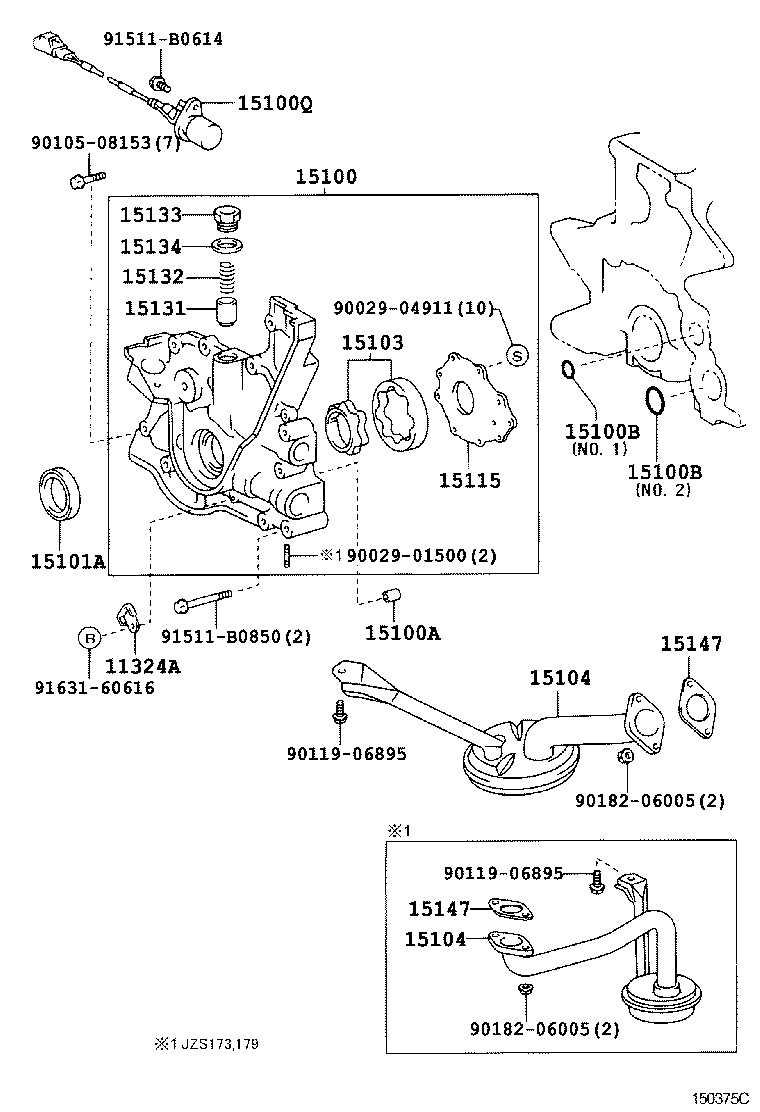

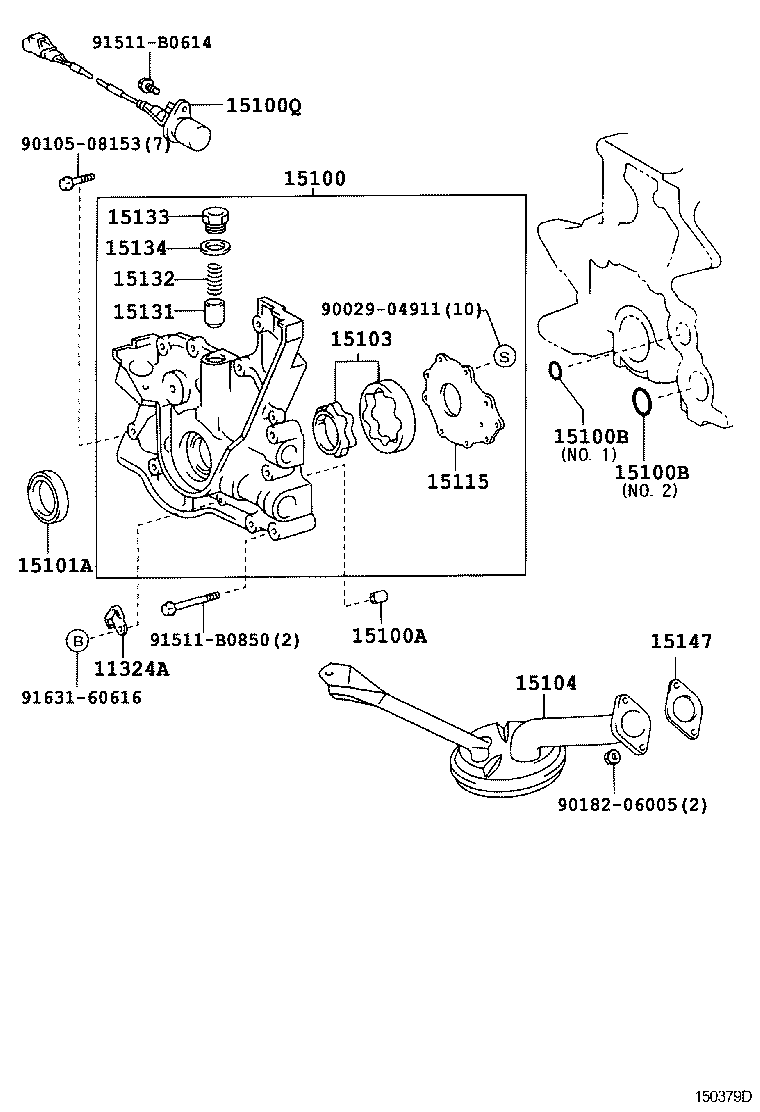

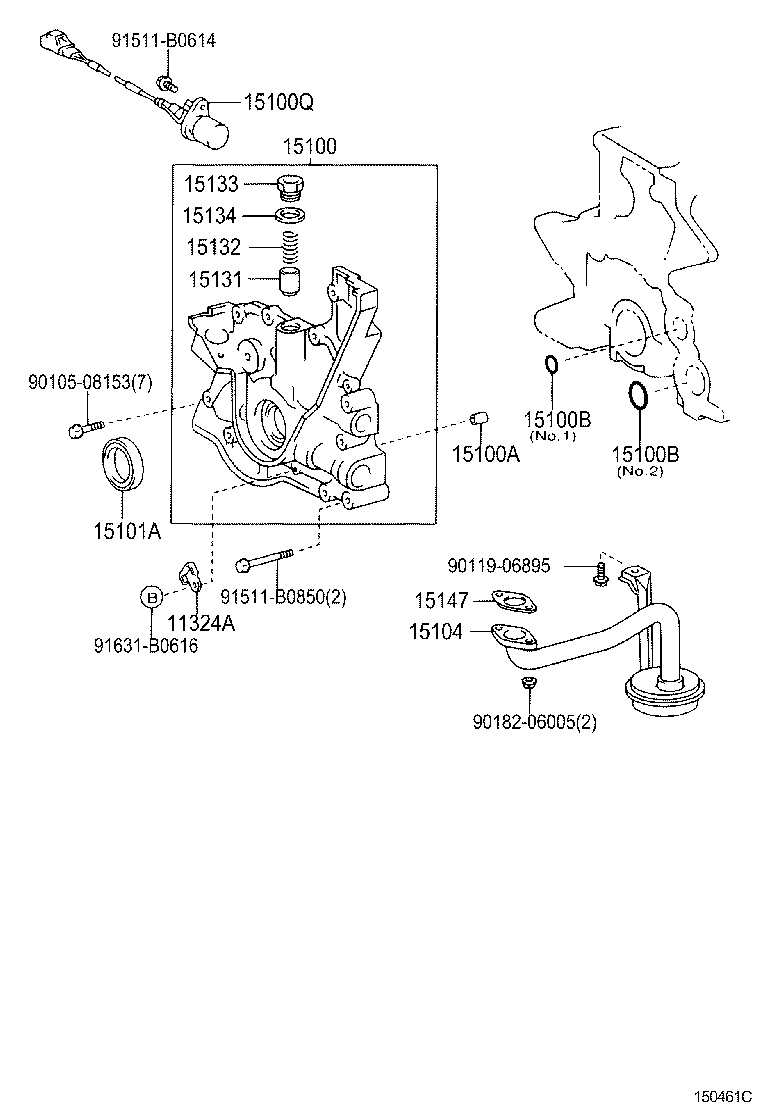

Figure 150365A 150365A 2000-04 → 2001-08 Figure 150698 150698 2001-08 → — Figure 150375C 150375C 1999-09 → 2001-08 Figure 150377B 150377B 1999-09 → 2001-08 Figure 150379D 150379D 1999-09 → 2001-08 Figure 150461C 150461C 2001-08 → — Figure 150462 150462 2001-08 → — Figure 150463B 150463B 2001-08 → — Figure 150368D 150368D 1999-09 → —

Part groups

PNCDescription
11324A Plate, Timing Belt
11444F Plug, Hole(FOR OIL PUMP)
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100E Pin, Straight (FOR OIL PUMP SET)
15100G Bolt,Stud(FOR OIL PUMP)
15100Q Sensor, Crank Position
15100R Sensor, Crank Position
15101A Seal(FOR CRANKSHAFT)
15102 Rotor Set, Oil Pump
15103 Gear Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
