Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

23 part groups · 5 illustrations

Illustrations

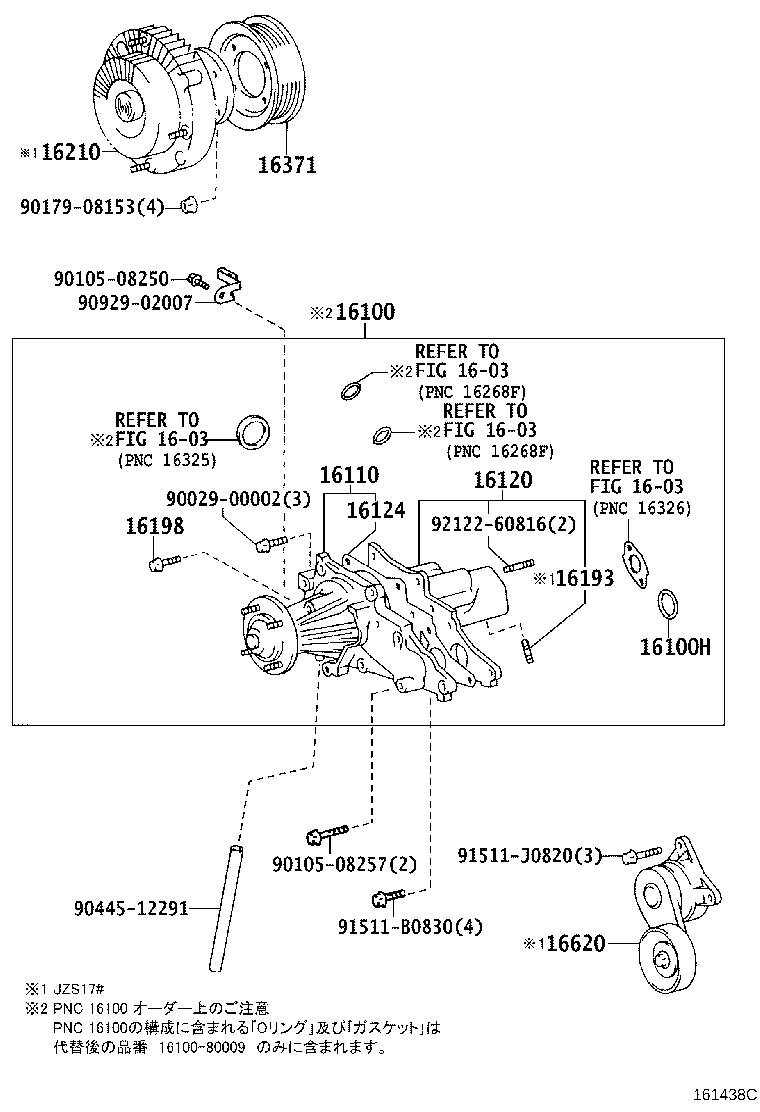

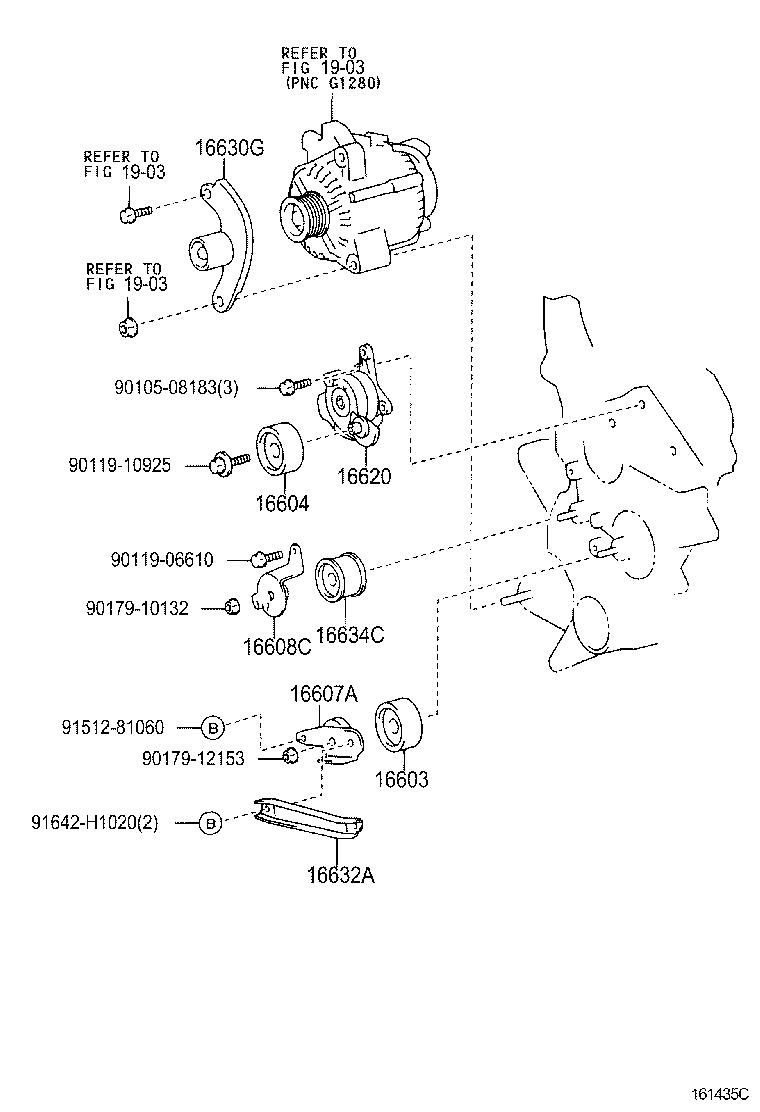

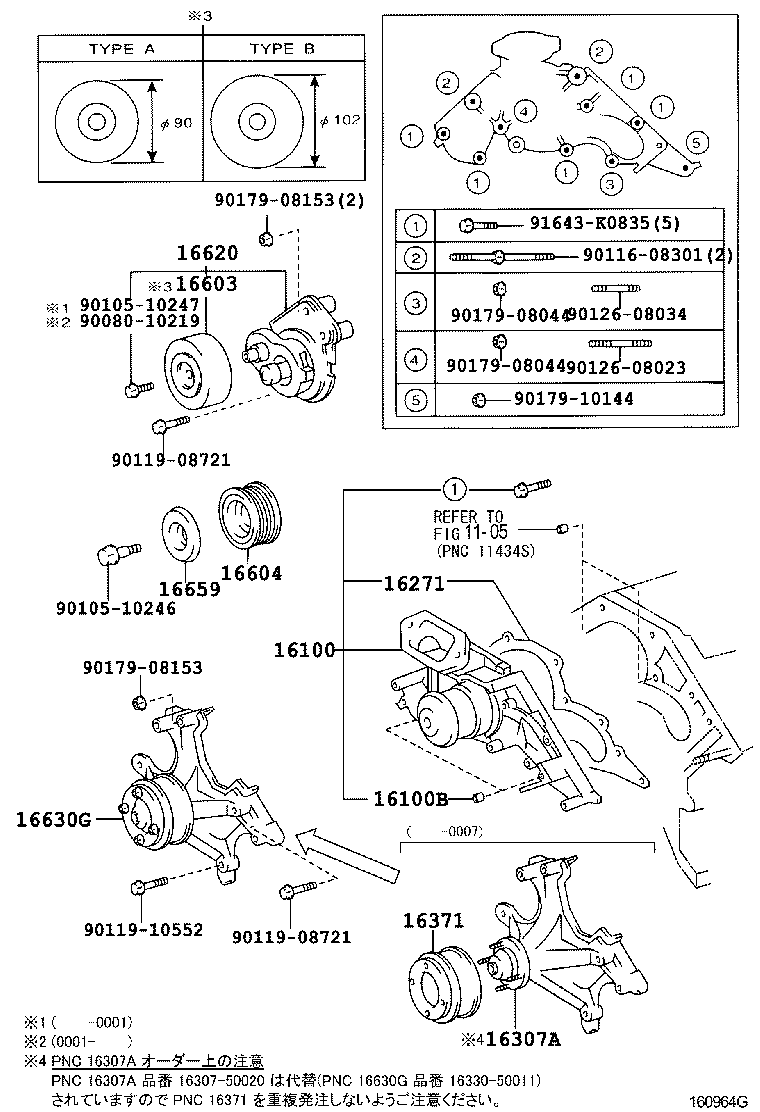

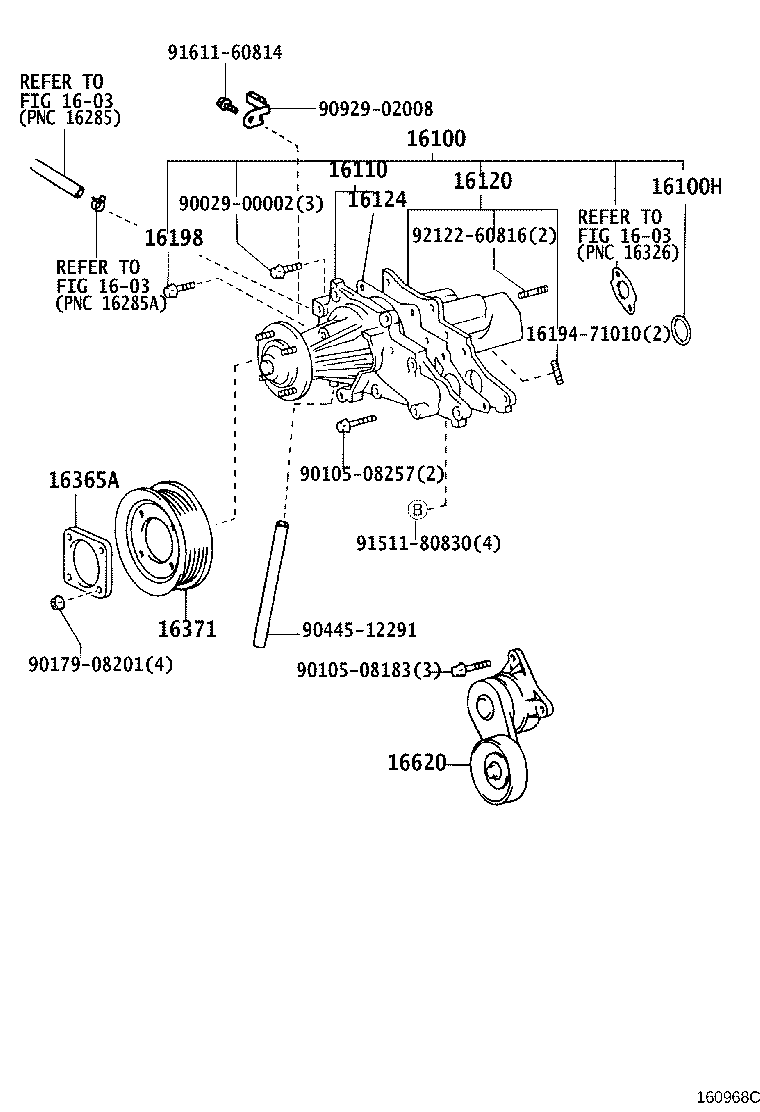

Figure 160957A 160957A 2000-04 → — Figure 161438C 161438C 1999-09 → — Figure 161435C 161435C 2001-08 → 2003-12 Figure 160968C 160968C 1999-09 → — Figure 160964G 160964G 1999-09 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100H Ring, O(FOR WATER PUMP)
16110 Pump Assy, Water, W/O Coupling
16120 Cover Assy, Water Pump
16124 Gasket, Water Pump Cover
16193 Bolt, Stud(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16365A Spacer, Fan
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16607A Bracket Sub-assy, Idler Pulley, NO.1
16608C Bracket Sub-assy, Idler Pulley, NO.2
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16632A Bracket, Idler Pulley, NO.2
16634C Collar, Idler Pulley
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
