Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 8 illustrations

Illustrations

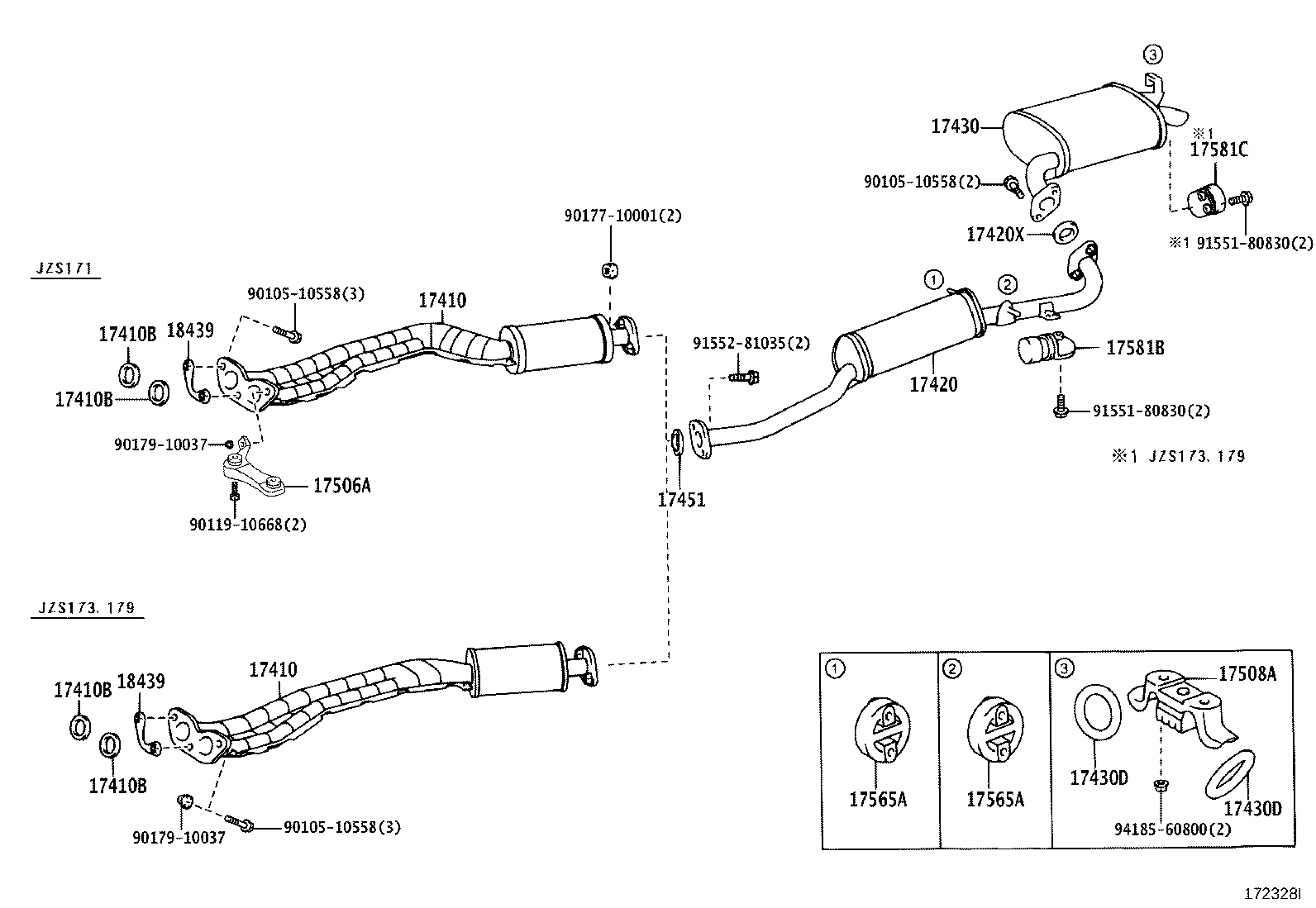

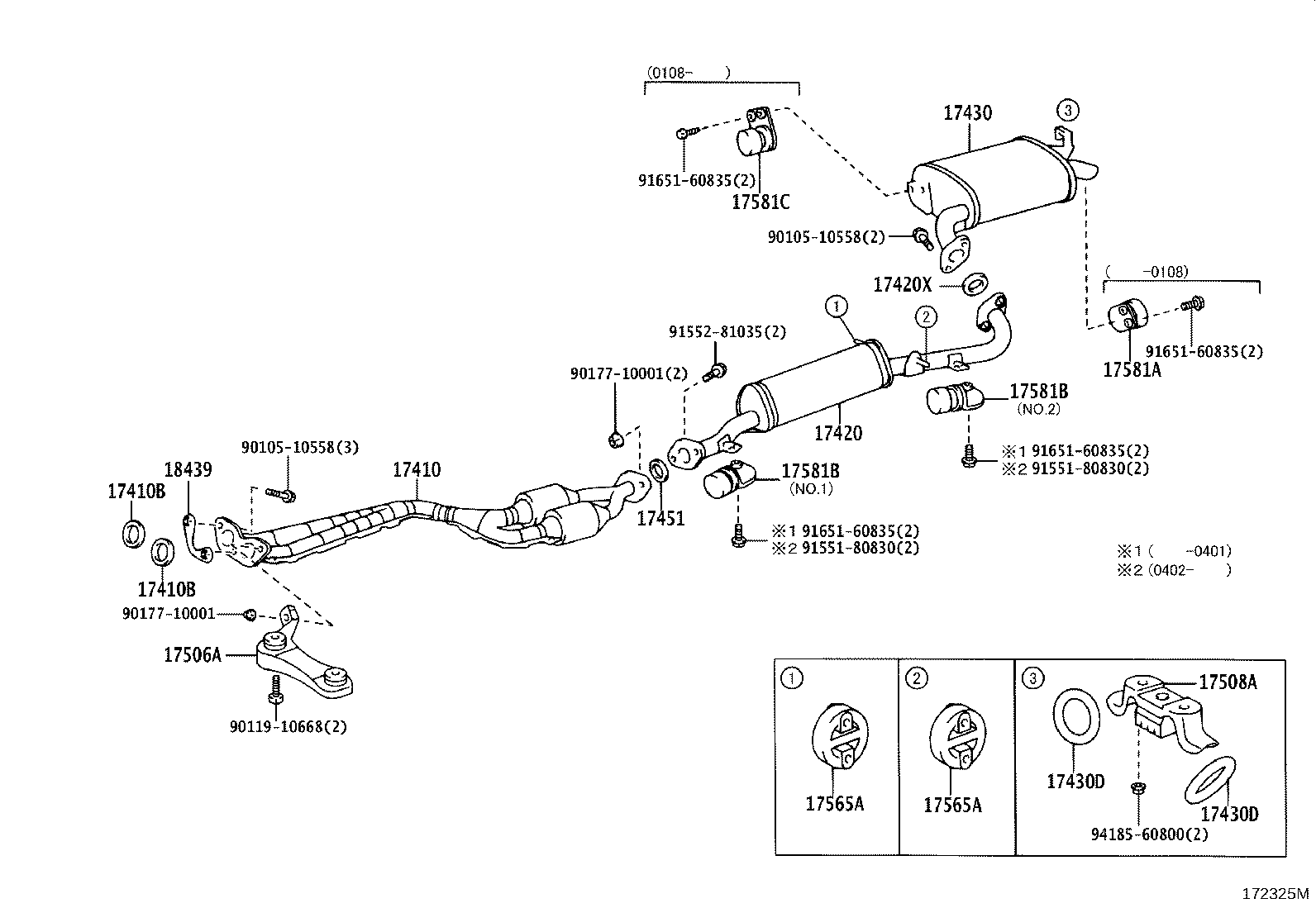

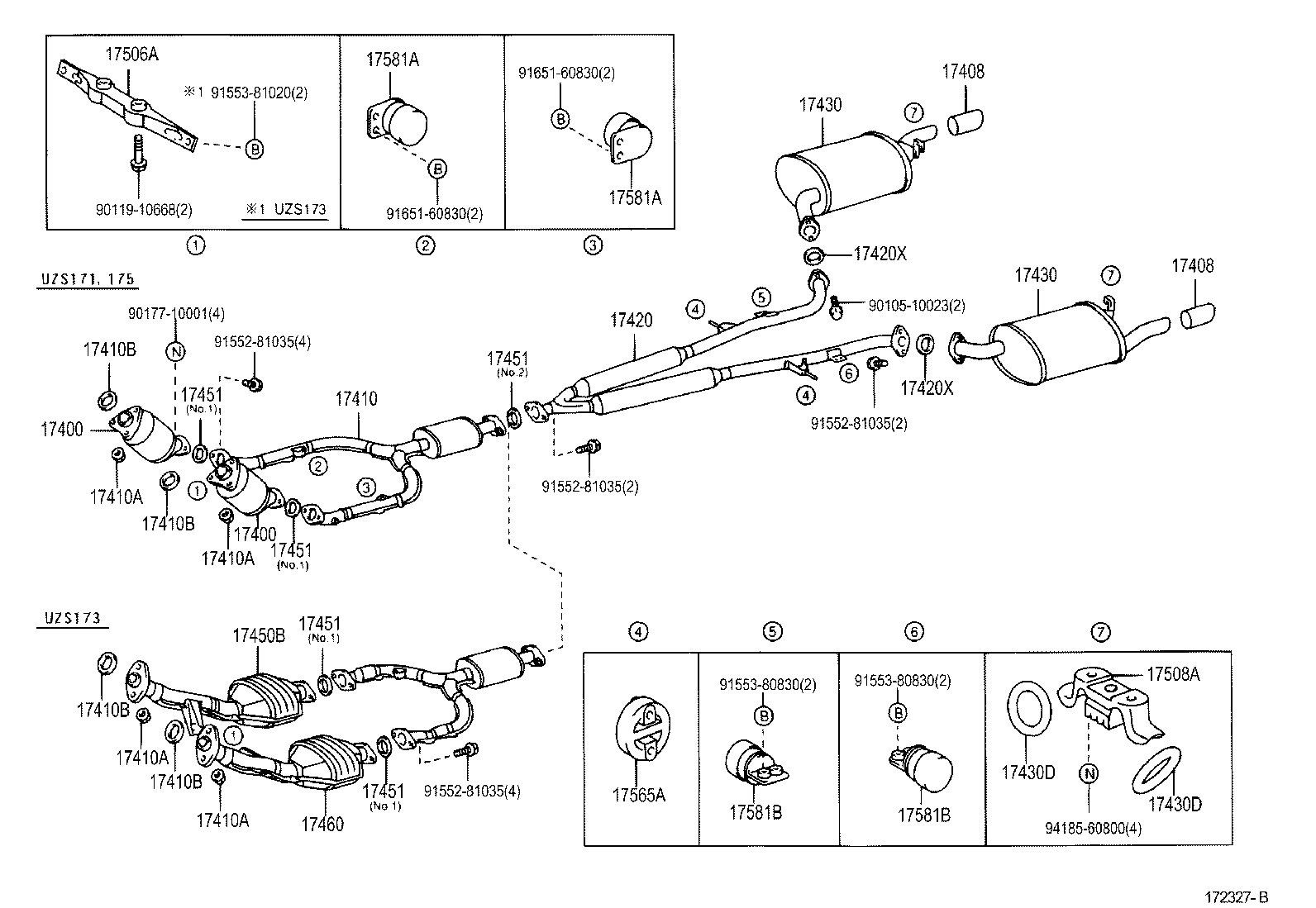

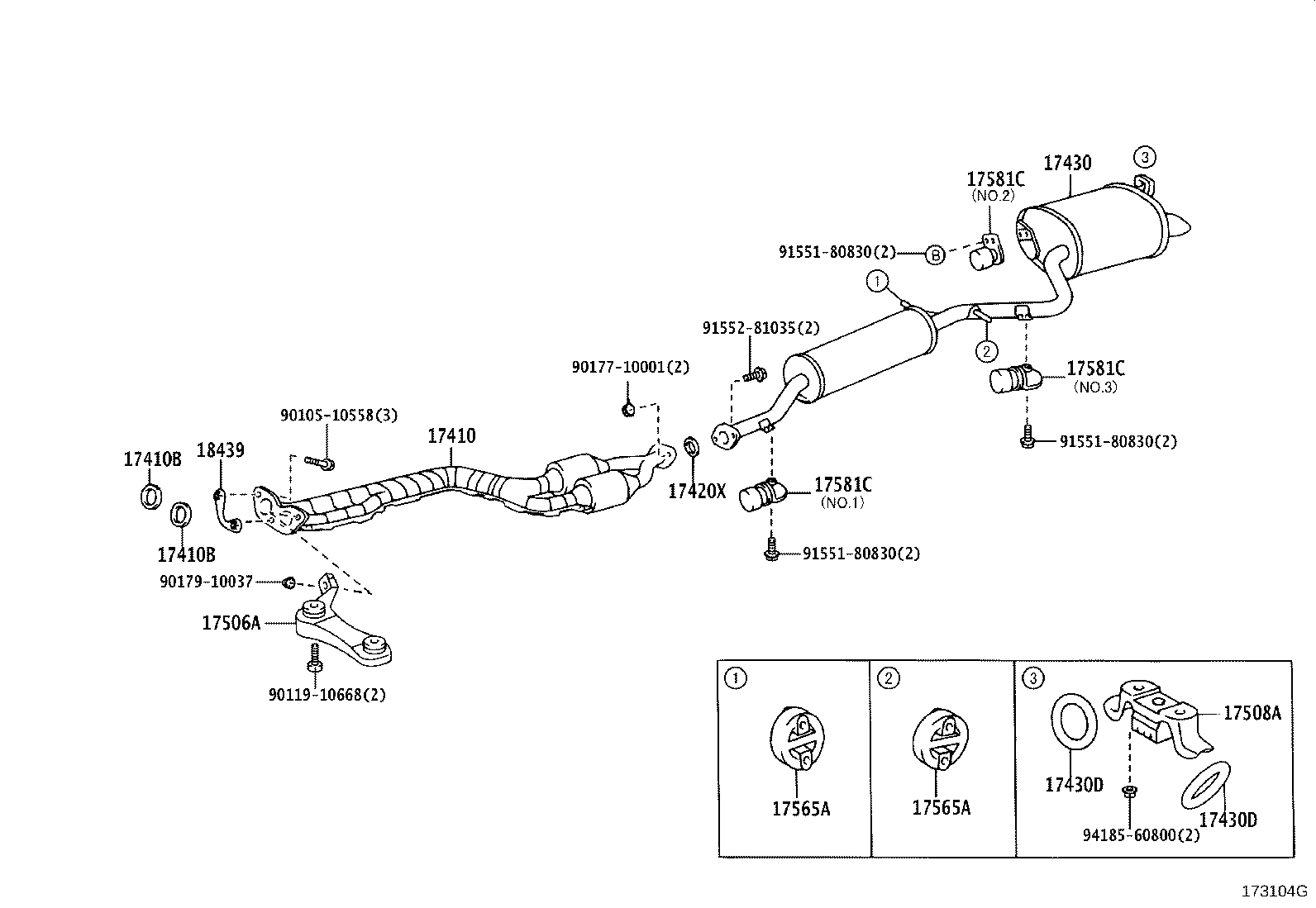

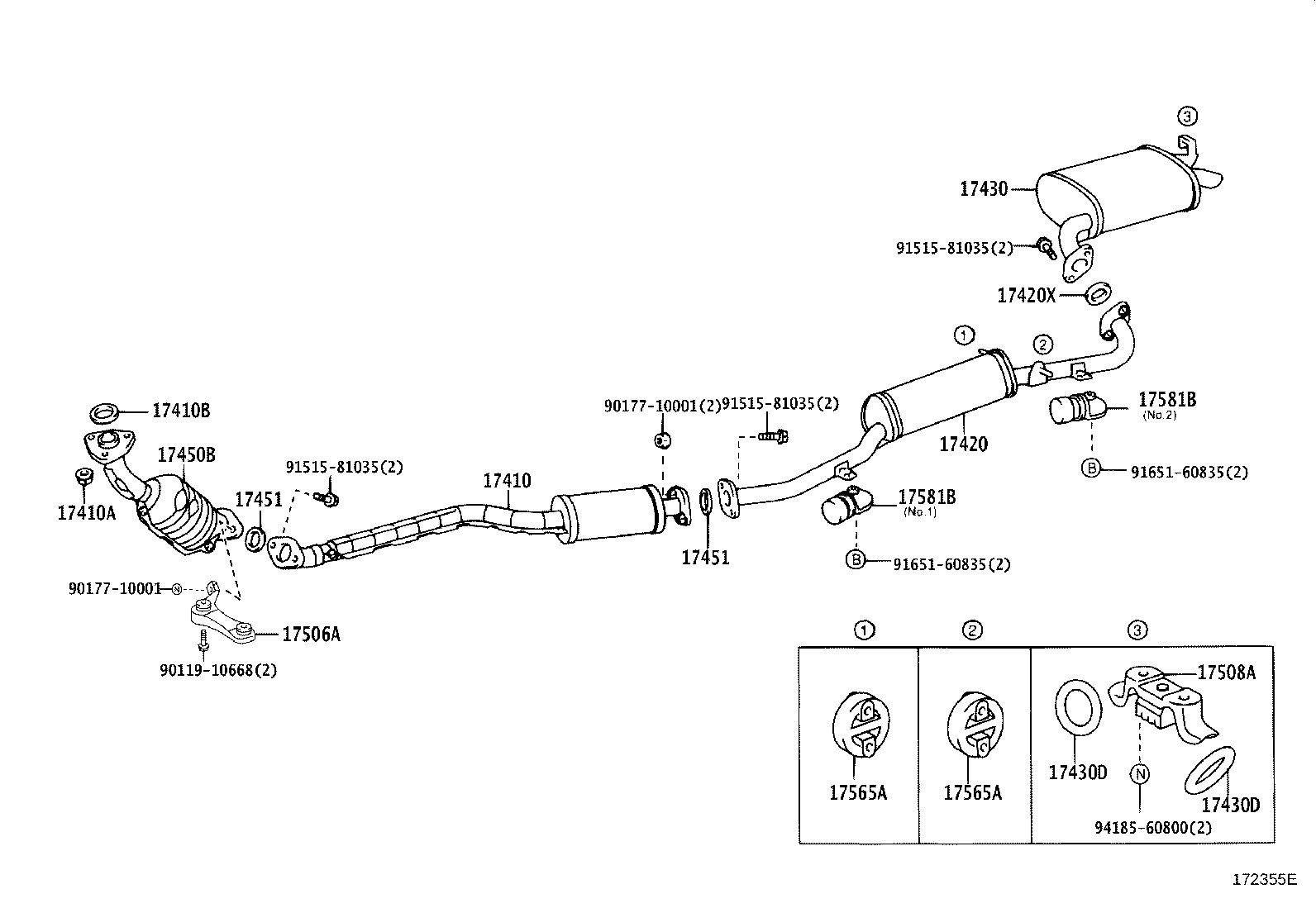

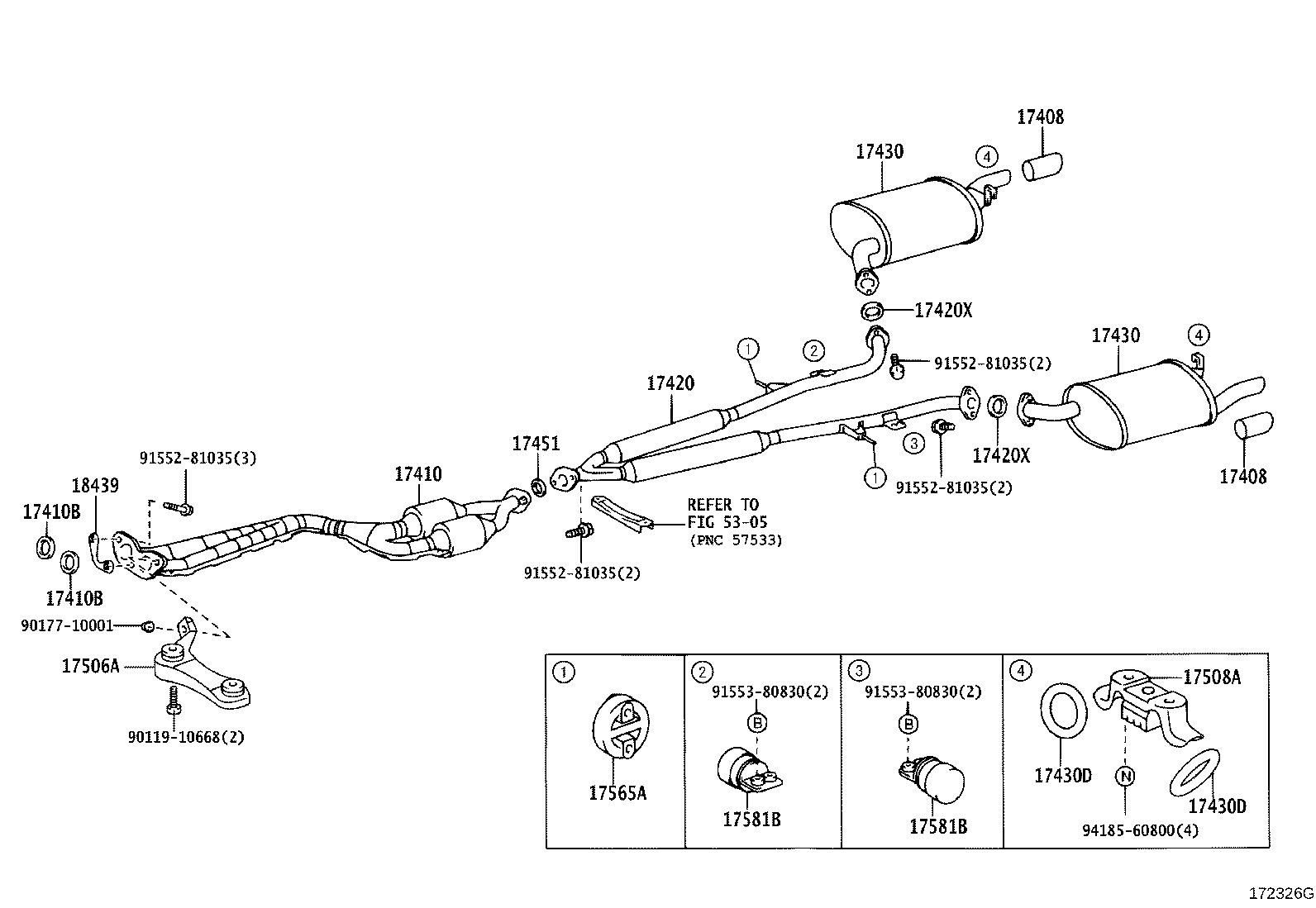

Figure 172358G 172358G 2000-04 → — Figure 172328I 172328I 1999-09 → 2001-08 Figure 172328I 172328I 1999-09 → — Figure 172355E 172355E 1999-09 → — Figure 173104G 173104G 2001-08 → — Figure 172325M 172325M 1999-09 → — Figure 172326G 172326G 1999-09 → — Figure 172327B 172327B 1999-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
