Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

32 part groups · 7 illustrations

Illustrations

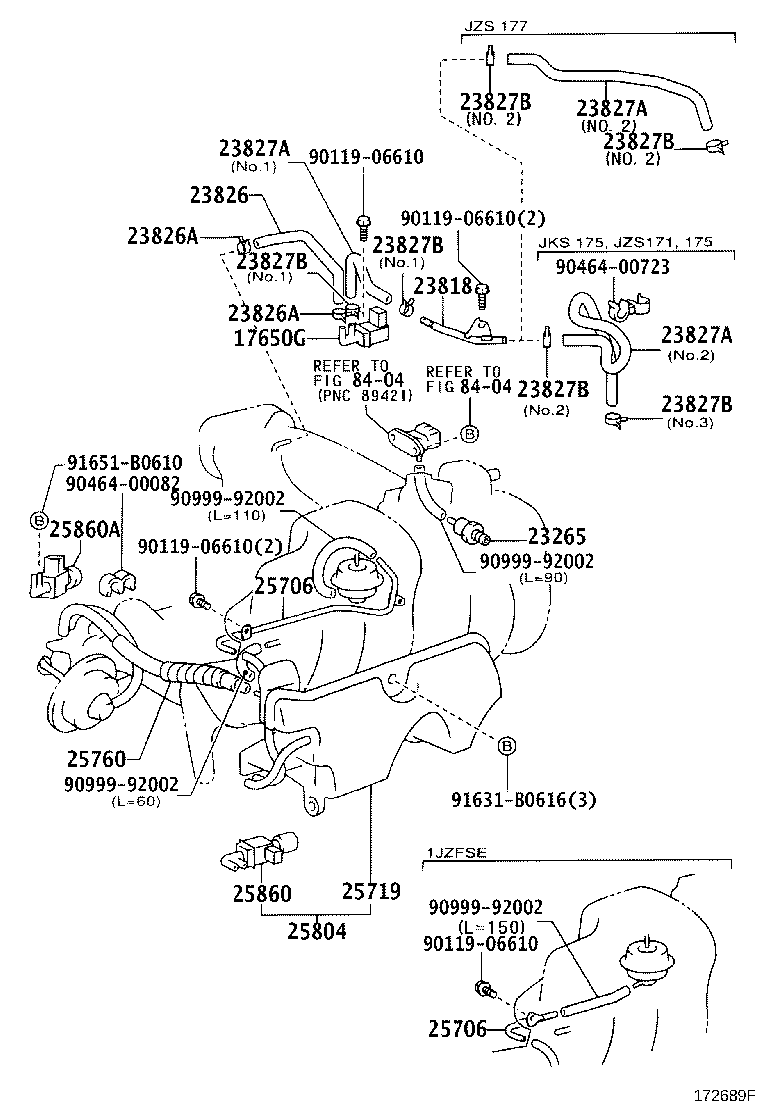

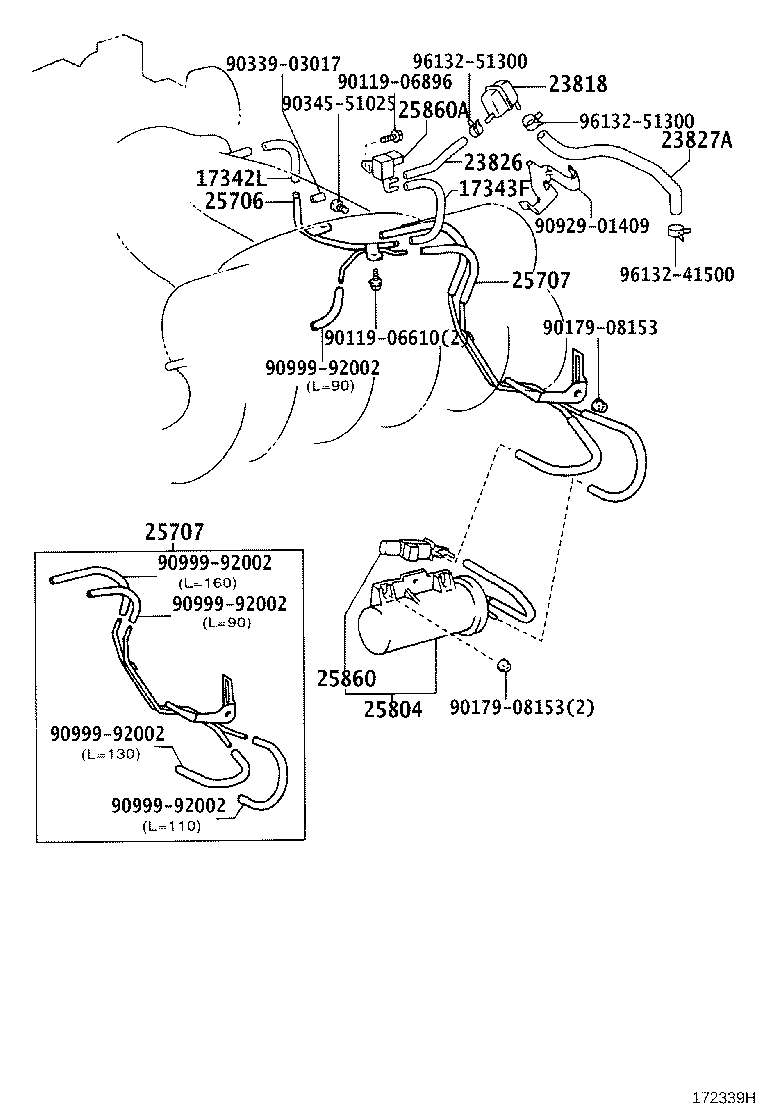

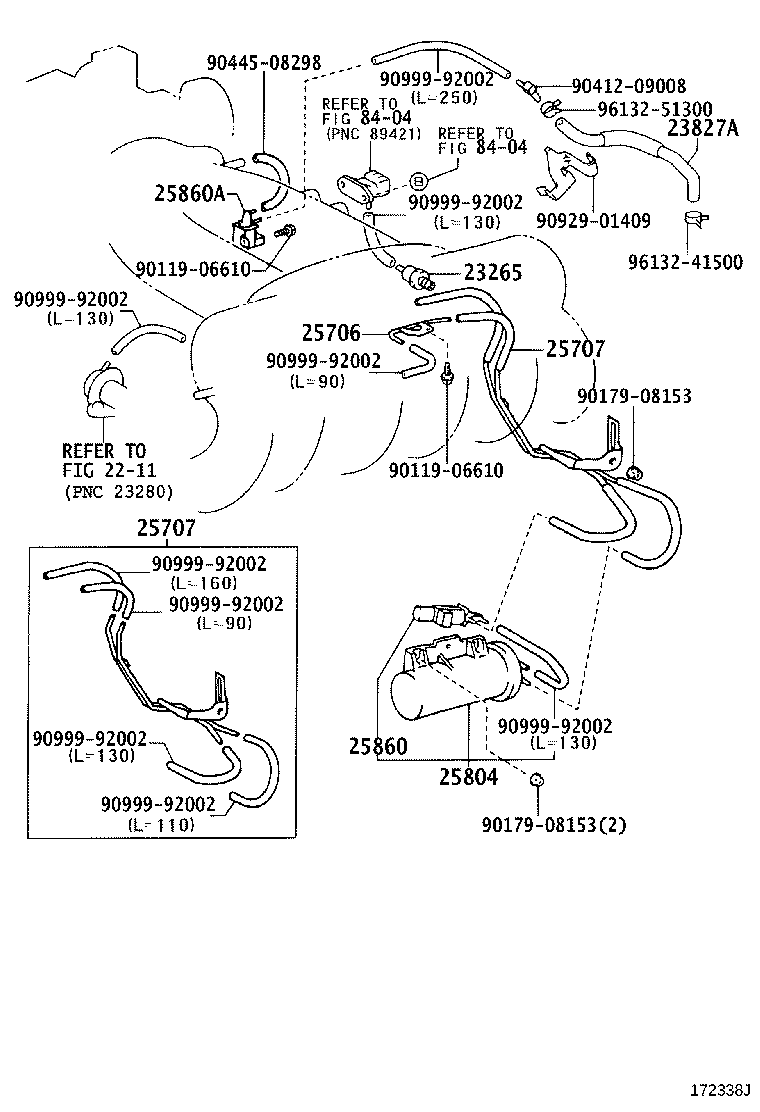

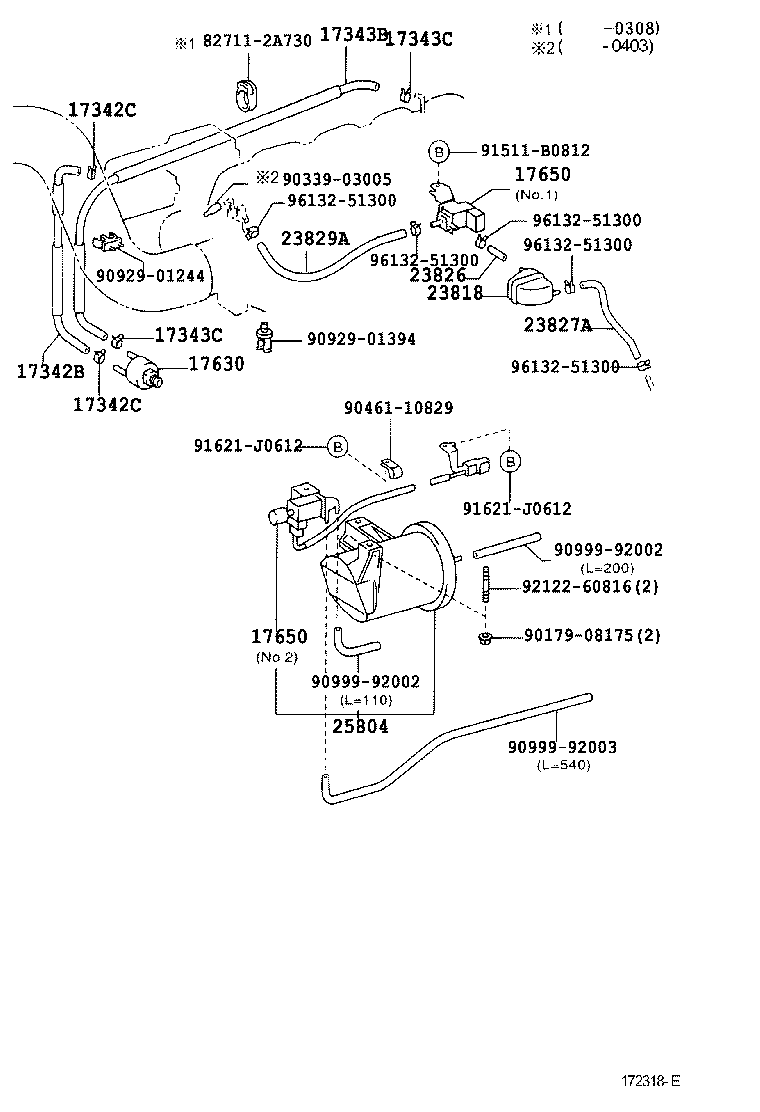

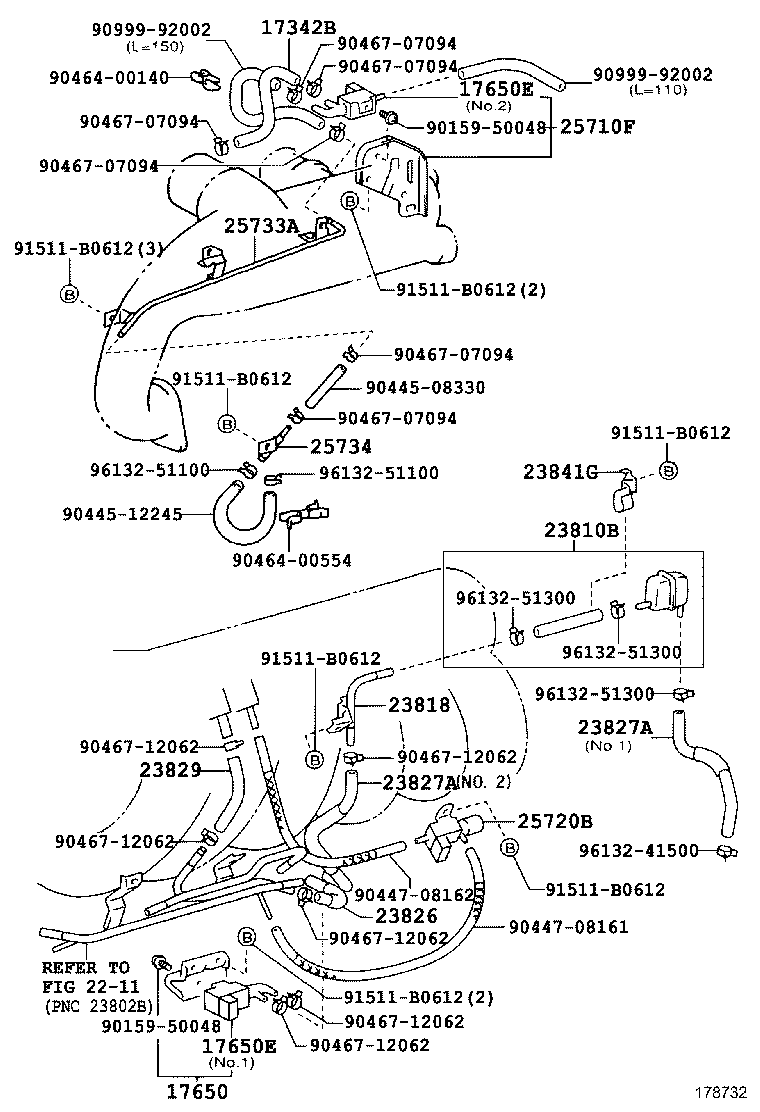

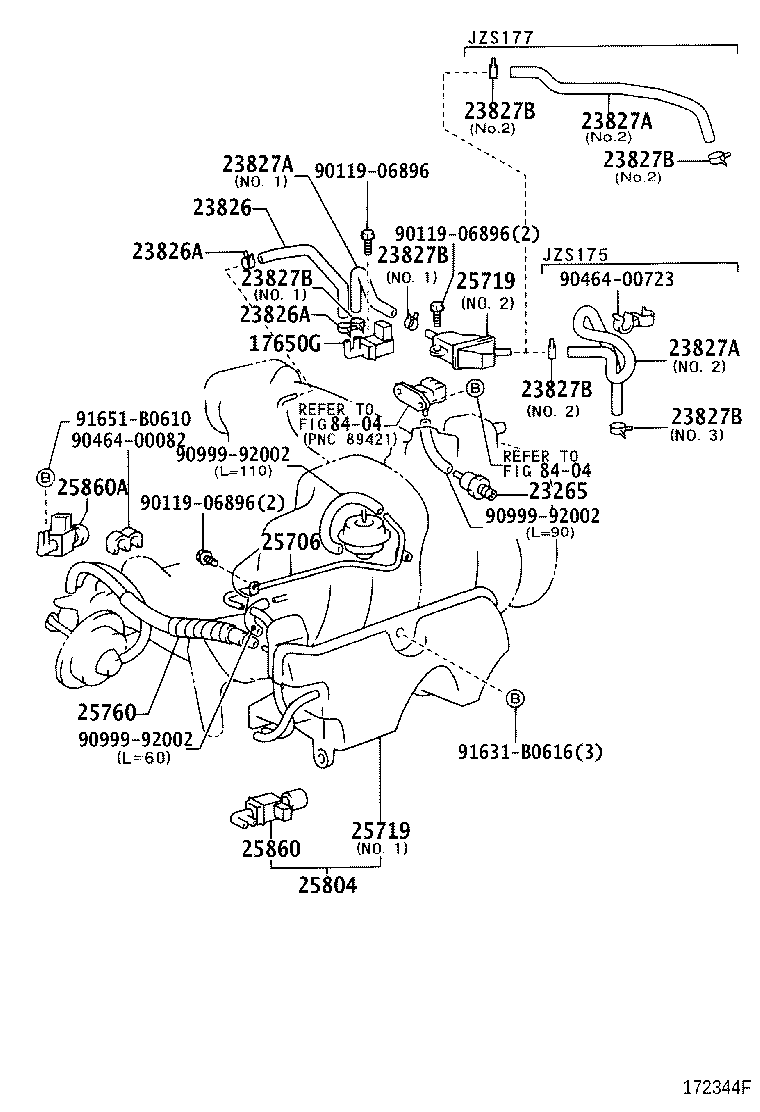

Figure 172307I 172307I 2000-04 → — Figure 172338J 172338J 1999-09 → — Figure 178732 178732 1999-09 → 2003-12 Figure 172339H 172339H 1999-09 → — Figure 172344F 172344F 1999-09 → 2000-10 Figure 172689F 172689F 2000-10 → — Figure 172318E 172318E 1999-09 → 2004-06

Part groups

PNCDescription
17341P Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23810B Pipe Assy, Fuel Vapor Feed
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23841G Clamp, Fuel Hose
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25710F Valve Assy, Air Switching
25719 Tank, Vacuum Surge
25720B Valve Assy, Air Switching, NO.2
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
