Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

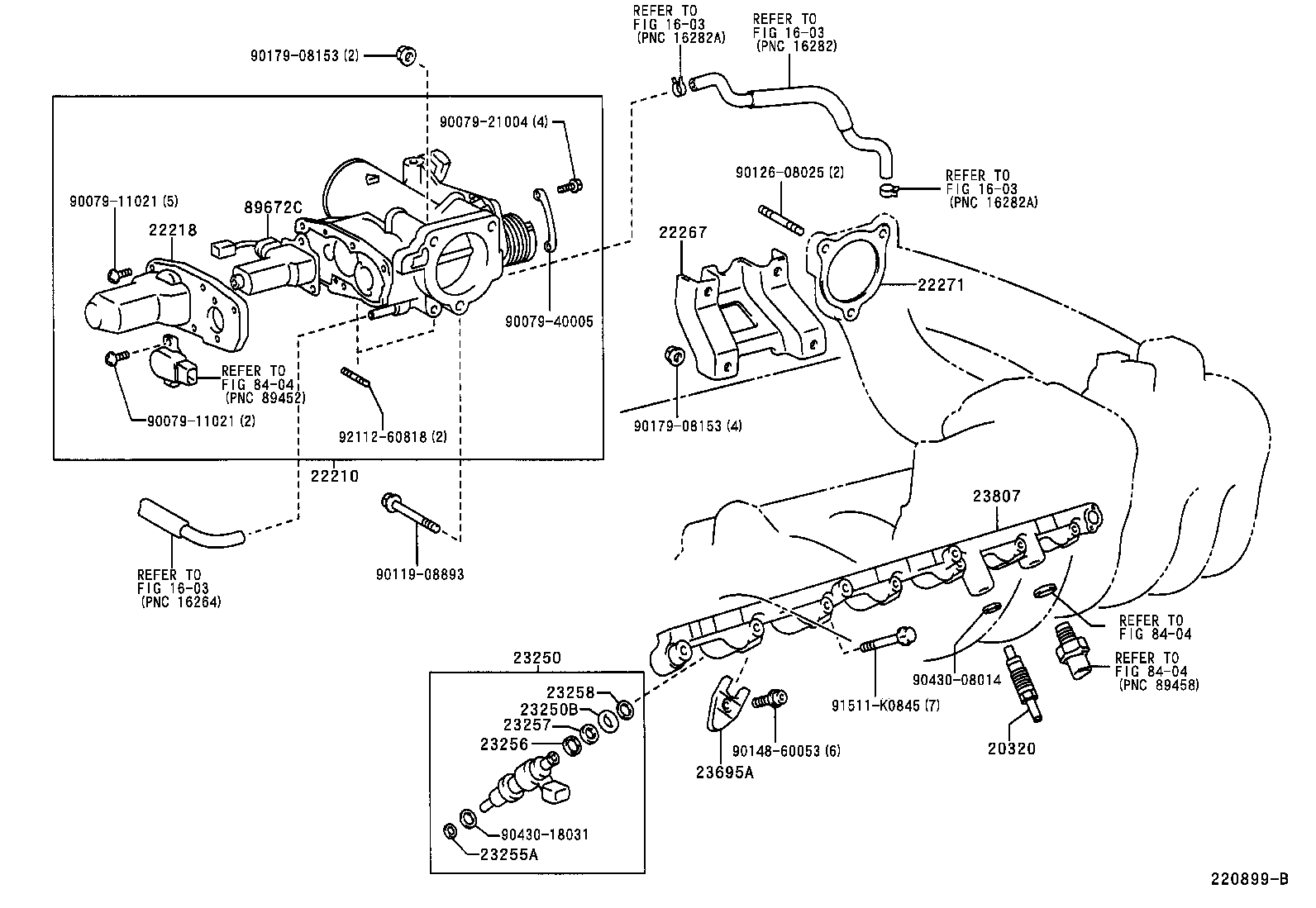

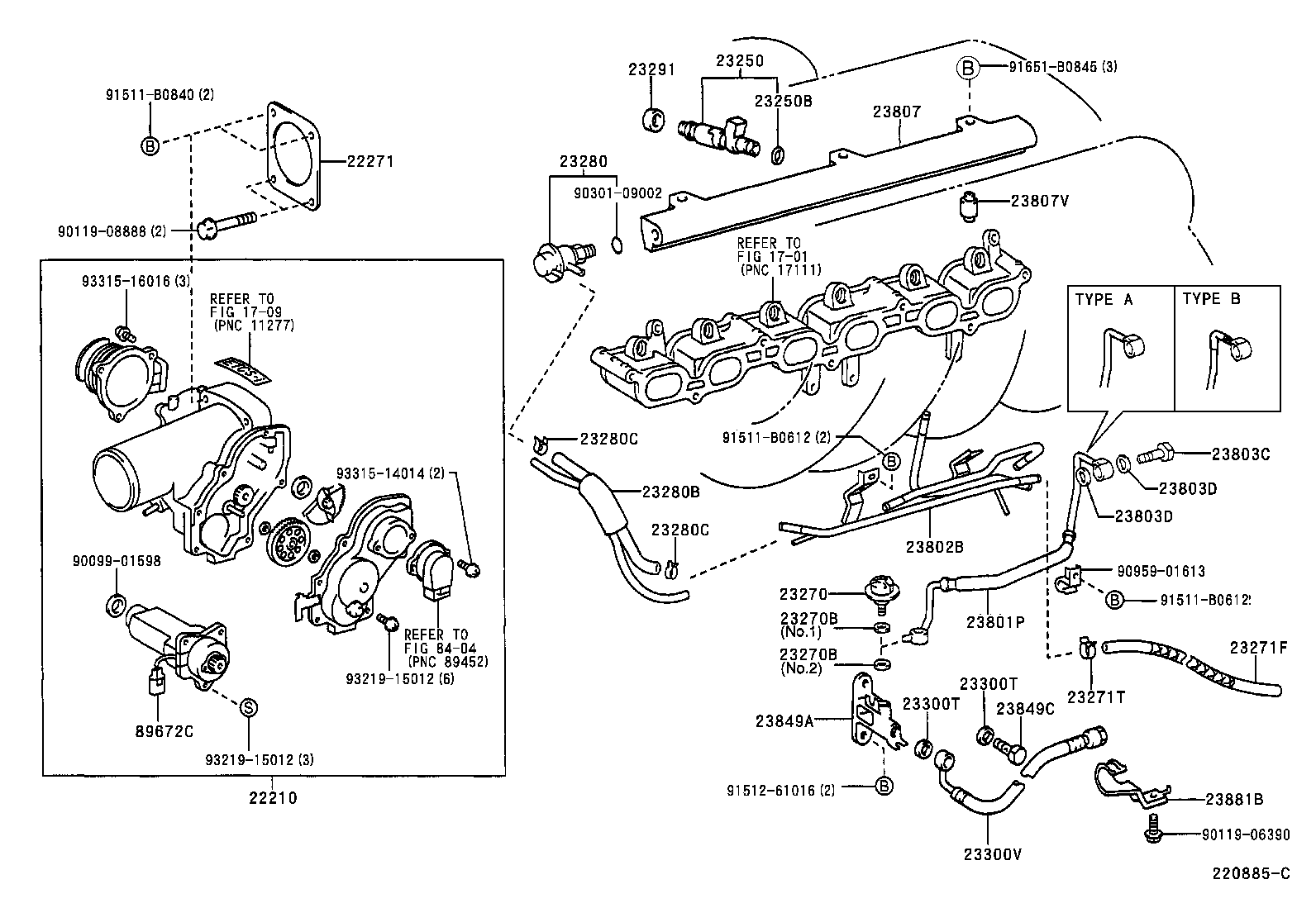

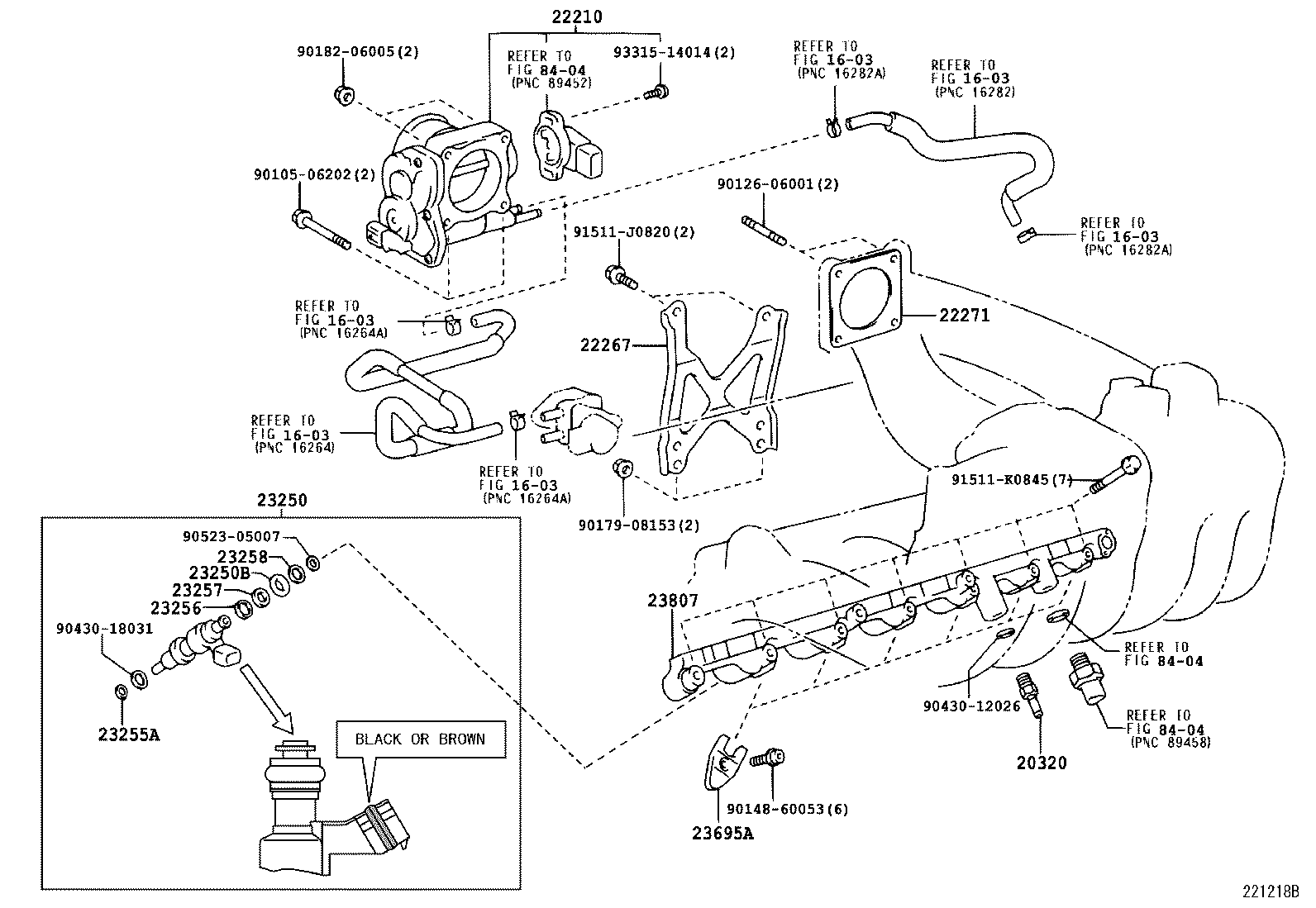

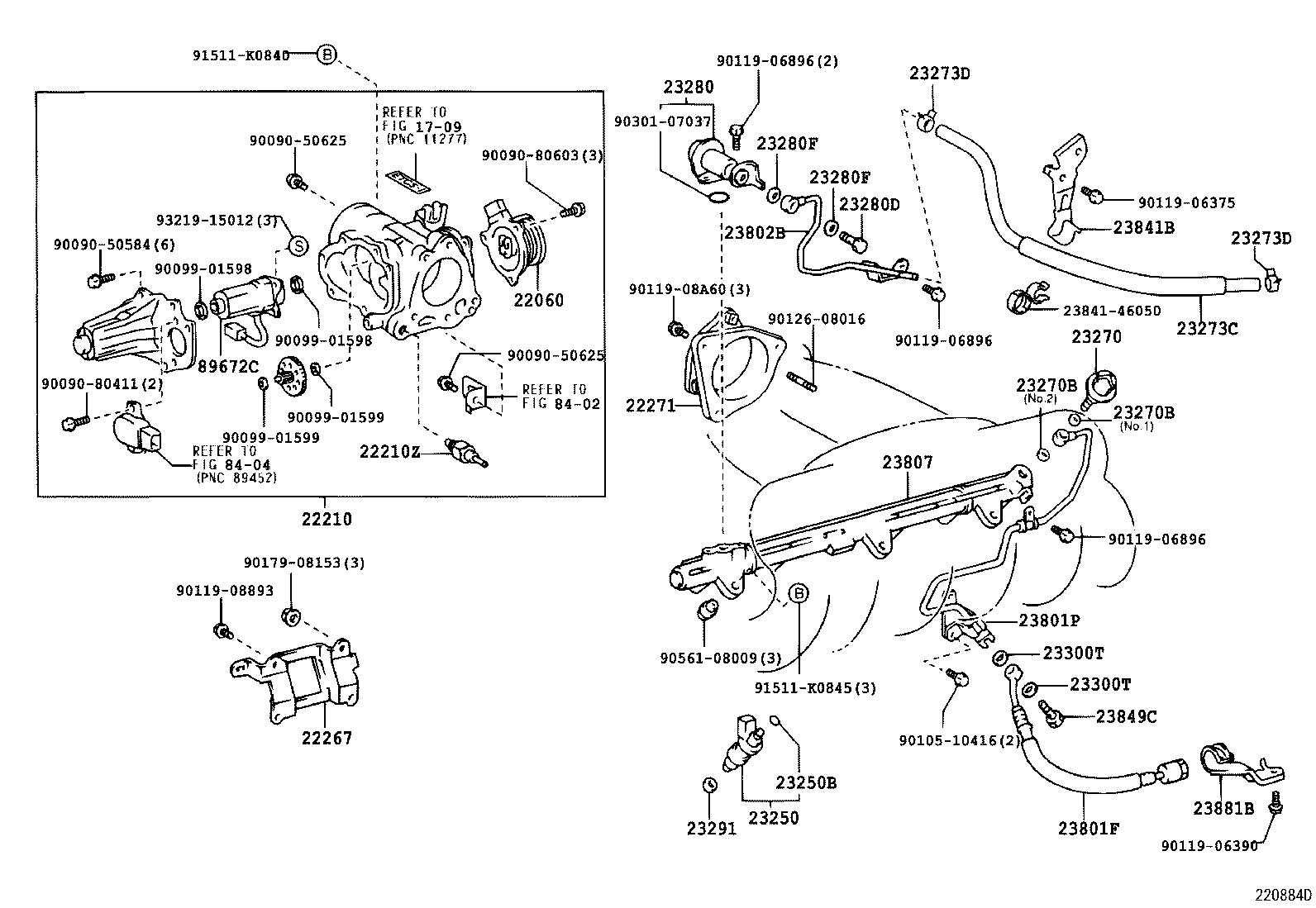

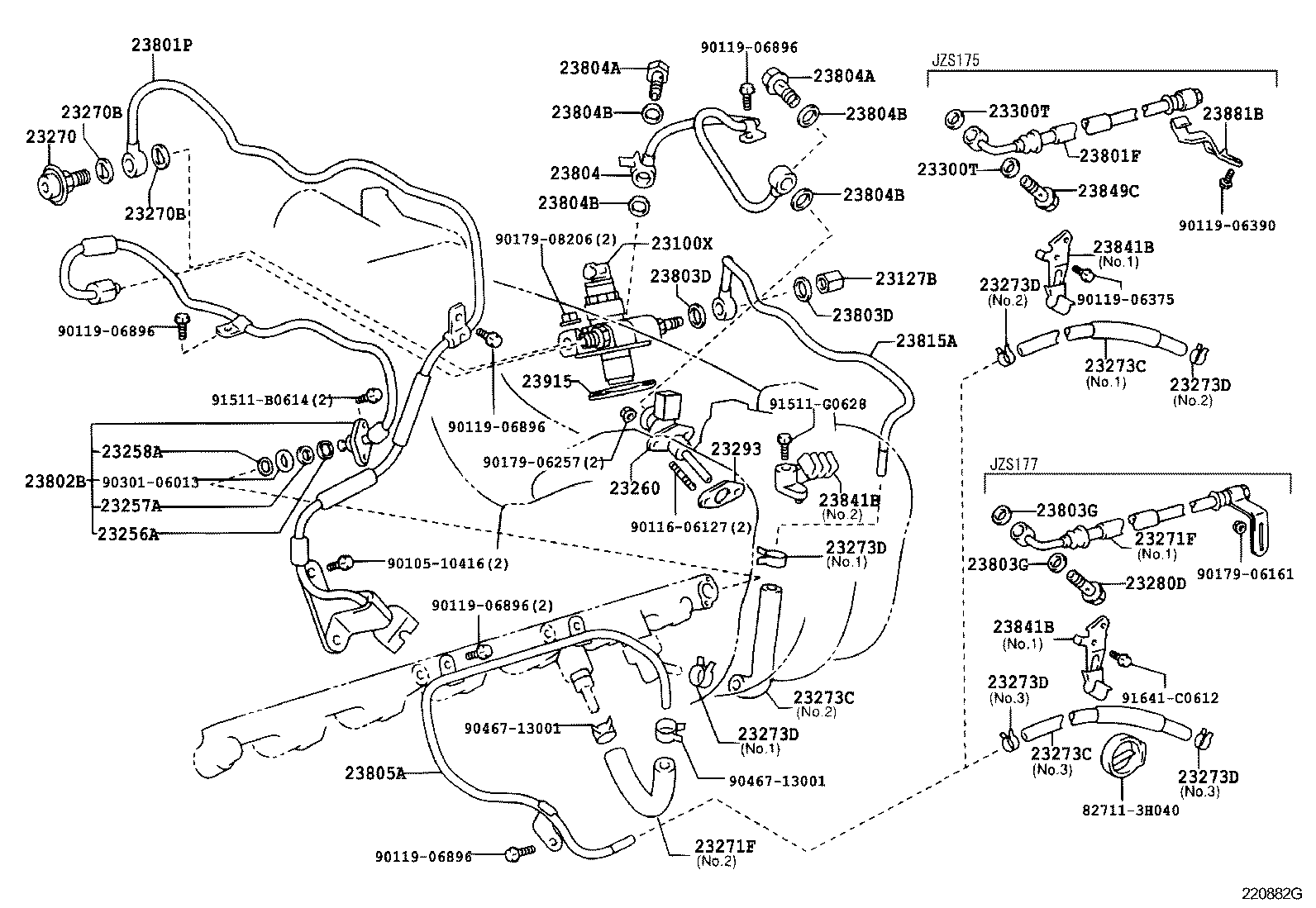

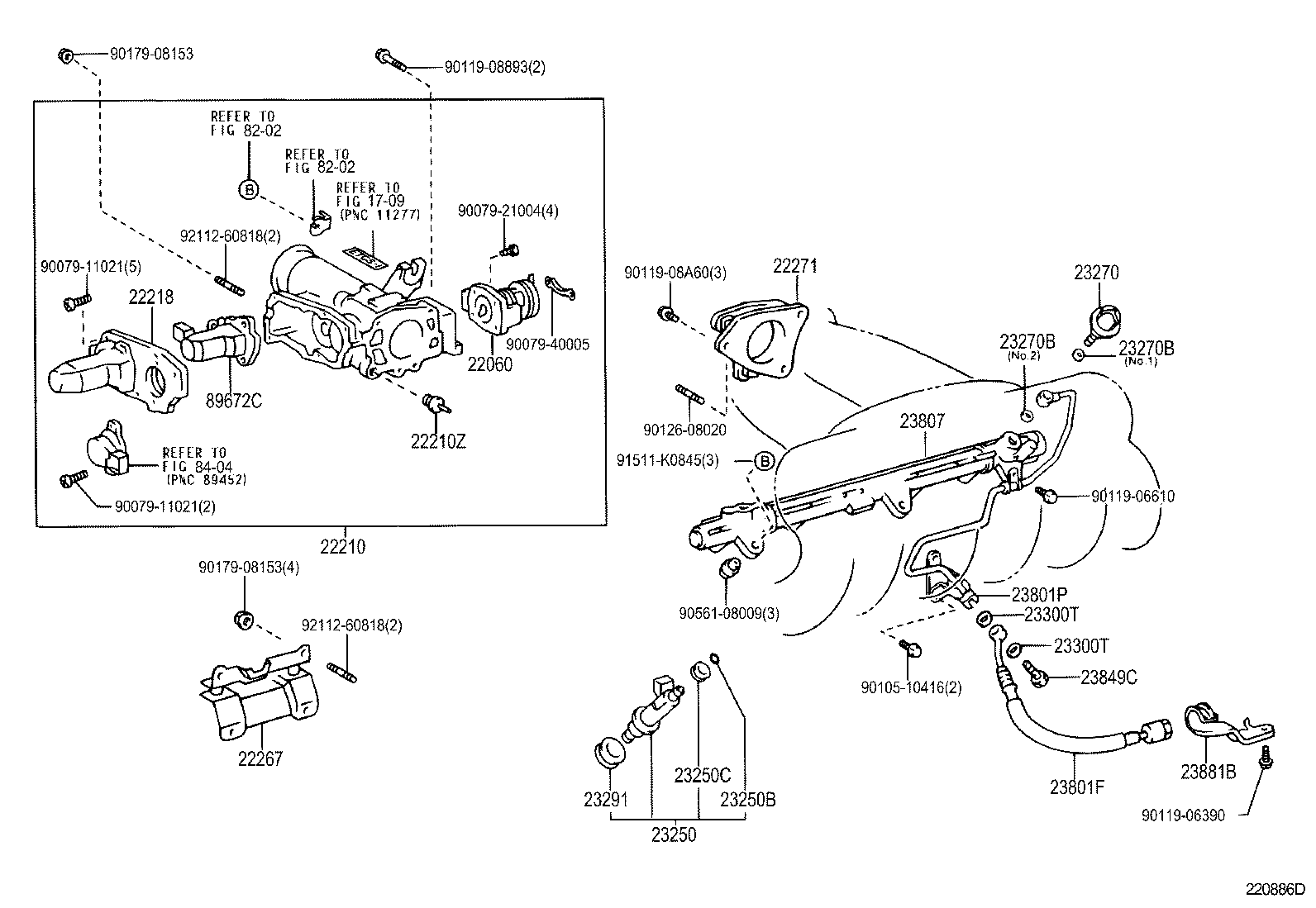

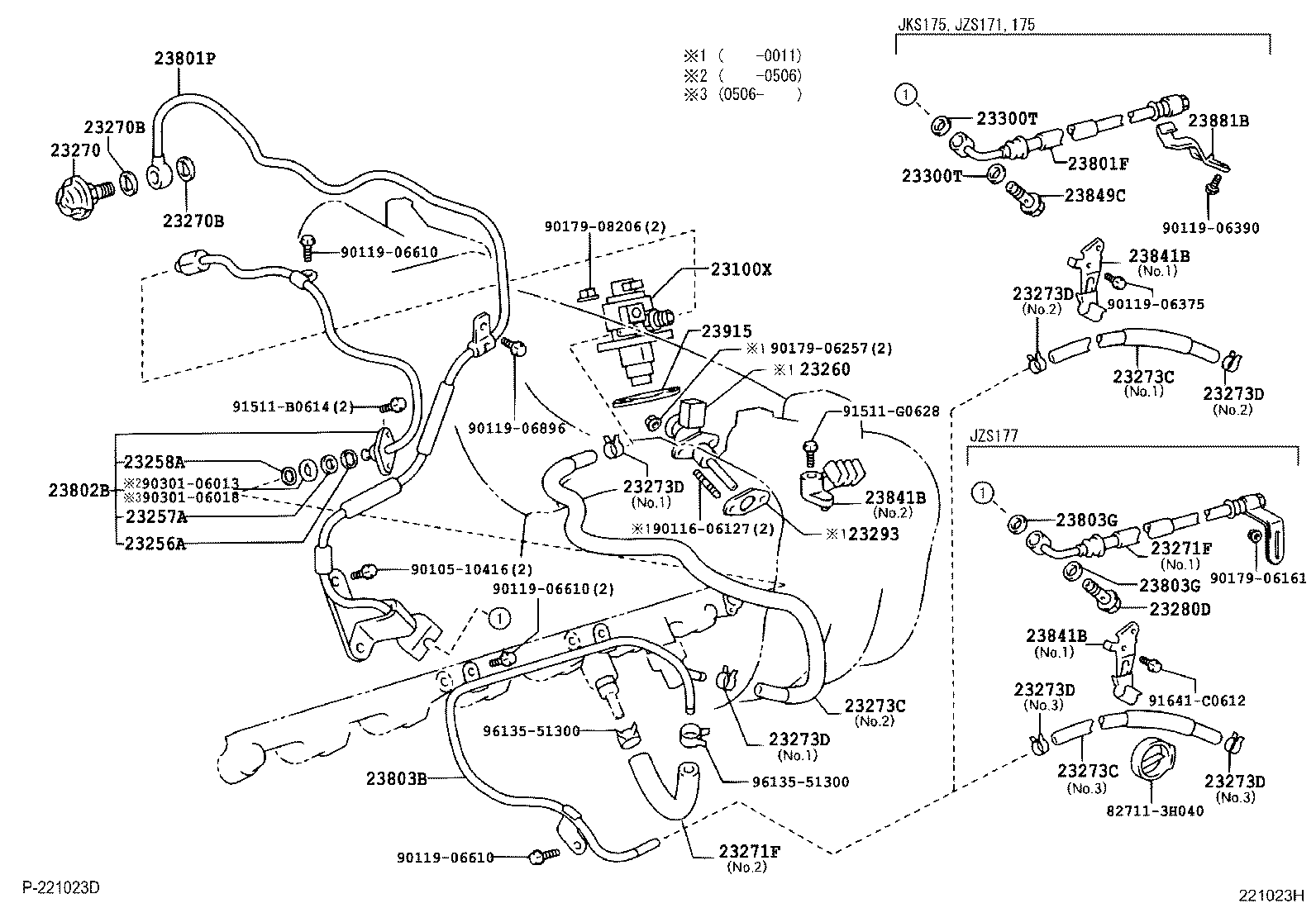

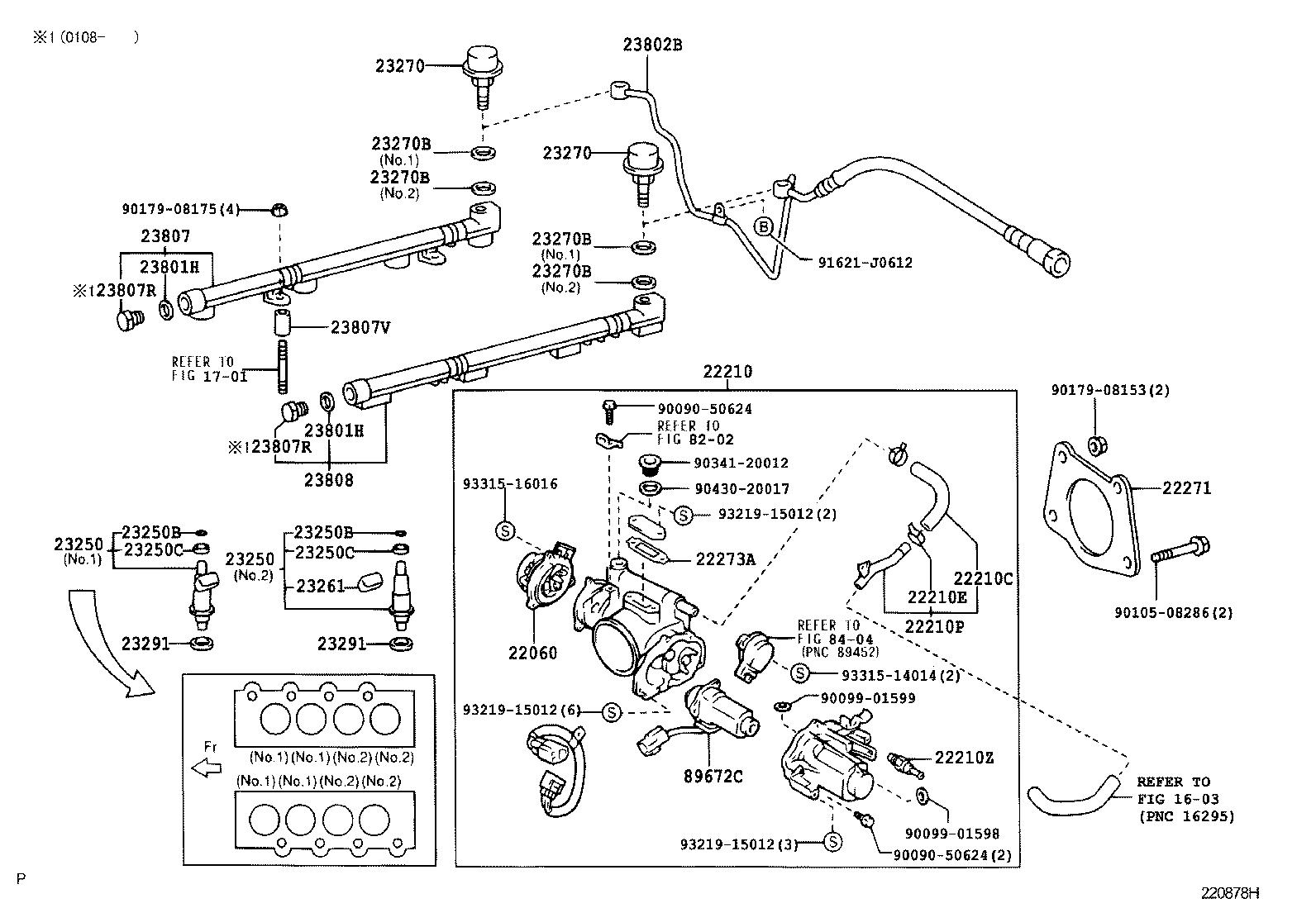

Fuel Injection System
75 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 20320 | Valve Assy, Fuel Relief |
| 22060 | Lever Assy, Throttle W/Sensor |
| 22210 | Body Assy, Throttle |
| 22210C | Hose, Water By-pass, NO.1 |
| 22210E | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1) |
| 22210P | Pipe, Water By-pass |
| 22210Z | Thermostat, Manifold |
| 22218 | Cover(FOR THROTTLE BODY) |
| 22235A | Inlet, Auxiliary Air |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 22273A | Gasket, Throttle Body, NO.2 |
| 22278 | Gasket, Idle Speed Control Valve |
| 23020A | Regulator Assy, Fuel Pressure W/Jet Pump |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23127B | Nut, Fuel Pump |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23222 | Tube, Fuel Return Jet |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23256A | Ring, Fuel Pipe, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23257A | Ring, Fuel Pipe, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23258A | Ring, Fuel Pipe, NO.3 |
| 23260 | Injector Assy, Cold Start Fuel |
| 23261 | Cover, Injector |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271F | Hose, Fuel |
| 23271T | Clamp OR Clip(FOR FUEL HOSE) |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280B | Hose, Fuel Pressure Regulator Return |
| 23280C | Clamp OR Clip(FOR FUEL PRESSURE REGULATOR RETURN HOSE) |
| 23280D | Bolt, Union(FOR FUEL PIPE OR HOSE SET) |
| 23280F | Gasket(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23293 | Gasket, Cold Start Injector |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23300V | Hose, Fuel(FOR FUEL INLET) |
| 23300Z | Filter, Fuel(FOR FUEL TANK) |
| 23695A | Clamp, Nozzle Holder |
| 23801F | Hose, Fuel, NO.1 |
| 23801H | Gasket(FOR FUEL PIPE) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23803C | Gasket(NOZZLE LEKAGE PIPE NO.3) |
| 23803D | Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3) |
| 23803G | Gasket(FOR FUEL HOSE) |
| 23804 | Pipe Sub-assy, Fuel, NO.4 |
| 23804A | Bolt, Union(FOR FUEL PIPE NO.4) |
| 23804B | Gasket(FOR FUEL PIPE NO.4) |
| 23805A | Pipe Sub-assy, Fuel, NO.5 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807R | Plug, Fuel Delivary Pipe |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23814B | Pipe, Fuel Delivery |
| 23815A | Pipe, Fuel, NO.3 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23849A | Support, Fuel Pipe |
| 23849C | Bolt, Union(FOR FUEL PIPE SUPPORT) |
| 23881B | Bracket, Fuel Hose |
| 23915 | Insulator, Fuel Pump |
| 89672C | Motor, Throttle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
