Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 9 illustrations

Illustrations

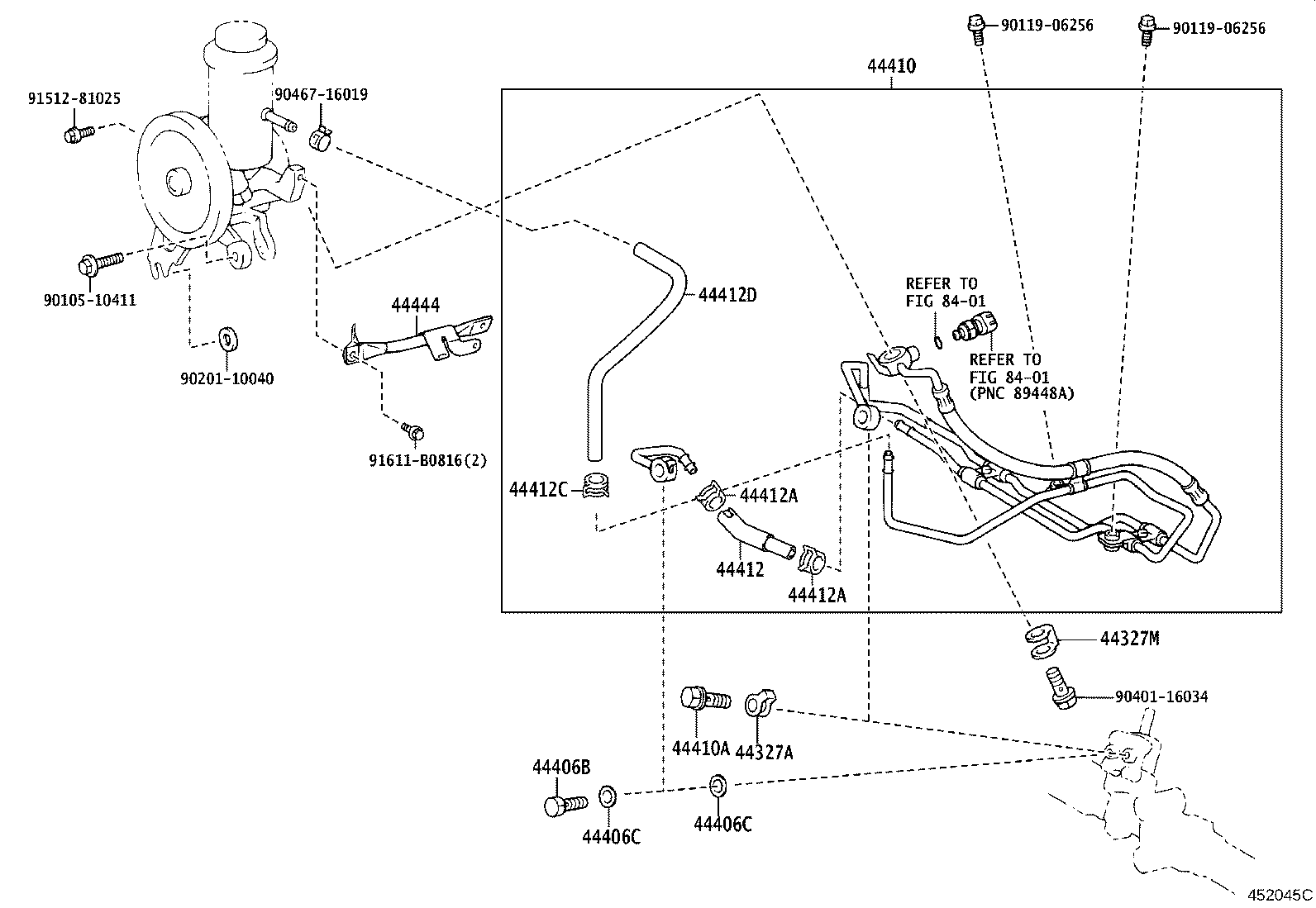

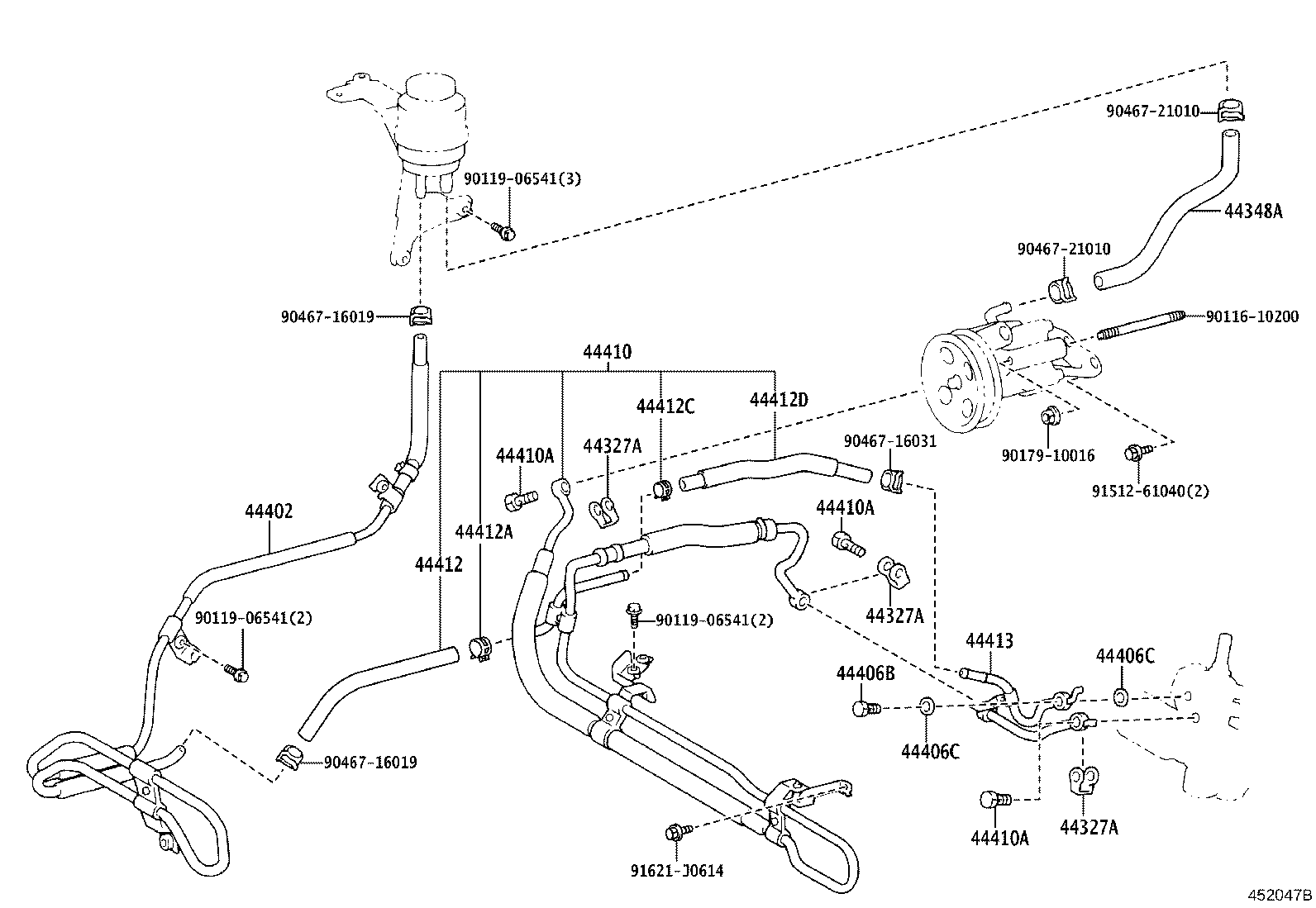

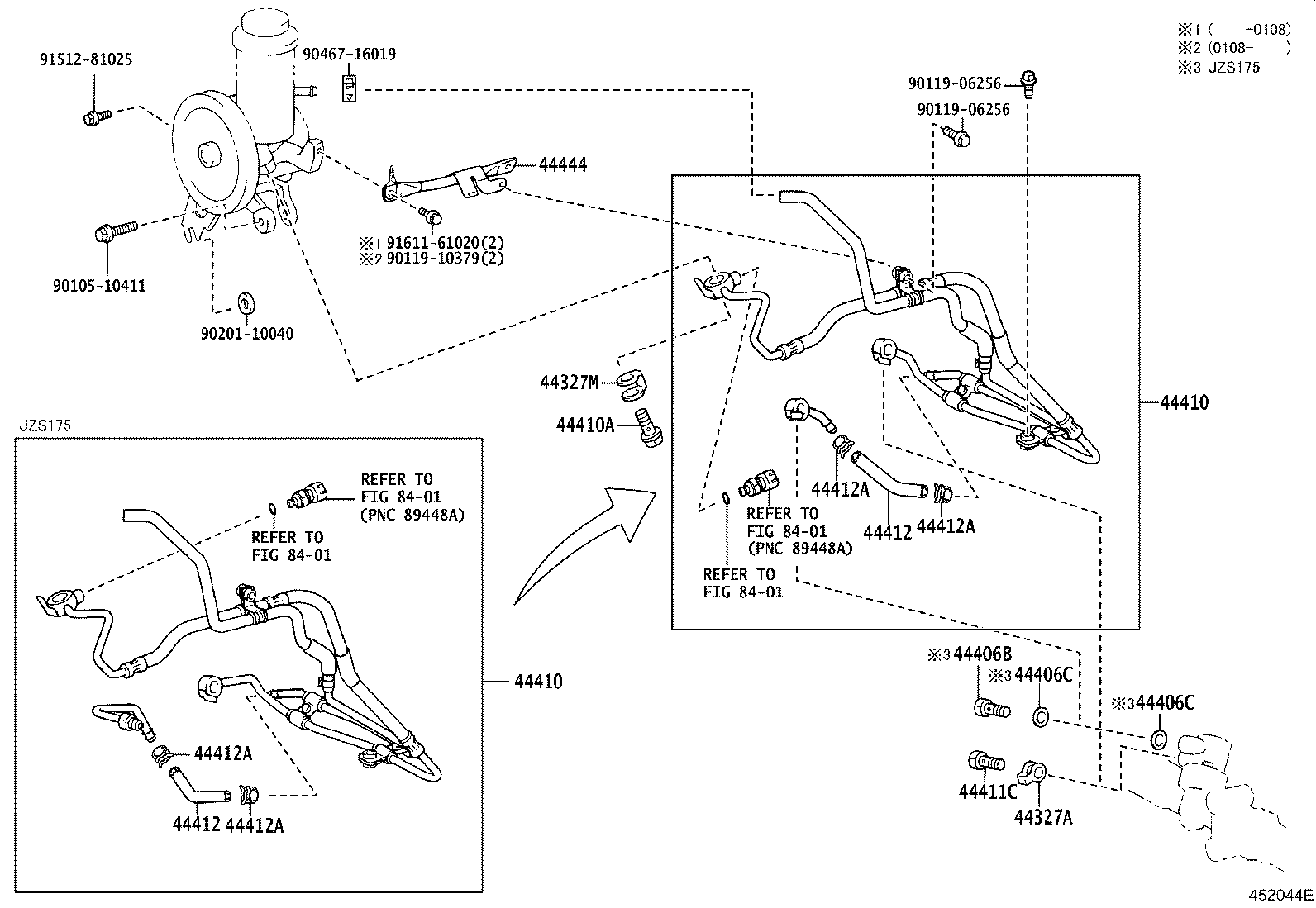

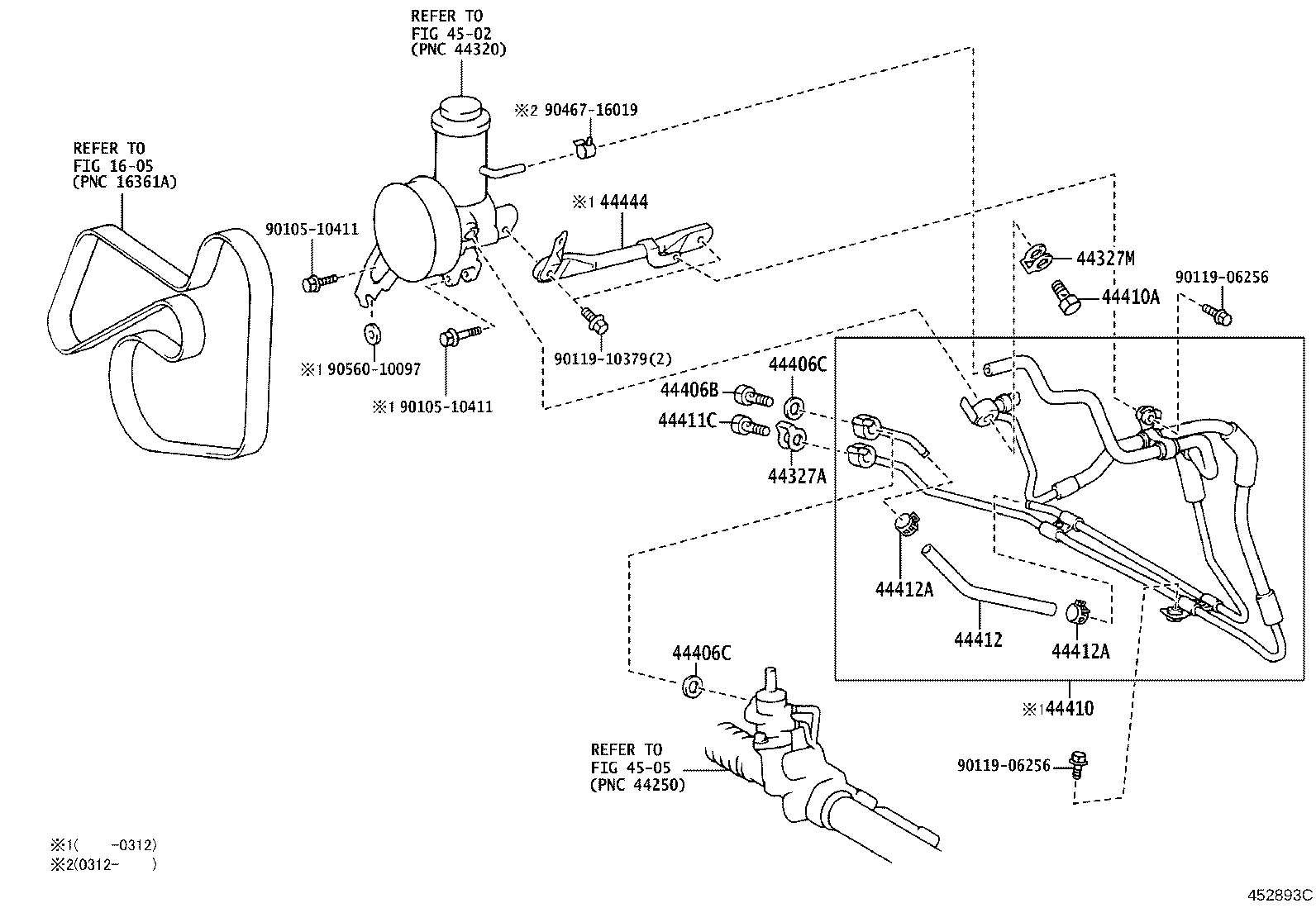

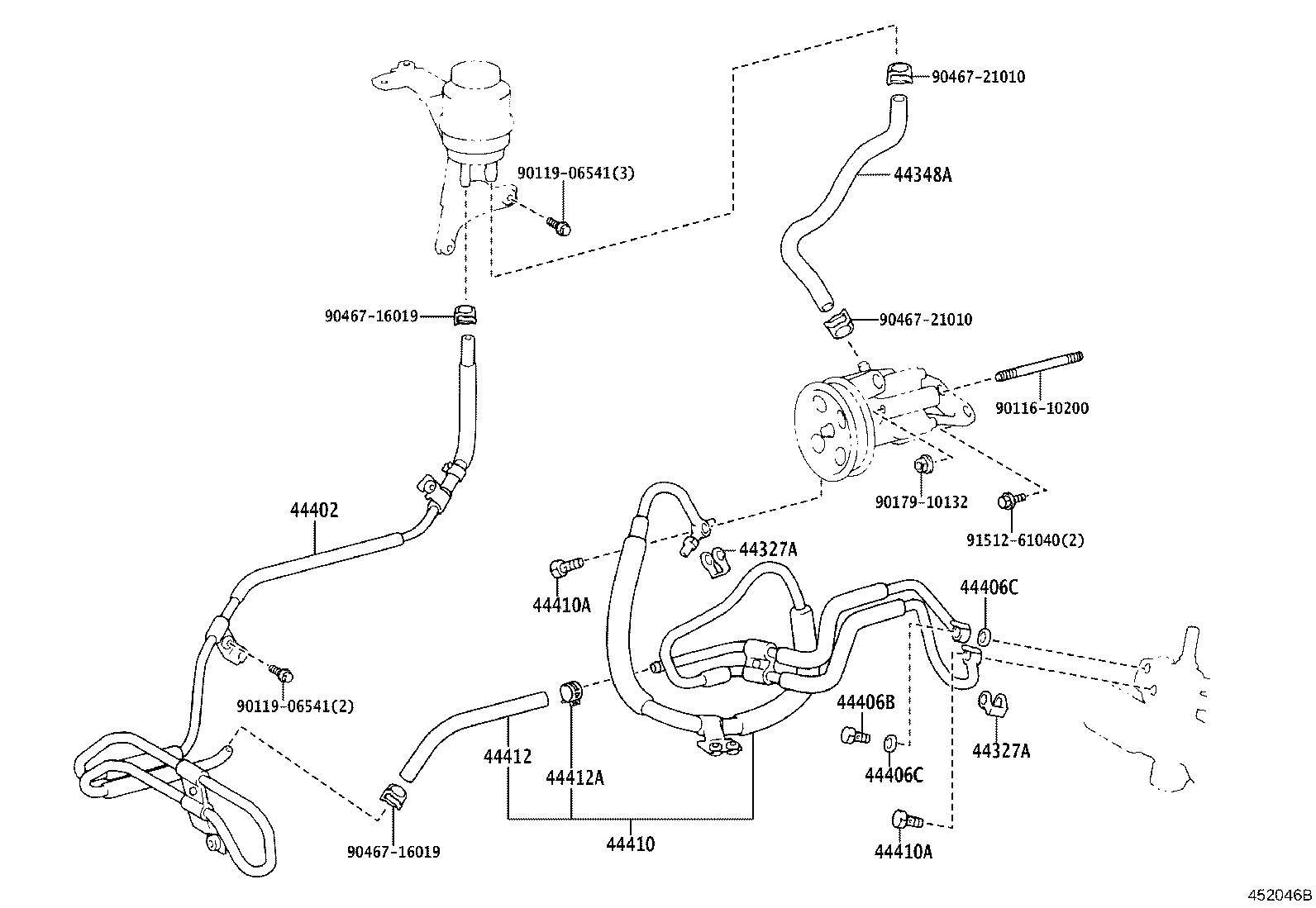

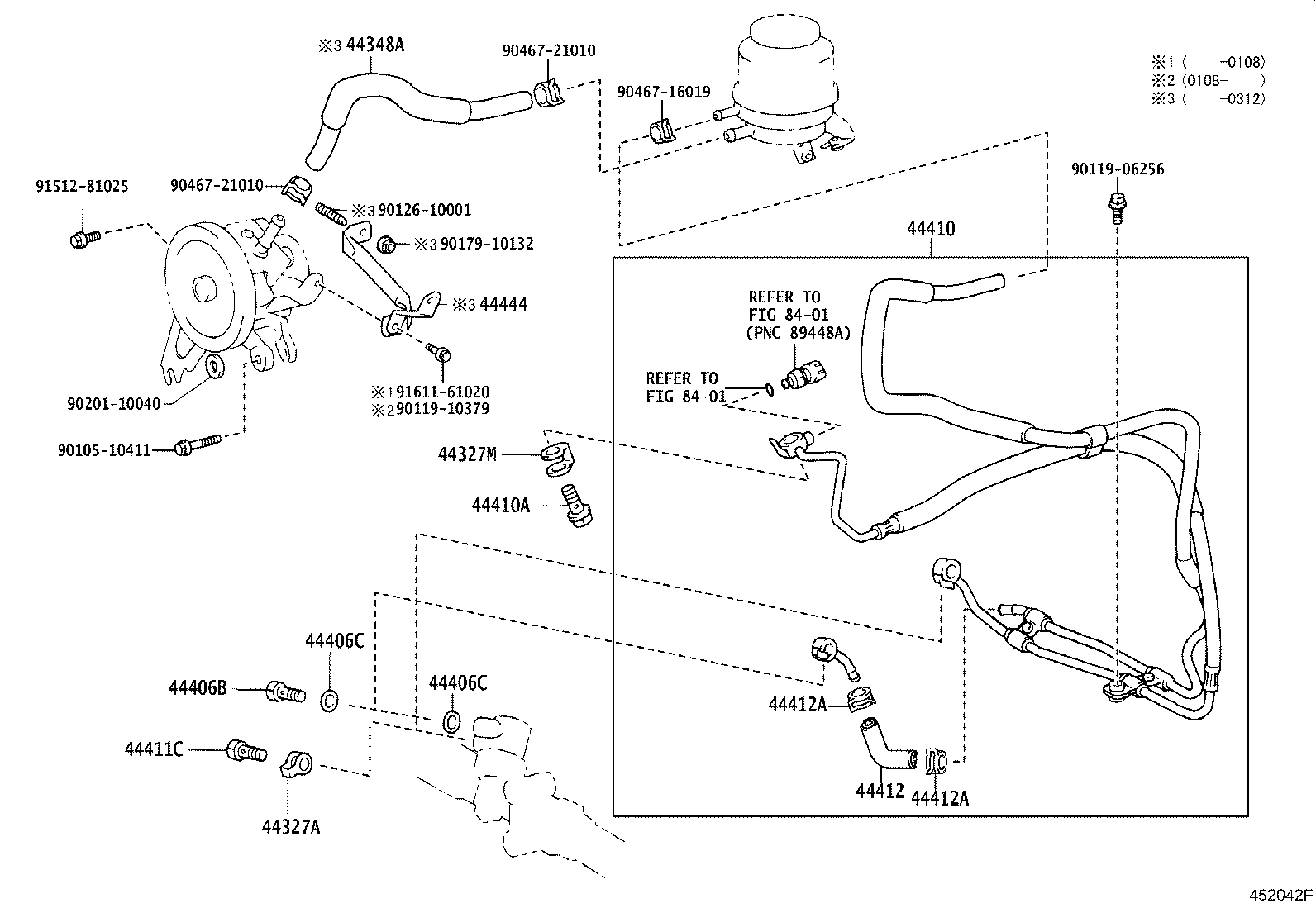

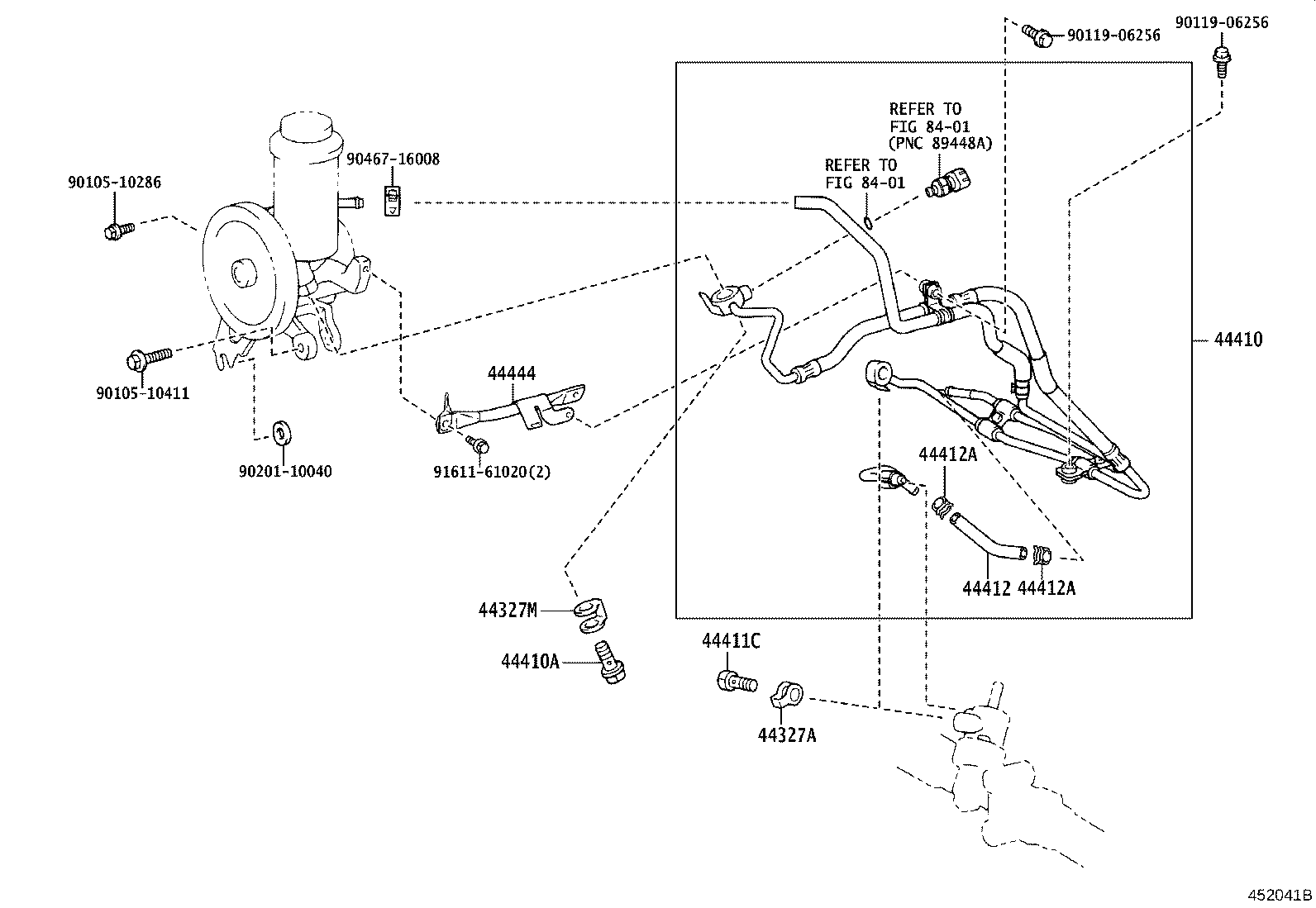

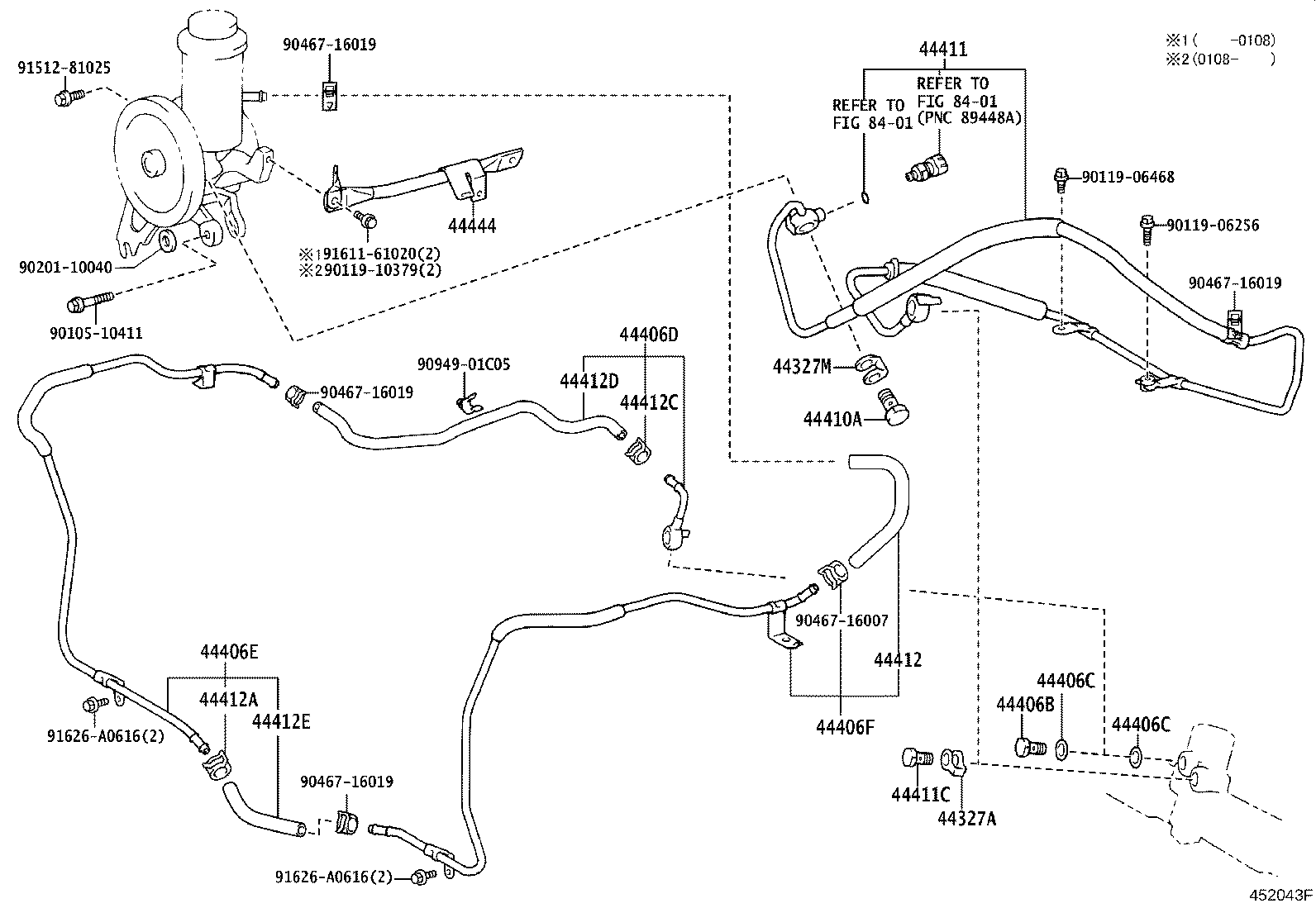

Figure 452040F 452040F 2000-04 → — Figure 452041B 452041B 1999-09 → 2001-08 Figure 452042F 452042F 1999-09 → — Figure 452043F 452043F 1999-09 → — Figure 452044E 452044E 1999-09 → — Figure 452045C 452045C 1999-09 → — Figure 452046B 452046B 1999-09 → — Figure 452047B 452047B 1999-09 → — Figure 452893C 452893C 2001-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44406F Tube Sub-assy, Return, NO.3
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412A Clamp, Rubber Hose Complete (FOR RETURN HOSE)
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44413 Tube, Pressure Feed, NO.1
44443 Bracket, Pump
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
