Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

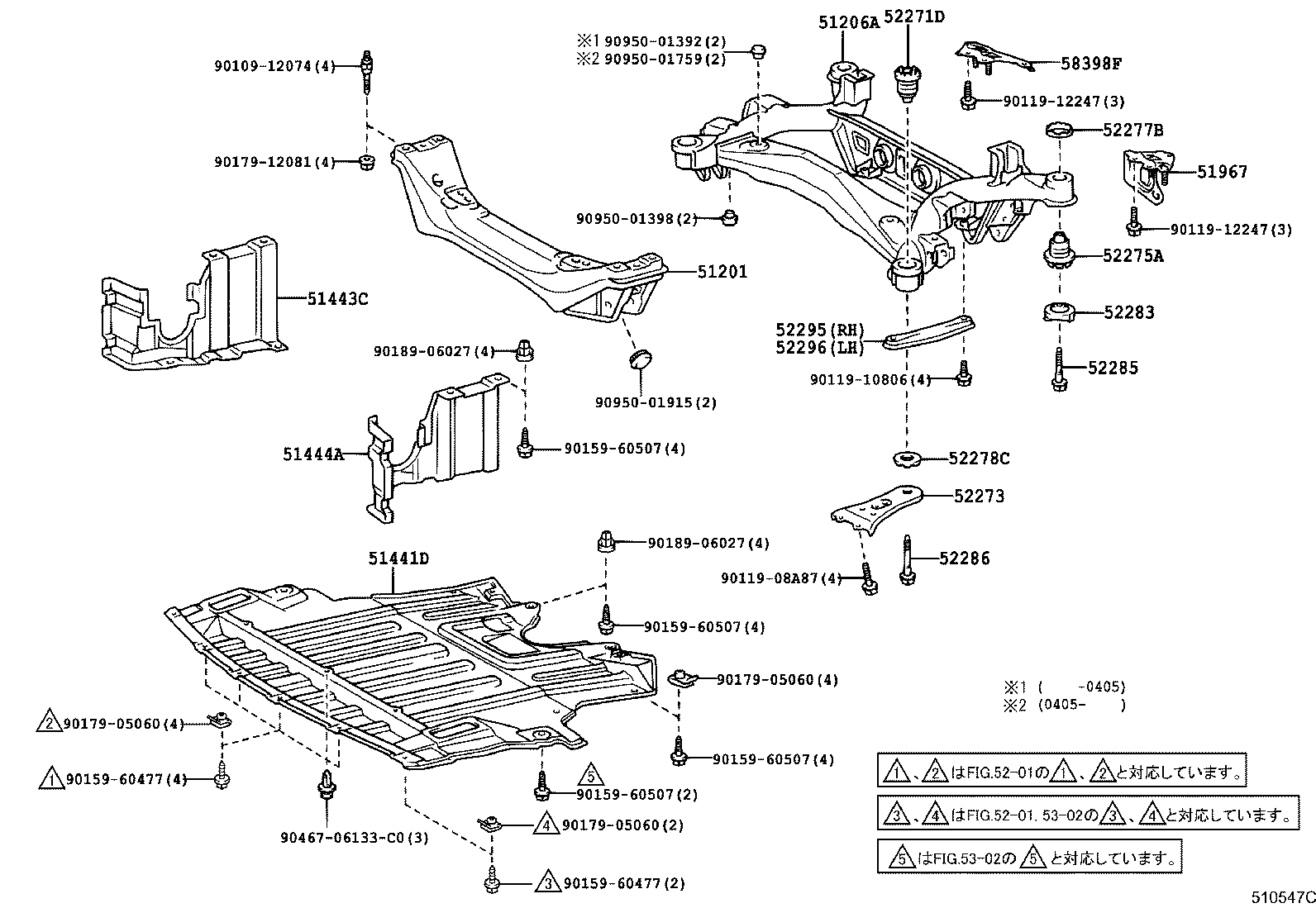

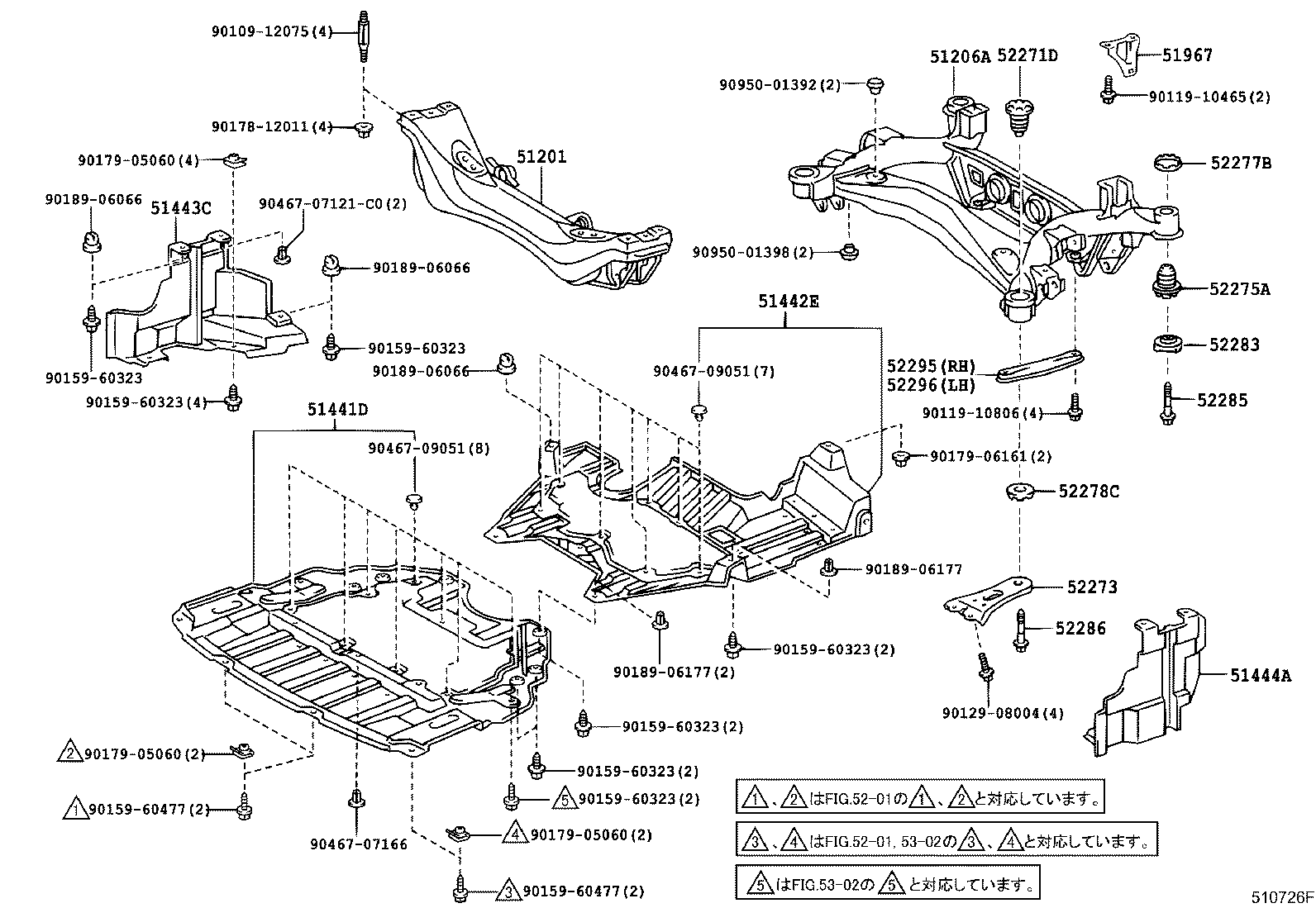

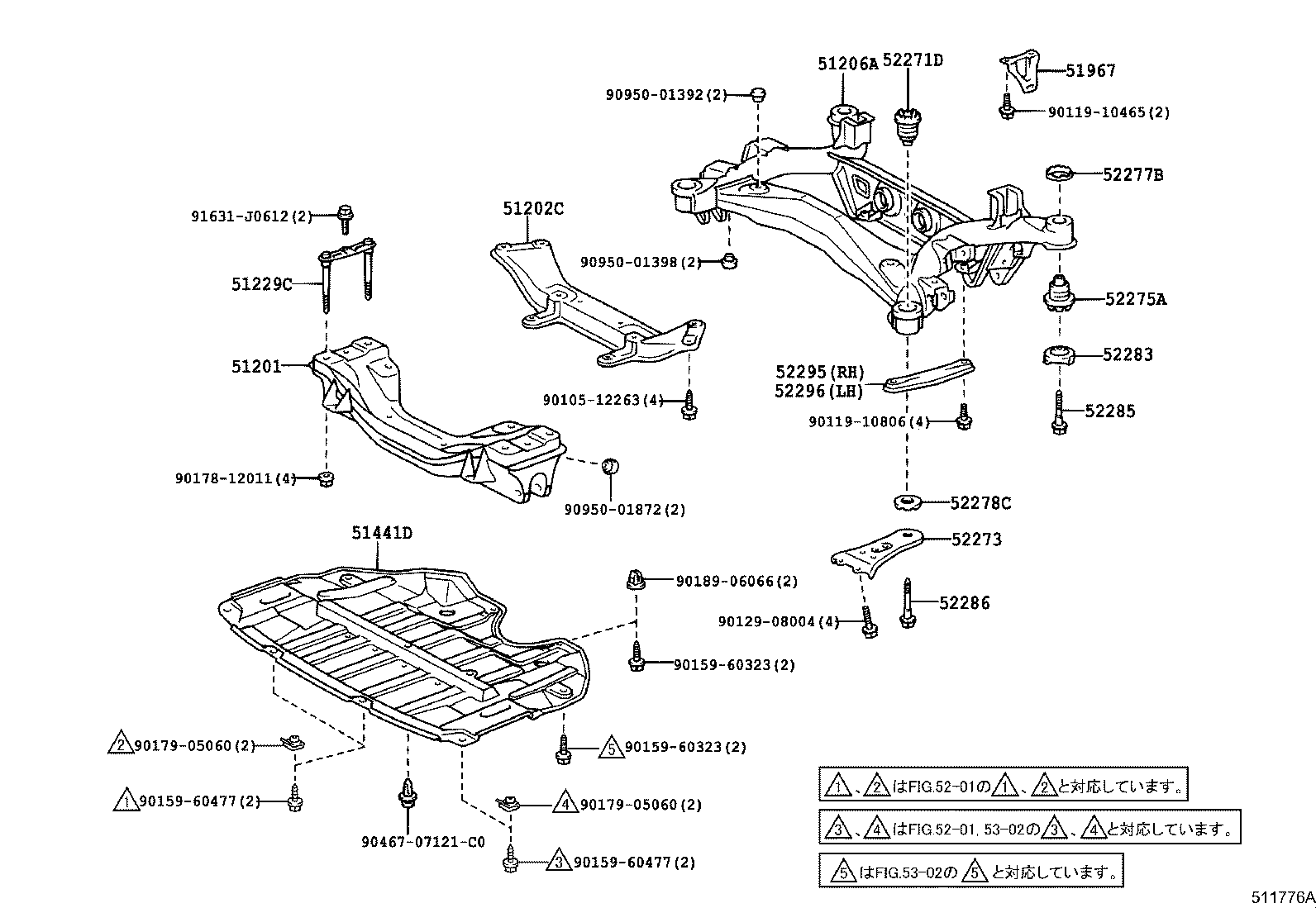

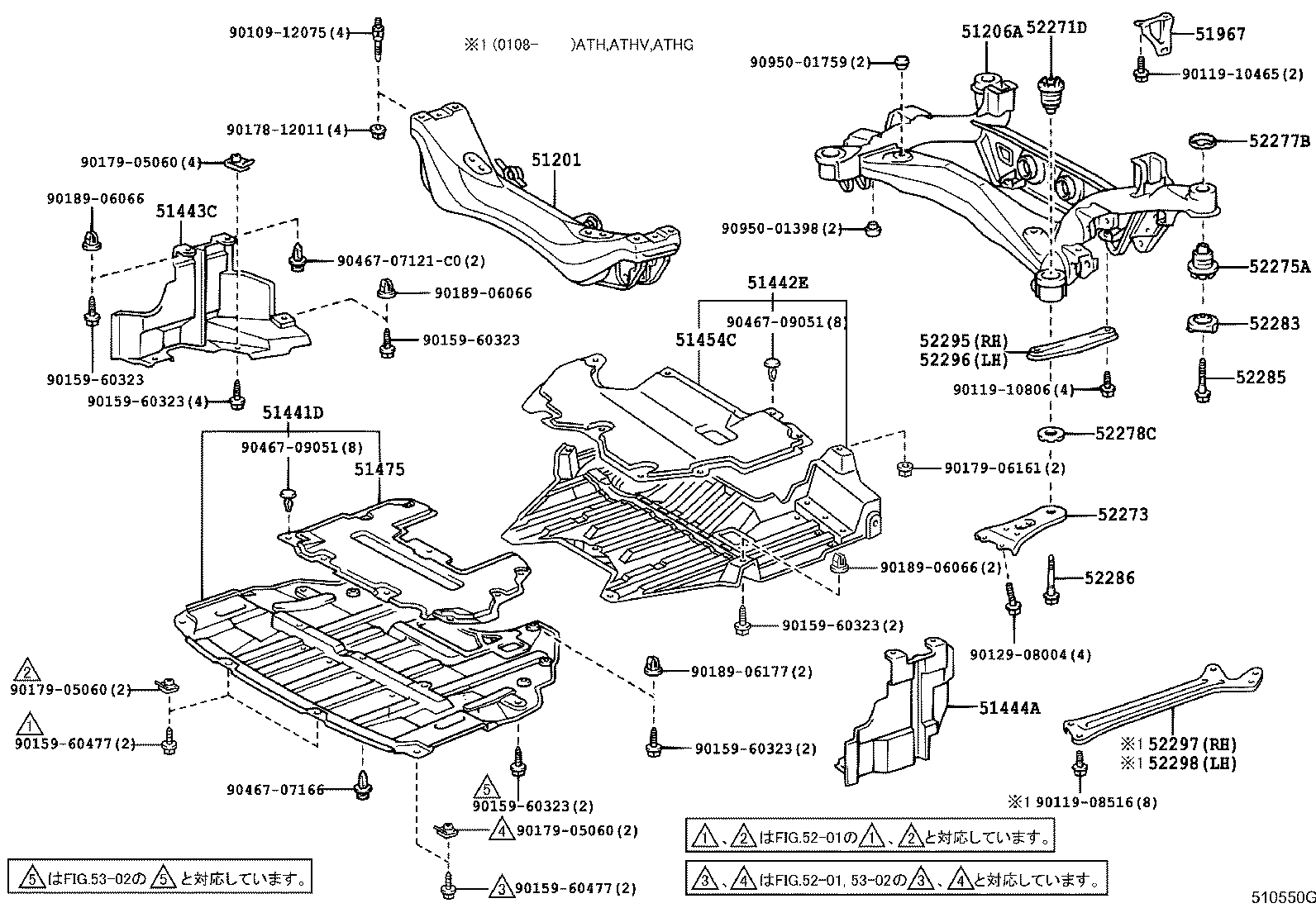

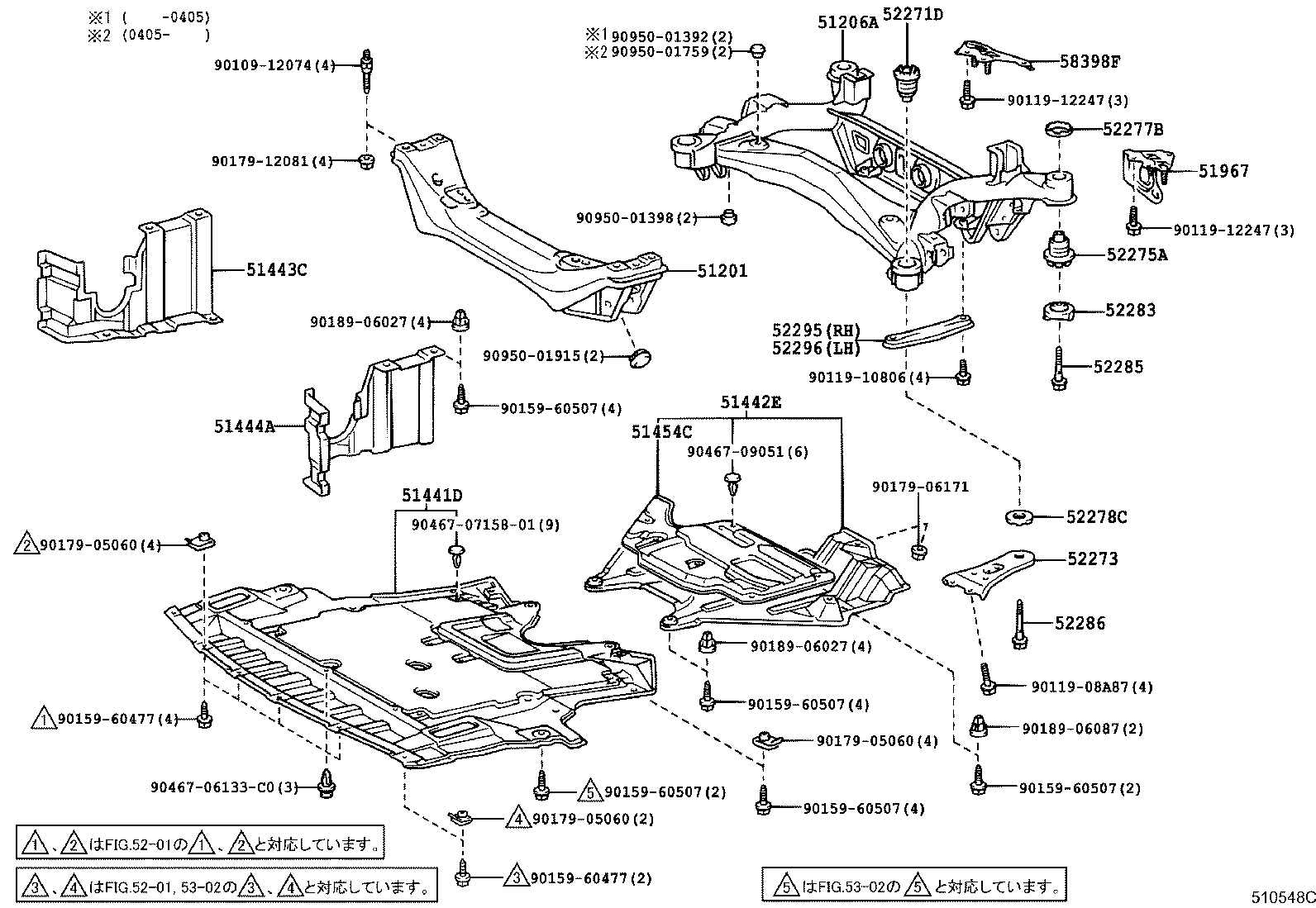

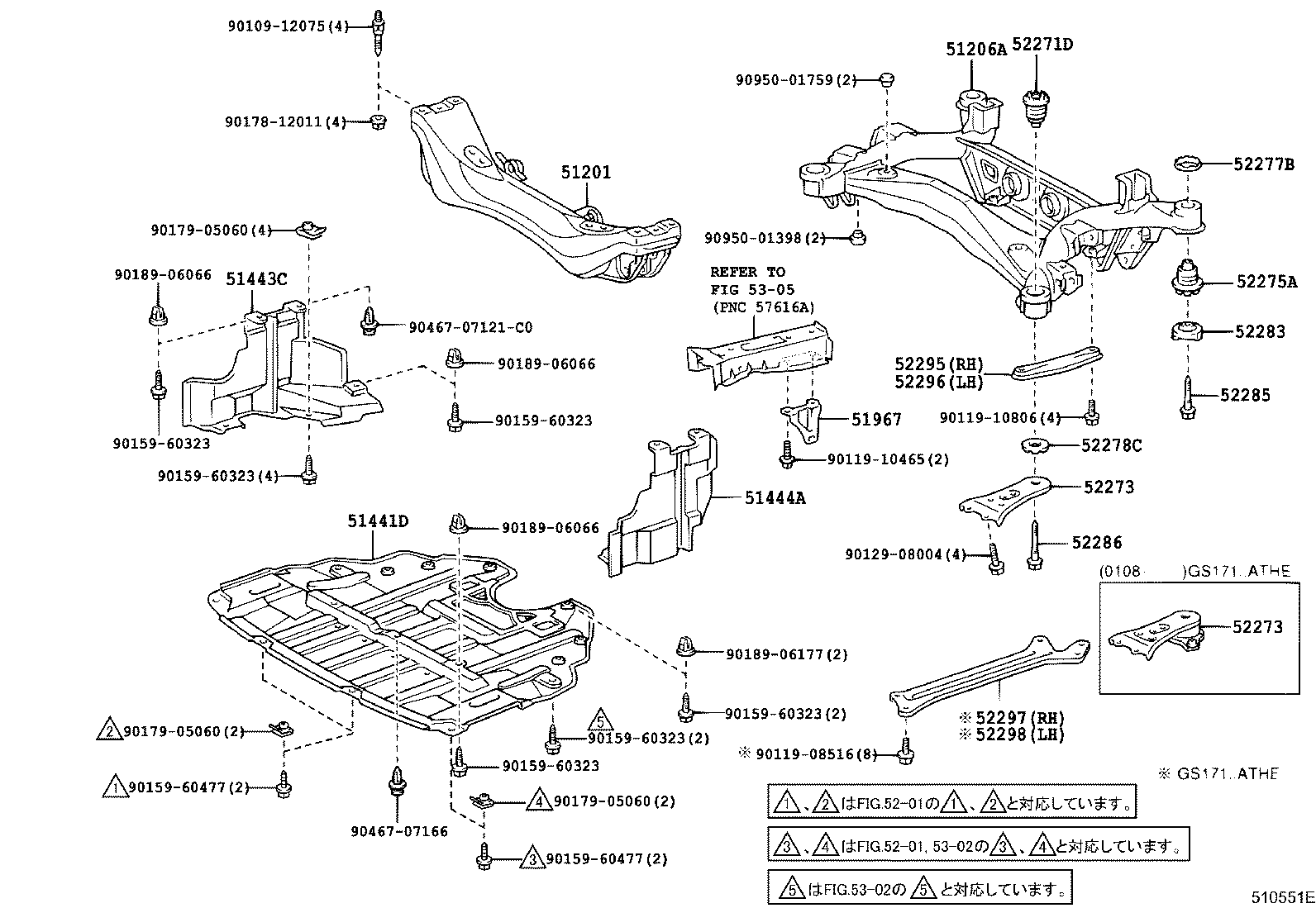

Suspension Crossmember & Under Cover
32 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100G | Frame Assy, Front |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51202C | Crossmember Sub-assy, Front Suspension, Lower |
| 51206A | Member Sub-assy, Rear Suspension |
| 51229C | Plate, Suspension Member Set |
| 51403A | Brace Sub-assy, Front Suspension Member, RH |
| 51441D | Cover, Engine Under |
| 51442E | Cover, Engine Under, NO.2 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51454C | Silencer, Engine Under Cover, Rear |
| 51475 | Silencer, Engine Under Cover, NO.5 |
| 51967 | Hook, Transport, Rear |
| 52211F | Cushion, Body Mounting, Front Upper |
| 52213A | Stopper, Front Suspension Member Body Mounting, Front |
| 52215 | Cushion, Front Suspension Member Body Mounting, Rear |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 52278C | Stopper, Rear Suspension Member, Rear Lower |
| 52283 | Stopper, Differential Support Member, Lower |
| 52285 | Bolt, Differential Support Member Mounting, NO.1 |
| 52285A | Bolt, Differential Support Member Mounting, NO.1 |
| 52286 | Bolt, Differential Support Member Mounting, NO.2 |
| 52295 | Brace, Rear Suspension Member, RH |
| 52296 | Brace, Rear Suspension Member, LH |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 52298 | Brace, Rear Suspension Member, Rear Lower LH |
| 58398F | Cover, Floor Under, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
