Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 3 illustrations

Illustrations

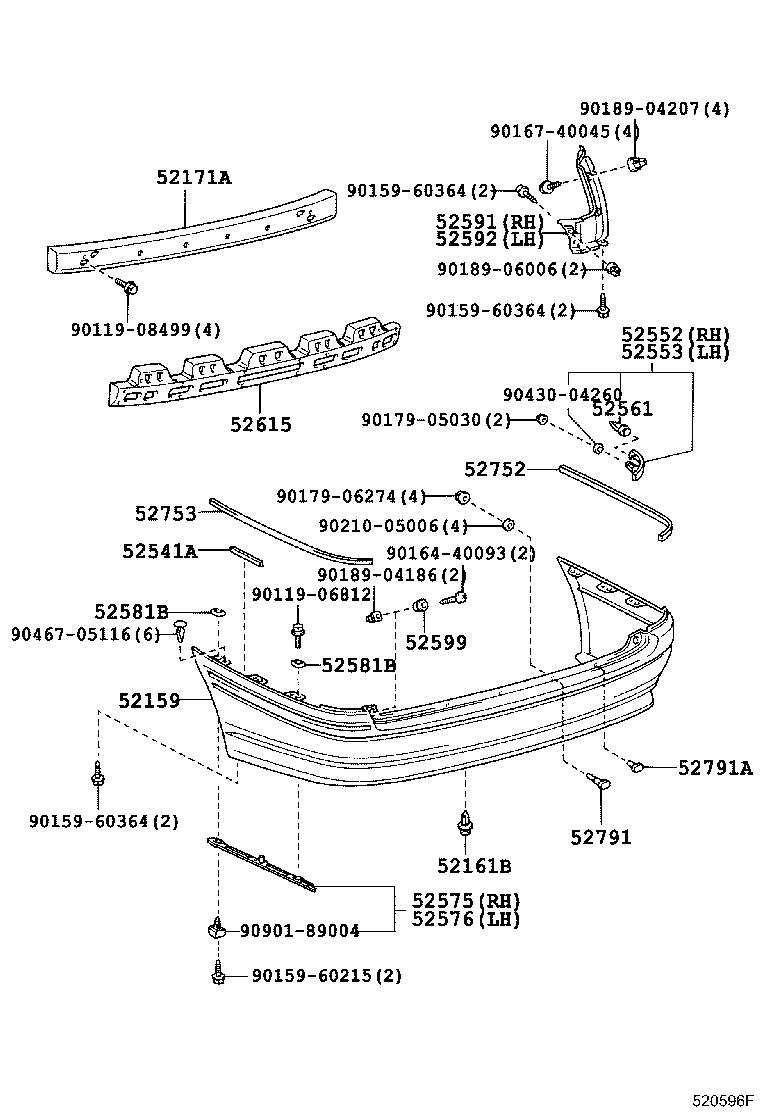

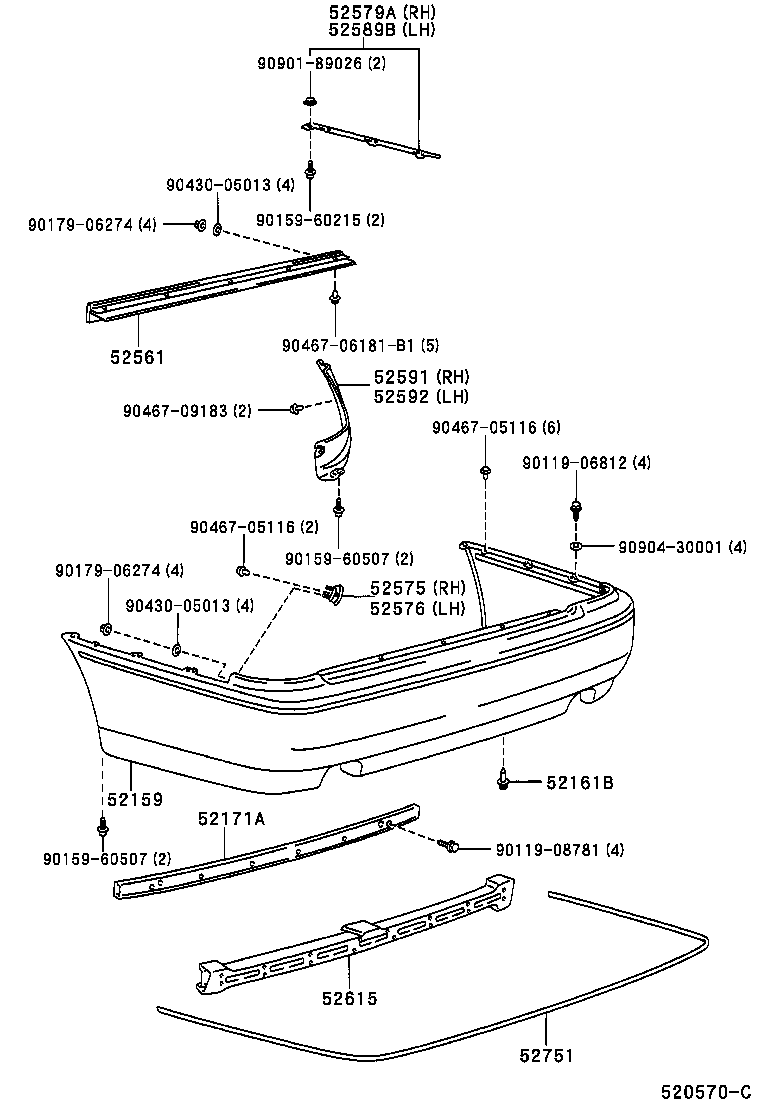

Figure 520569G 520569G 1999-09 → 2003-12 Figure 520570C 520570C 1999-09 → 2004-06 Figure 520596F 520596F 1999-12 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52541A Protector, Rear Bumper
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52579A Retainer, Rear Bumper Side, NO.3 RH
52581B Protector, Rear Bumper
52589B Retainer, Rear Bumper Side, NO.3 LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
52791A Bolt, Bumper Moulding Set, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
