Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

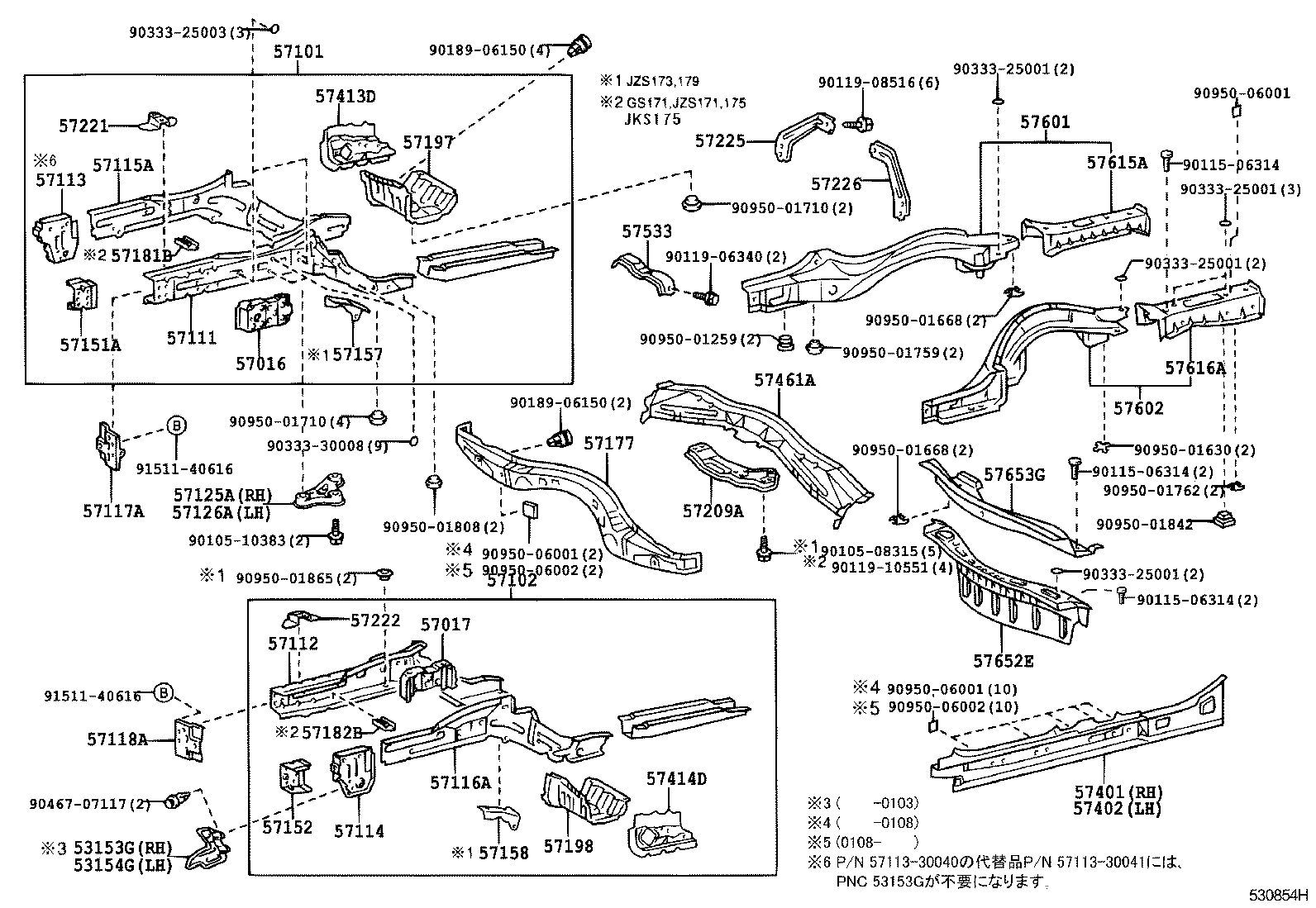

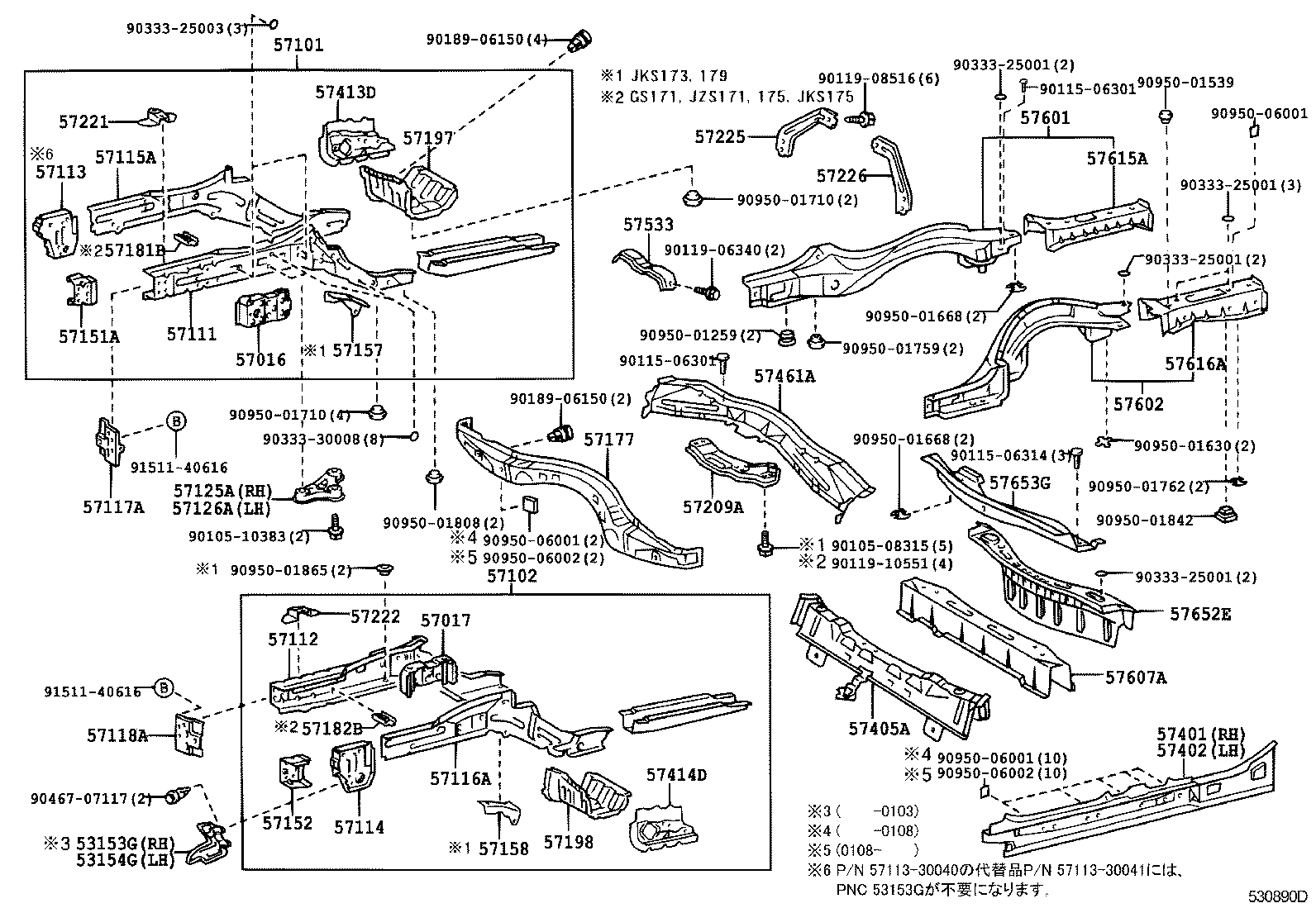

Floor Side Member
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51204D | Damper Sub-assy, Engine Rear Support Member |
| 51681 | Bracket, Flexible Hose |
| 51682B | Bracket, Flexible Hose, LH |
| 53153G | Guide, Radiator Grille Side Air, RH |
| 53154G | Guide, Radiator Grille Side Air, LH |
| 57016 | Reinforcement Sub-assy, Front Side Member, RH |
| 57017 | Reinforcement Sub-assy, Front Side Member, LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57105 | Bracket Sub-assy, Front Suspension Member Mounting, Front RH |
| 57106E | Bracket Sub-assy, Front Suspension Member Mounting, Front LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57113 | Extension, Front Side Member, RH |
| 57114 | Extension, Front Side Member, LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57117A | Reinforcement, Front Bumper Mounting |
| 57118A | Reinforcement, Front Bumper Mounting, LH |
| 57125A | Plate, Strut Bar Bracket, RH |
| 57126A | Plate, Strut Bar Bracket, LH |
| 57151A | Reinforcement, Front Side Member, NO.1 RH |
| 57152 | Reinforcement, Front Side Member, NO.1 LH |
| 57157 | Reinforcement, Front Side Member, NO.4 RH |
| 57158 | Reinforcement, Front Side Member, NO.4 LH |
| 57177 | Crossmember, Front Side Member TO Dash Panel |
| 57181B | Plate, Front Side Member, NO.3 RH |
| 57182B | Plate, Front Side Member, NO.3 LH |
| 57183 | Plate, Front Side Member, NO.4 RH |
| 57184A | Plate, Front Side Member, NO.4 LH |
| 57191B | Reinforcement, Front Side Member, Outer RH |
| 57192B | Reinforcement, Front Side Member, Outer LH |
| 57197 | Box, Torque, Front RH |
| 57198 | Box, Torque, Front LH |
| 57209A | Member Sub-assy, Engine Rear Mounting |
| 57221 | Bracket, Front Side Member, RH |
| 57222 | Bracket, Front Side Member, LH |
| 57225 | Brace, Front Mounting Bracket, RH |
| 57226 | Brace, Front Mounting Bracket, LH |
| 57245 | Reinforcement, Front Side Member, NO.9 RH |
| 57246 | Reinforcement, Front Side Member, NO.9 LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57405A | Member Sub-assy, Center Floor Cross, NO.2 |
| 57413D | Extension, Floor Side, Inner RH |
| 57414D | Extension, Floor Side, Inner LH |
| 57461A | Member, Center Floor Cross |
| 57533 | Brace, Front Floor, Center |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57652E | Member, Rear Floor Cross, NO.1 |
| 57653G | Member, Rear Floor Cross, NO.2 |
| 61643B | Patch, Quarter Wheel House, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
