Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

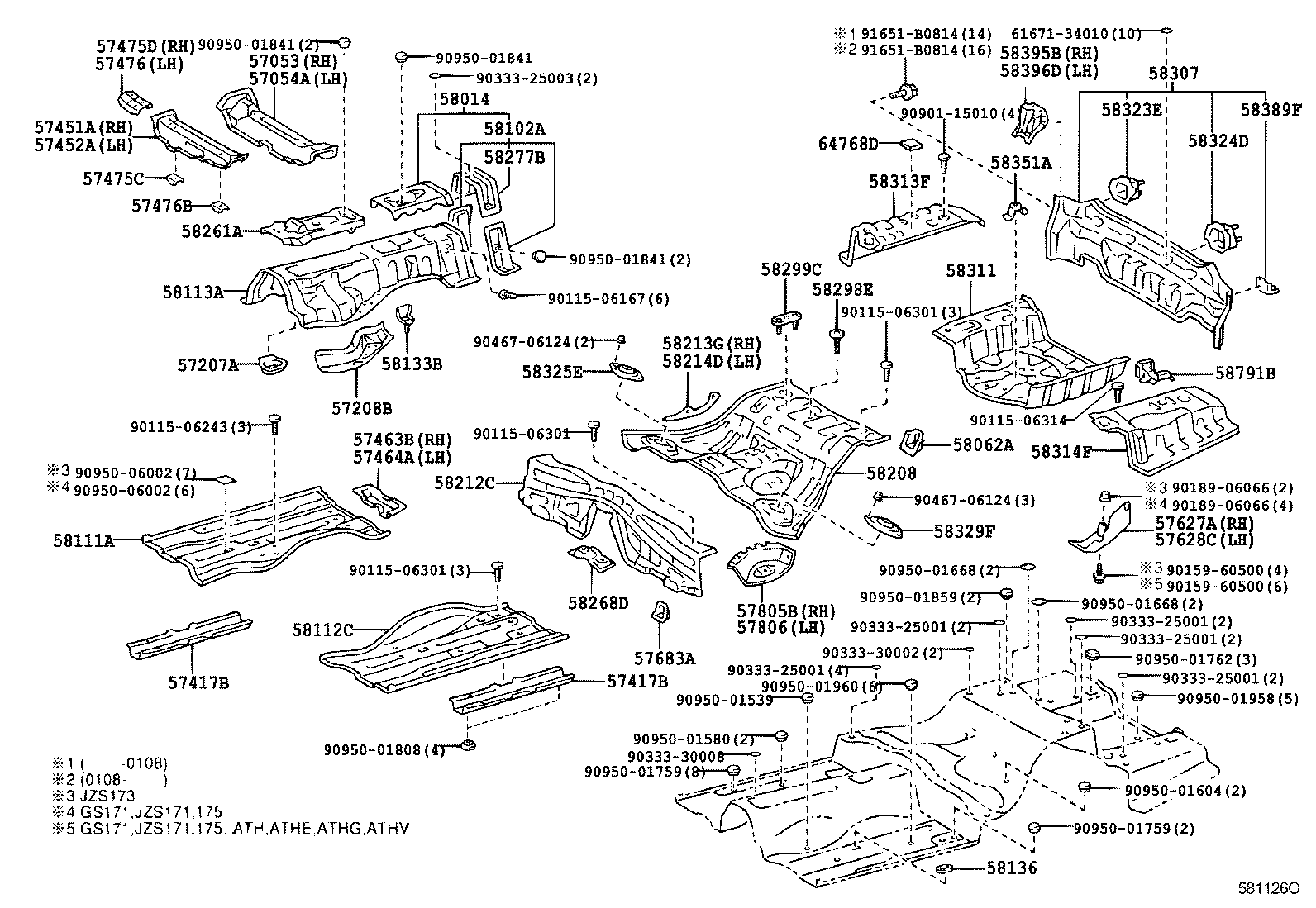

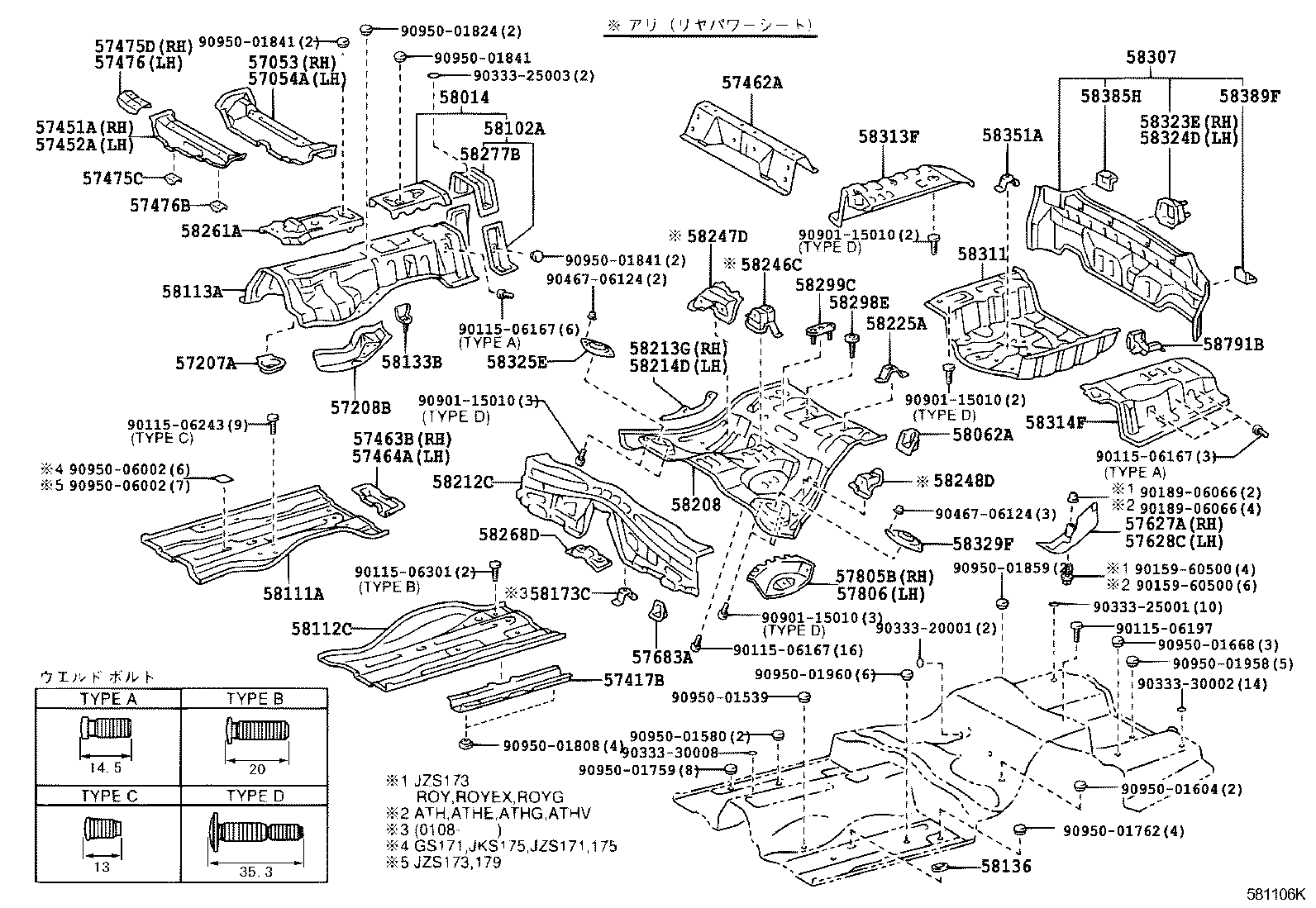

Floor Pan & Lower Back Panel
72 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57207A | Bracket Sub-assy, Engine Rear Mounting Member, RH |
| 57208B | Bracket Sub-assy, Engine Rear Mounting Member, LH |
| 57417B | Reinforcement, Front Floor Under |
| 57451A | Member, Front Floor Cross, RH |
| 57452A | Member, Front Floor Cross, NO.2 |
| 57462A | Member, Center Floor Cross, NO.2 |
| 57463B | Reinforcement, Center Floor Crossmember, RH |
| 57464A | Reinforcement, Center Floor Crossmember, LH |
| 57465A | Gusset, Center Floor Crossmember, RH |
| 57466A | Gusset, Center Floor Crossmember, LH |
| 57467B | Stiffener, Center Floor Crossmember |
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57475C | Plate, Front Floor Crossmember |
| 57475D | Plate, Front Floor Crossmember, RH |
| 57476 | Plate, Front Floor Crossmember, LH |
| 57476B | Plate, Front Floor Crossmember |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57627A | Cover, Rear Floor Side Member, RH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57683A | Bracket, Fuel Tank Mounting, NO.1 |
| 57686A | Bracket, Fuel Tank Mounting, Rear RH |
| 57687A | Bracket, Fuel Tank Mounting, Rear LH |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 57806 | Reinforcement Sub-assy, Belt Anchor, LH |
| 58014 | Panel Sub-assy, Front Floor, Rear Lower |
| 58062A | Bracket Sub-assy, Fuel Tank Mounting, Rear |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58103B | Bracket Sub-assy, Front Seat Mounting, Inner RH |
| 58104B | Bracket Sub-assy, Front Seat Mounting, Inside, LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58133B | Bracket, Front Floor Heat Insulator, NO.3 |
| 58136 | Cover, Front Floor Hole |
| 58173C | Bracket, Wiring Harness Protector |
| 58191 | Footrest, Front Floor |
| 58198 | Clip, Footrest |
| 58208 | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58213G | Reinforcement, Center Floor Panel, NO.1 RH |
| 58214D | Reinforcement, Center Floor Panel, NO.1 LH |
| 58225A | Bracket, Center Mounting |
| 58243A | Bracket, Rear Seat Hinge Front |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58245A | Bracket, Rear Seat Hinge, Center NO.1 |
| 58246C | Bracket, Rear Seat Hinge, Center NO.2 |
| 58247D | Bracket, Rear Seat Hinge, Outer RH |
| 58248D | Bracket, Rear Seat Hinge, Outer LH |
| 58261A | Cover, Transmission |
| 58268D | Reinforcement, Parking Brake Cable, NO.3 |
| 58277B | Reinforcement, Drive Shaft Center Support |
| 58298E | Bracket, Hot Air Intake, NO.1 |
| 58299C | Bracket, Hot Air Intake, NO.2 |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58323E | Reinforcement, Rear Bumper Arm Support, RH |
| 58324D | Reinforcement, Rear Bumper Arm Support, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58351A | Bracket, Spare Wheel Carrier |
| 58385H | Bracket, Rear Bumper Cover, NO.1 |
| 58389F | Bracket, Lower Back Cover |
| 58395B | Bracket, Removable Roof Set, RH |
| 58396D | Bracket, Removable Roof Set, LH |
| 58791B | Carrier, Jack |
| 64768D | Stopper, Jack Cover |
| 77148A | Bracket, Fuel Tube TO Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
