Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 3 illustrations

Illustrations

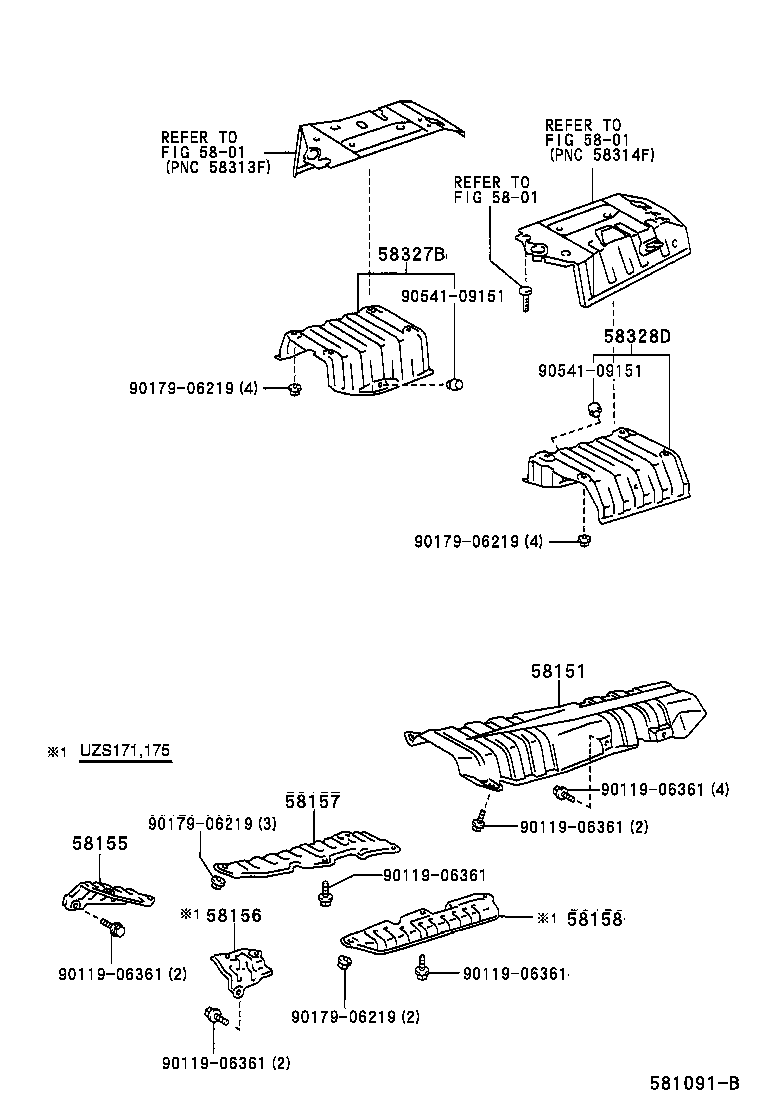

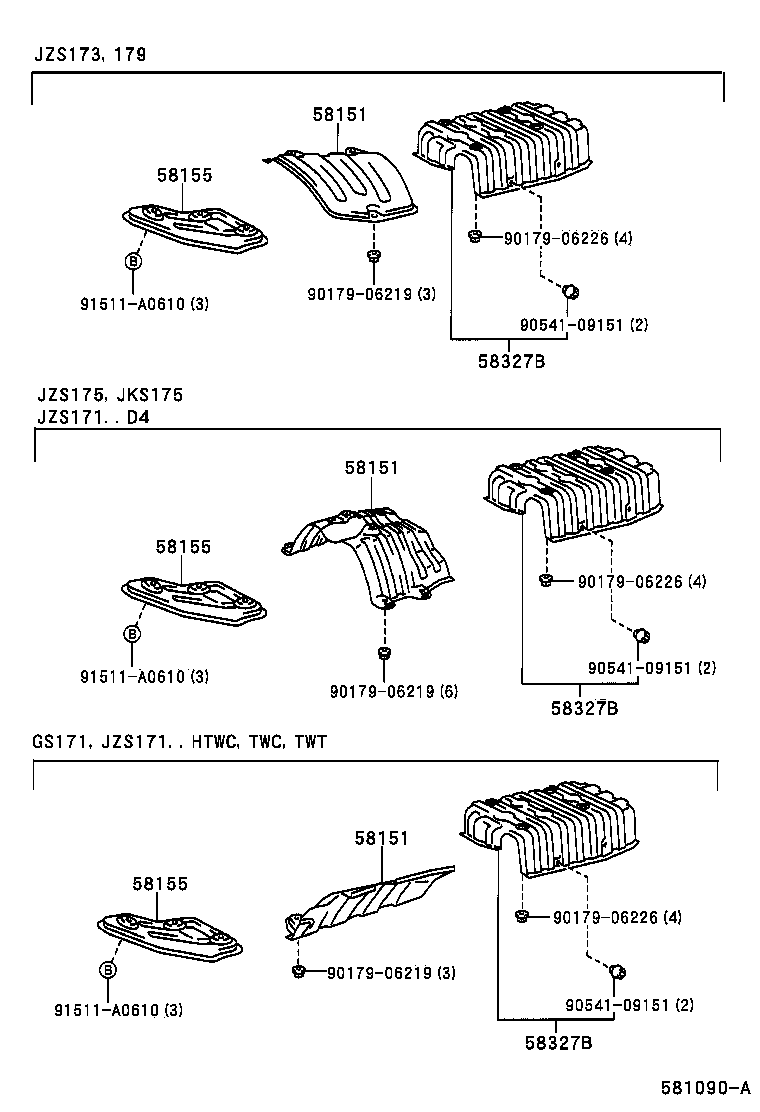

Figure 581089B 581089B 1999-09 → — Figure 581090A 581090A 1999-09 → — Figure 581091B 581091B 1999-09 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
58327B Insulator, Main Muffler Heat
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
