Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

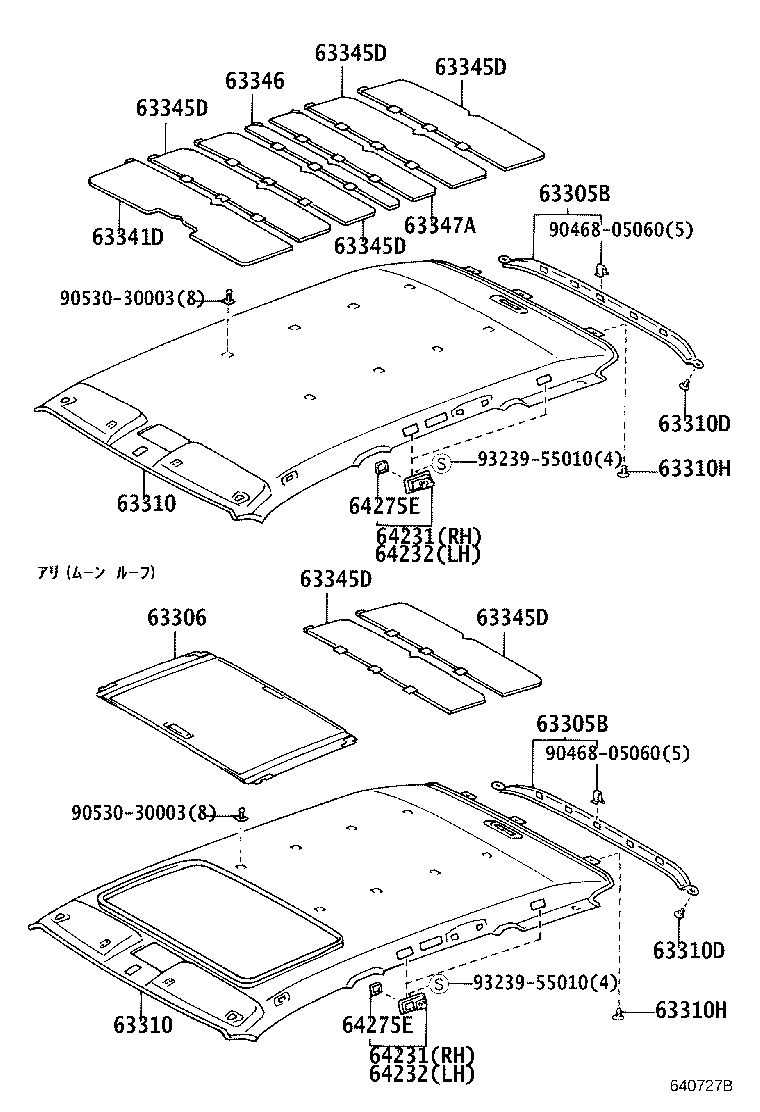

Figure 640708 640708 1999-09 → — Figure 640727B 640727B 1999-12 → —

Part groups

PNCDescription
63305B Trim Sub-assy, Roof Headlining, Rear
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63343B Pad, Roof Silencer, Rear
63345D Pad, Roof Silencer, Center
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
64231 Hook, Room Partition Net, Front RH
64232 Hook, Room Partition Net, Front LH
64275E Cover, Room Partition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
