Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

88 part groups · 9 illustrations

Illustrations

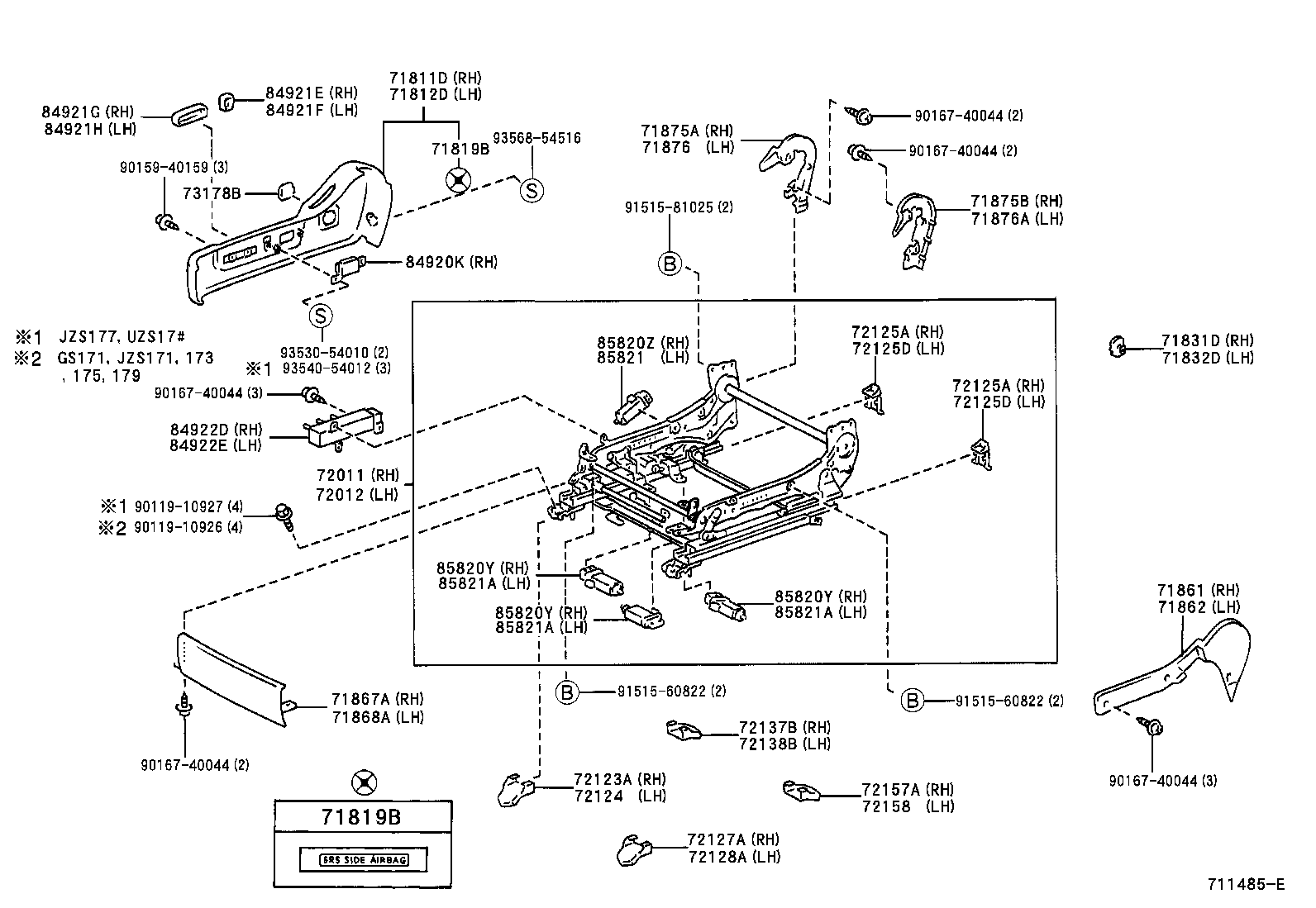

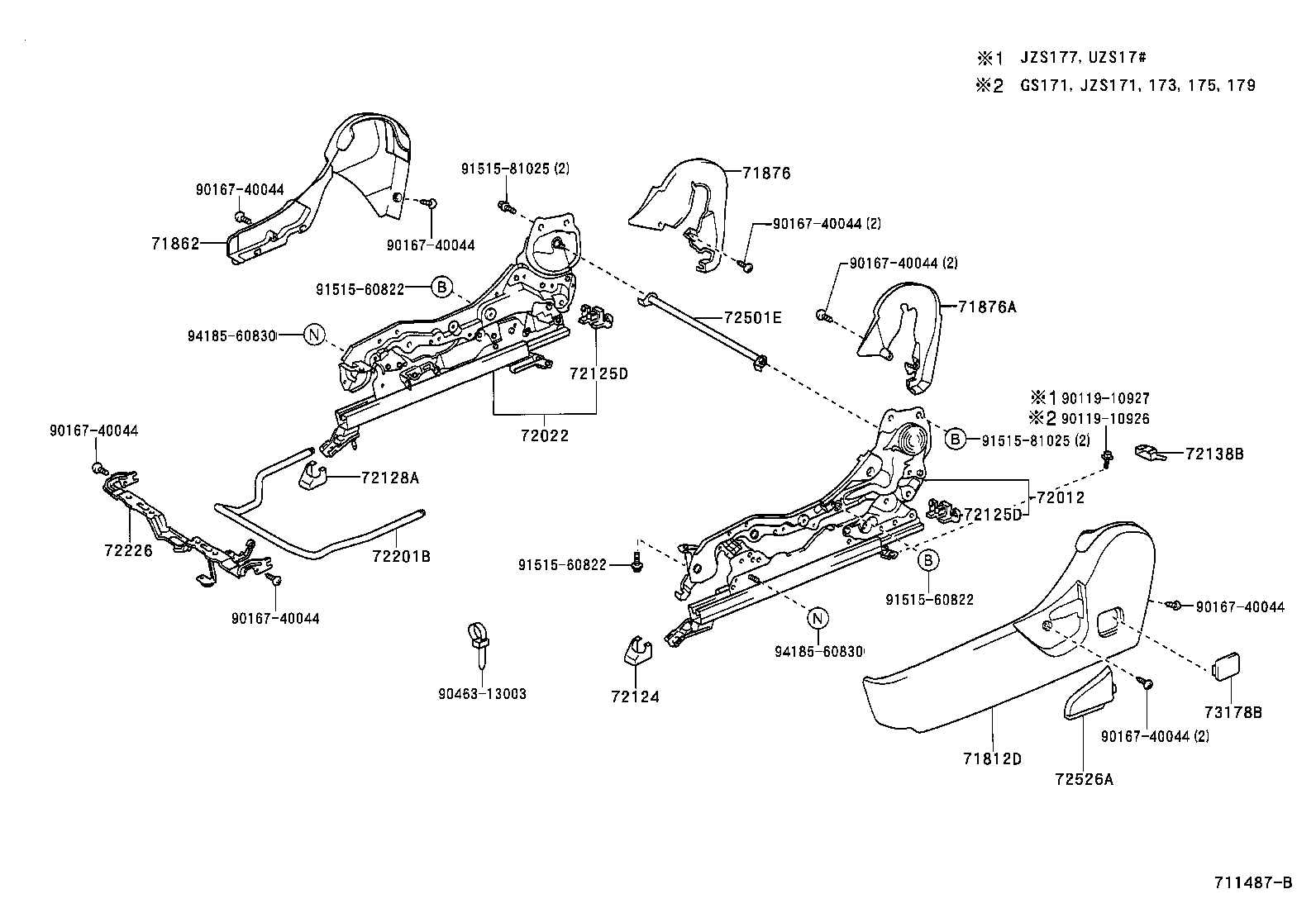

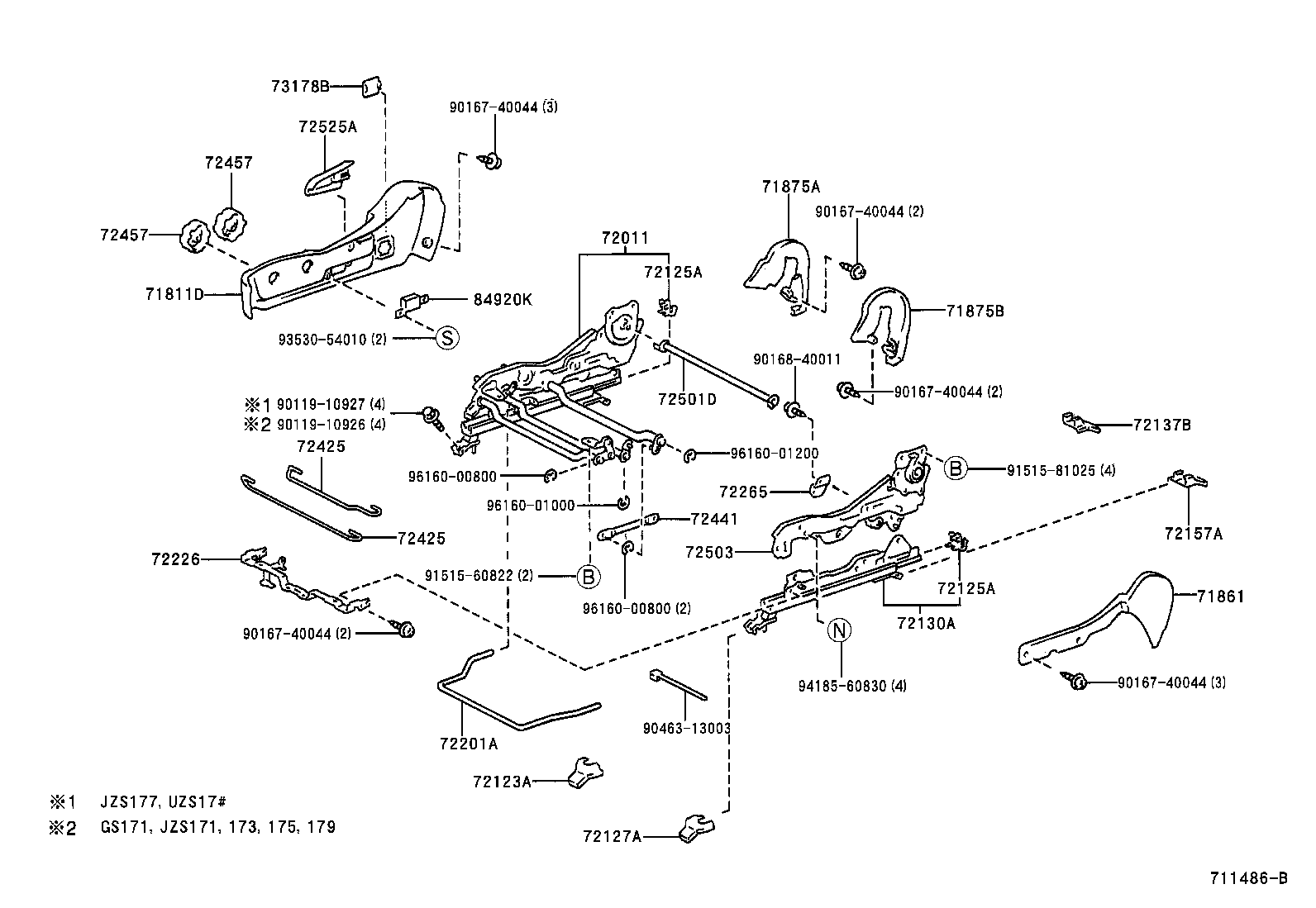

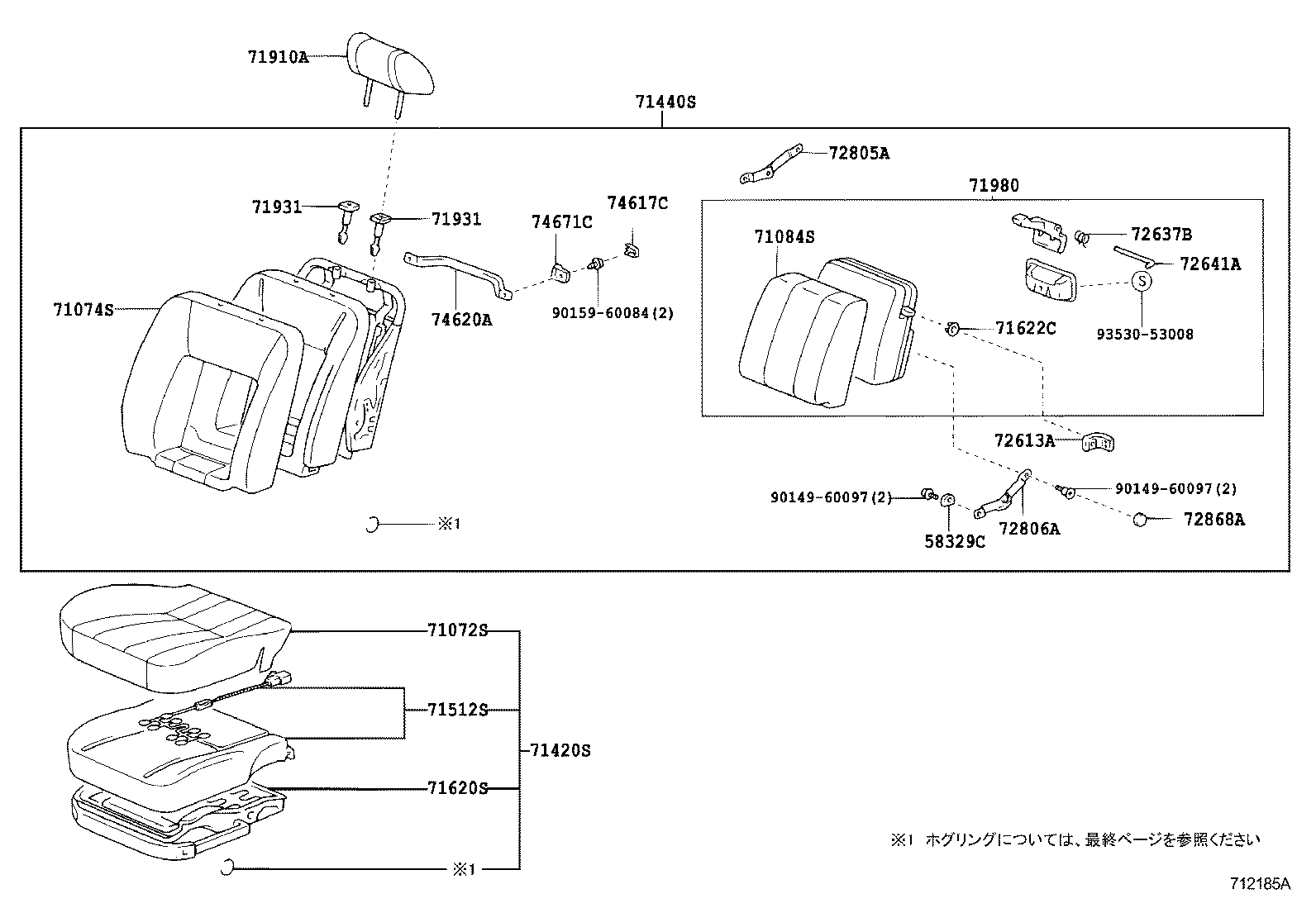

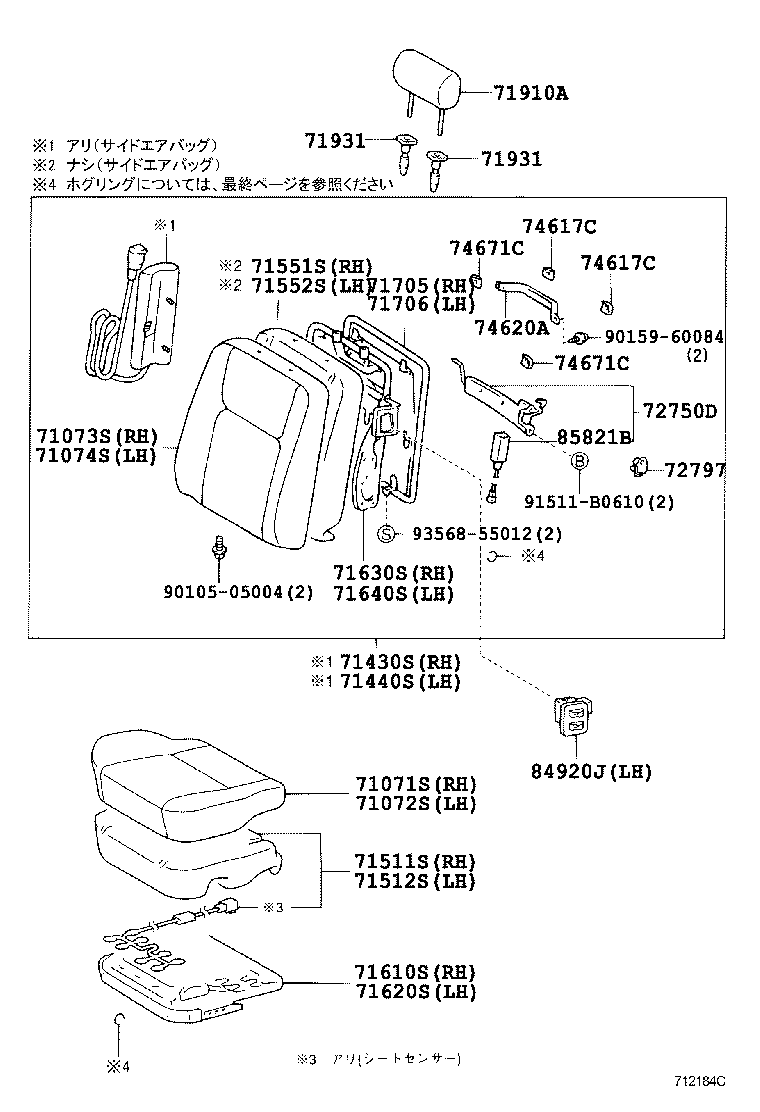

Figure 711484D 711484D 1999-09 → 2001-08 Figure 712184C 712184C 2001-08 → — Figure 712185A 712185A 2001-08 → — Figure 711485E 711485E 1999-09 → — Figure 711486B 711486B 1999-09 → — Figure 711487B 711487B 1999-09 → — Figure 671830C 671830C 1999-09 → 2001-08 Figure 672538A 672538A 2001-08 → — Figure 718165A 718165A 1999-09 → —

Part groups

PNCDescription
58329C Spacer, Footrest
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71084S Cover Sub-assy, Front Seatback, Inside LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71622C Bush, Front Seatback Protector Shaft
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71819B Label, Side Airbag Name
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71980 Footrest Assy, Front Seat, NO.1
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72226 Bracket, Seat Track, NO.1
72265 Cover, Seat Track Upper Rail, RH
72425 Bar, Vertical Adjuster Torsion, NO.1
72441 Link, Vertical Travel
72457 Knob, Vertical Seat Adjuster
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72503 Arm Sub-assy, Reclining Adjuster, Lower RH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72613A Striker, Front Seat Lock
72637B Spring, Front Seatback Lock, RH
72641A Pin, Front Seatback Lock
72750D Adjuster Assy, Lumbar Support, RH
72797 Spacer, Lumbar Support
72805A Link Sub-assy, Front Seat Footrest, RH
72806A Link Sub-assy, Front Seat Footrest, LH
72868A Cover, Center Armrest Hinge
73178B Cap, Seat Belt Anchor Cover
74617C Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74671C Support, Assist Grip
84920J Switch Assy, Power Seat
84920K Switch Assy, Power Seat
84921E Knob, Power Seat Switch
84921F Knob, Power Seat Switch
84921G Knob, Power Seat Switch
84921H Knob, Power Seat Switch
84922D Switch, Front Power Seat
84922E Switch, Front Power Seat
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
85821 Motor Assy, Power Seat
85821A Motor Assy, Power Seat
85821B Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
