Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

63 part groups · 11 illustrations

Illustrations

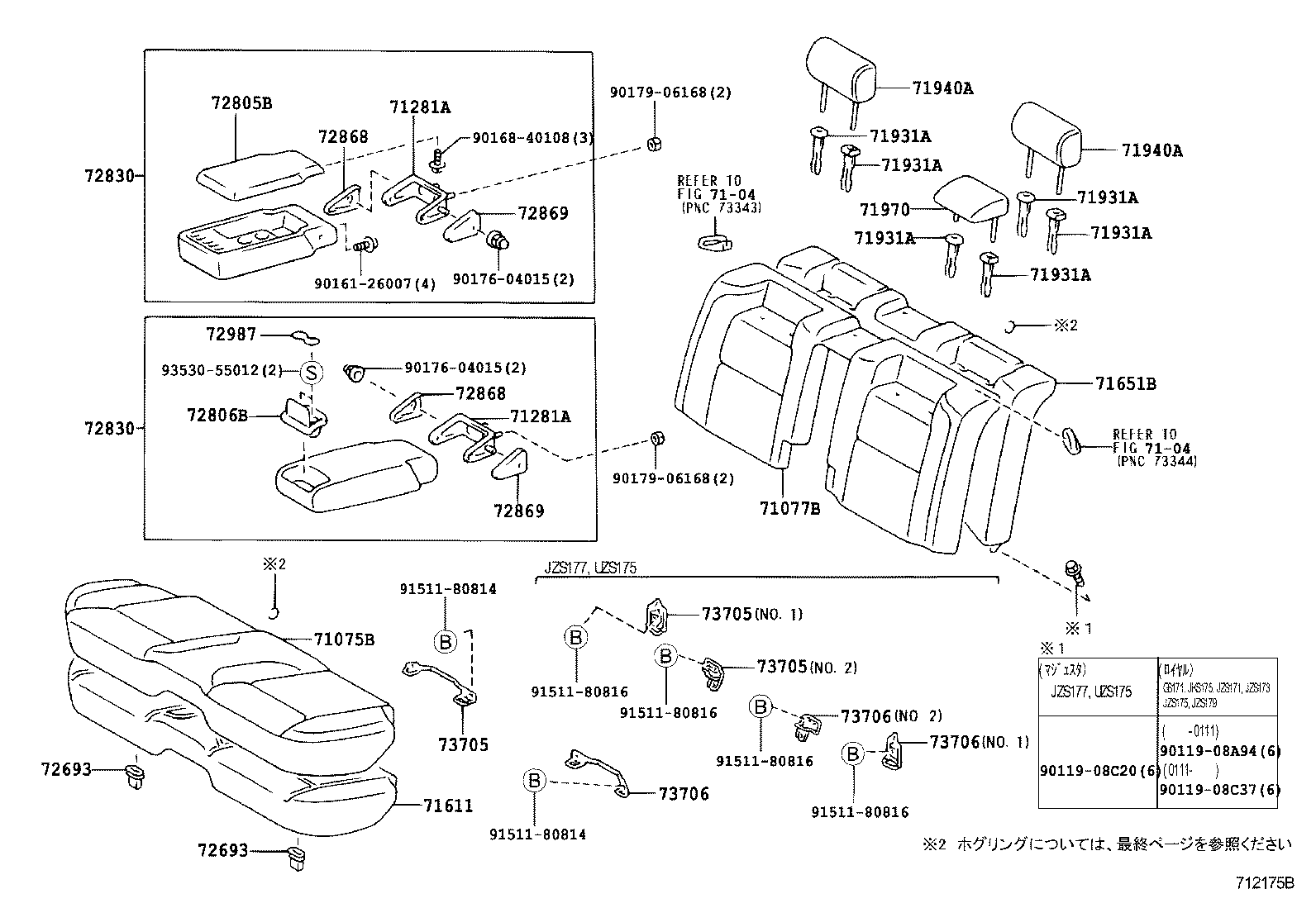

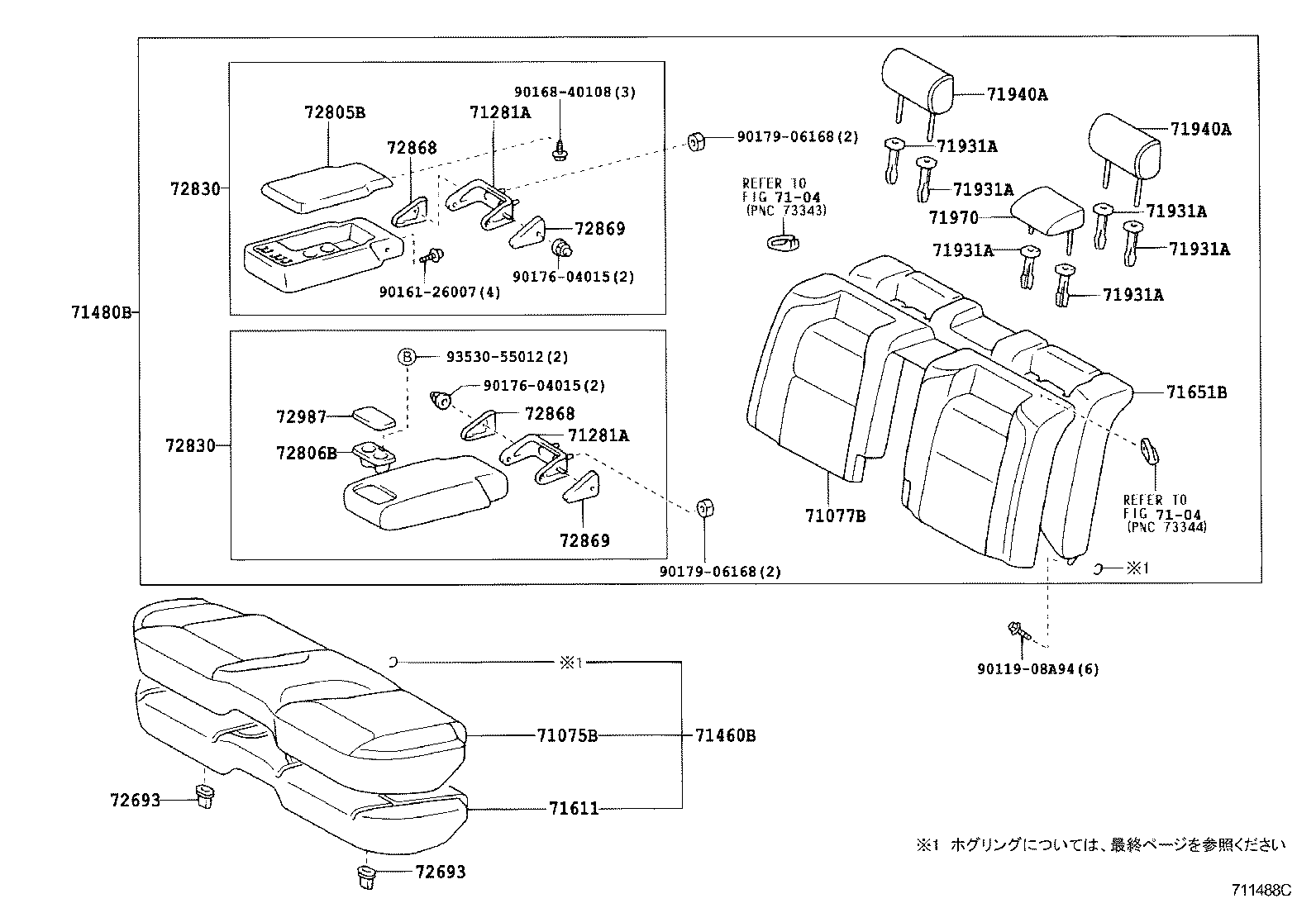

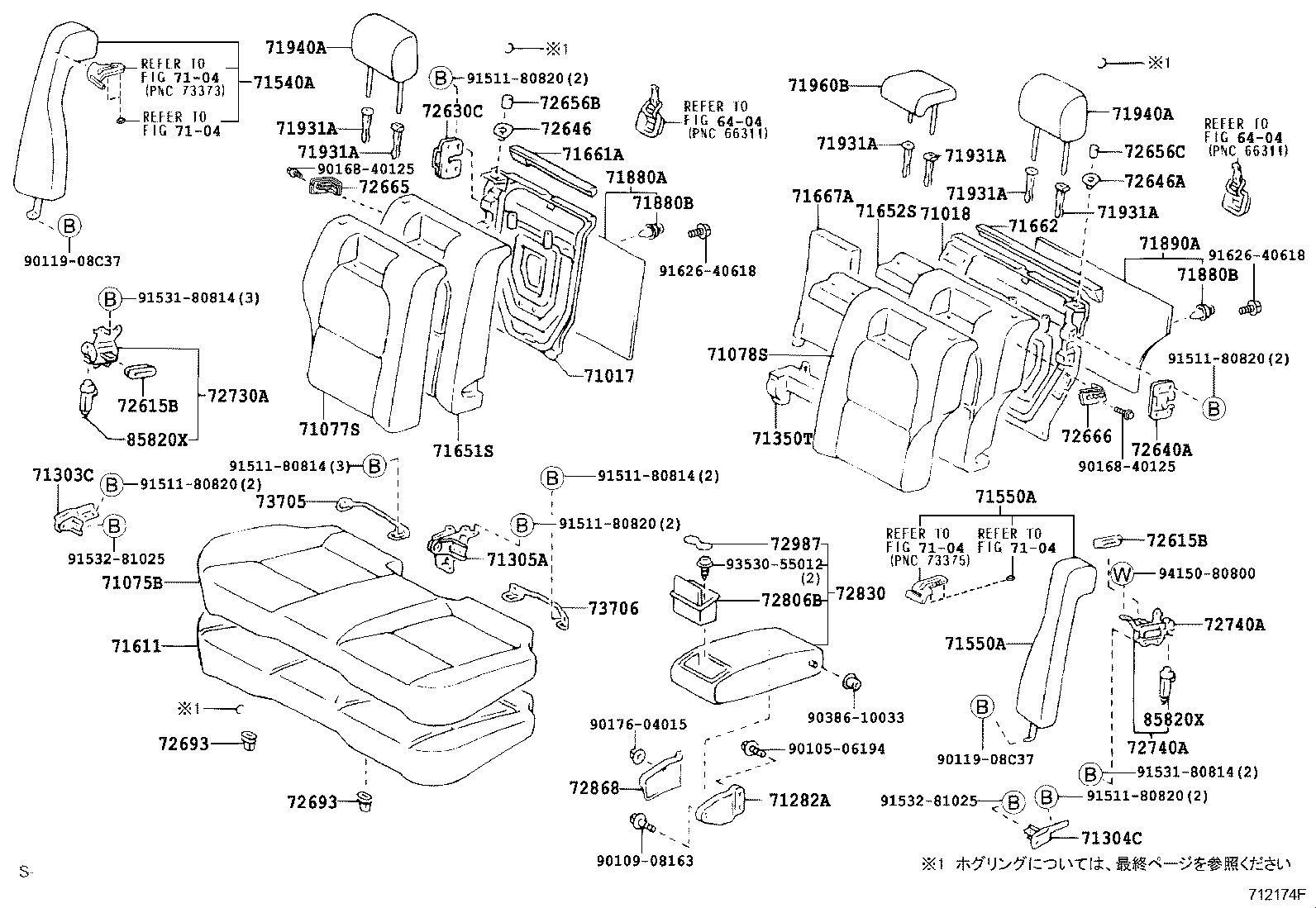

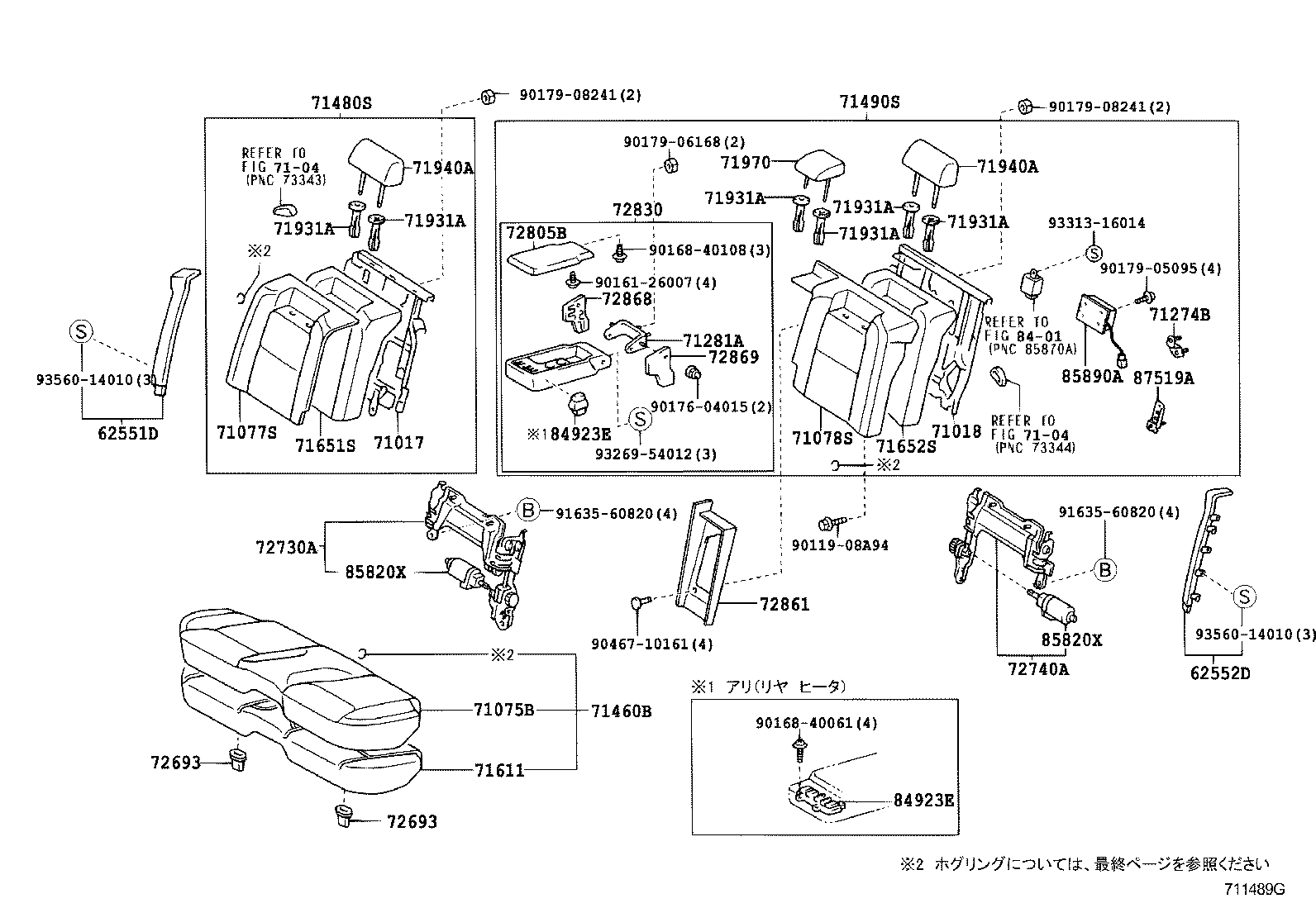

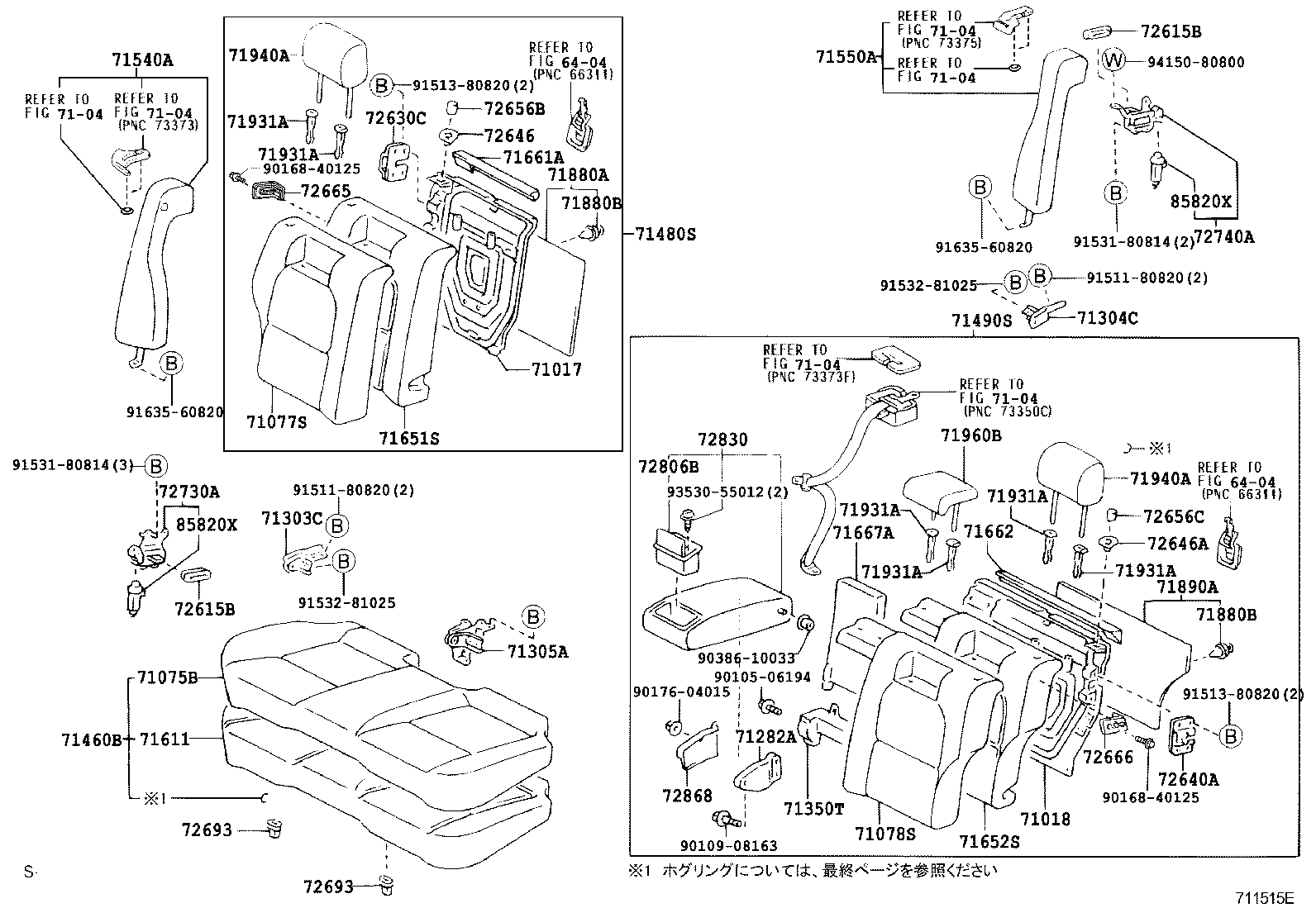

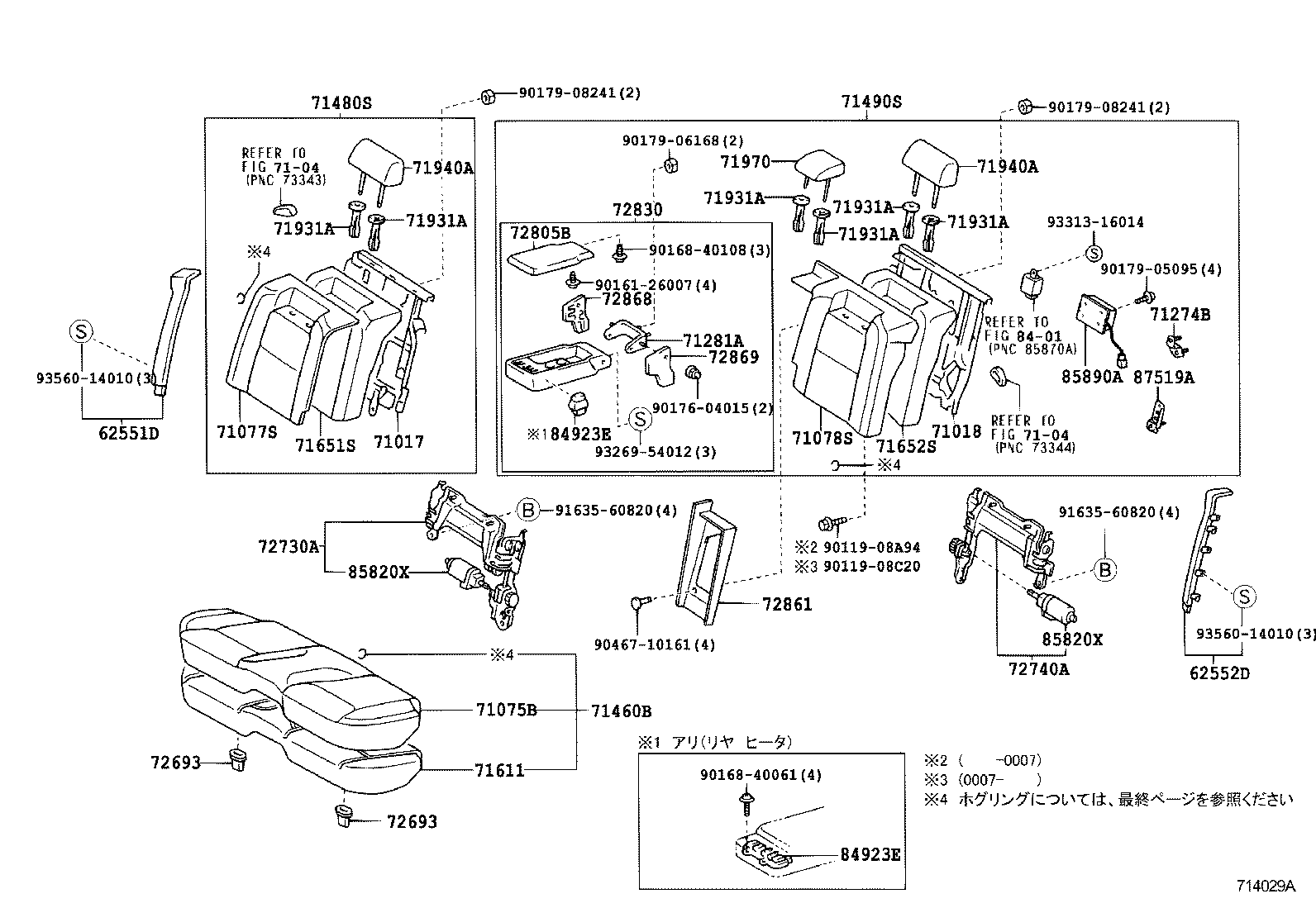

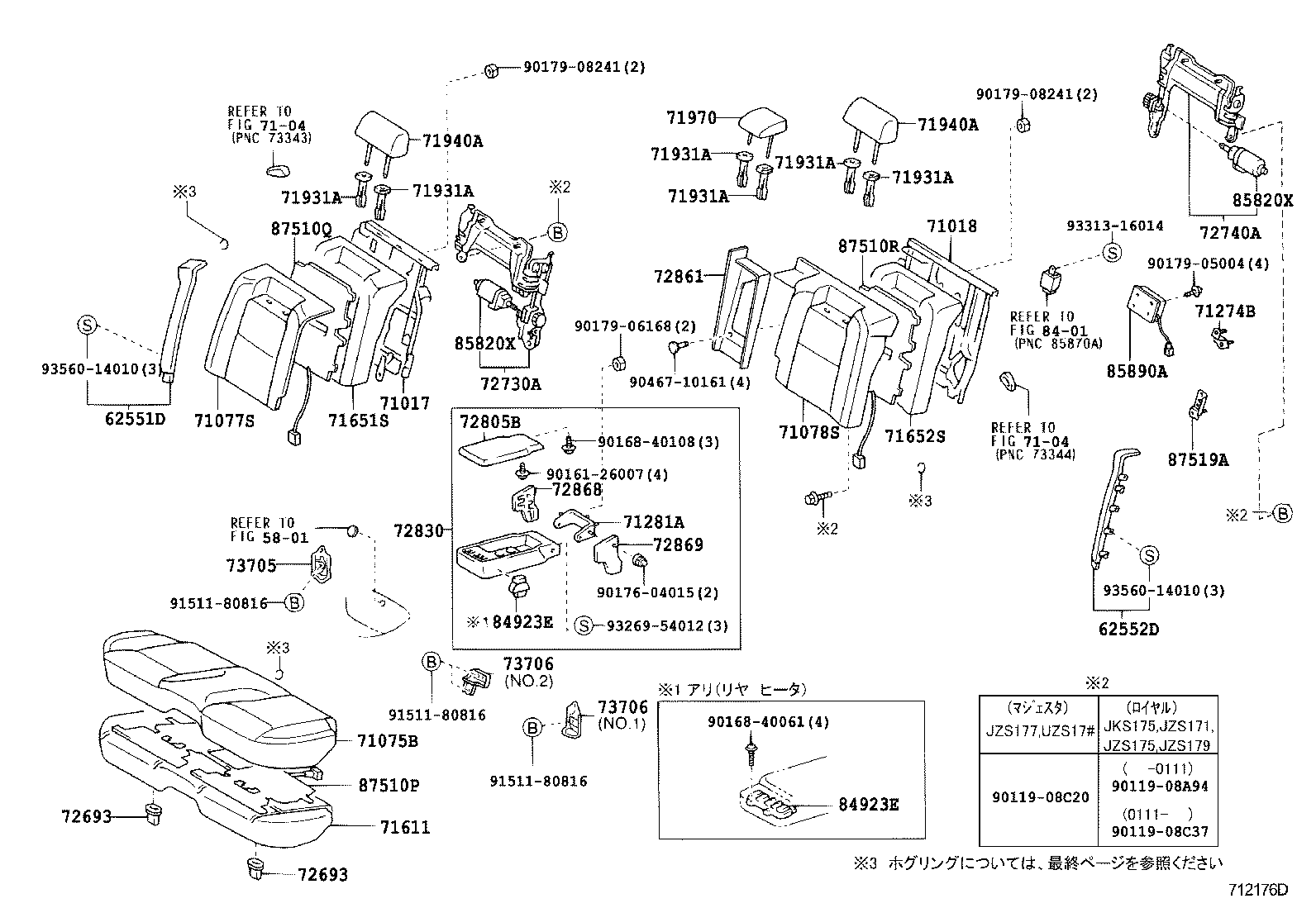

Figure 714028A 714028A 1999-09 → 2001-08 Figure 711488C 711488C 1999-09 → 2001-08 Figure 714029A 714029A 1999-09 → 2001-08 Figure 711489G 711489G 1999-09 → 2001-08 Figure 711515E 711515E 1999-12 → 2001-08 Figure 712175B 712175B 2001-08 → — Figure 712176D 712176D 2001-08 → — Figure 712174F 712174F 2001-08 → — Figure 671830C 671830C 1999-09 → 2001-08 Figure 672538A 672538A 2001-08 → — Figure 718165A 718165A 1999-09 → —

Part groups

PNCDescription
62551D Garnish, Rear Seat Side, RH
62552D Garnish, Rear Seat Side, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71274B Panel, Rear Seatback Sub
71281A Hinge, Rear Seat Center Armrest
71282A Hinge, Rear Seat Center Armrest, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71350T Back Assy, Center Seat
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71661A Pad, Rear Seatback, Upper A
71662 Pad, Rear Seatback, Upper B
71667A Pad, Rear Seatback, Center A
71880A Carpet Assy, Rear Seatback Board, RH
71880B Clip(FOR REAR SEATBACK CARPET)
71890A Carpet Assy, Rear Seatback Board, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72615B Cover, Rear Seat Lock Striker, RH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72646A Grommet, Rear Seatback Stop Button
72656B Button, Rear Seatback Stop Release
72656C Button, Rear Seatback Stop Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72805B Door Sub-assy, Rear Seat Center Armrest
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72861 Trim, Center Armrest Corner
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72987 Cover, Rear Seat Center Armrest
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
84923E Switch, Rear Power Seat
85820X Motor Assy, Power Seat
85890A Vibrator Assy, Seat
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87519A Bracket, Seat Heater Connector Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
