Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 3 illustrations

Illustrations

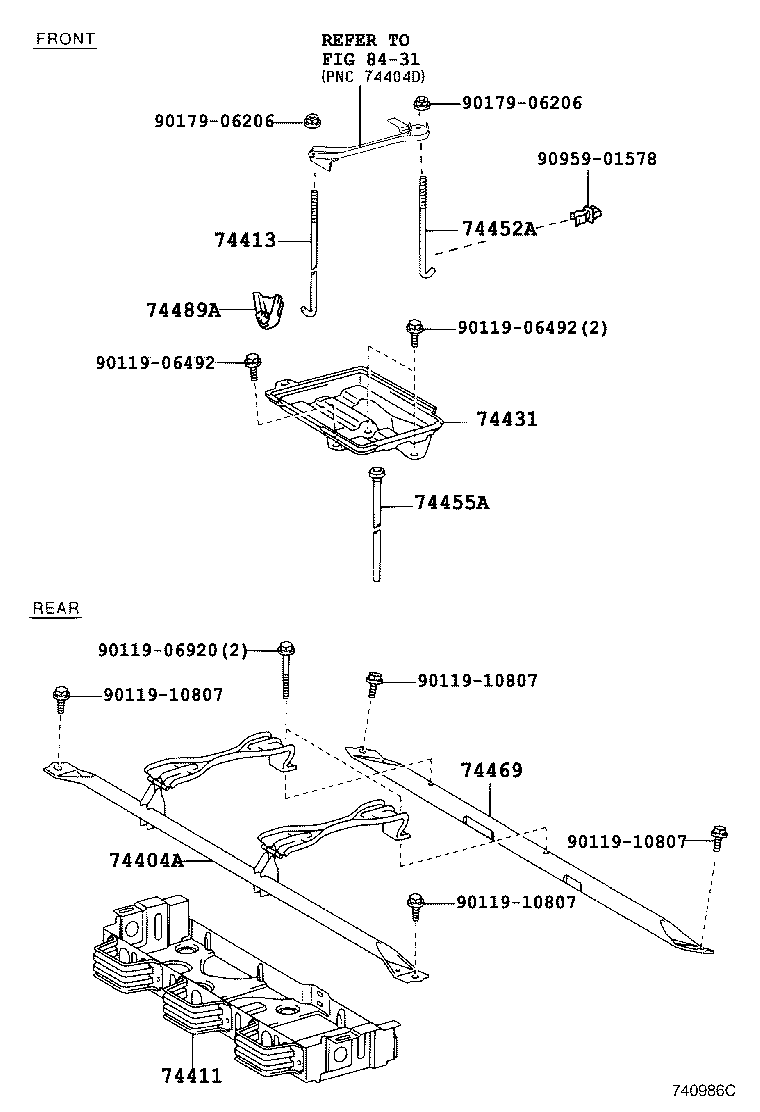

Figure 740691B 740691B 1999-09 → — Figure 740692A 740692A 1999-09 → — Figure 740986C 740986C 2001-08 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74408A Bolt Sub-assy, Battery Clamp, NO.2
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74431 Tray, Battery
74452A Bolt, Battery Clamp, NO.2
74455A Hose, Battery Drain
74469 Pipe, Battery Carrier
74489A Cover, Battery Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
