Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

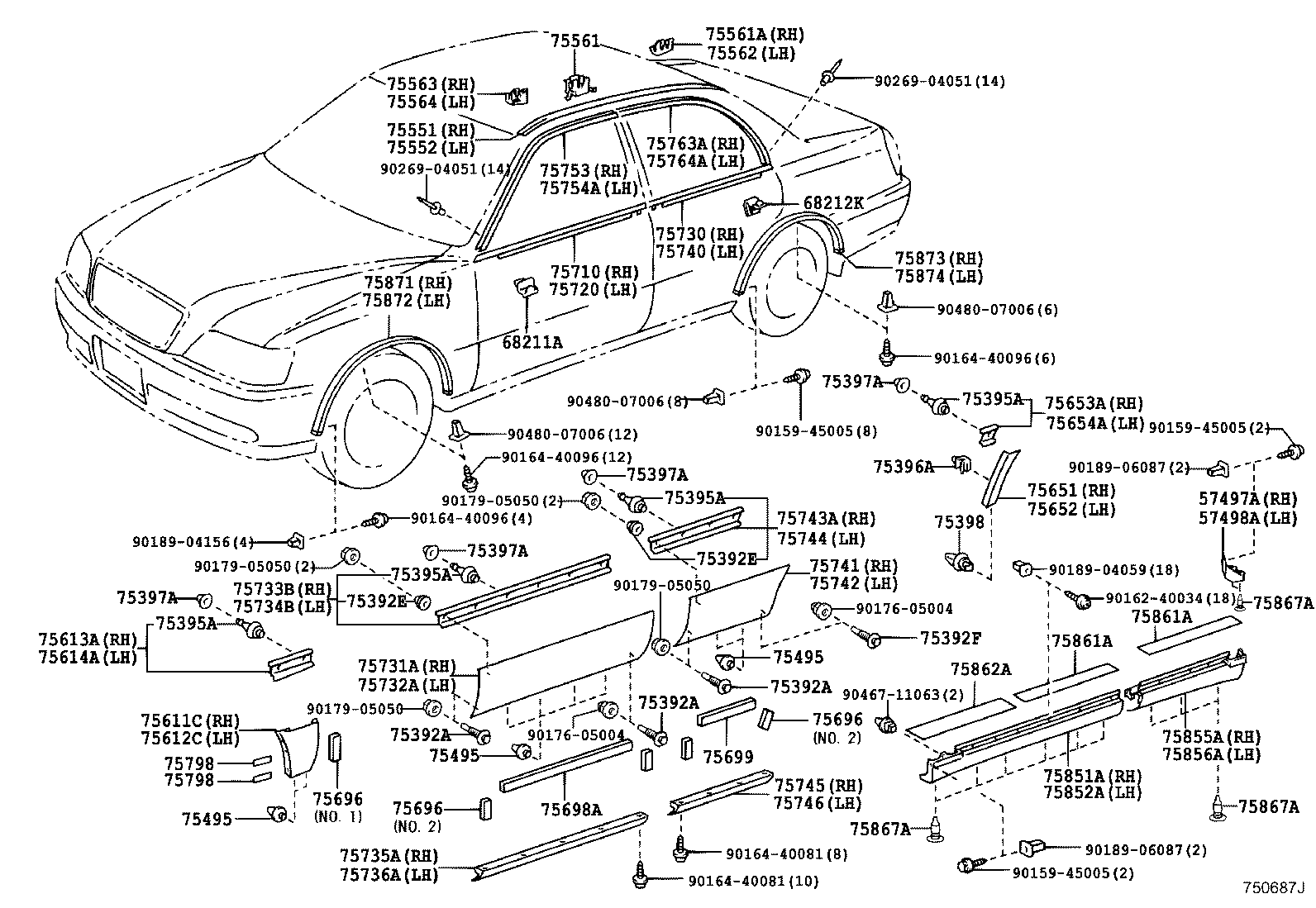

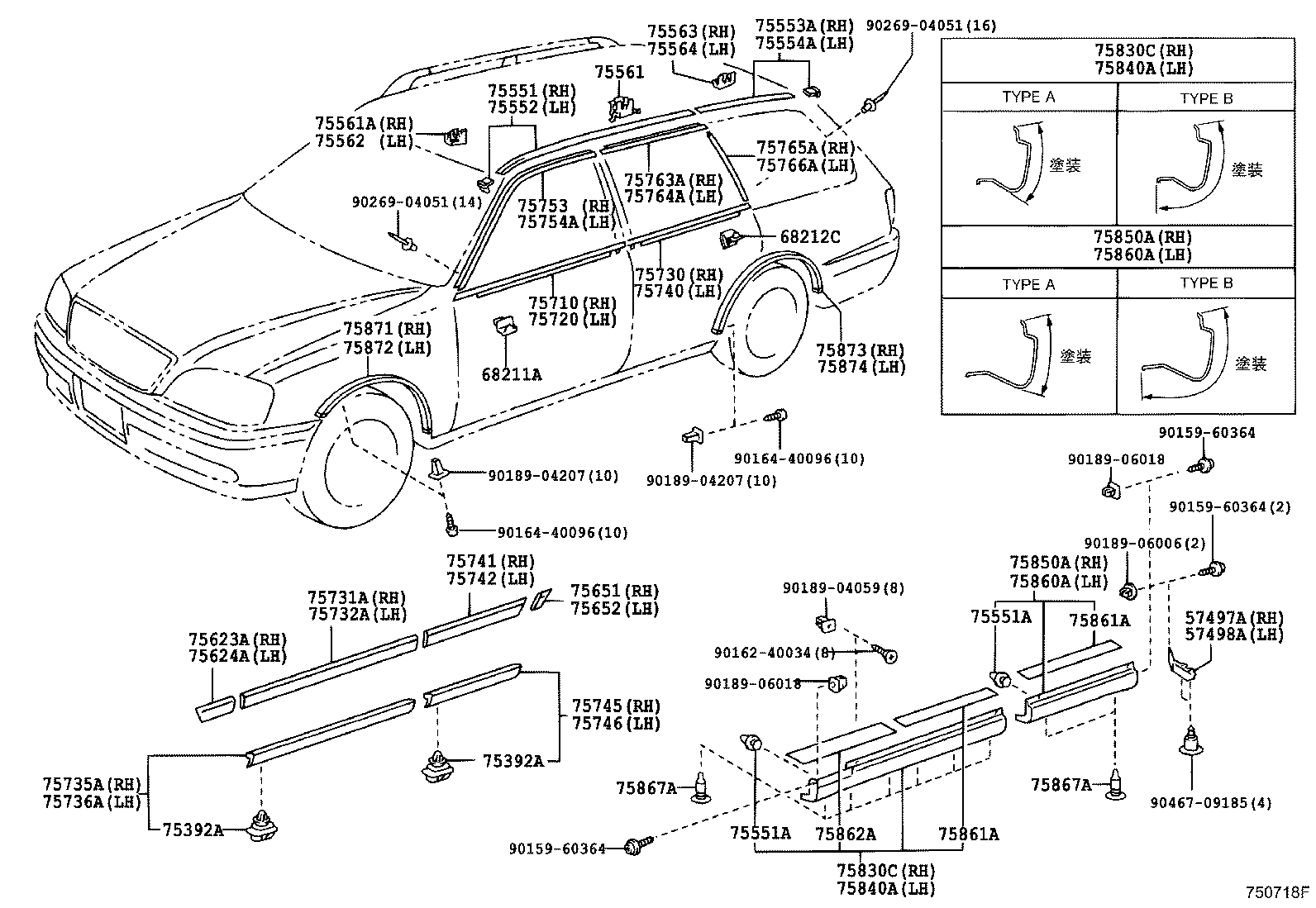

Side Moulding
74 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57497A | Shield, Rear Floor Housing |
| 57498A | Shield, Rear Floor Housing, NO.2 |
| 68211A | Clip, Door Belt Moulding |
| 68212C | Clip, Door Belt Moulding |
| 68212K | Clip, Door Glass Weatherstrip, Outer |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75392E | Retainer, Outside Moulding, NO.1 |
| 75392F | Retainer, Outside Moulding |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75396A | Clip, Outside Moulding, NO.2 |
| 75397A | Clip, Outside Moulding, NO.3 |
| 75398 | Clip, Outside Moulding, NO.5 |
| 75495 | Clip, Outside Moulding, NO.4 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75551A | Clip, Roof Drip Moulding, NO.1 |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75562 | Clip, Roof Drip Side Finish Moulding, NO.2 |
| 75563 | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75564 | Retainer, Roof Drip Side Finish Moulding, NO.2 |
| 75611C | Moulding, Front Fender, Outside RH |
| 75612C | Moulding, Front Fender, Outside LH |
| 75613A | Moulding, Front Fender, Front RH |
| 75614A | Moulding, Front Fender, Front LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75698A | Pad, Body Outside Moulding, NO.3 |
| 75699 | Pad, Body Outside Moulding, NO.4 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75733B | Moulding, Front Door, Outside Upper Rear RH |
| 75734B | Moulding, Front Door, Outside Upper Rear LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75743A | Moulding, Rear Door, Outside Upper Rear RH |
| 75744 | Moulding, Rear Door, Outside Upper Rear LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75798 | Pad, Rear Door Outside Moulding, Rear |
| 75830C | Moulding Assy, Rocker Panel, Front RH |
| 75840A | Moulding Assy, Rocker Panel, Front LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75862A | Protector, Rocker Panel Moulding, NO.2 |
| 75867A | Clip, Rocker Panel Moulding |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
