Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 3 illustrations

Illustrations

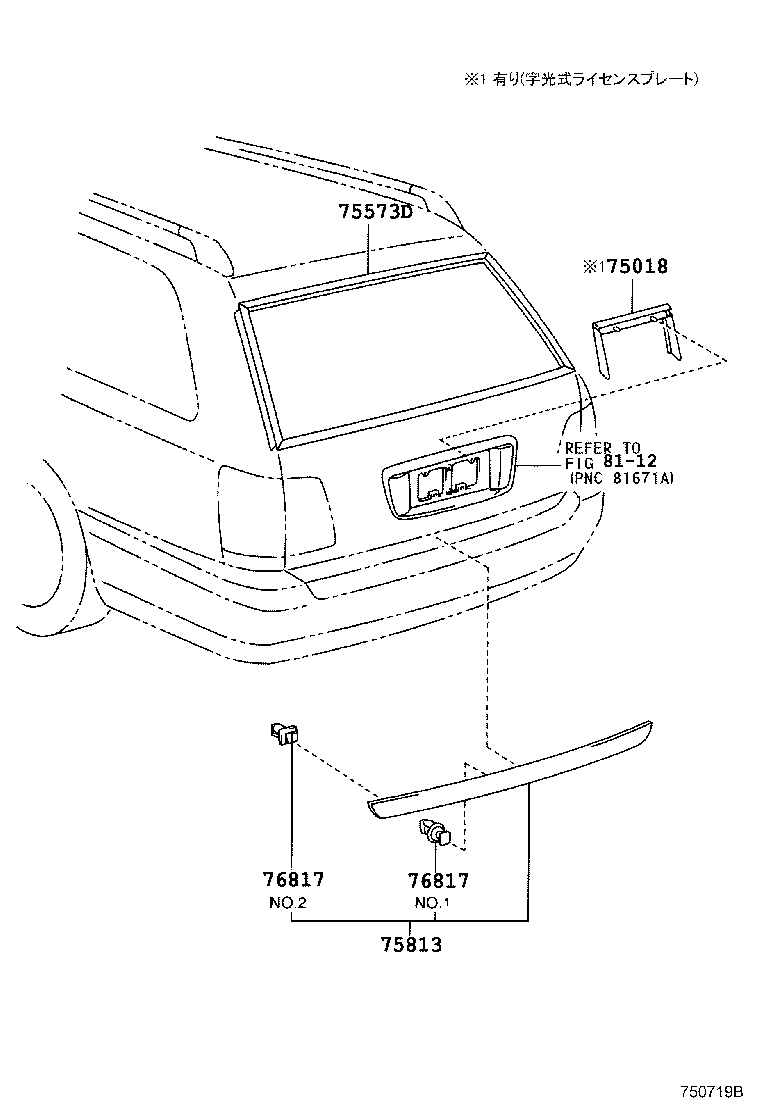

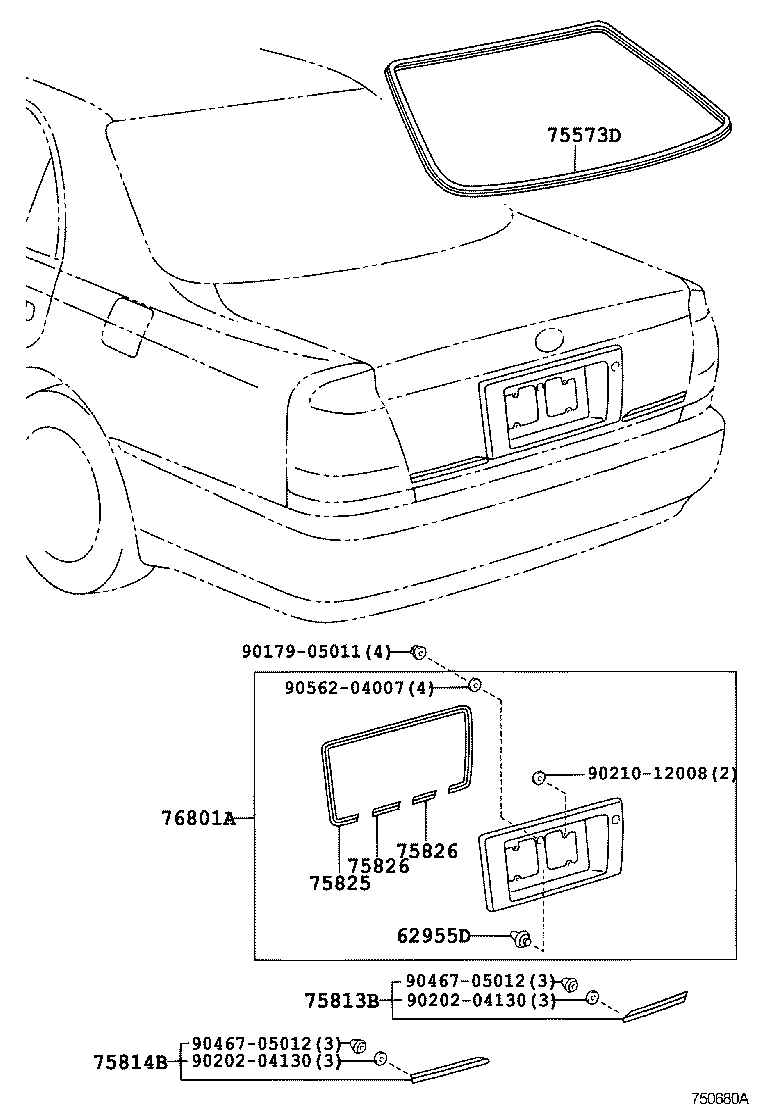

Figure 750679C 750679C 1999-09 → 2003-12 Figure 750680A 750680A 1999-09 → 2004-06 Figure 750719B 750719B 1999-12 → —

Part groups

PNCDescription
62955D Retainer, Luggage Compartment Door Garnish
75018 Frame Sub-assy, Rear License Plate
75573D Moulding, Back Window, Outside
75813 Moulding, Back Door
75813B Moulding, Luggage Compartment Door
75814B Moulding, Back Door, Outside Lower
75825 Pad, Luggage Compartment Door Moulding
75826 Pad, Back Door Outside Moulding, RH
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
