Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

15 part groups · 8 illustrations

Illustrations

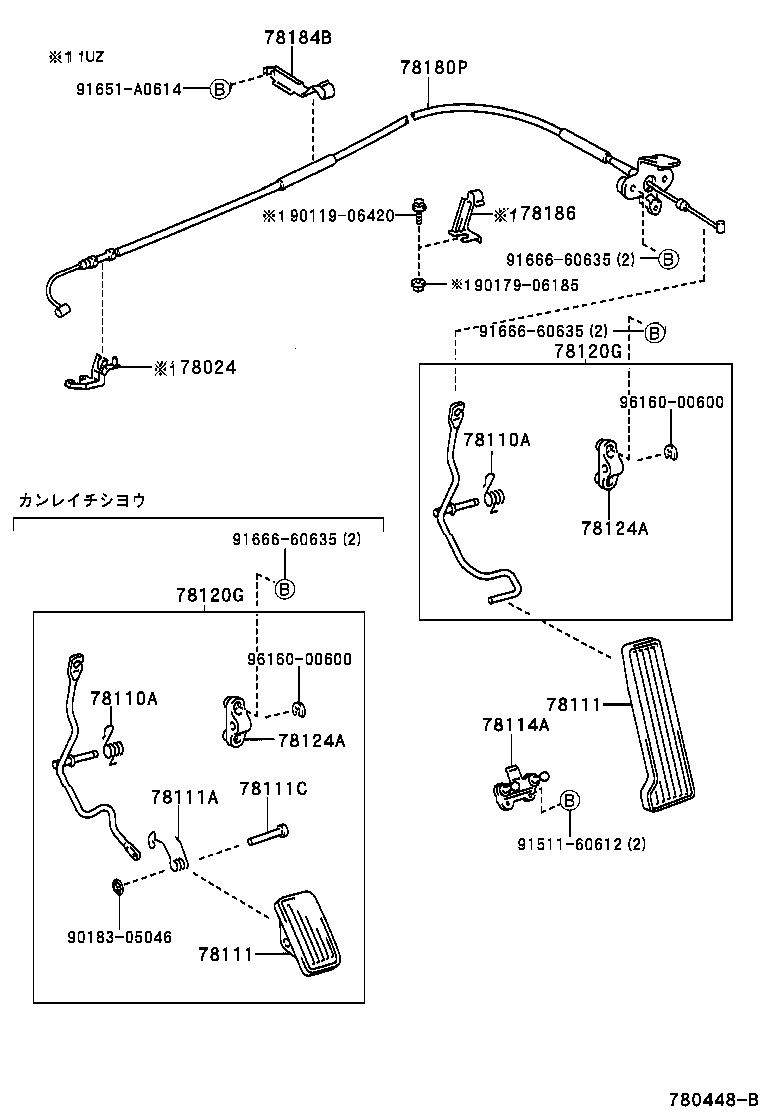

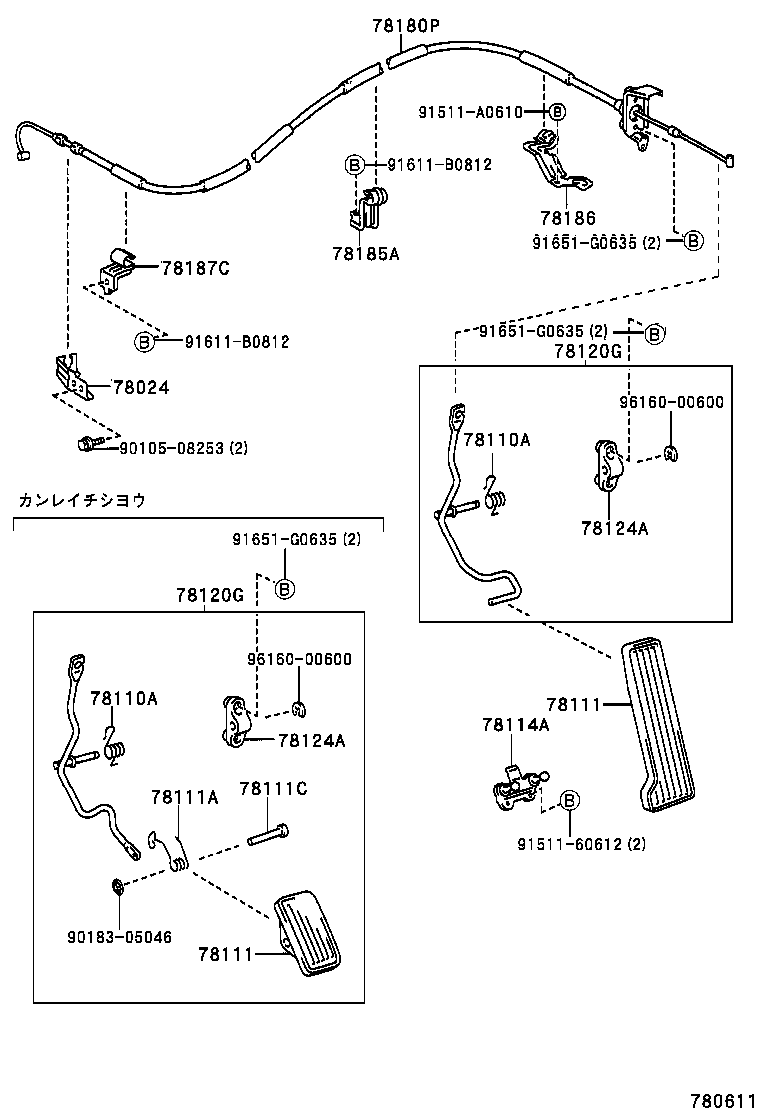

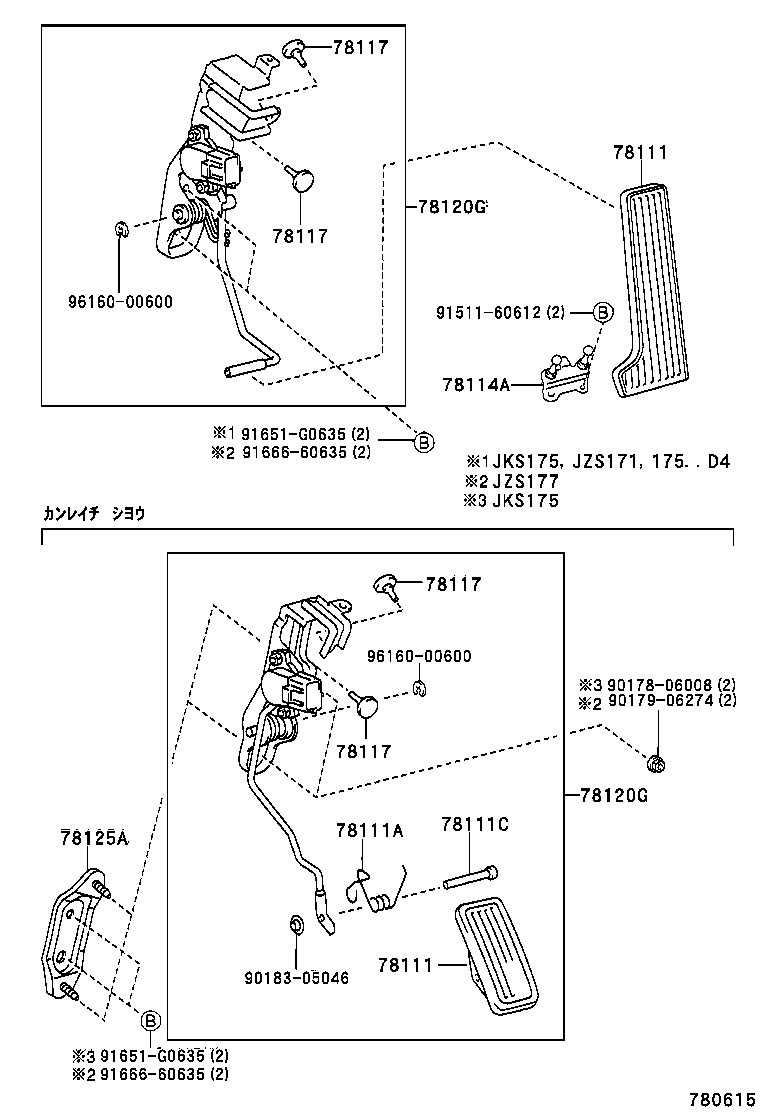

Figure 780447A 780447A 1999-09 → — Figure 780612 780612 1999-09 → 2001-08 Figure 780612 780612 2001-08 → — Figure 780611 780611 1999-09 → — Figure 780610 780610 1999-09 → 2001-08 Figure 780448B 780448B 1999-09 → 2001-08 Figure 780448B 780448B 2001-08 → — Figure 780615 780615 2001-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78114A Bracket, Accelerator Pedal Support
78117 Cushion (FOR ACCELERATOR ROD)
78120G Rod Assy, Accelerator Pedal
78124A Bracket, Accelerator Pedal Rod
78125A Bracket, Accelerator Pedal Rod, NO.2
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78187C Clamp, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
