Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01
Headlamp
24 part groups · 5 illustrations
Part groups

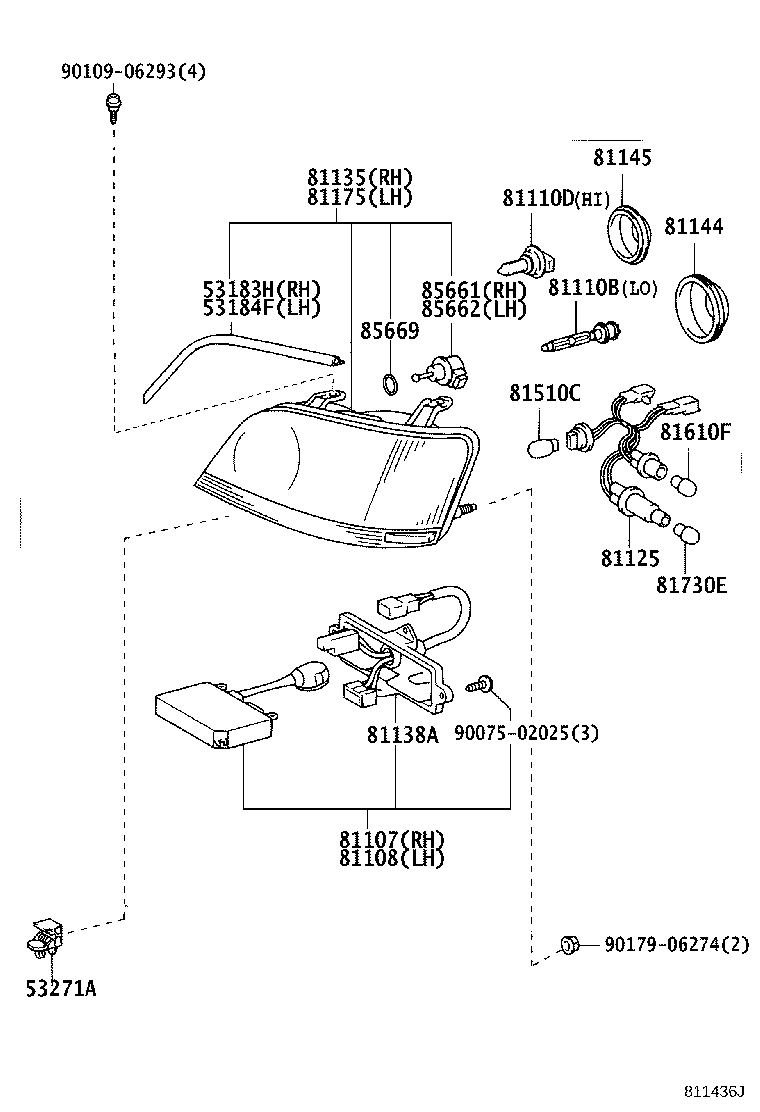

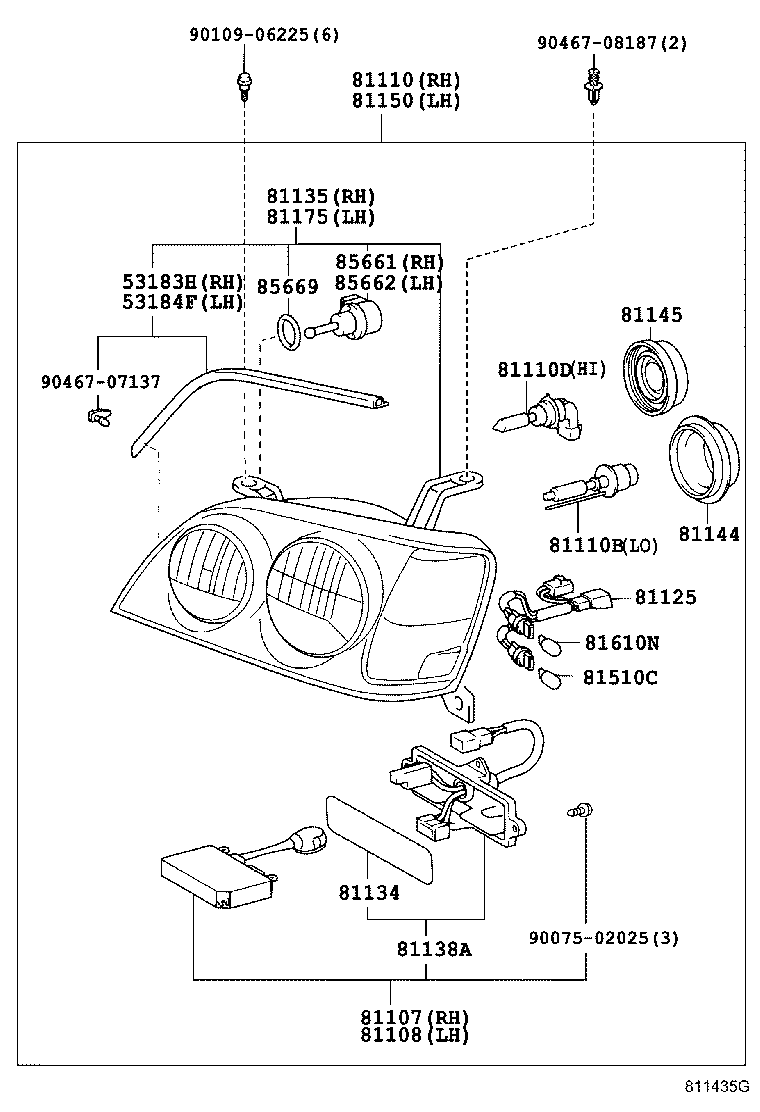

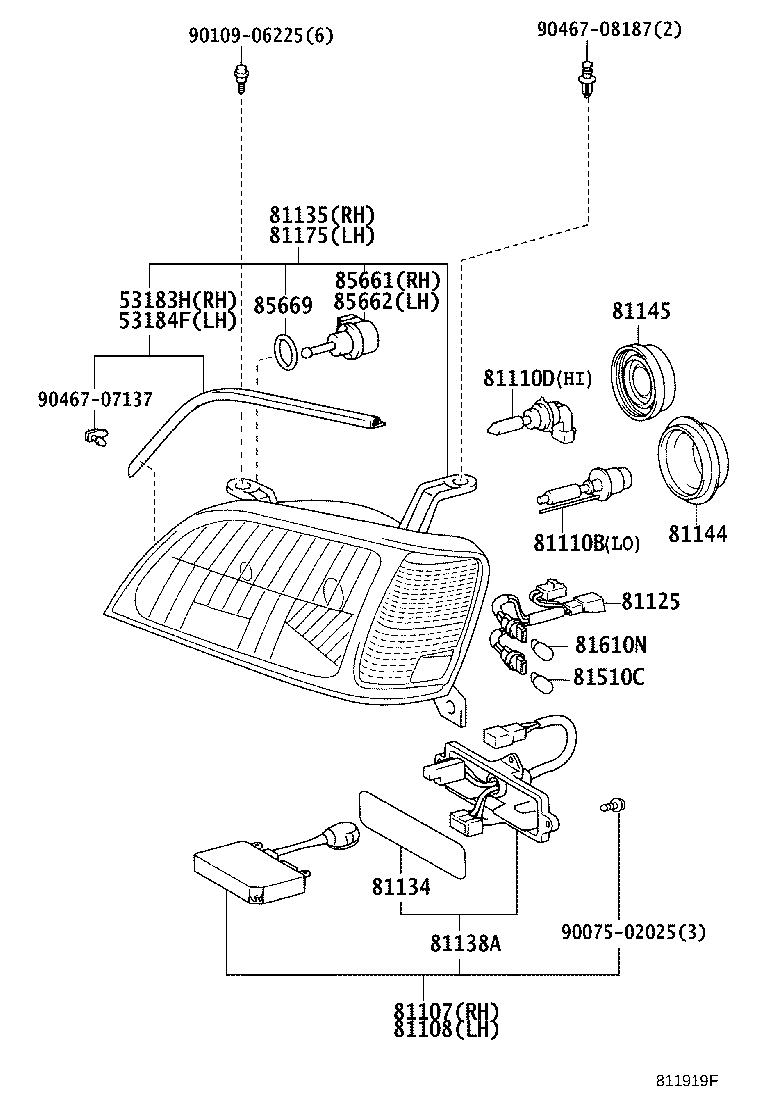

| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 53271A | Bracket, Headlamp Mounting |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81138A | Socket & Wire, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81145 | Cover, Headlamp, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81360J | Bulb, Cornering Lamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81610N | Bulb, Clearance & Conering Lamp |
| 81730E | Bulb (FOR SIDE TURN SIGNAL) |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
