Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

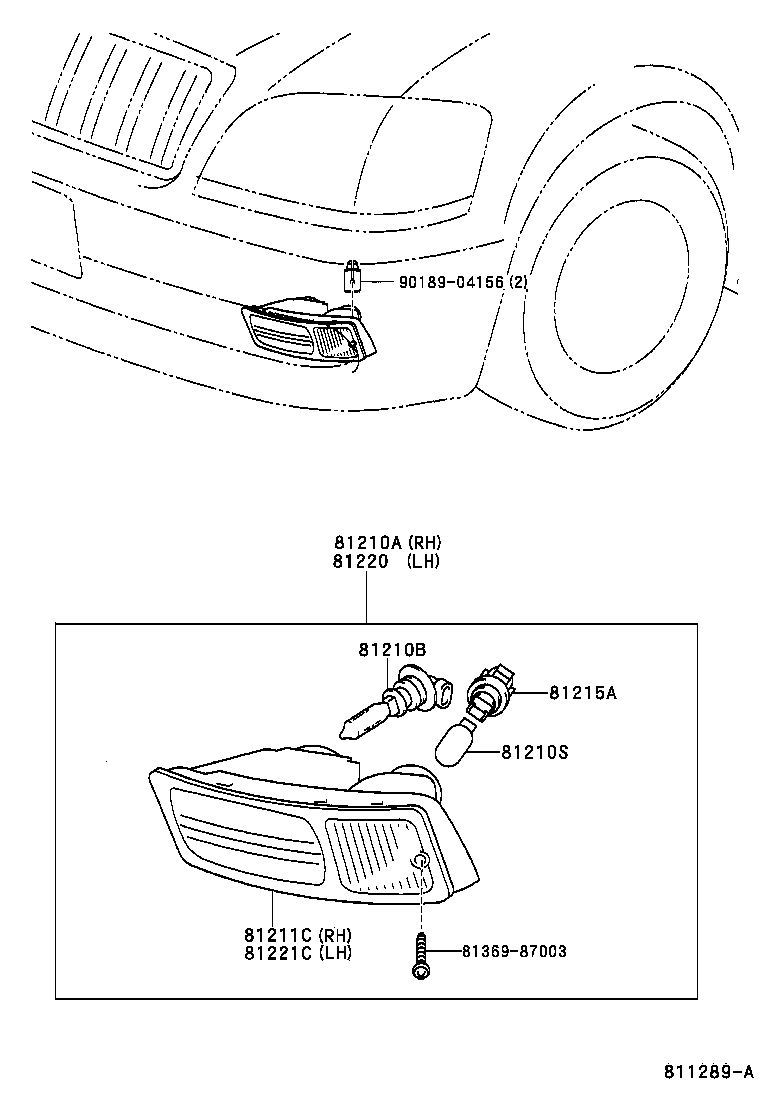

Fog Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81127C | Bearing Fog Lamp |
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81210S | Bulb, Cornering Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81215A | Socket & Wire, Fog Lamp |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81481 | Bracket, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
