Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

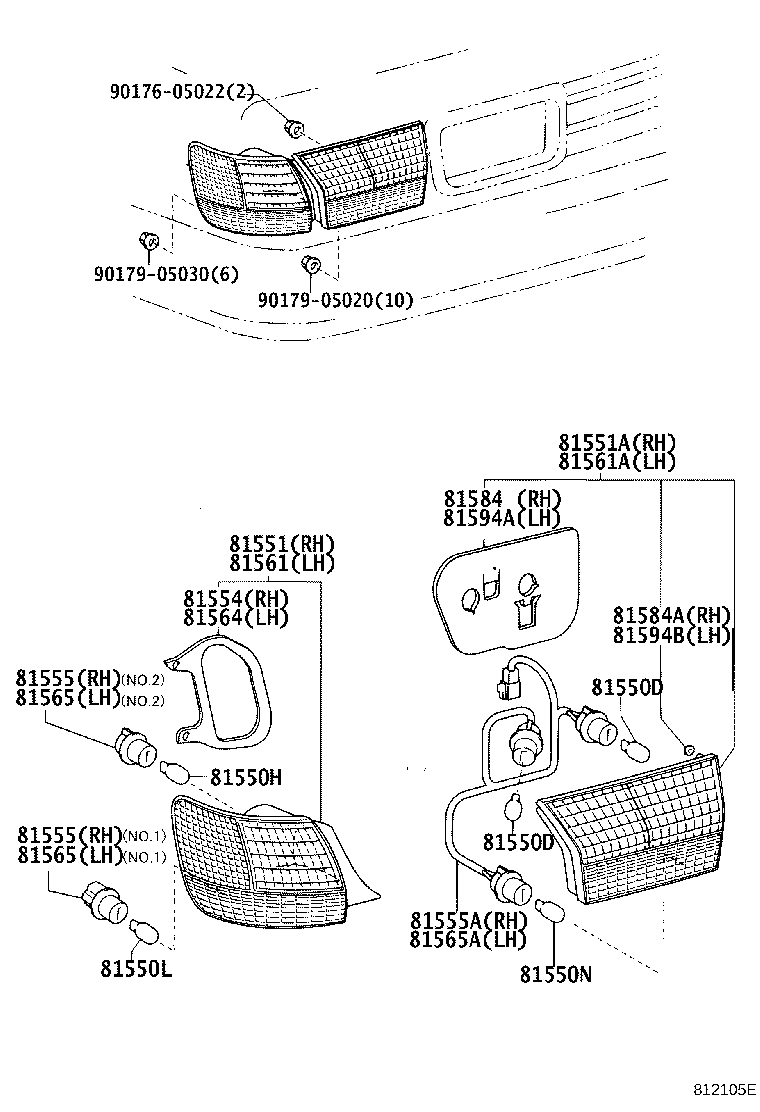

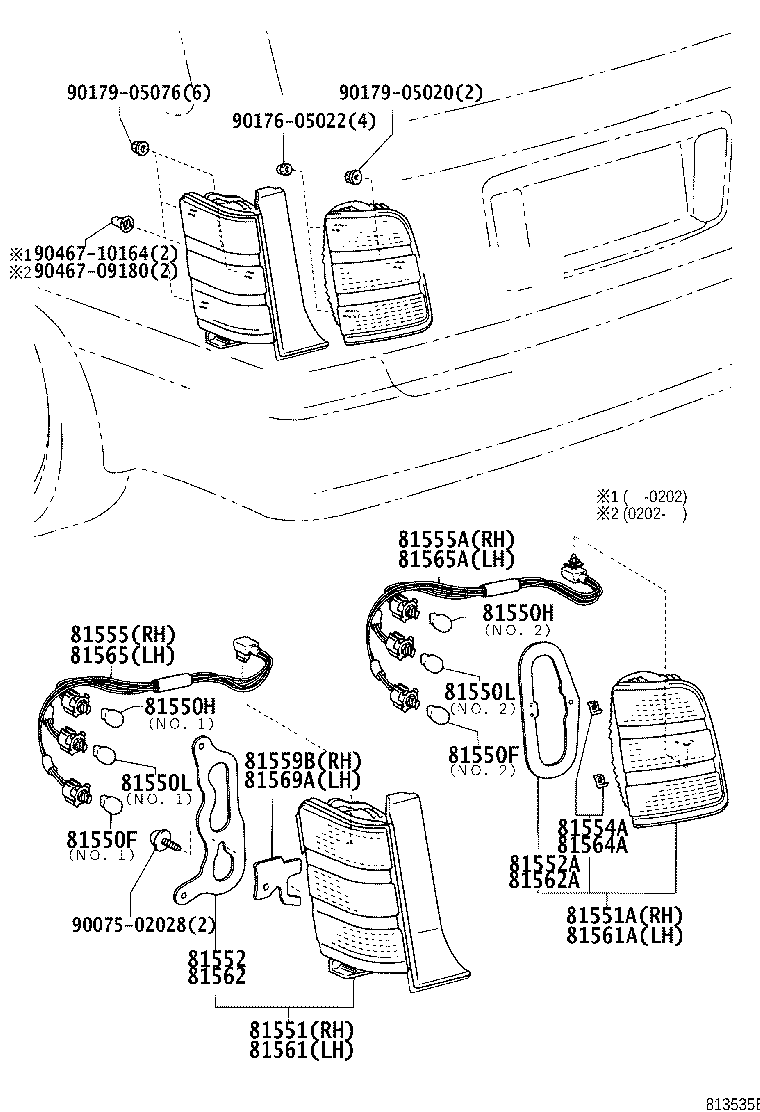

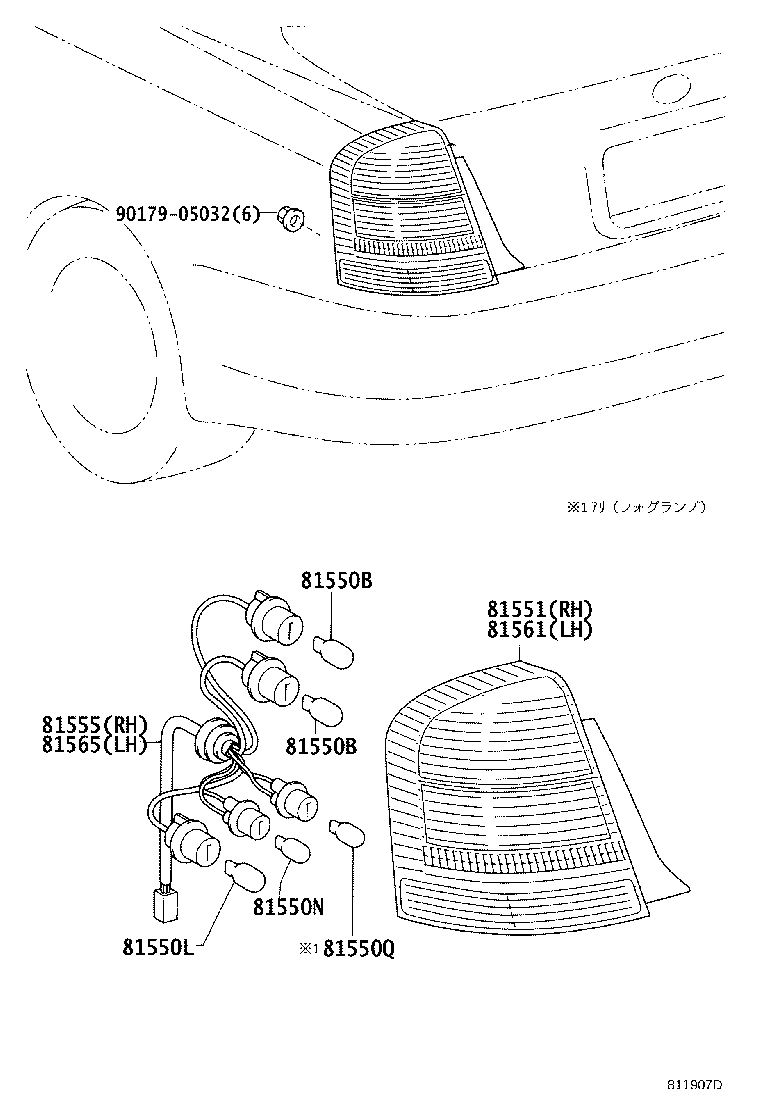

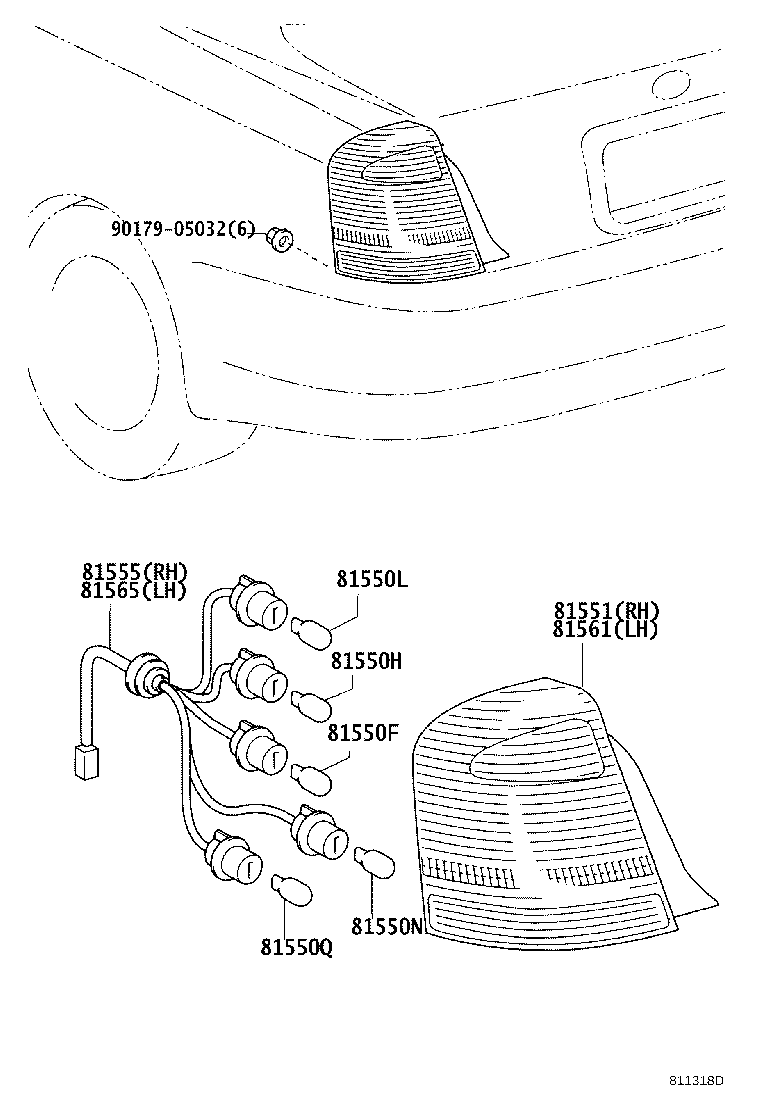

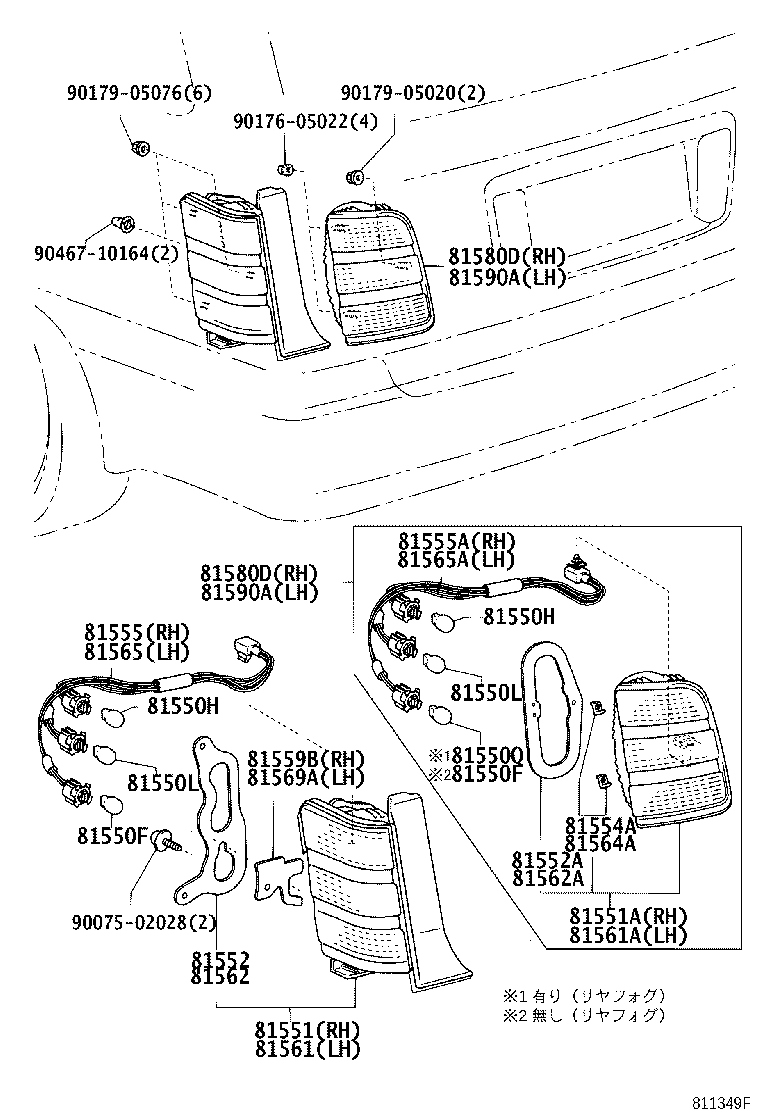

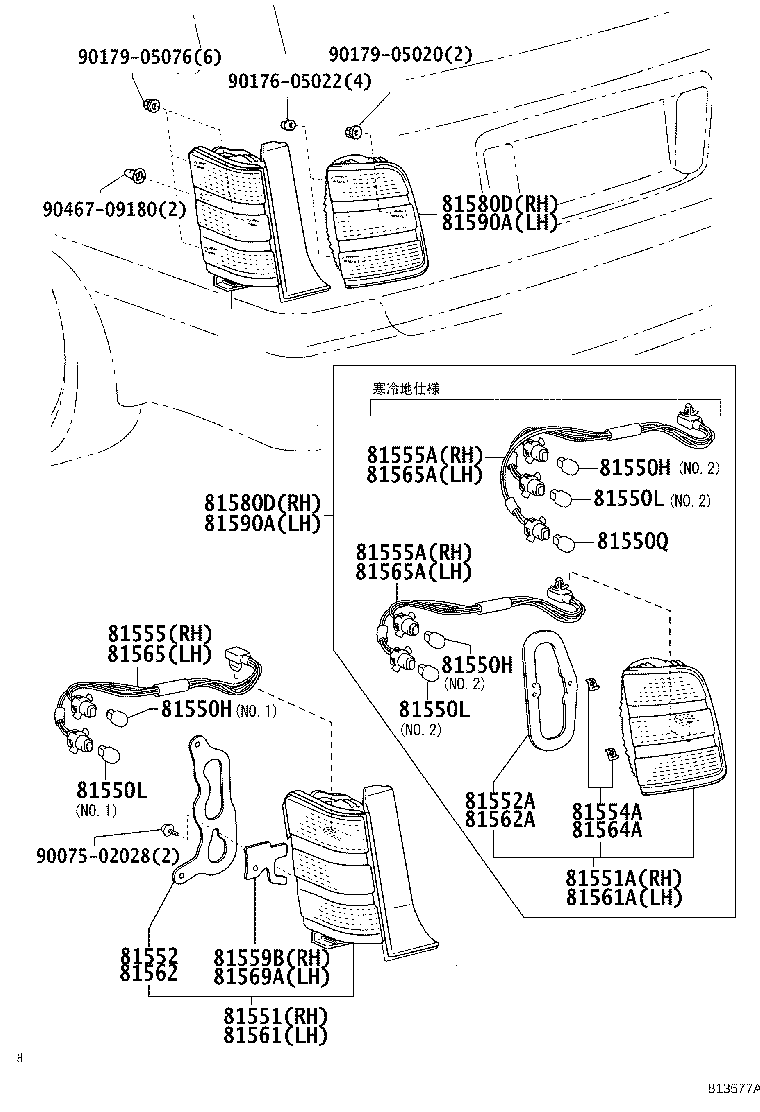

Rear Combination Lamp
32 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81551A | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81554A | Gasket, Rear Combination Lamp Body, NO.1 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81559B | Bracket, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81561A | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81564A | Gasket, Rear Combination Lamp Body, NO.1 LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81569A | Bracket, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81584 | Packing, Rear Lamp RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81594B | Packing, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
