Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

7 part groups · 3 illustrations

Illustrations

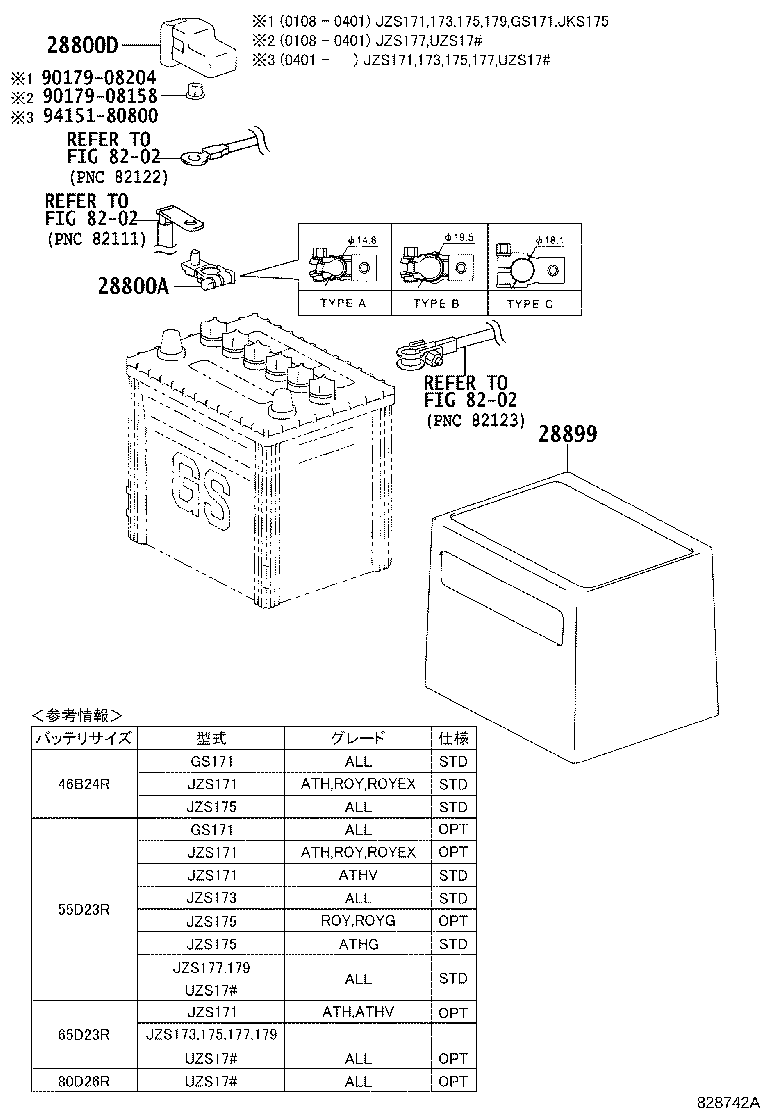

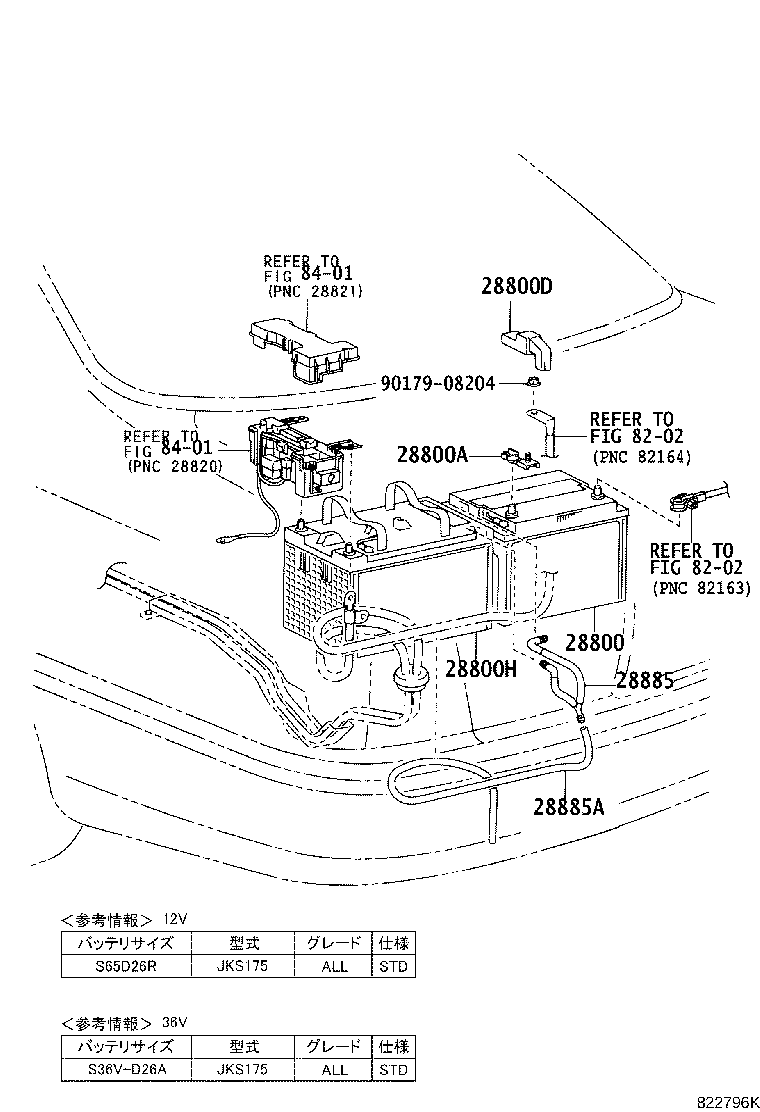

Figure 821989D 821989D 1999-09 → 2001-08 Figure 828742A 828742A 2001-08 → — Figure 822796K 822796K 2001-08 → 2003-12

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800H Battery, NO.2
28885 Hose, Battery Room Ventilation
28885A Hose, Battery Room Ventilation
28899 Insulator, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
