Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

71 part groups · 29 illustrations

Illustrations

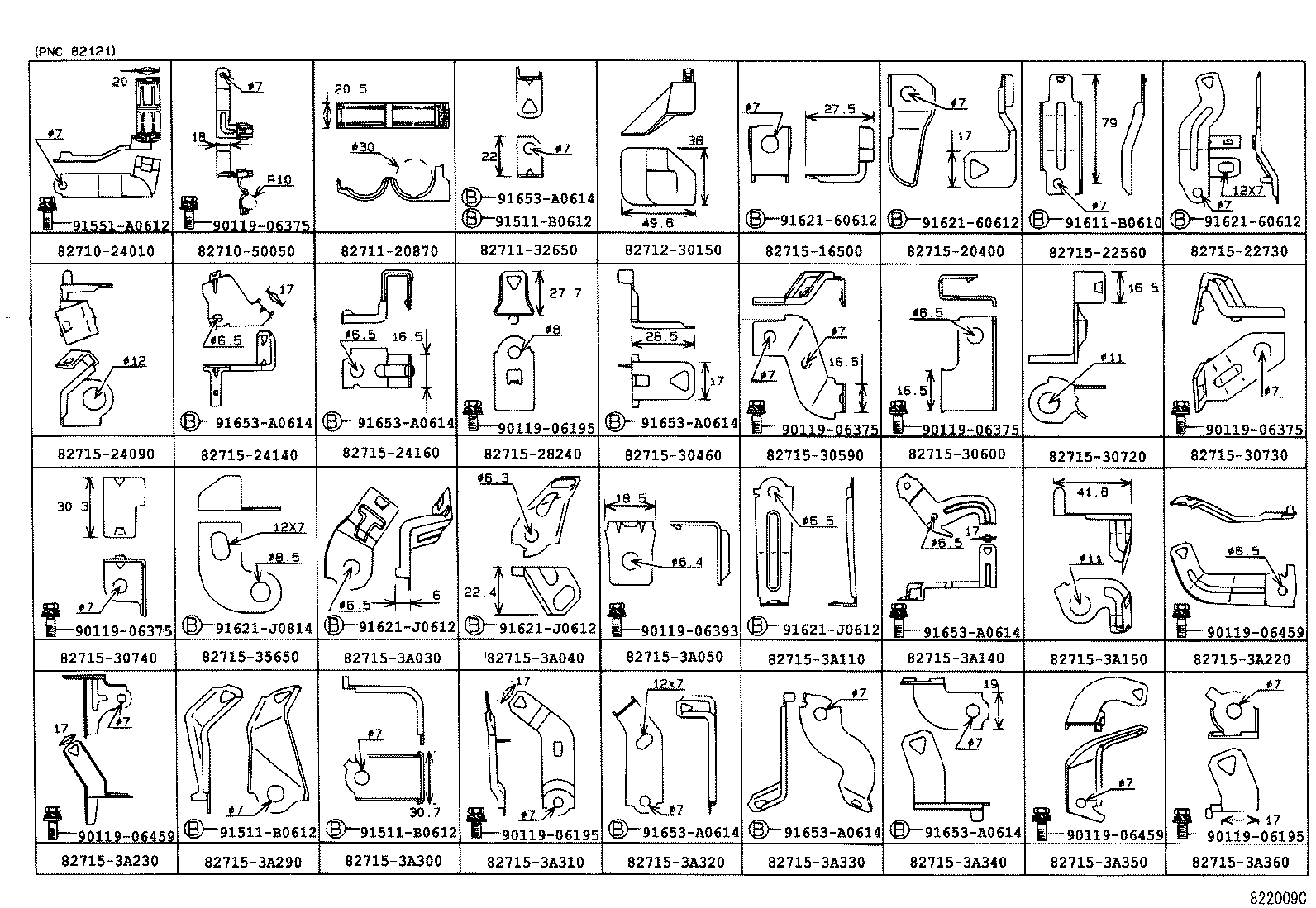

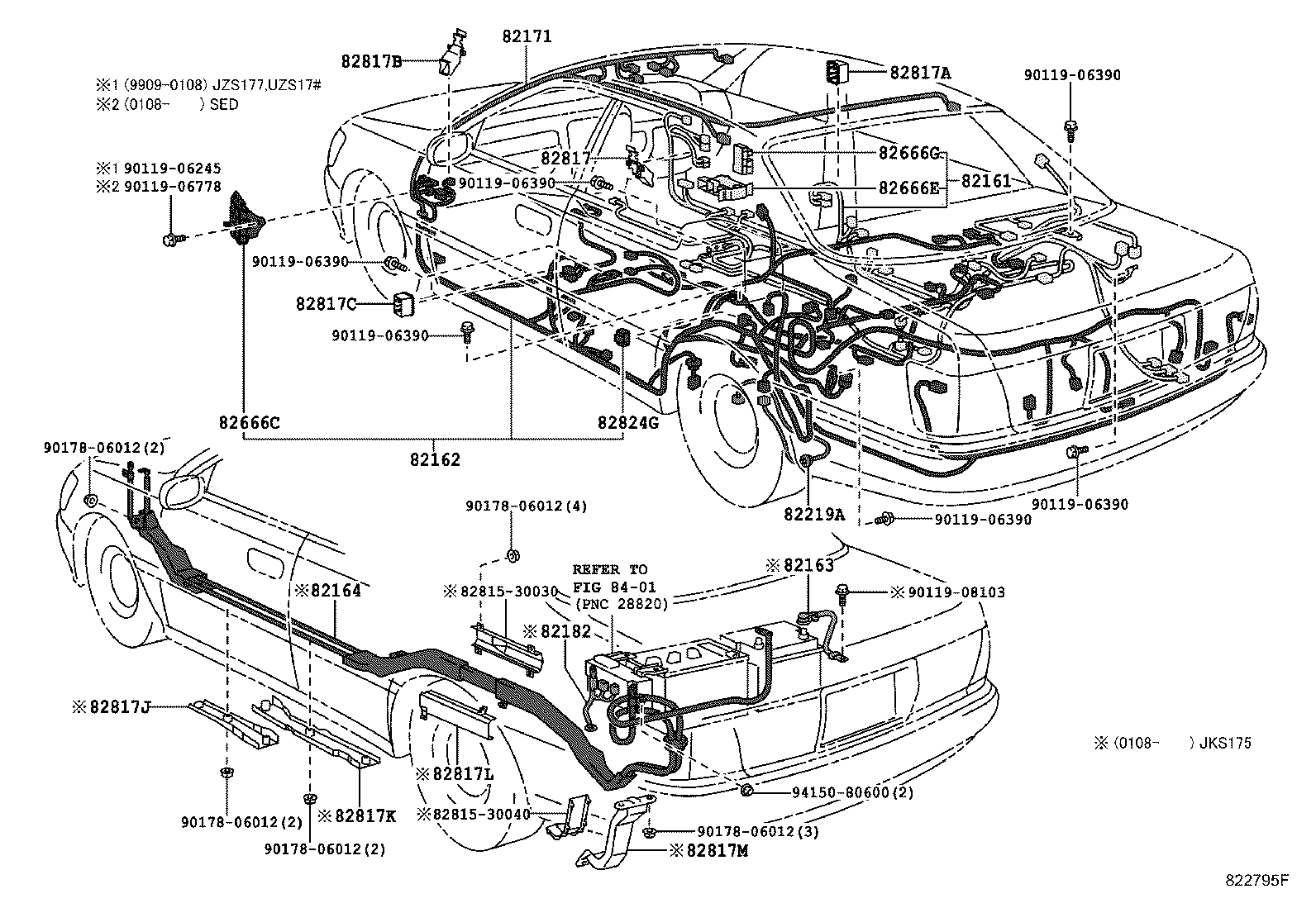

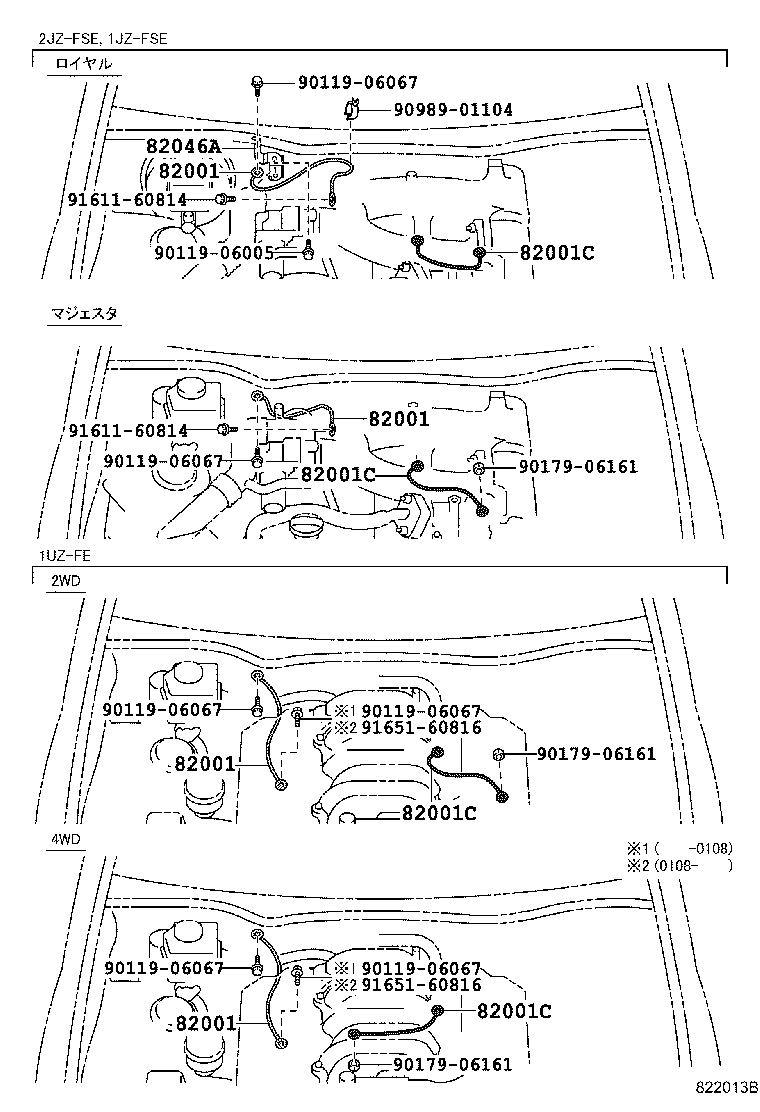

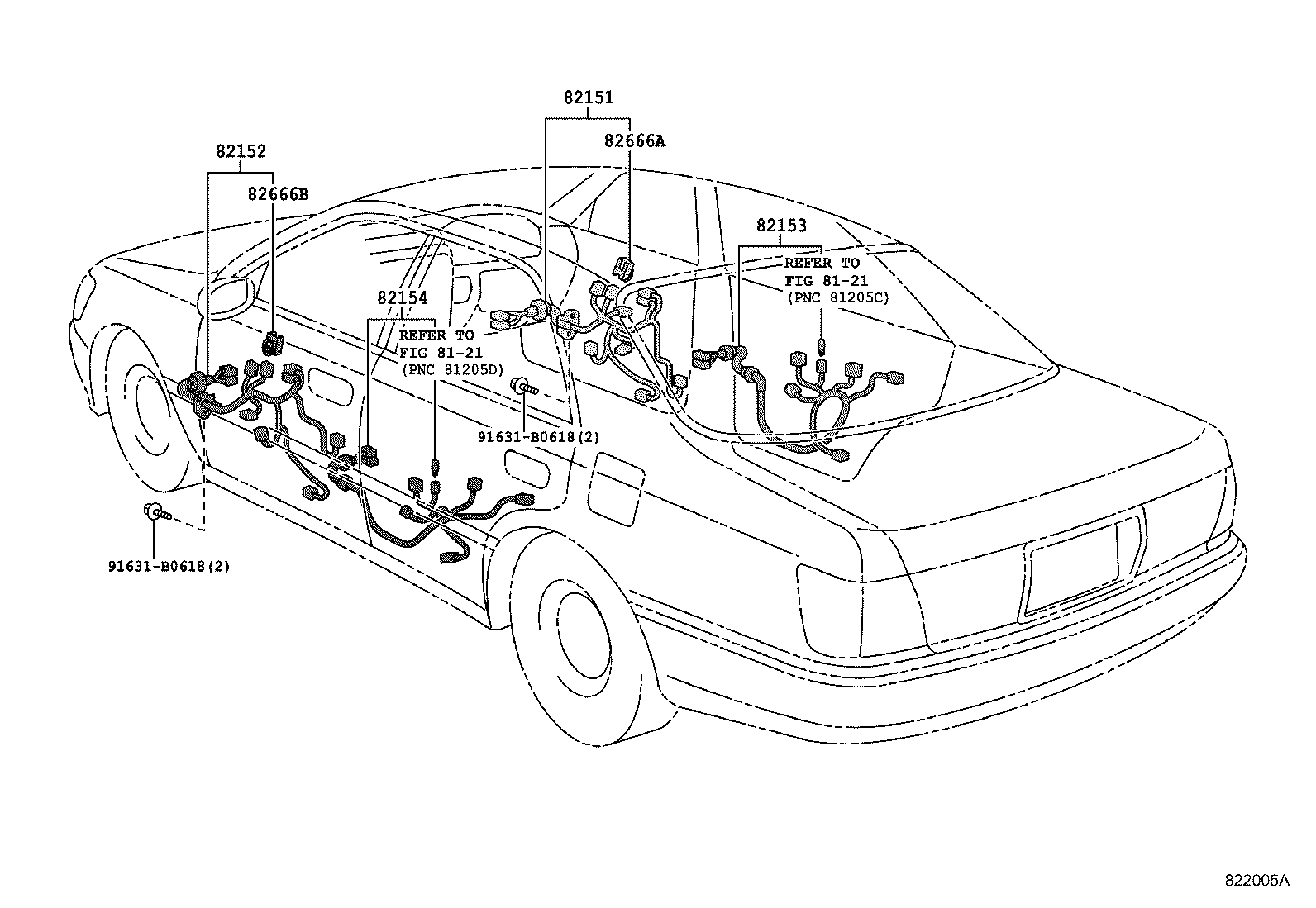

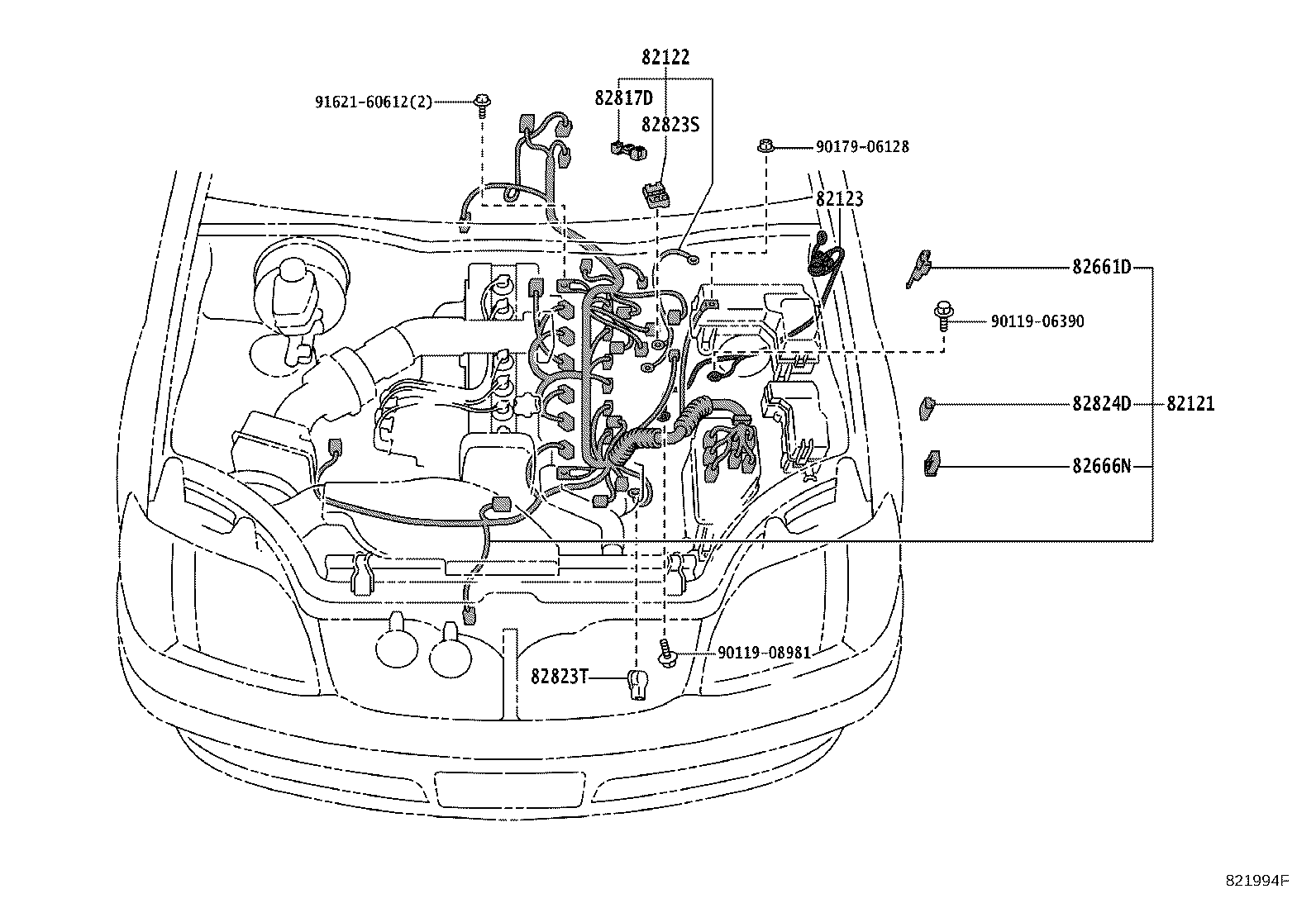

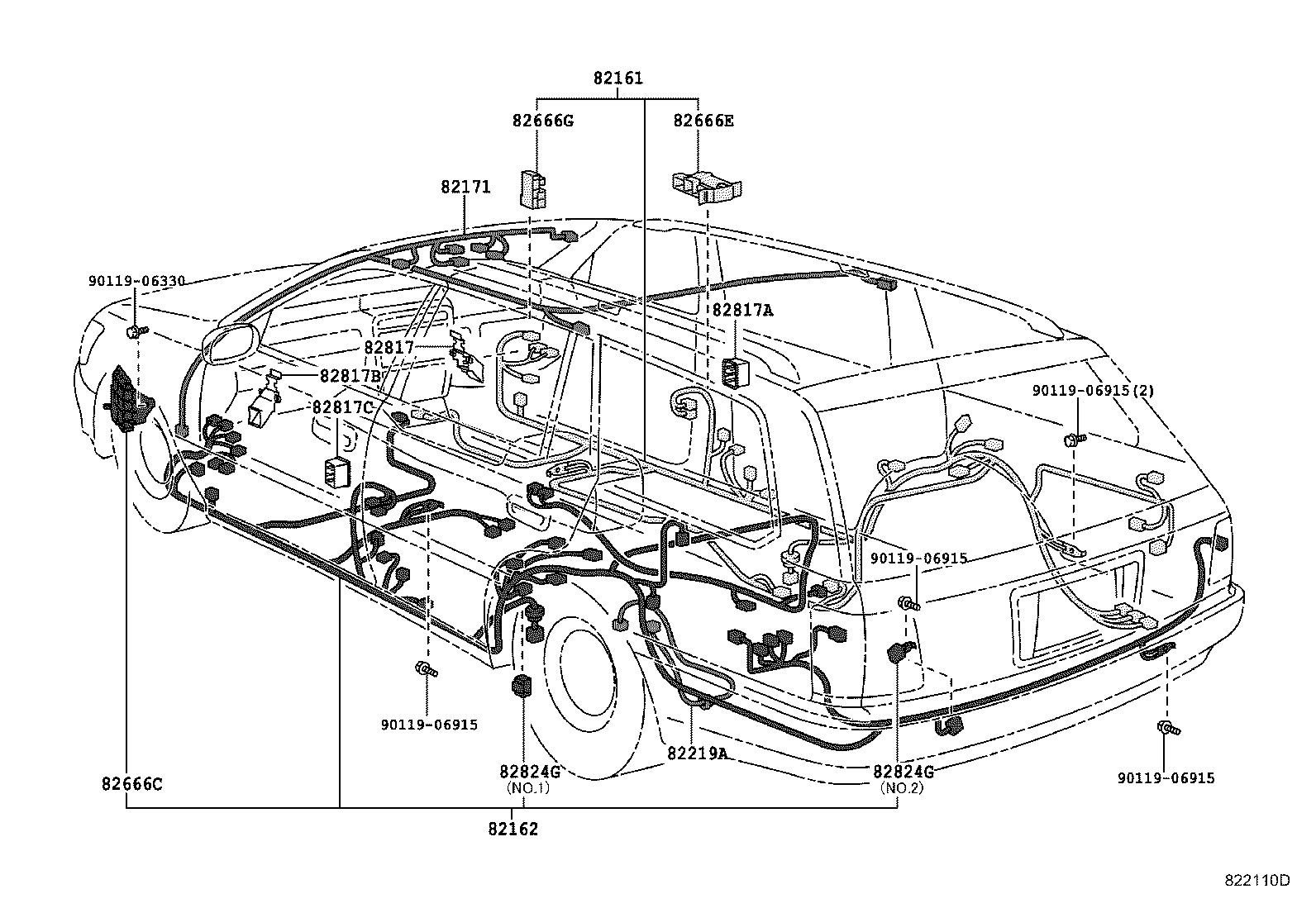

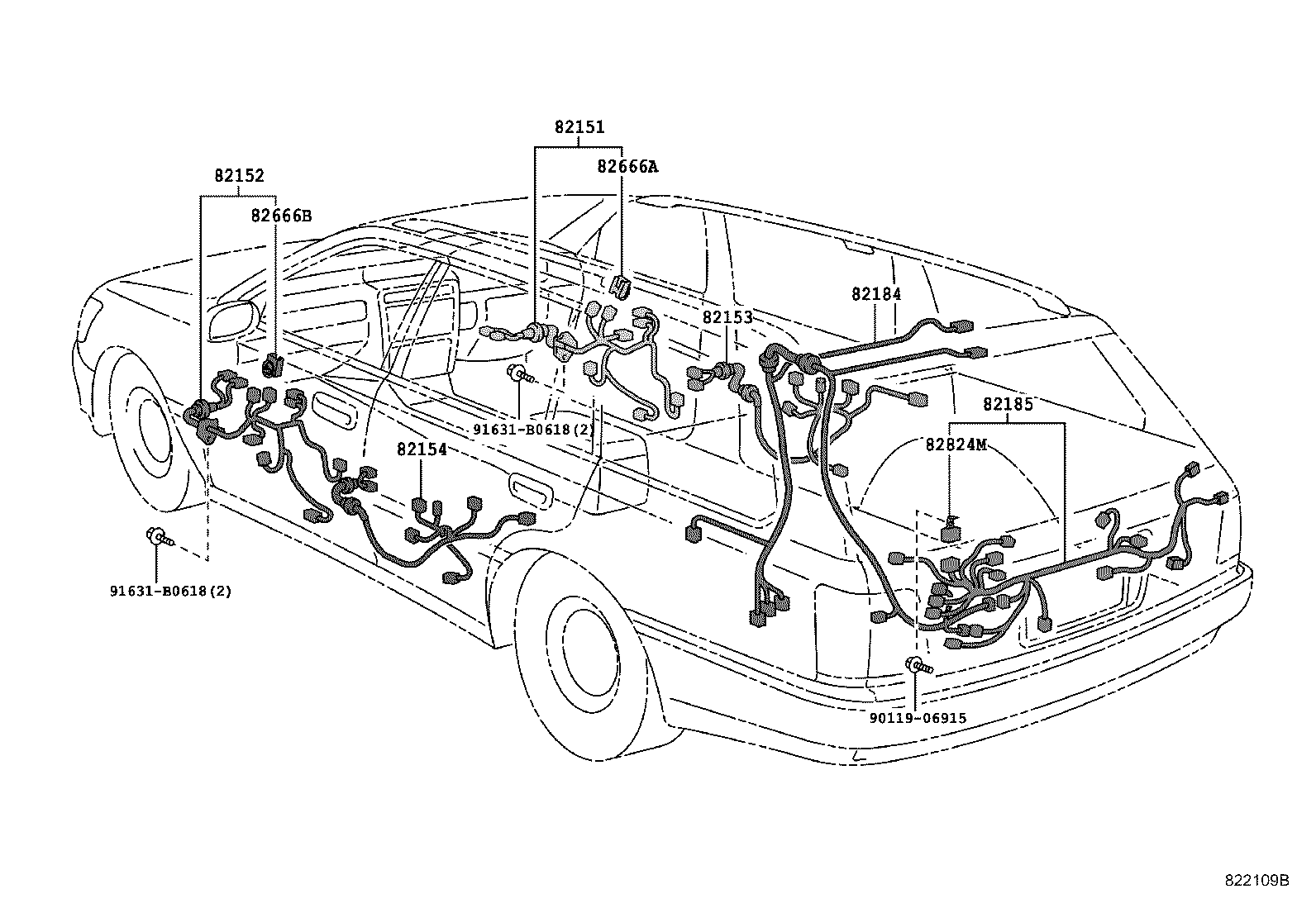

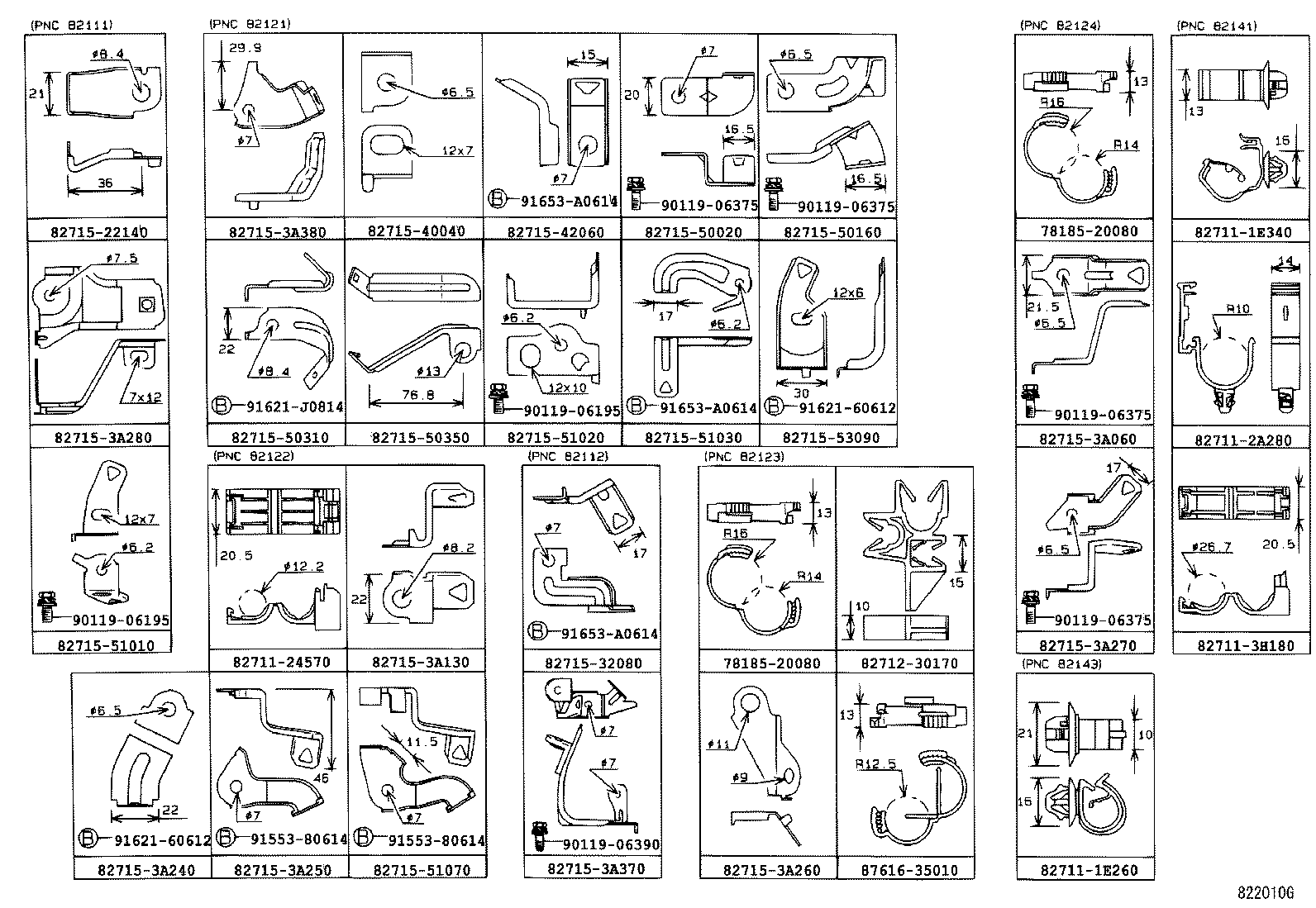

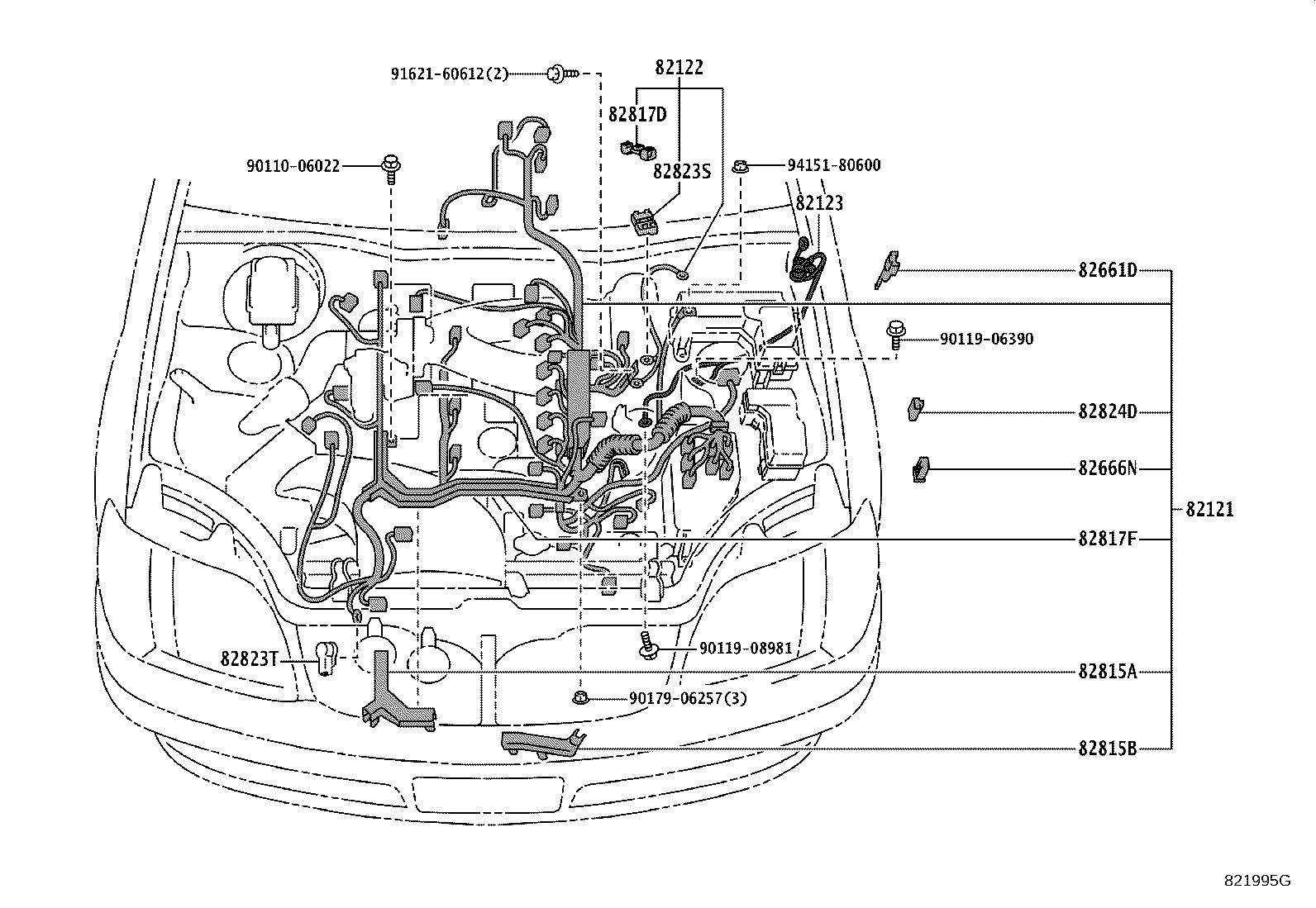

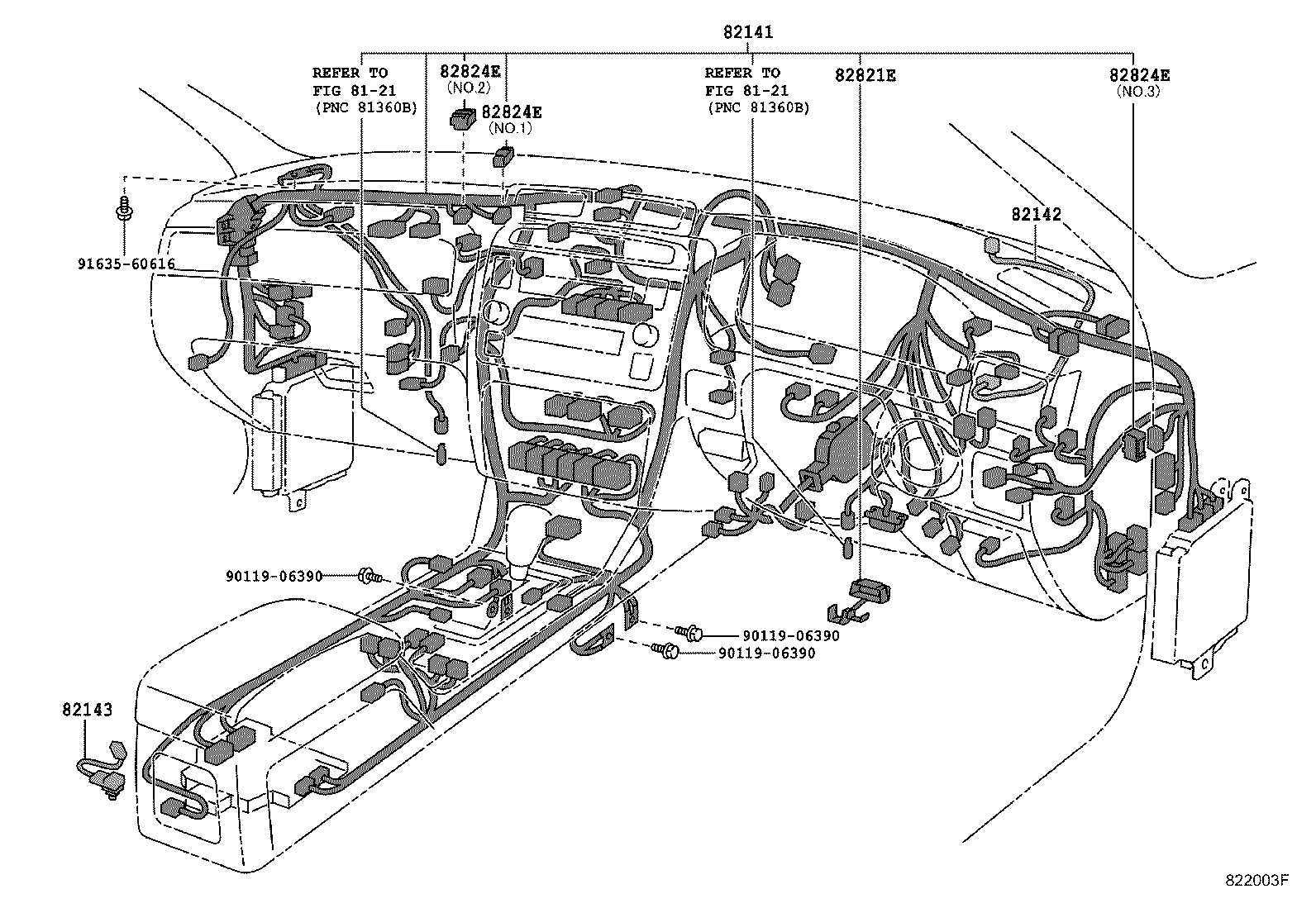

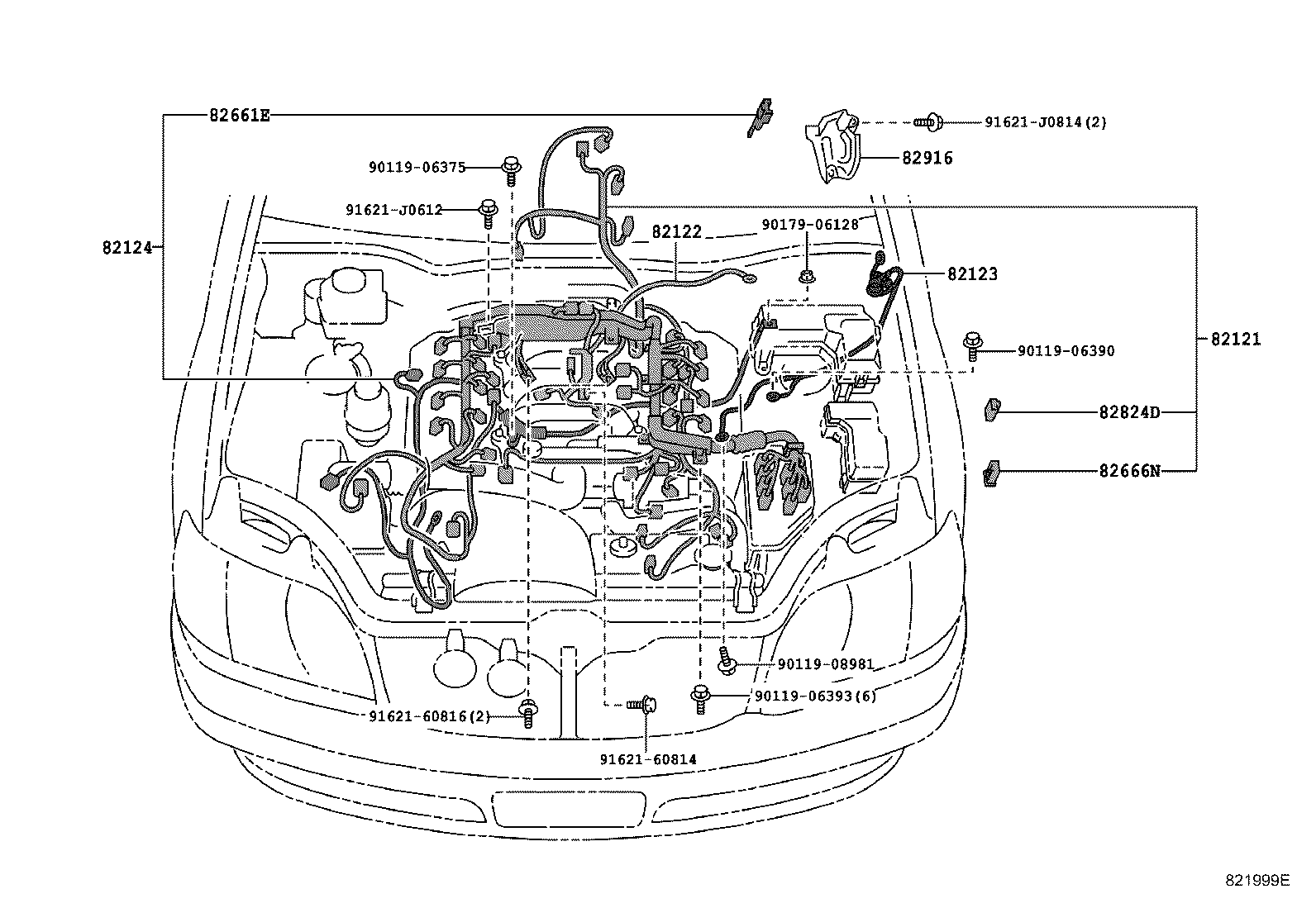

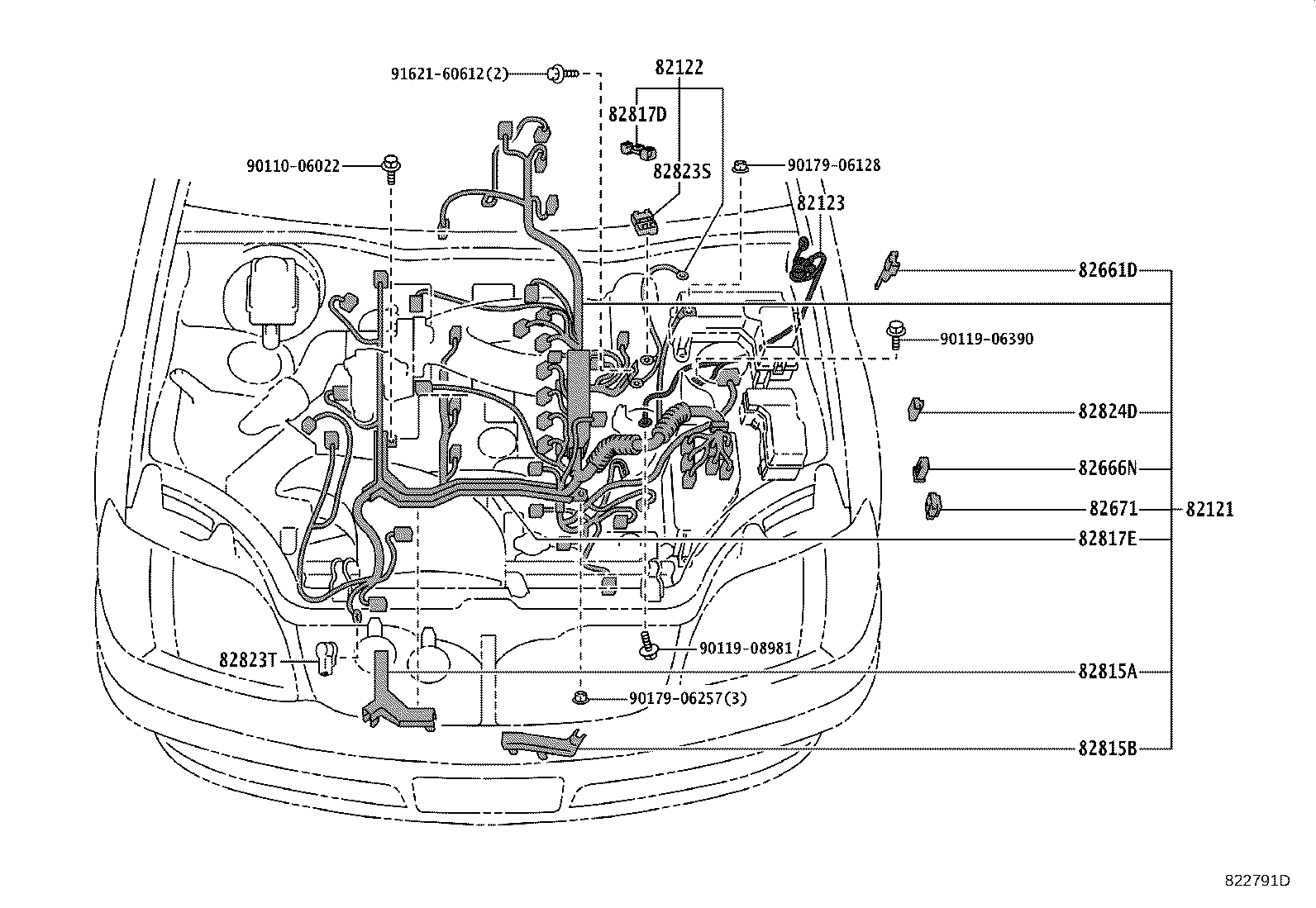

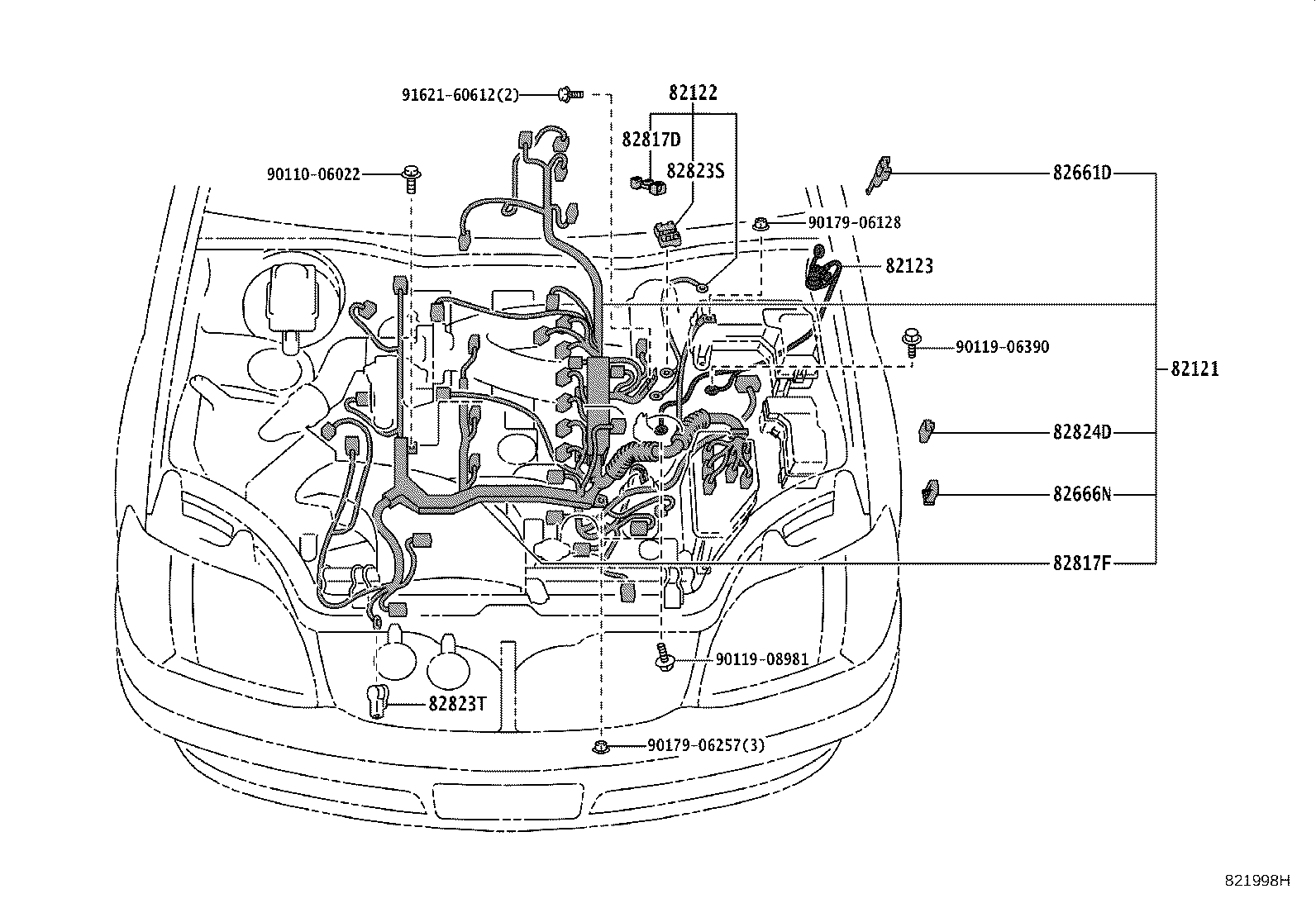

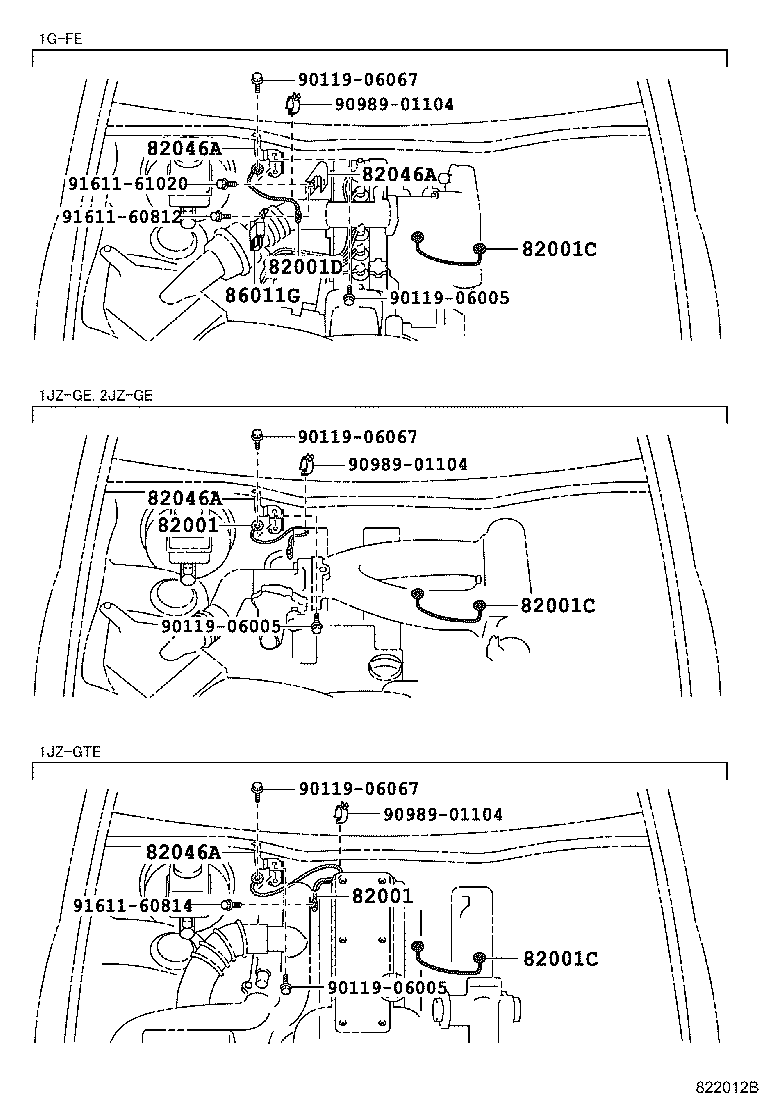

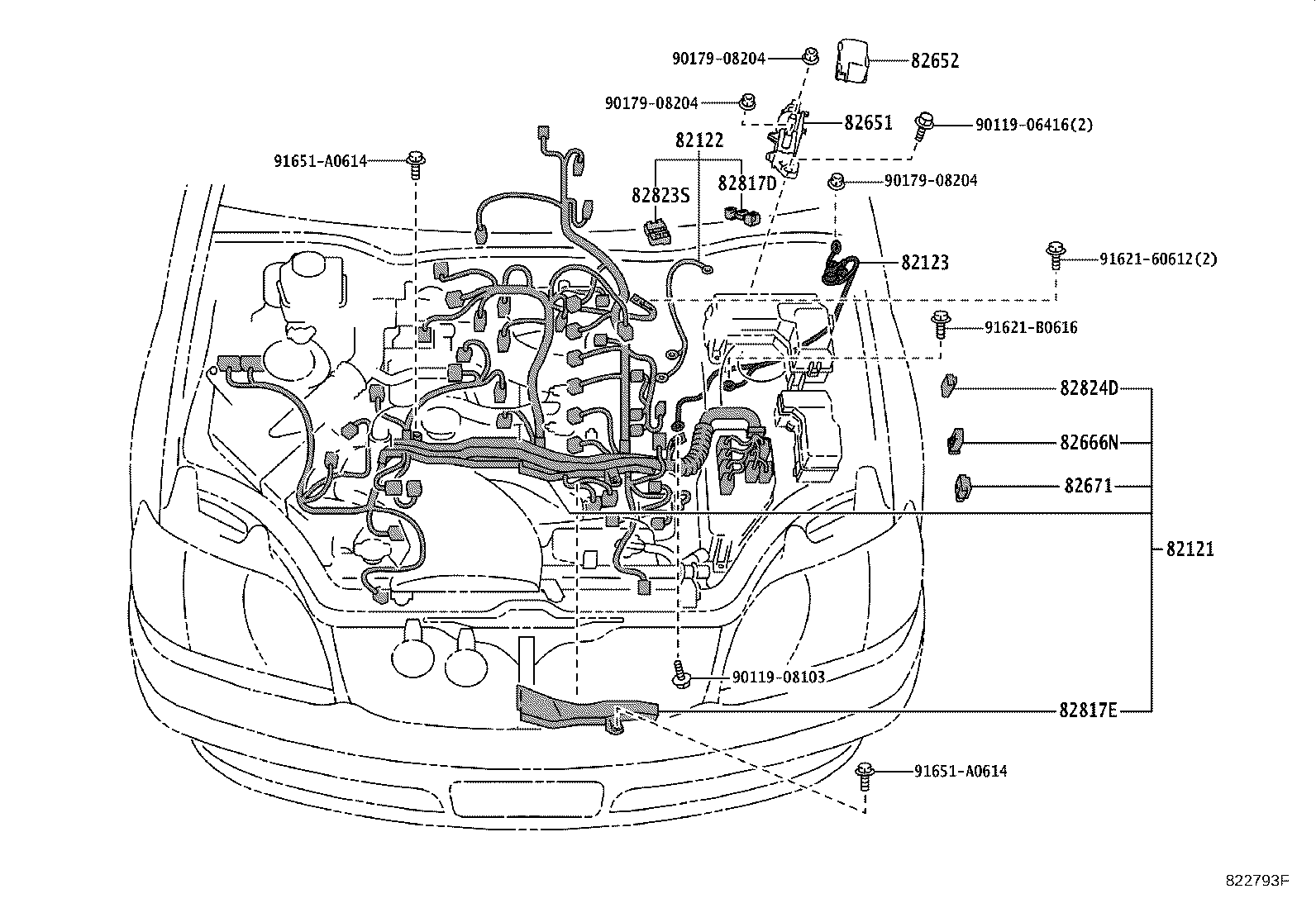

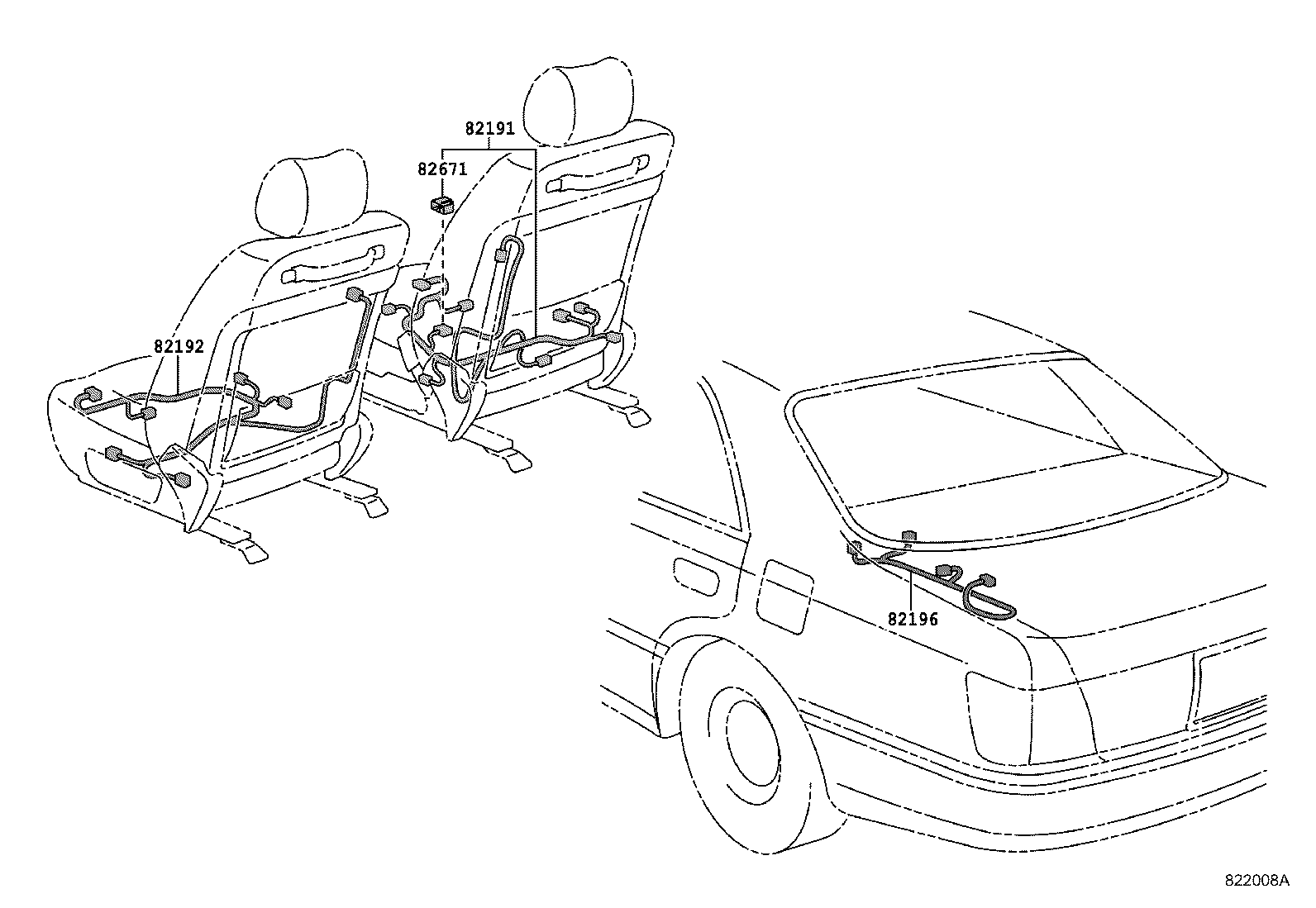

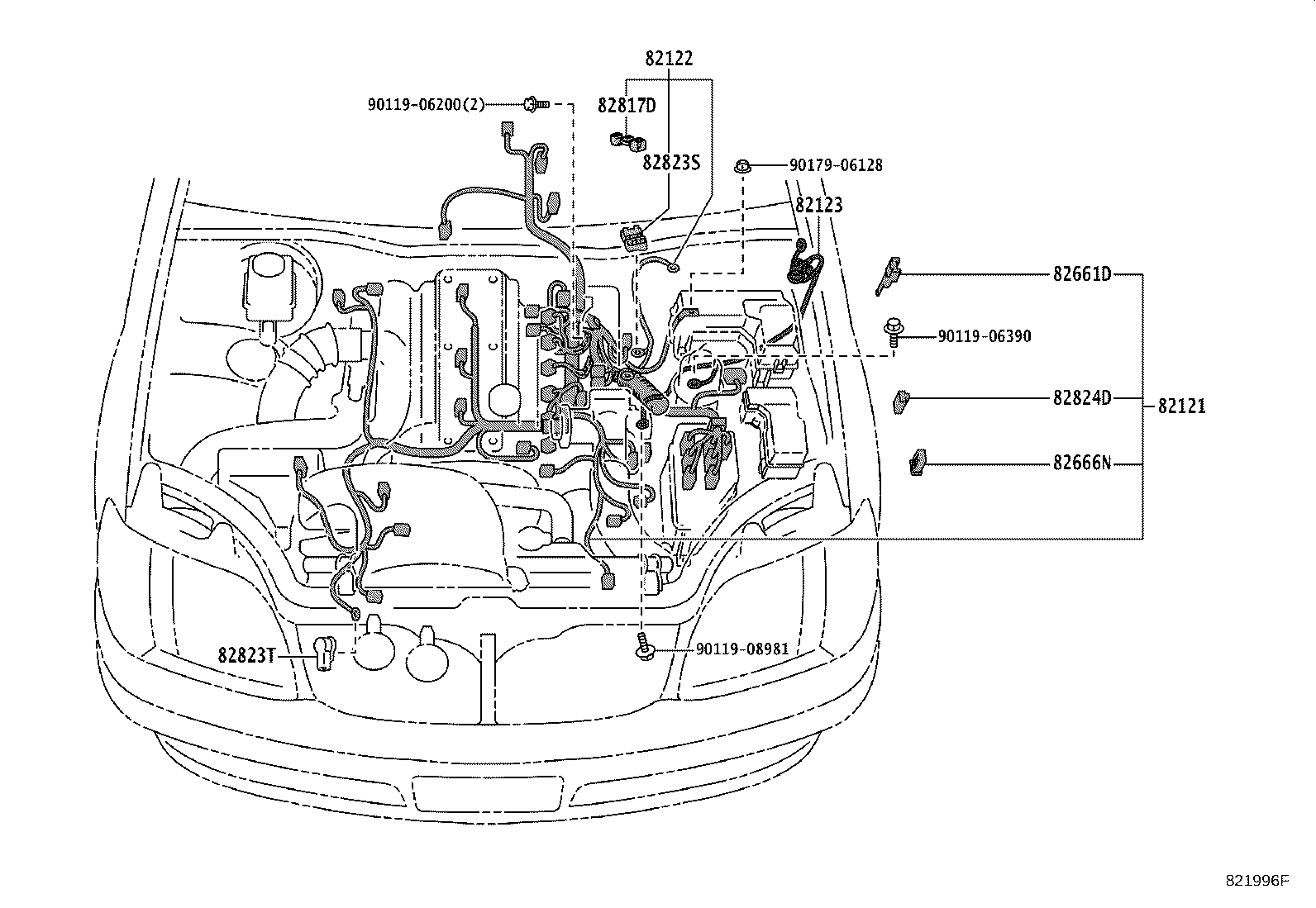

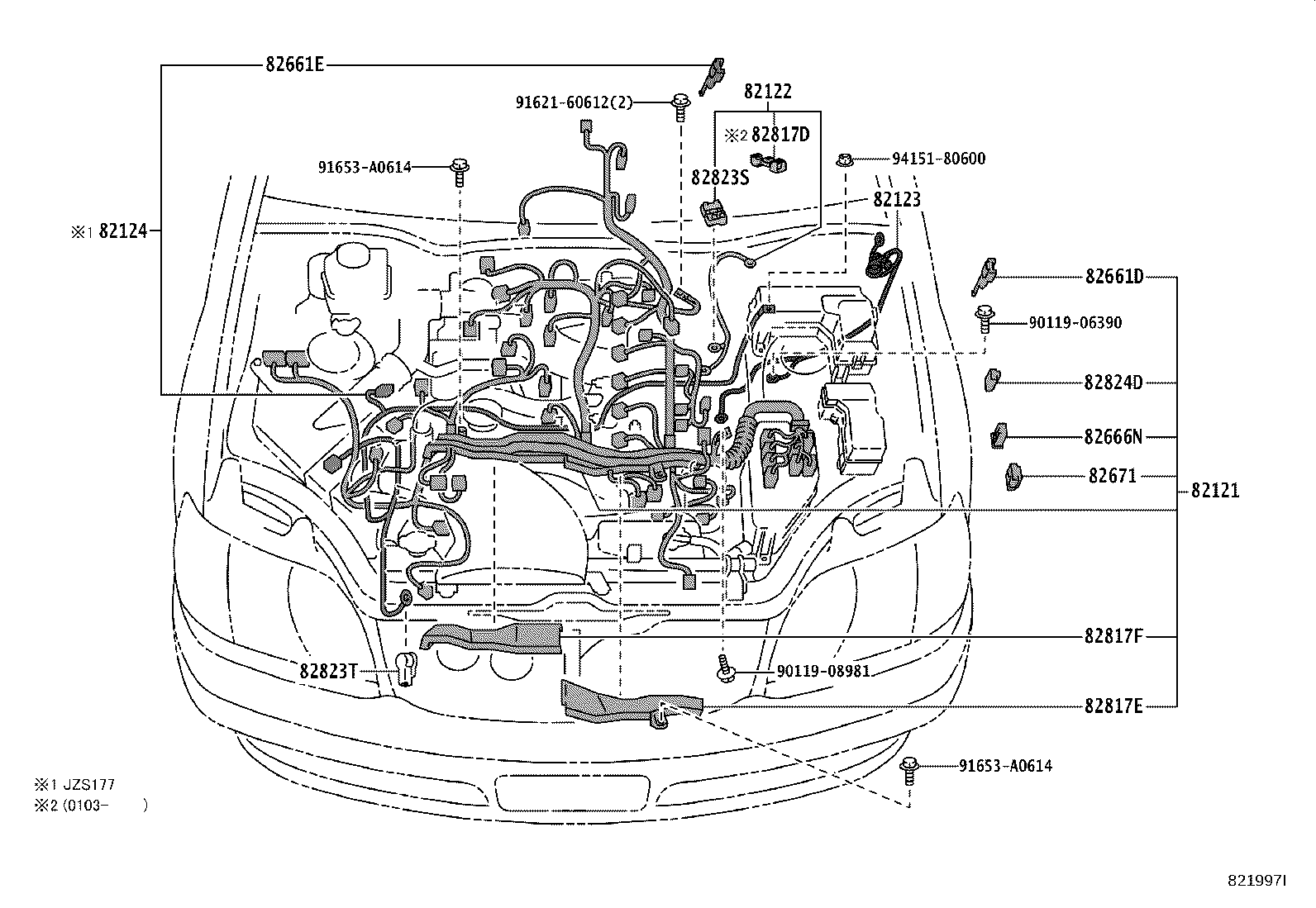

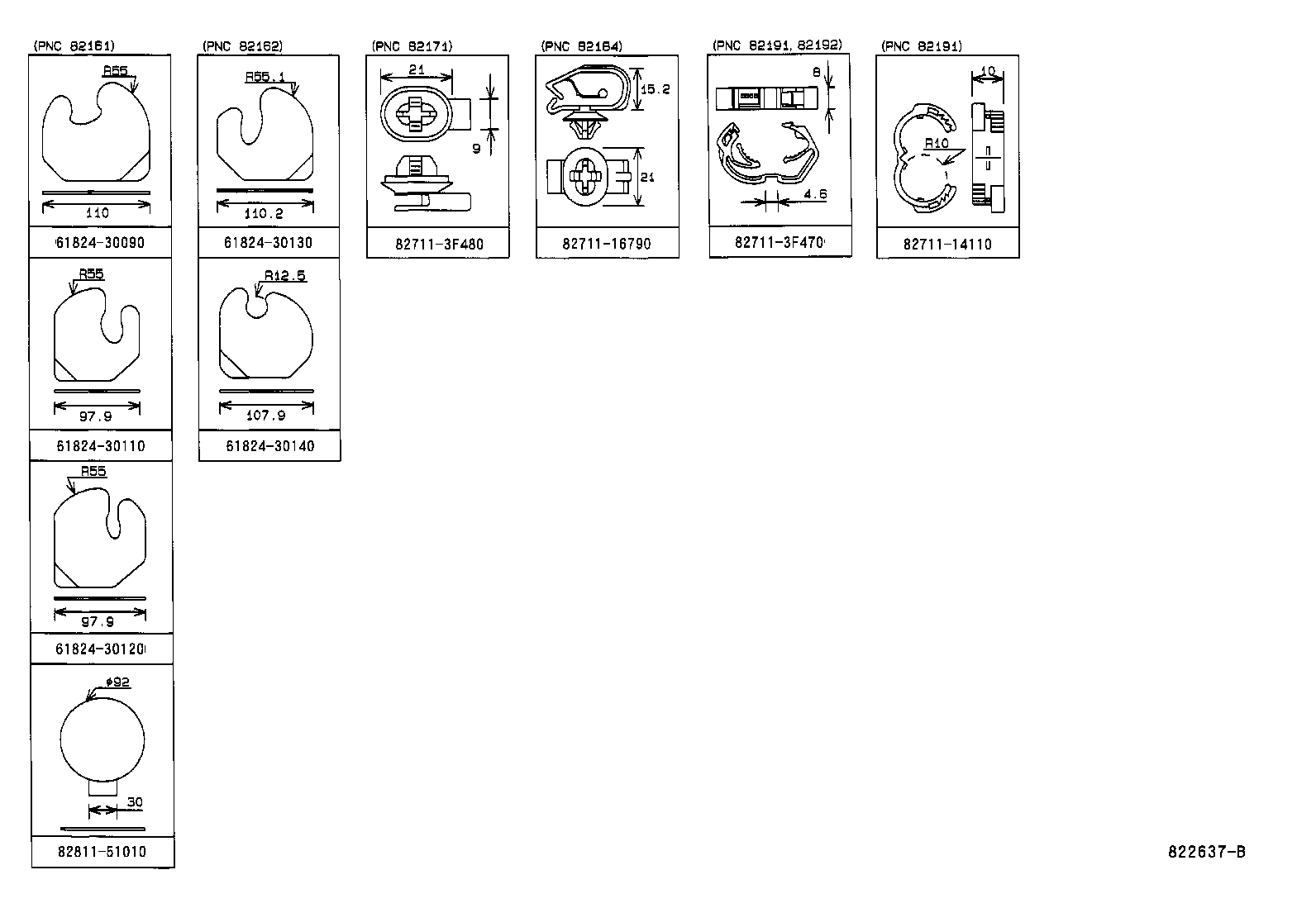

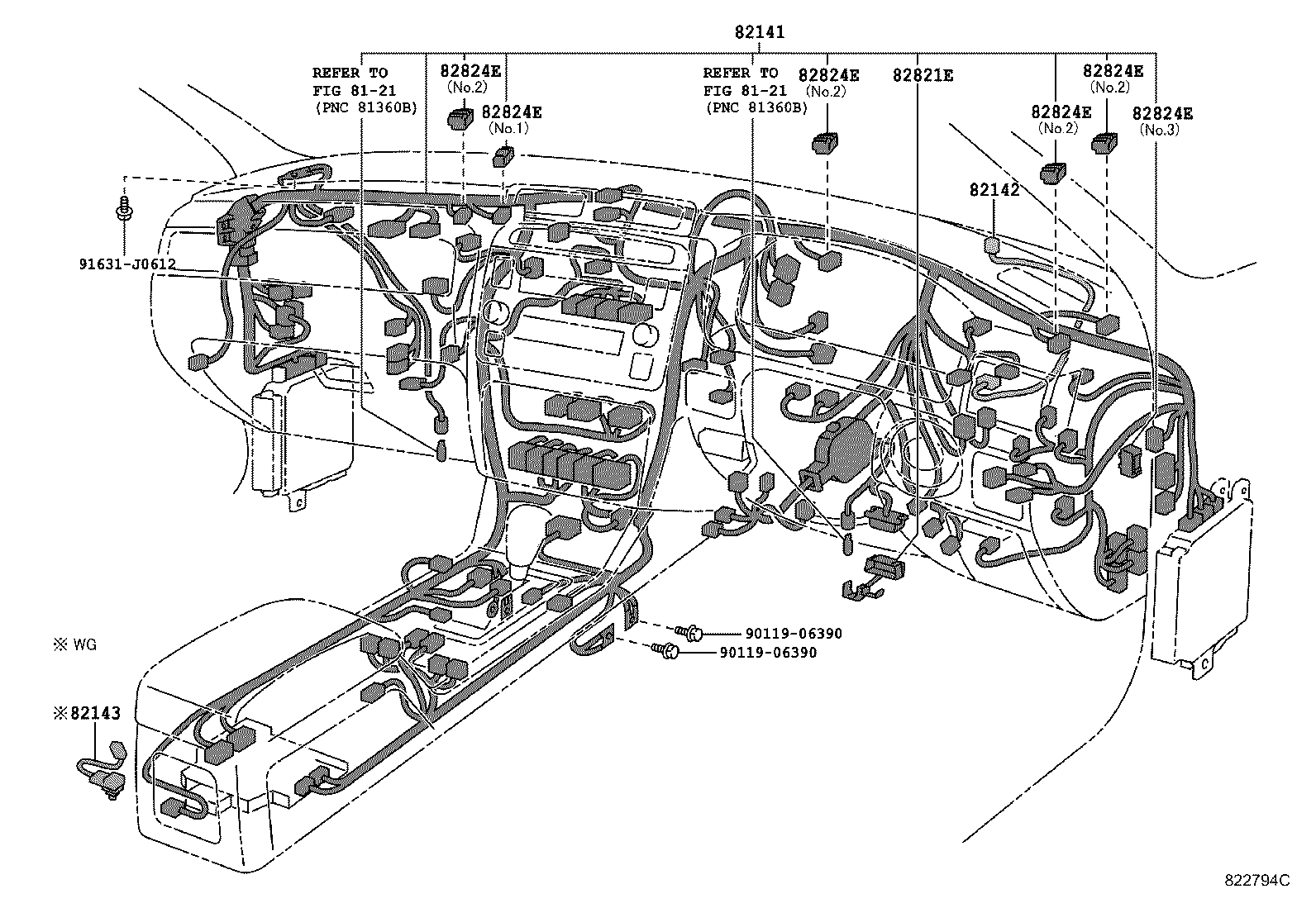

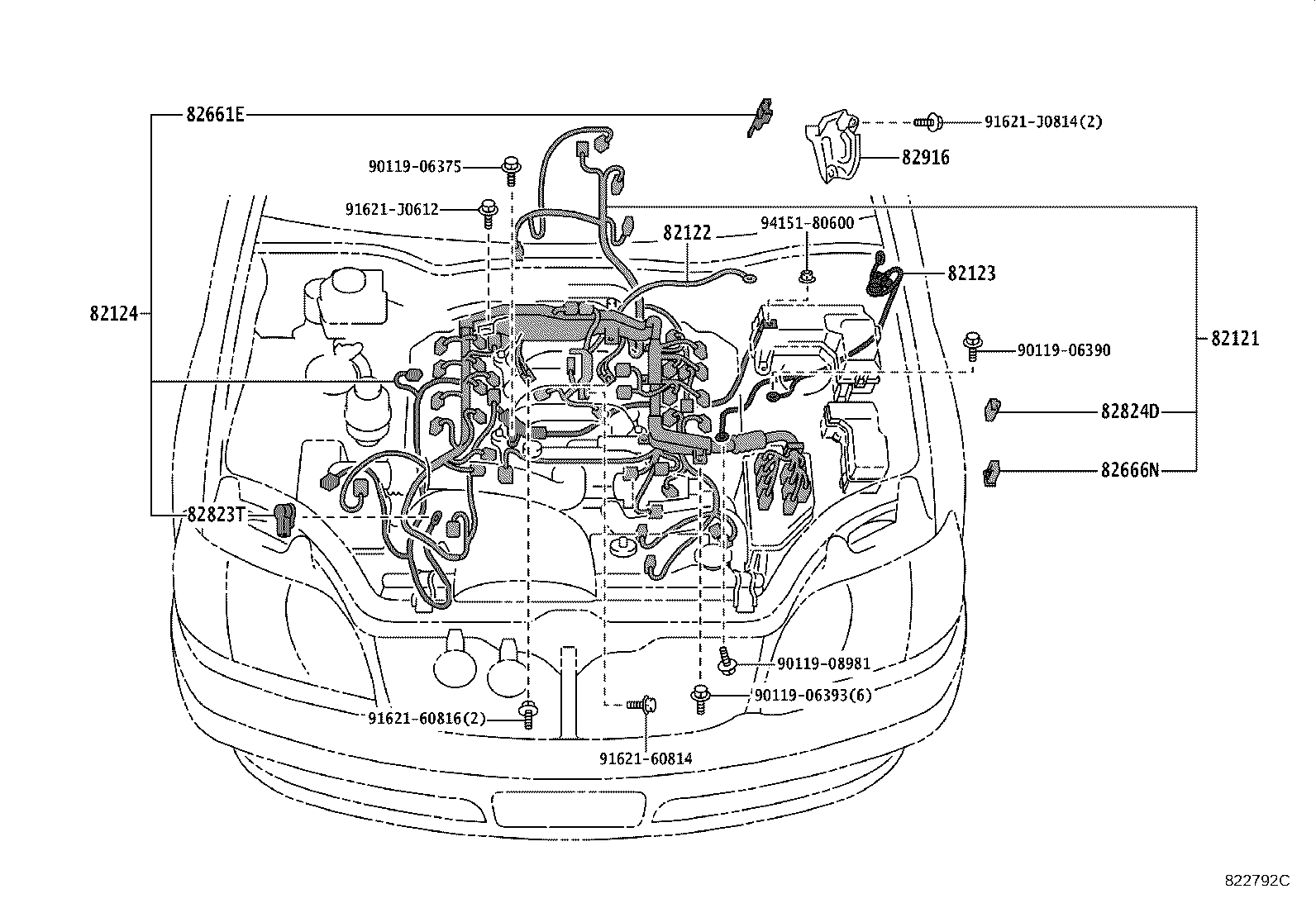

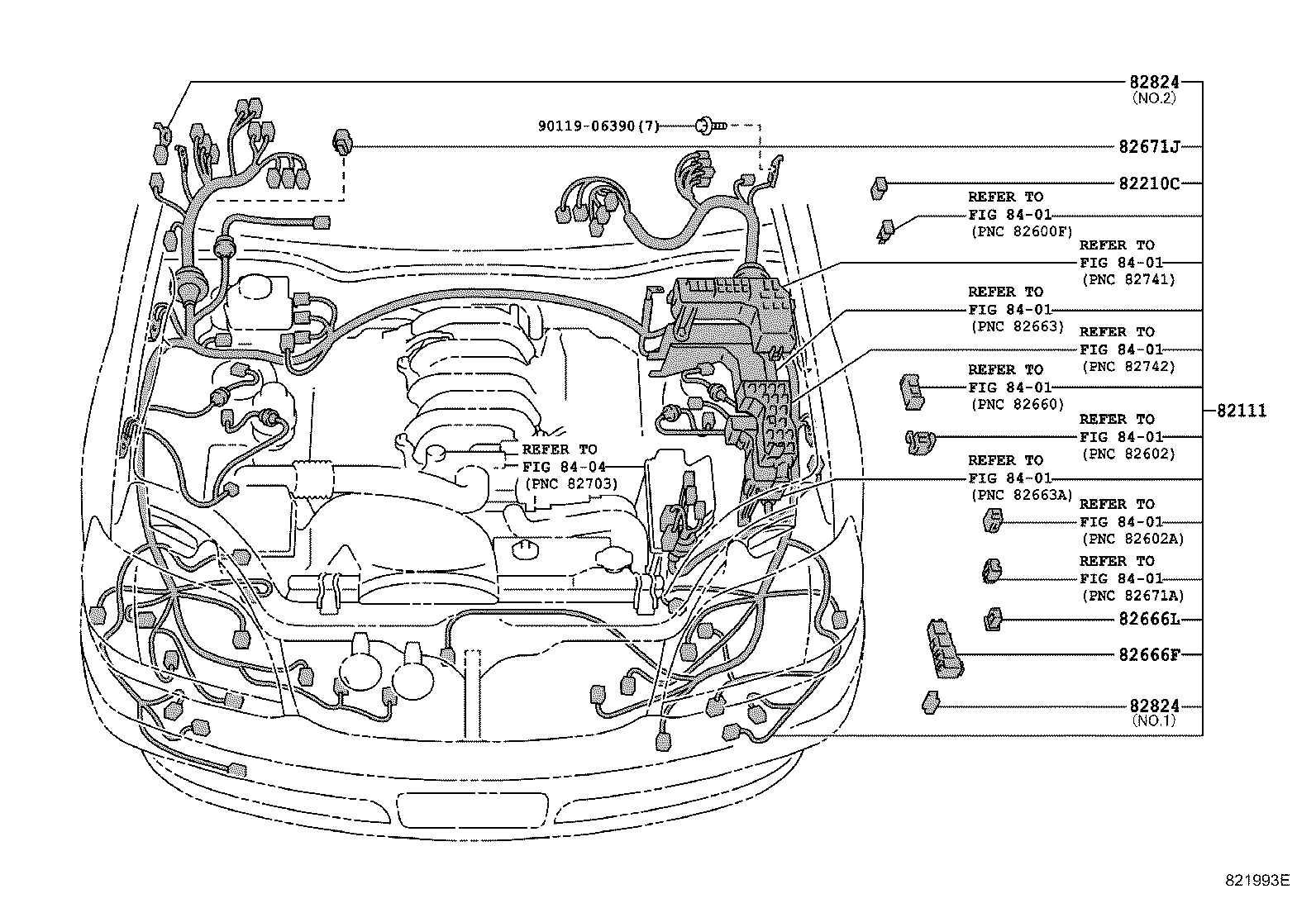

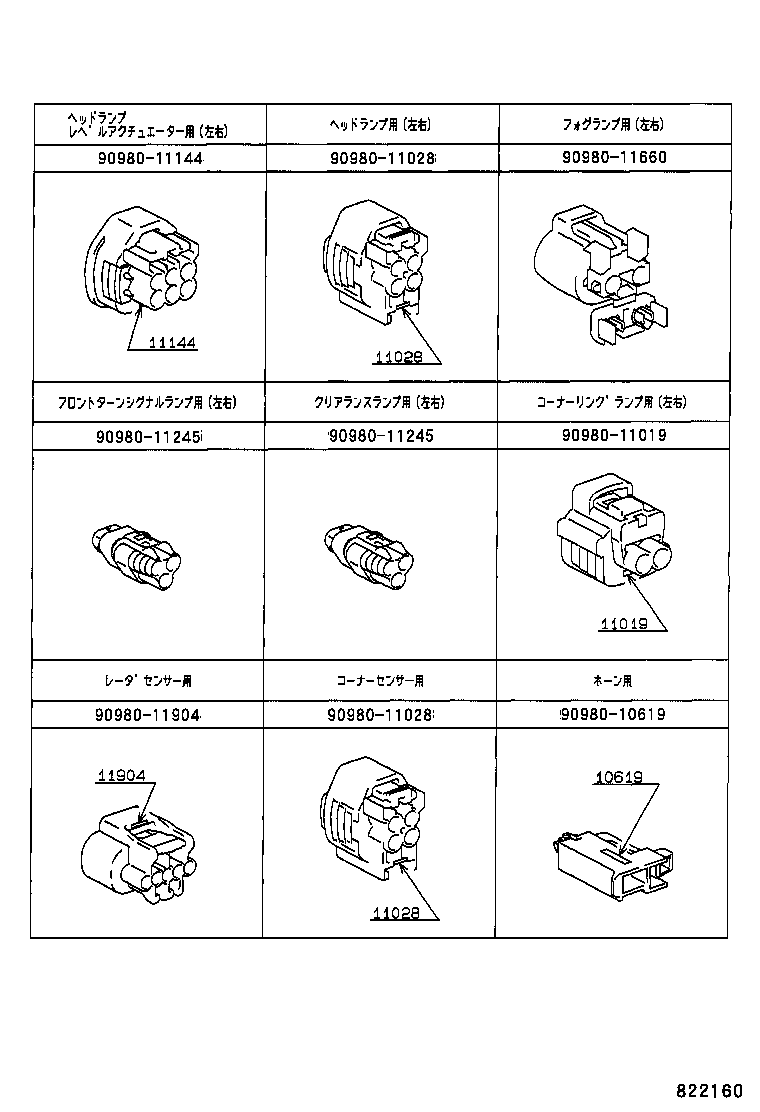

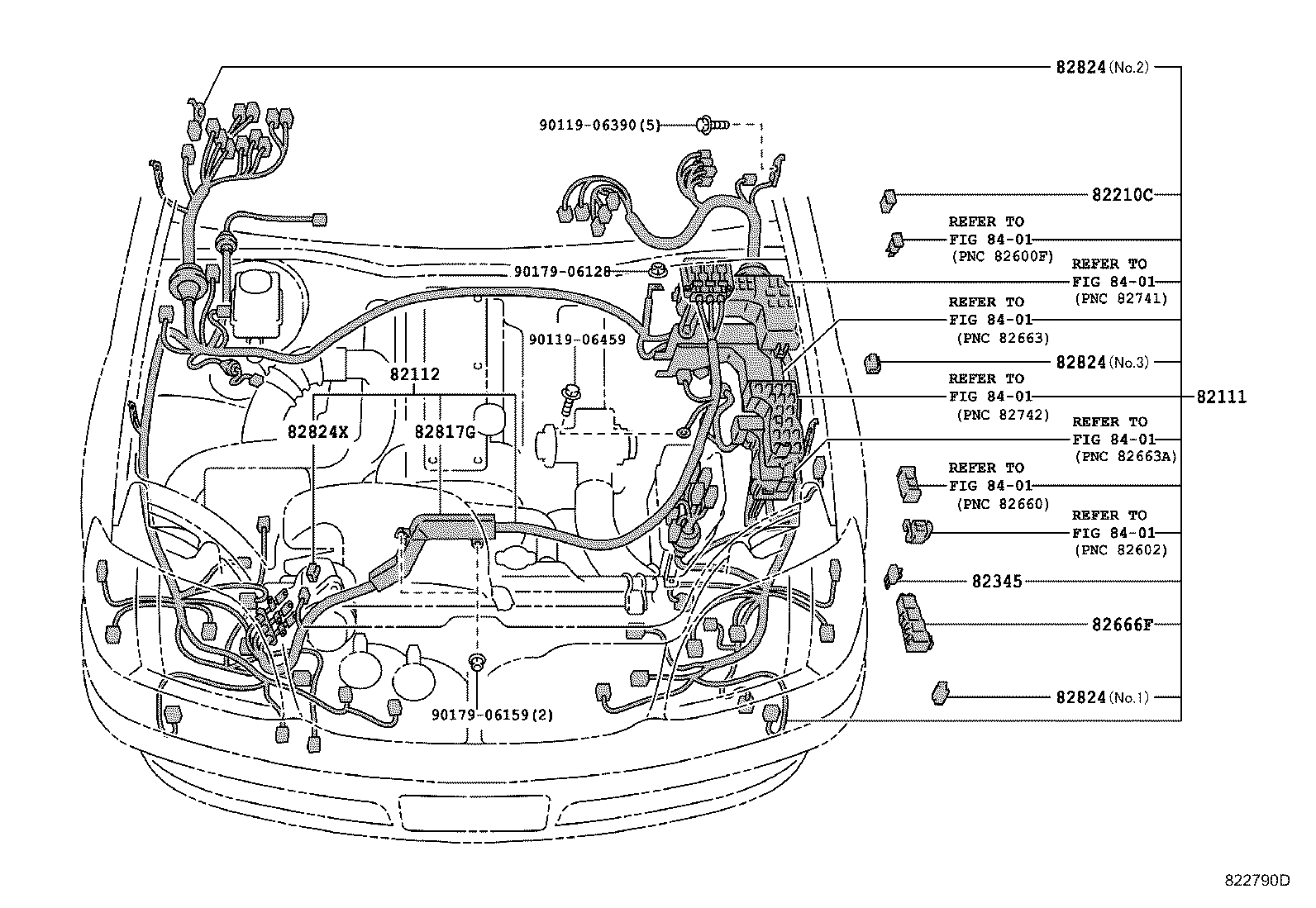

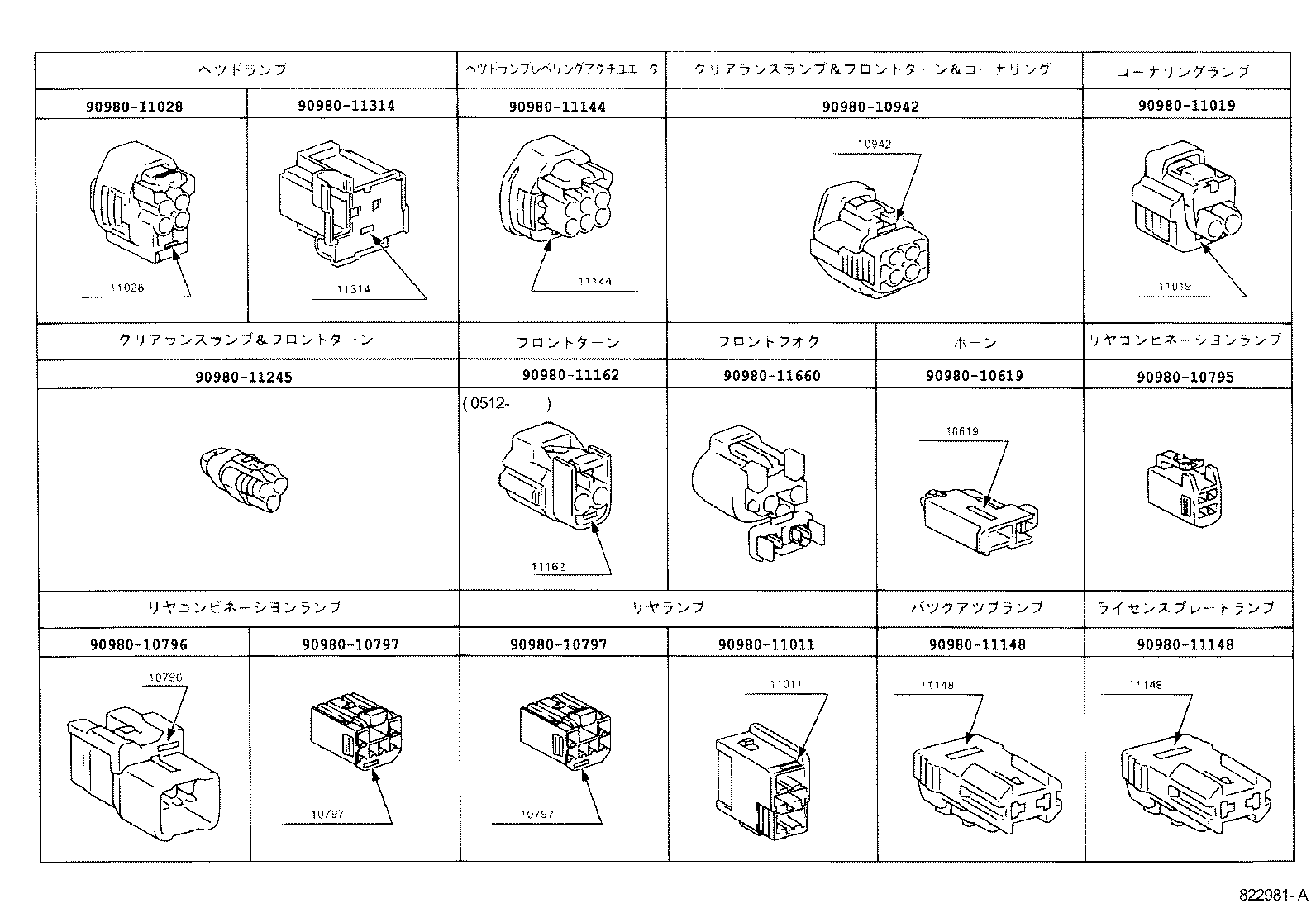

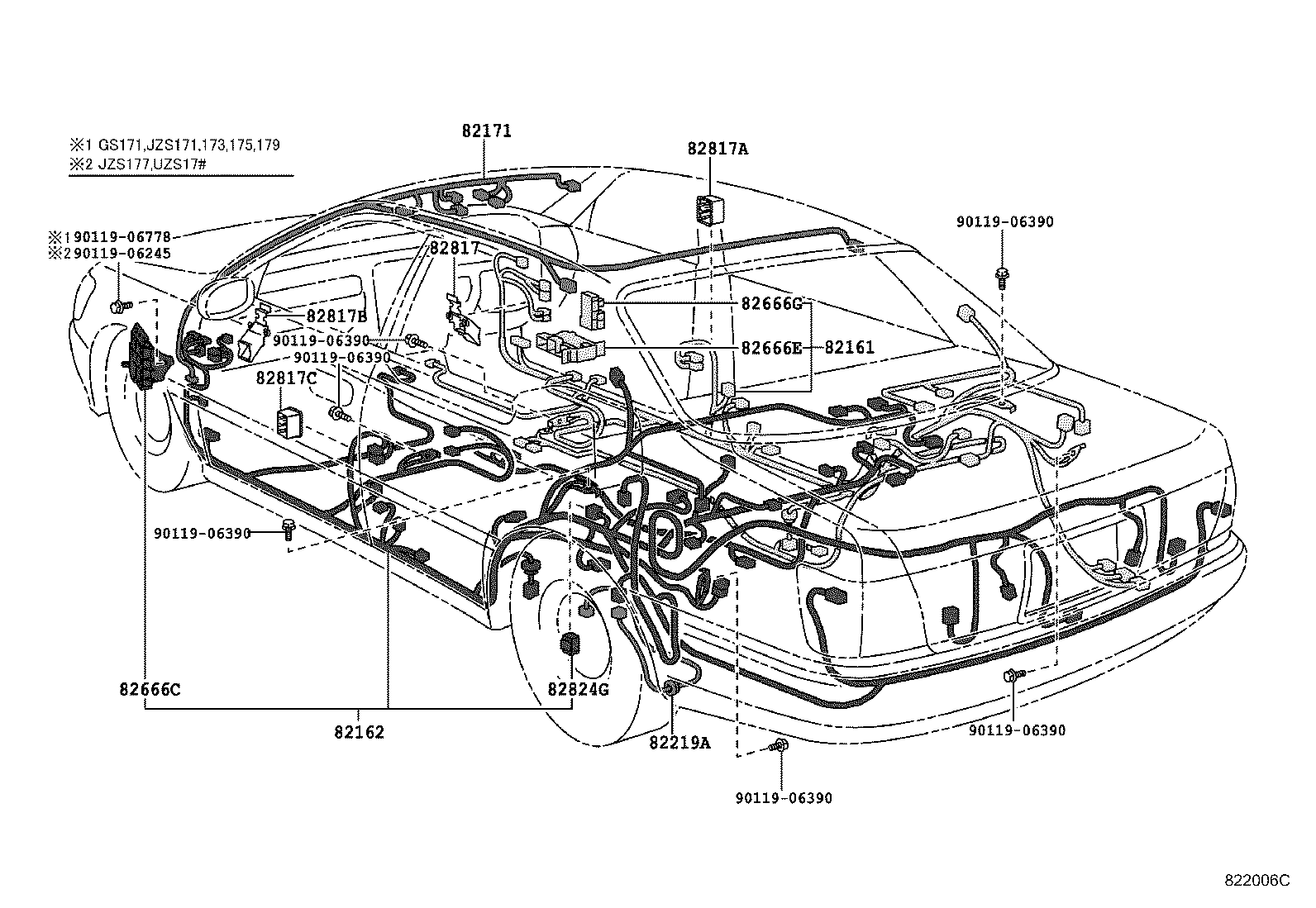

Figure 821992E 821992E 1999-09 → — Figure 821993E 821993E 1999-09 → — Figure 822790D 822790D 2001-08 → — Figure 821995G 821995G 1999-09 → 2001-08 Figure 822791D 822791D 2001-08 → — Figure 821996F 821996F 1999-09 → — Figure 821997I 821997I 1999-09 → — Figure 821998H 821998H 1999-09 → — Figure 821999E 821999E 1999-09 → 2001-08 Figure 822792C 822792C 2001-08 → — Figure 822793F 822793F 2001-08 → — Figure 821994F 821994F 2000-04 → — Figure 822003F 822003F 1999-09 → 2001-08 Figure 822794C 822794C 2001-08 → — Figure 822005A 822005A 1999-09 → — Figure 822109B 822109B 1999-12 → — Figure 822006C 822006C 1999-09 → 2001-08 Figure 822795F 822795F 2001-08 → — Figure 822110D 822110D 1999-12 → — Figure 822008A 822008A 1999-09 → — Figure 822009C 822009C 1999-09 → — Figure 822010G 822010G 1999-09 → — Figure 822637B 822637B 1999-09 → — Figure 822012B 822012B 1999-09 → 2001-08 Figure 822012B 822012B 2001-08 → — Figure 822013B 822013B 1999-09 → 2001-08 Figure 822013B 822013B 2001-08 → — Figure 822981A 822981A 1999-09 → — Figure 822160 822160 1999-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82196 Wire, Rear Seat, LH NO.2
82210C Fusible Link
82219A Wire, Sensor
82345 Diode
82651 Block, Terminal
82652 Cover, Terminal Block
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824G Connector, Wiring Harness
82824M Connector, Wiring Harness
82824X Connector, Wiring Harness
82916 Insulator, Wiring Harness Heat, NO.2
86011G Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
