Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

3 part groups · 6 illustrations

Illustrations

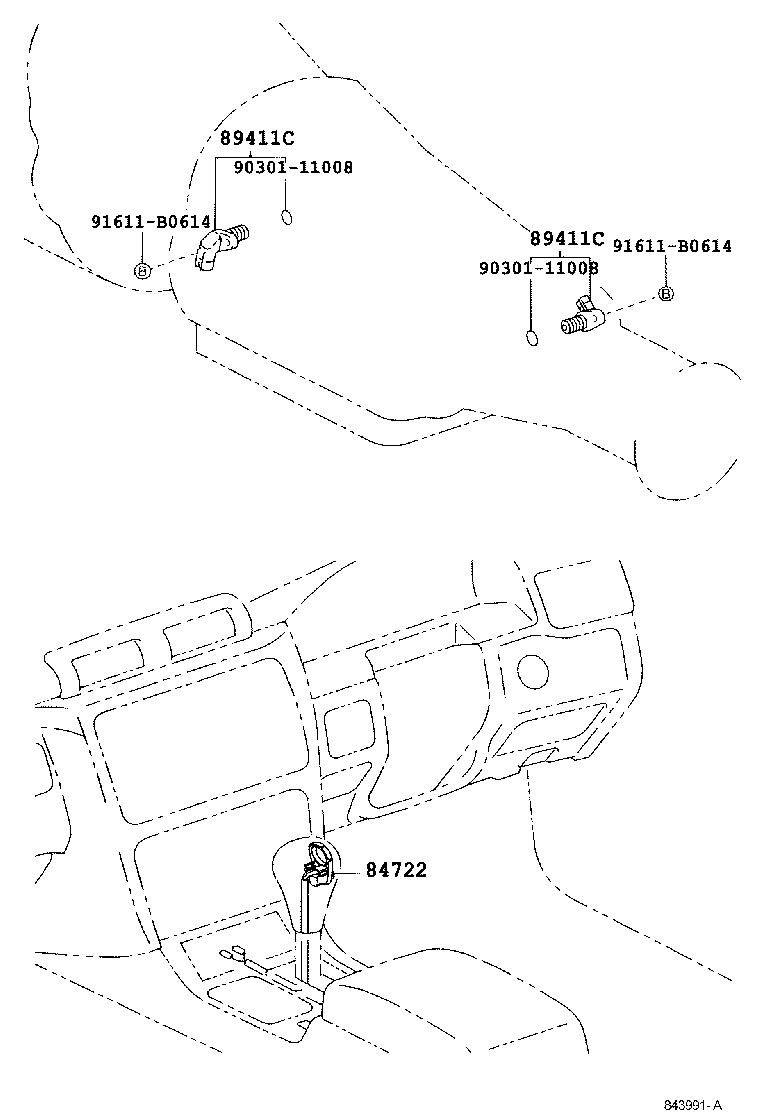

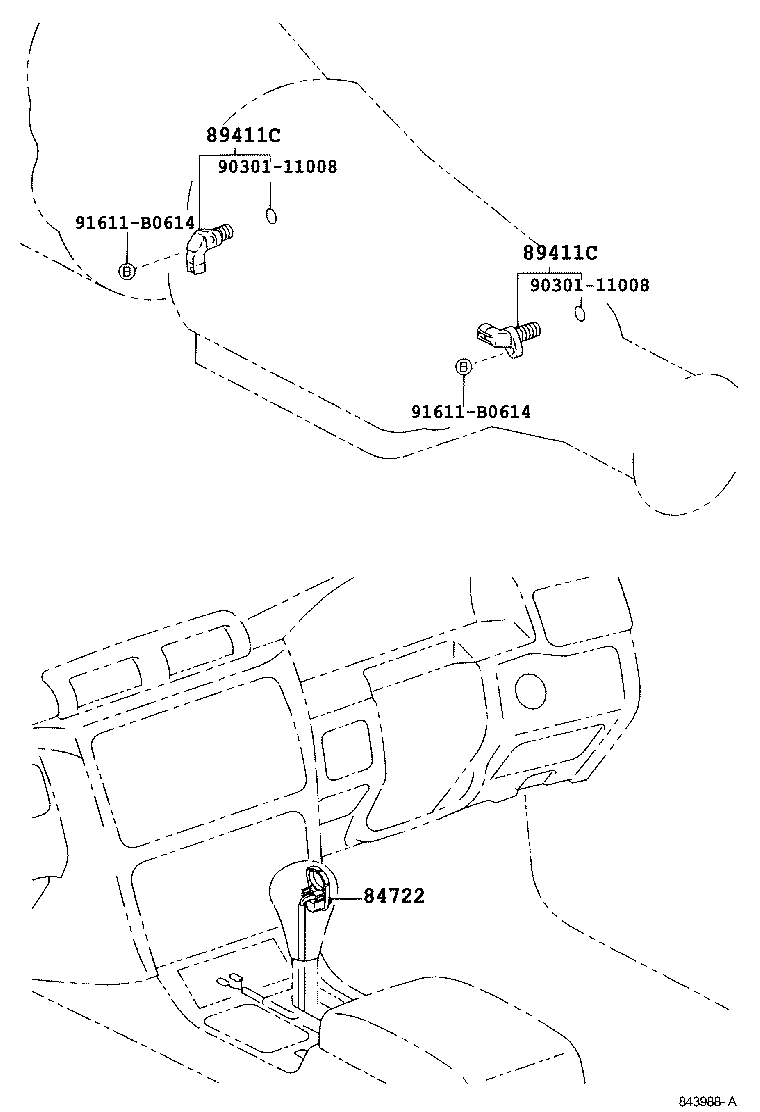

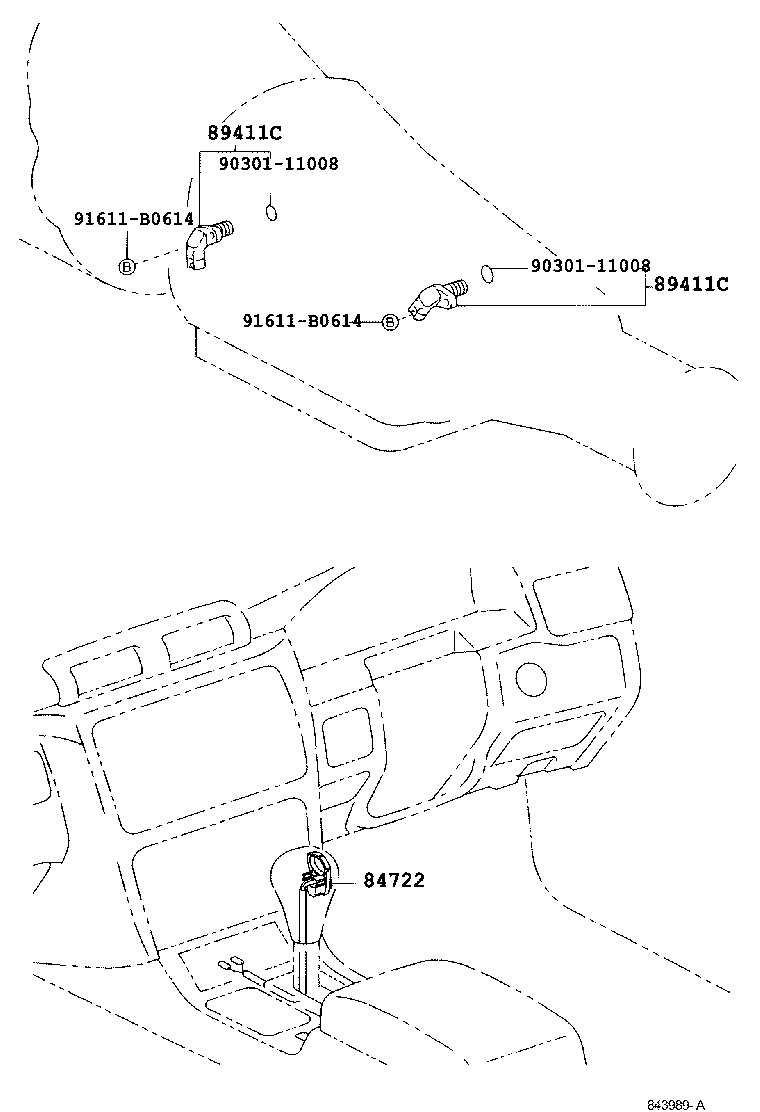

Figure 843987C 843987C 2000-04 → — Figure 843988A 843988A 1999-09 → — Figure 843989A 843989A 1999-09 → — Figure 843990A 843990A 1999-09 → — Figure 843991A 843991A 1999-09 → — Figure 843992 843992 1999-09 → —

Part groups

PNCDescription
84722 Switch, Transmission Control
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
