Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

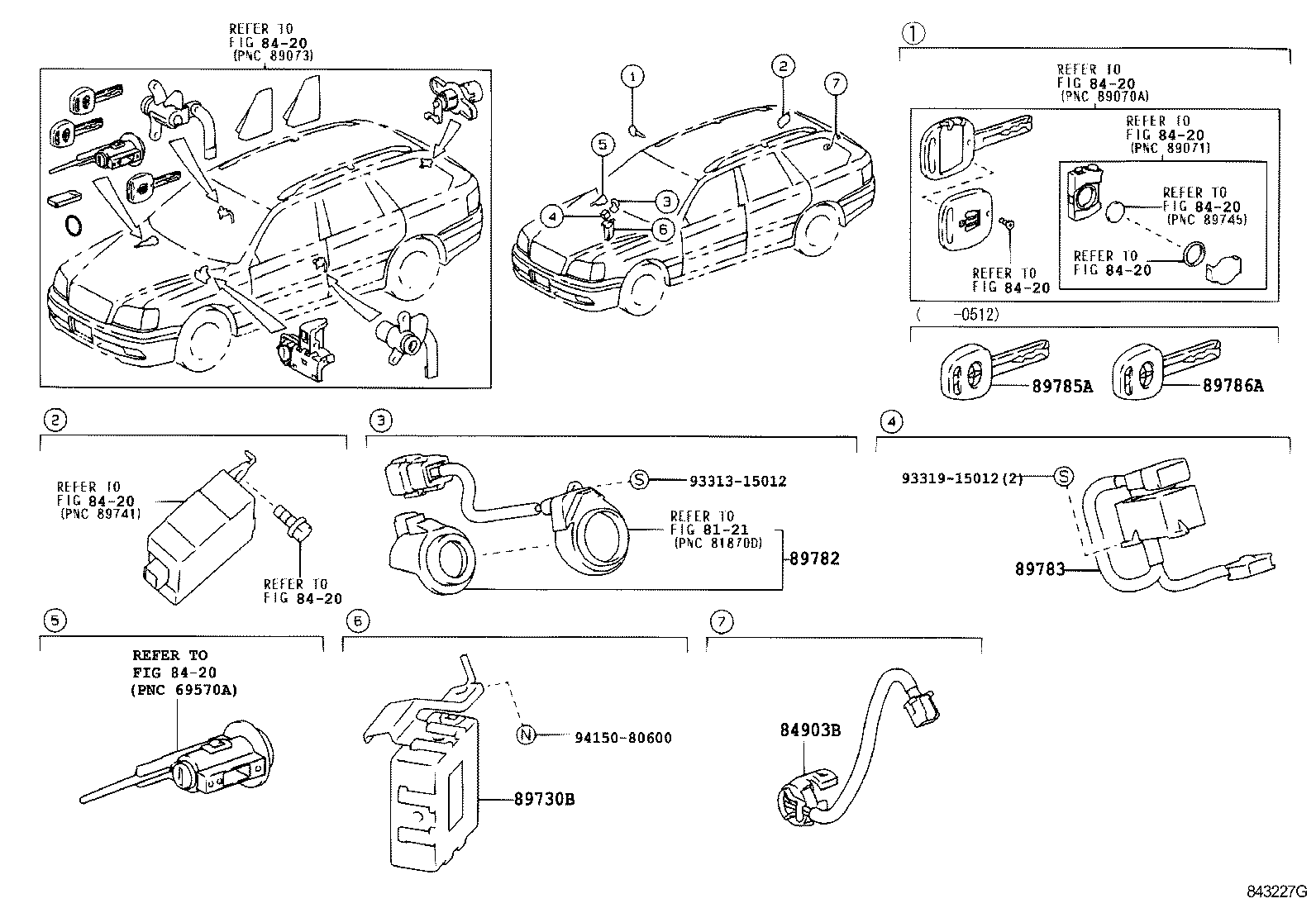

Figure 843132H 843132H 1999-09 → — Figure 843227G 843227G 1999-12 → —

Part groups

PNCDescription
84903B Switch Sub-assy, Door Unlock
89730B Computer Assy, Theft Warning
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785A Transmitter, Transponder Cut Key Master
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
