Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01
Rear Wiper

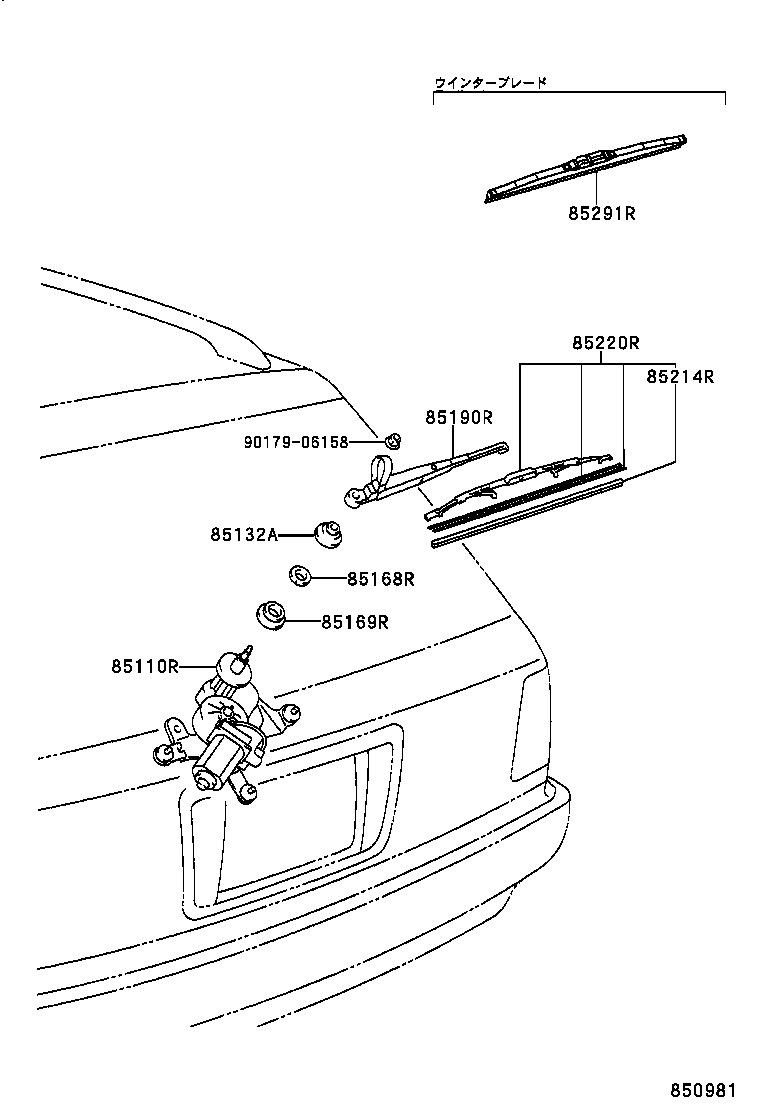

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85132A | Cover, Rear Wiper Shaft |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85190R | Arm Assy, Rear Wiper |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
