Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 3 illustrations

Illustrations

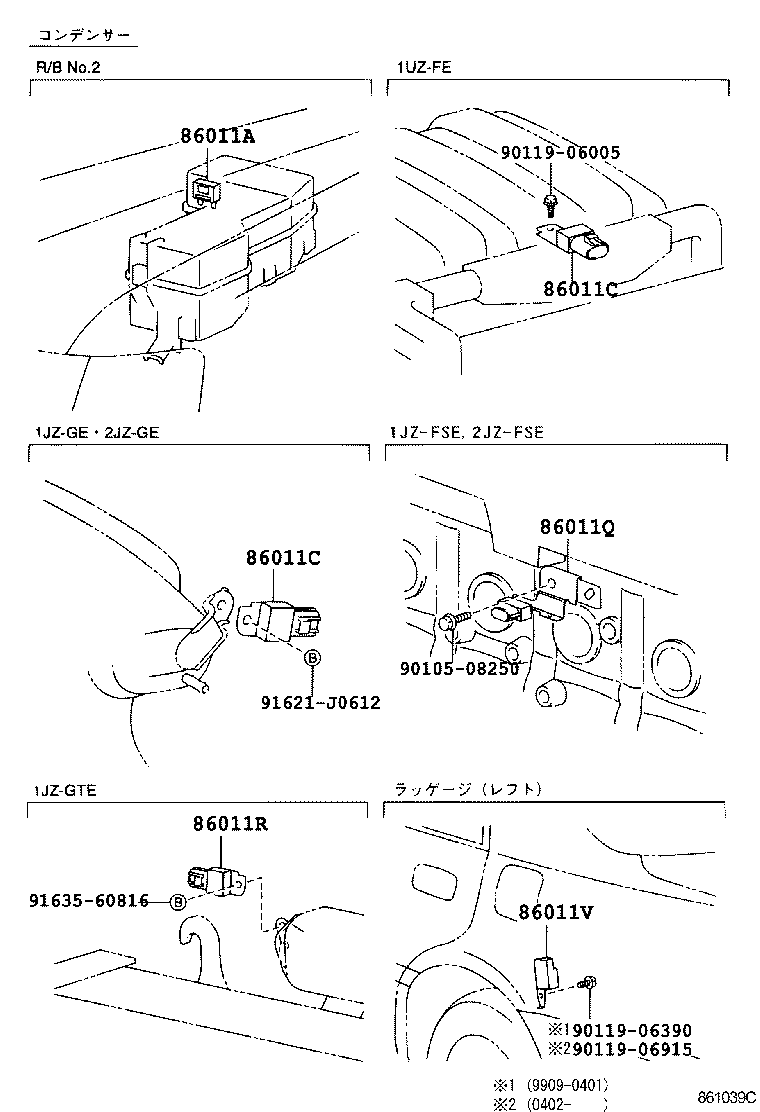

Figure 861037D 861037D 1999-09 → — Figure 861038A 861038A 1999-09 → — Figure 861039C 861039C 1999-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86285F Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
