Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 16 illustrations

Illustrations

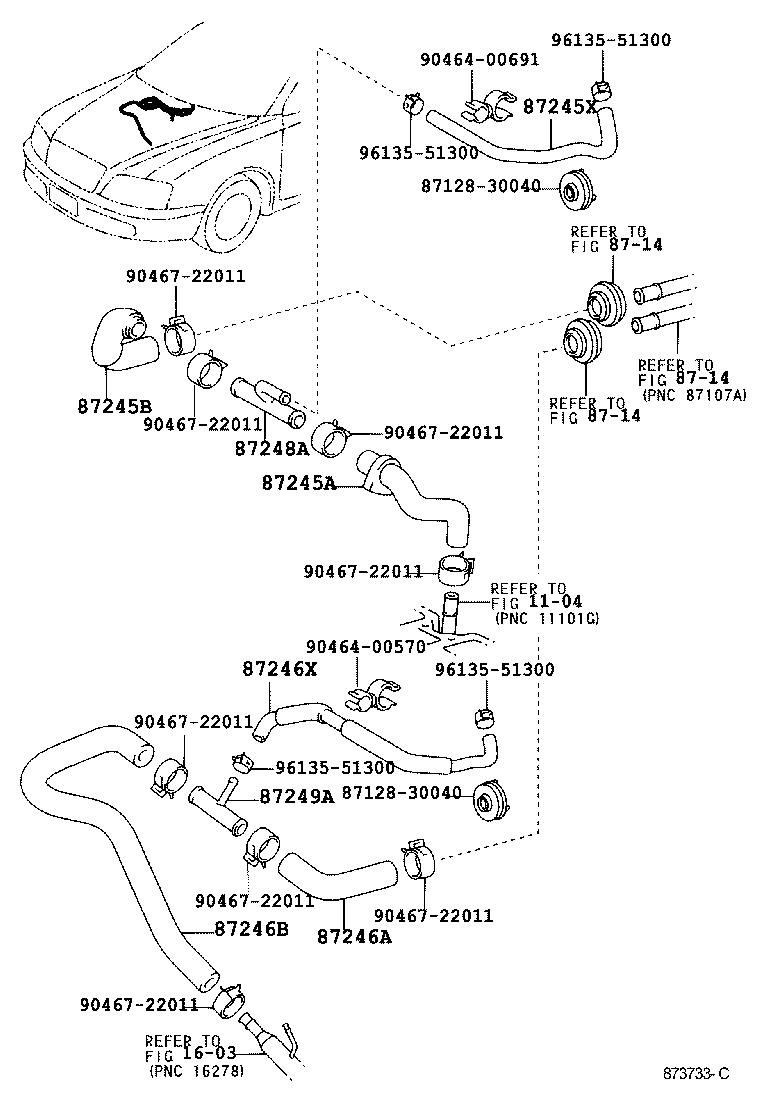

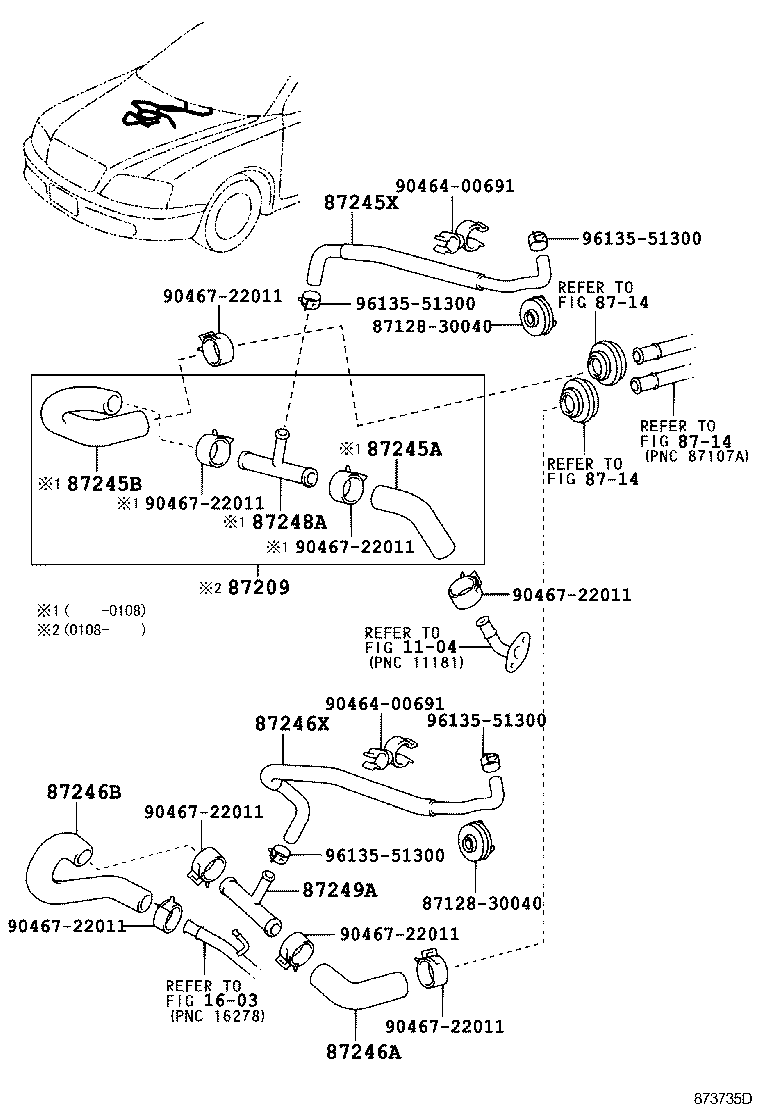

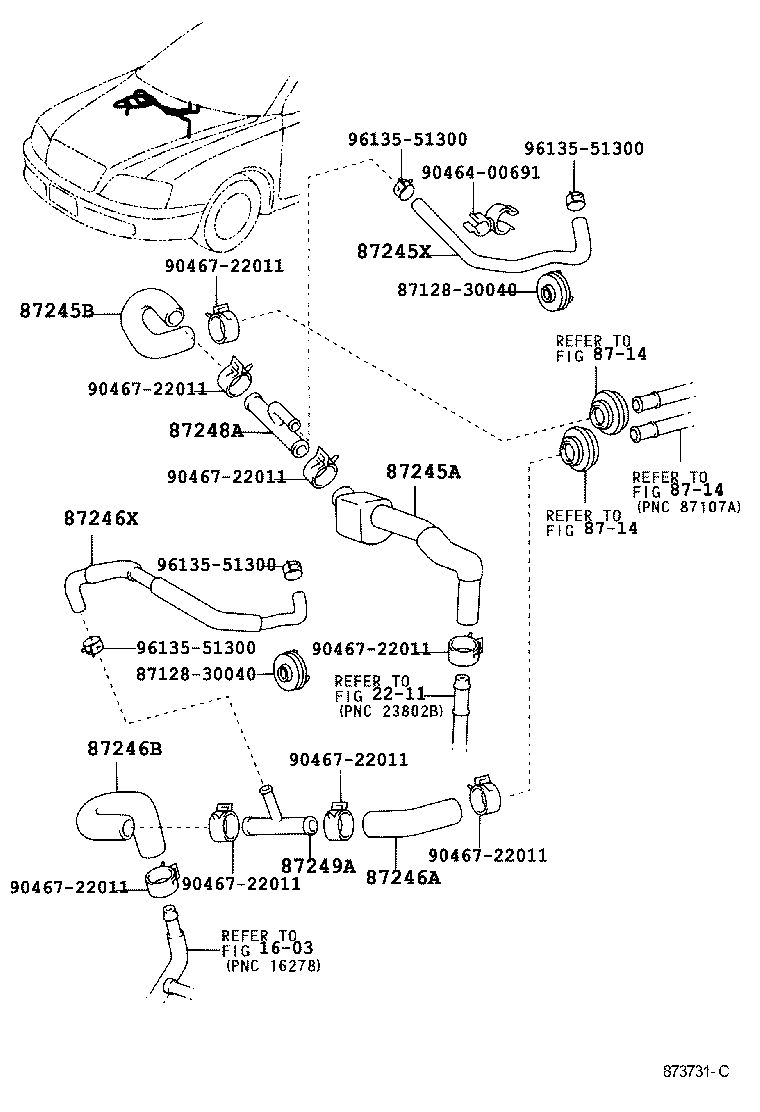

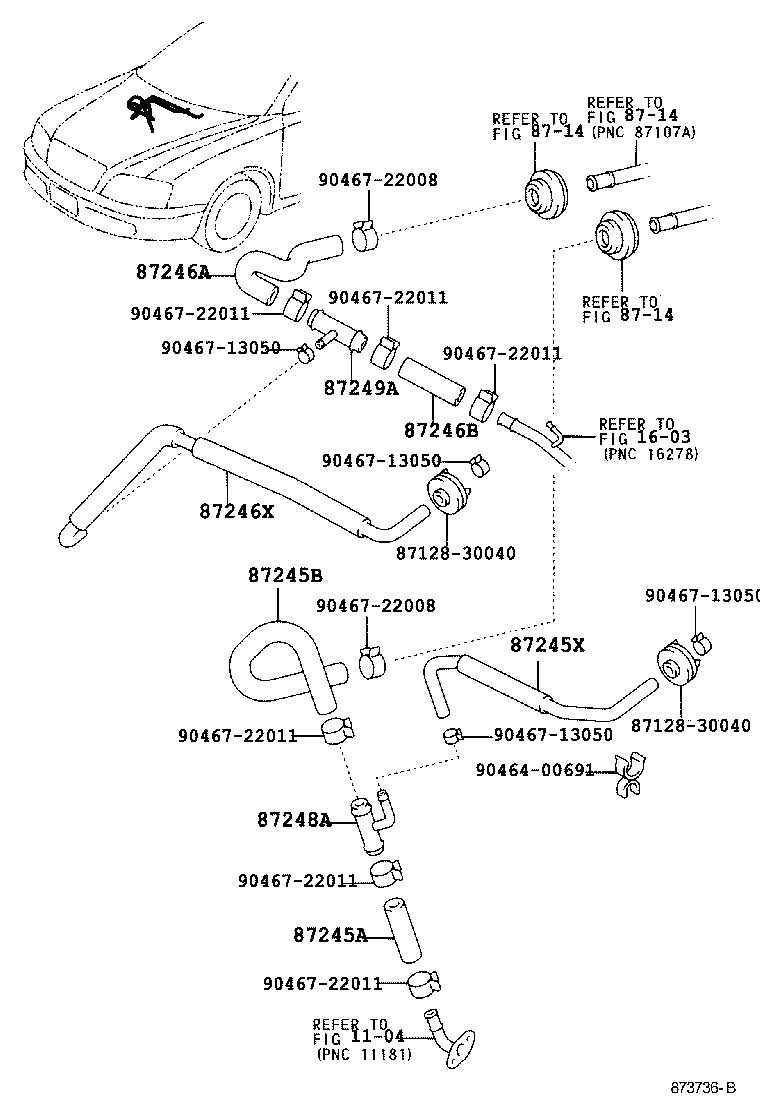

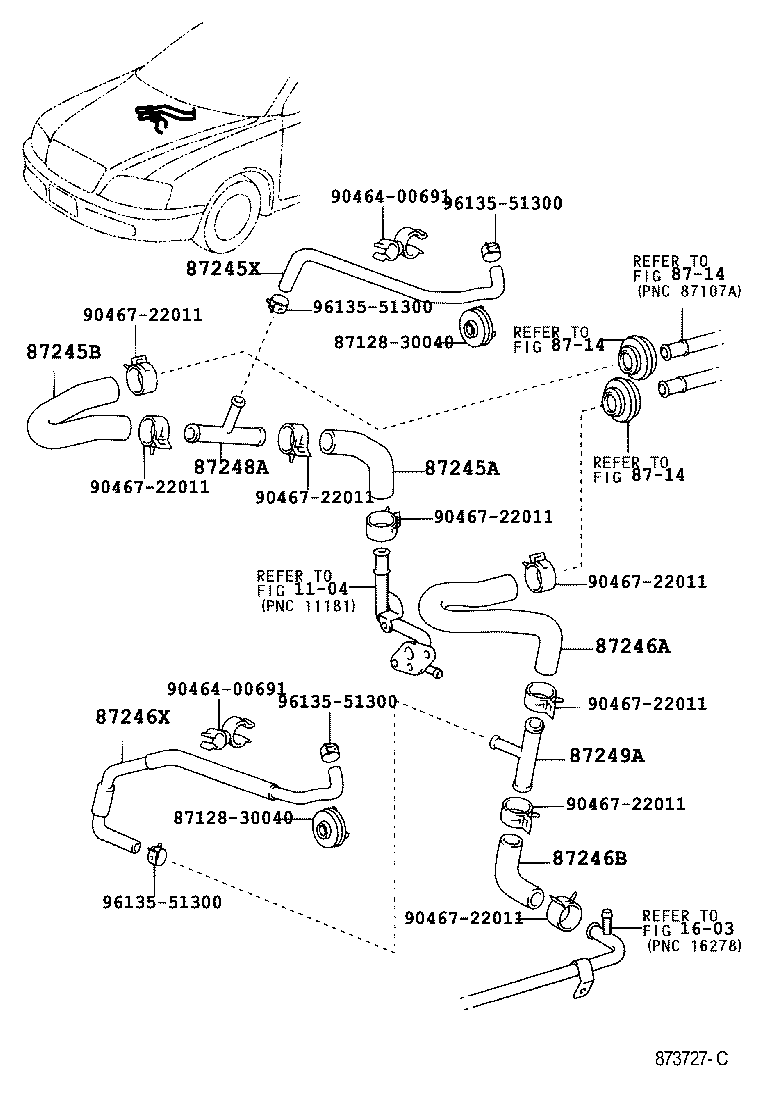

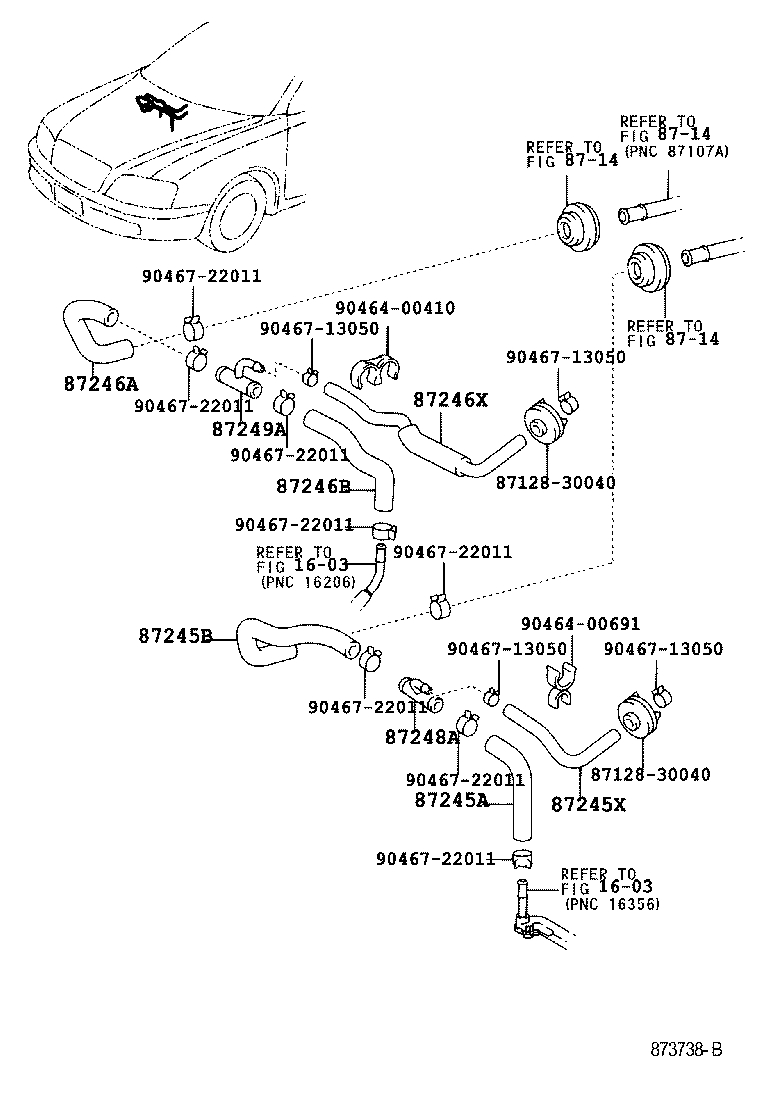

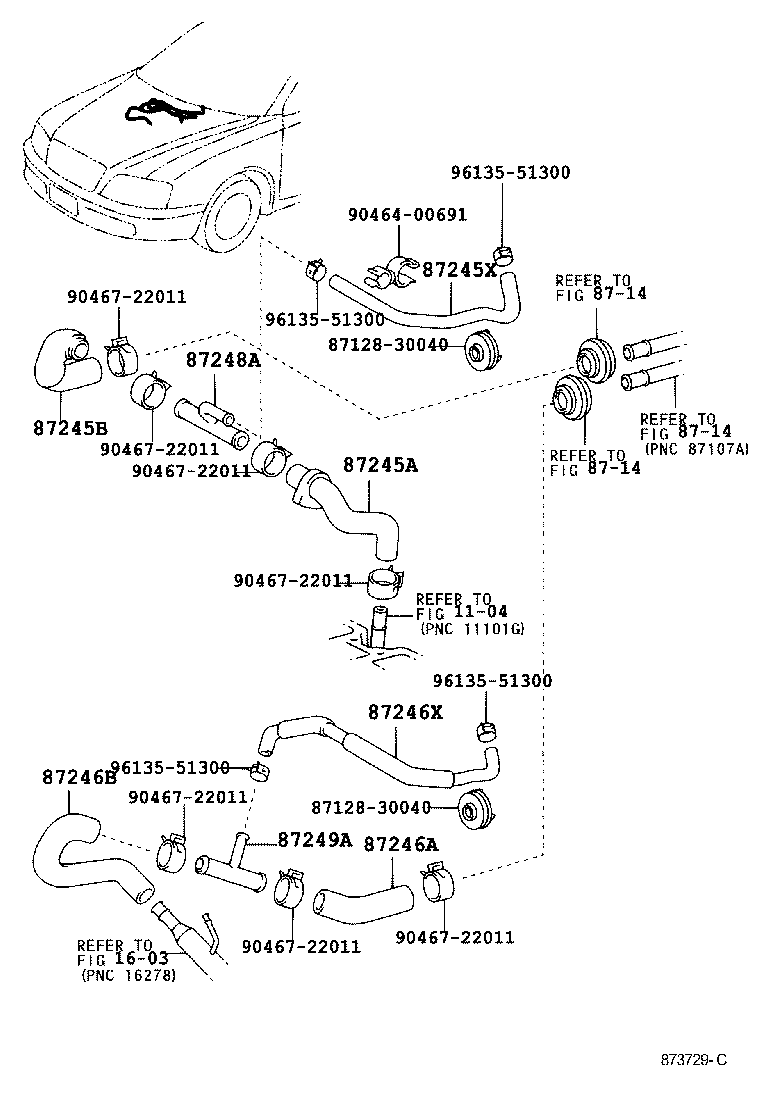

Figure 873728C 873728C 1999-09 → — Figure 873729C 873729C 1999-09 → — Figure 873730C 873730C 1999-09 → — Figure 873731C 873731C 1999-09 → — Figure 873732B 873732B 1999-09 → — Figure 873733C 873733C 1999-09 → — Figure 873734B 873734B 1999-09 → 2001-08 Figure 873734B 873734B 2001-08 → — Figure 875133A 875133A 2001-08 → — Figure 873735D 873735D 1999-09 → — Figure 873735D 873735D 2001-08 → — Figure 873736B 873736B 1999-09 → — Figure 873737B 873737B 1999-09 → — Figure 873738B 873738B 1999-09 → — Figure 873726B 873726B 2000-04 → — Figure 873727C 873727C 2000-04 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246X Hose, Heater Water
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
