Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 30 illustrations

Illustrations

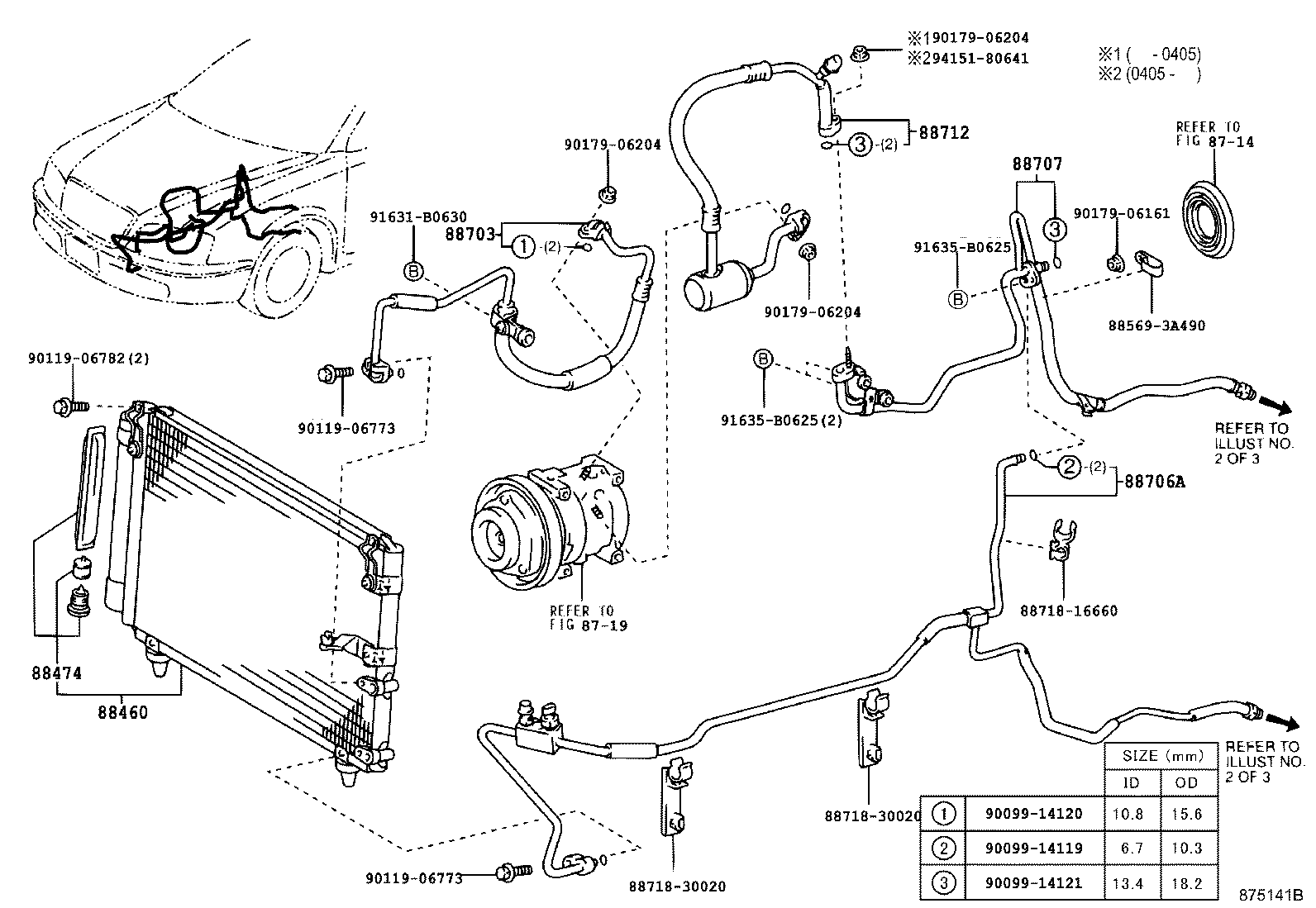

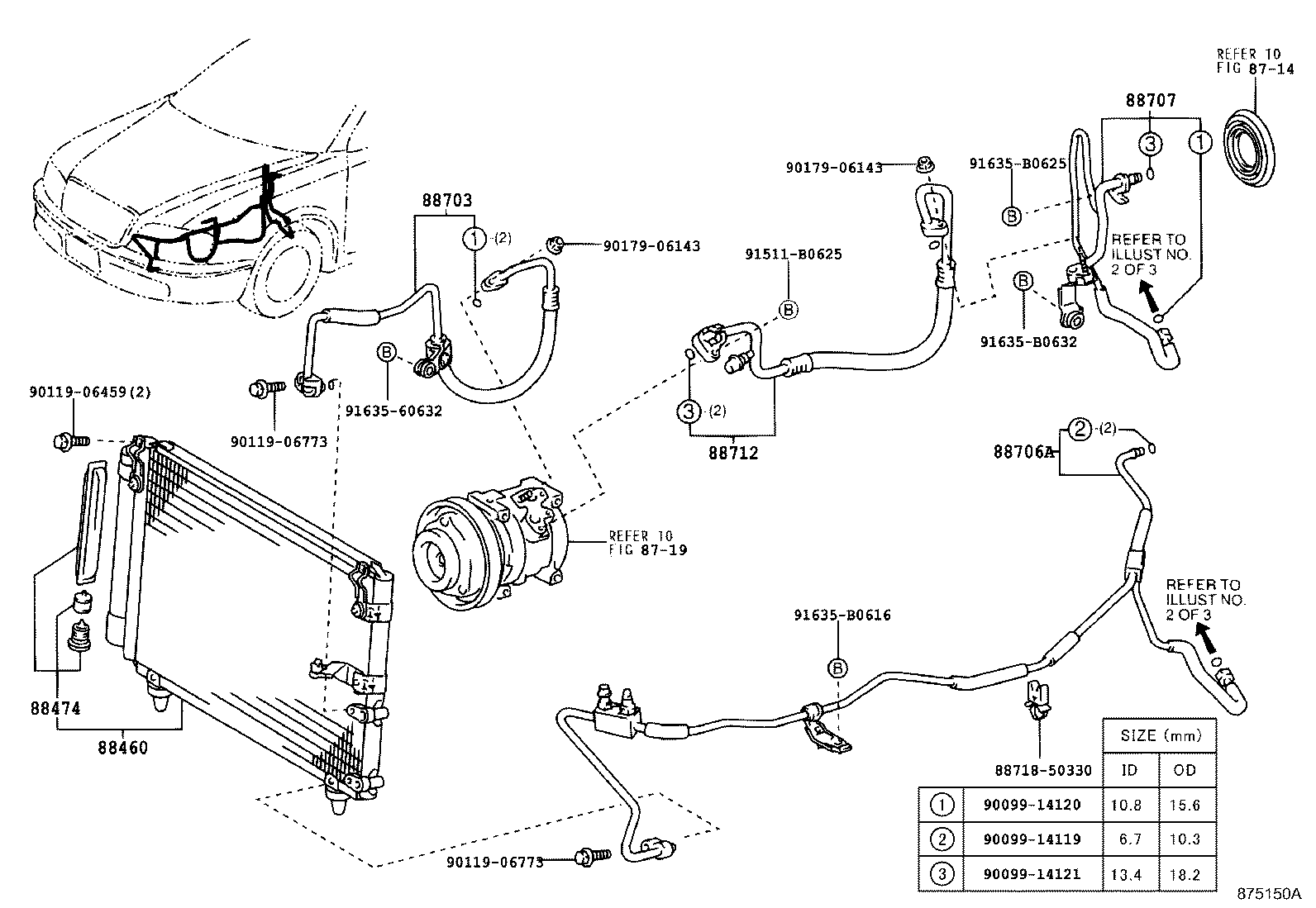

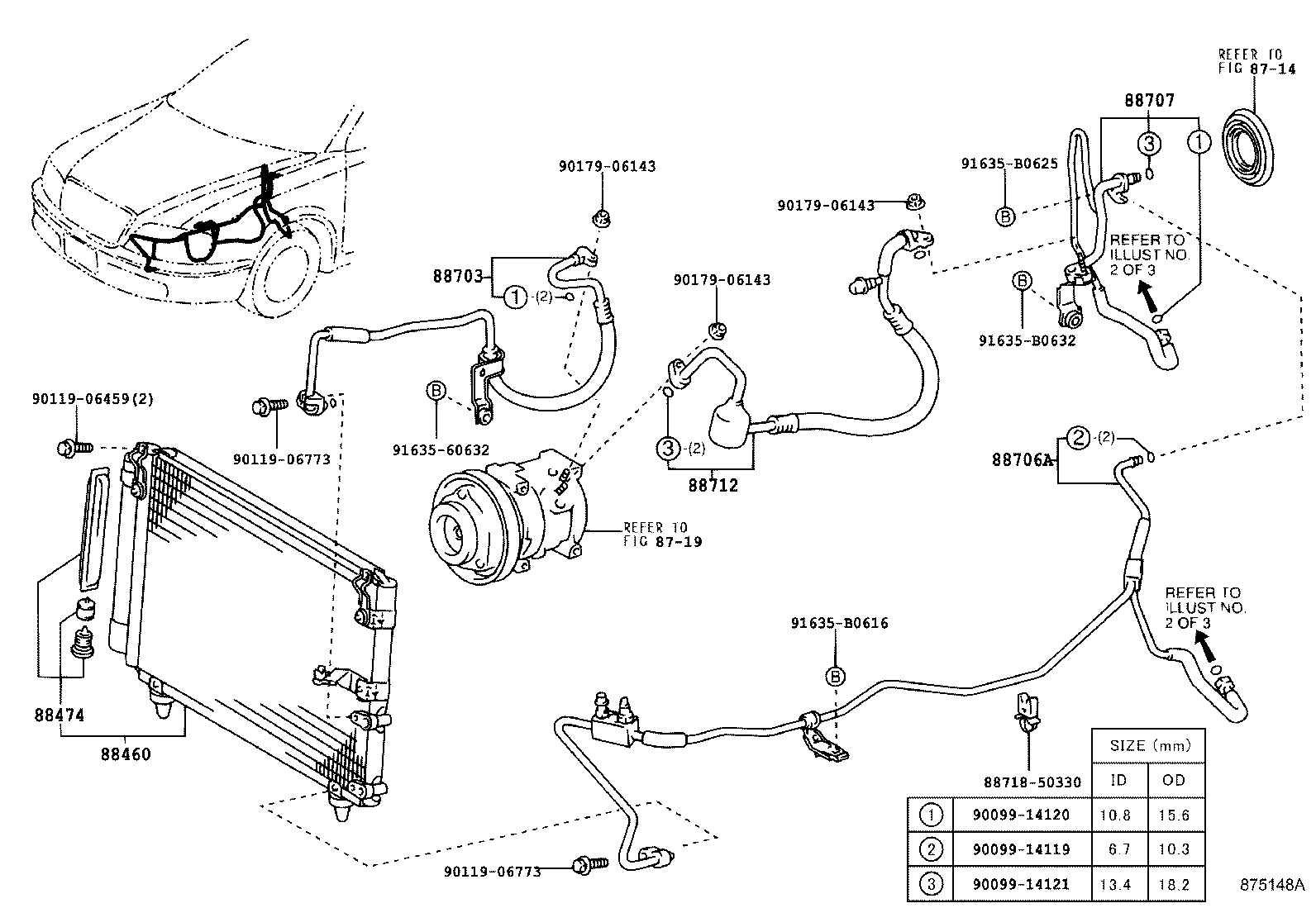

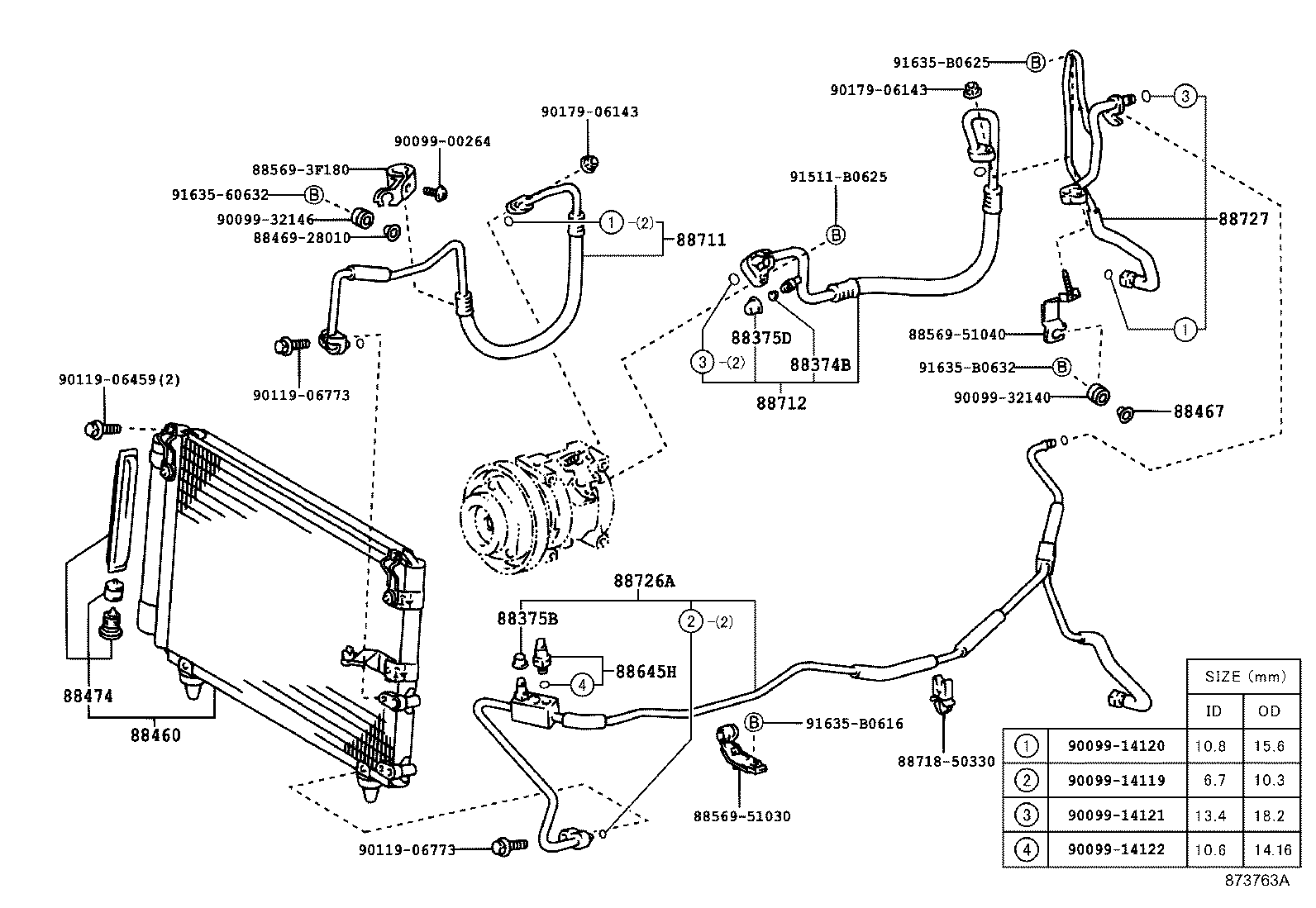

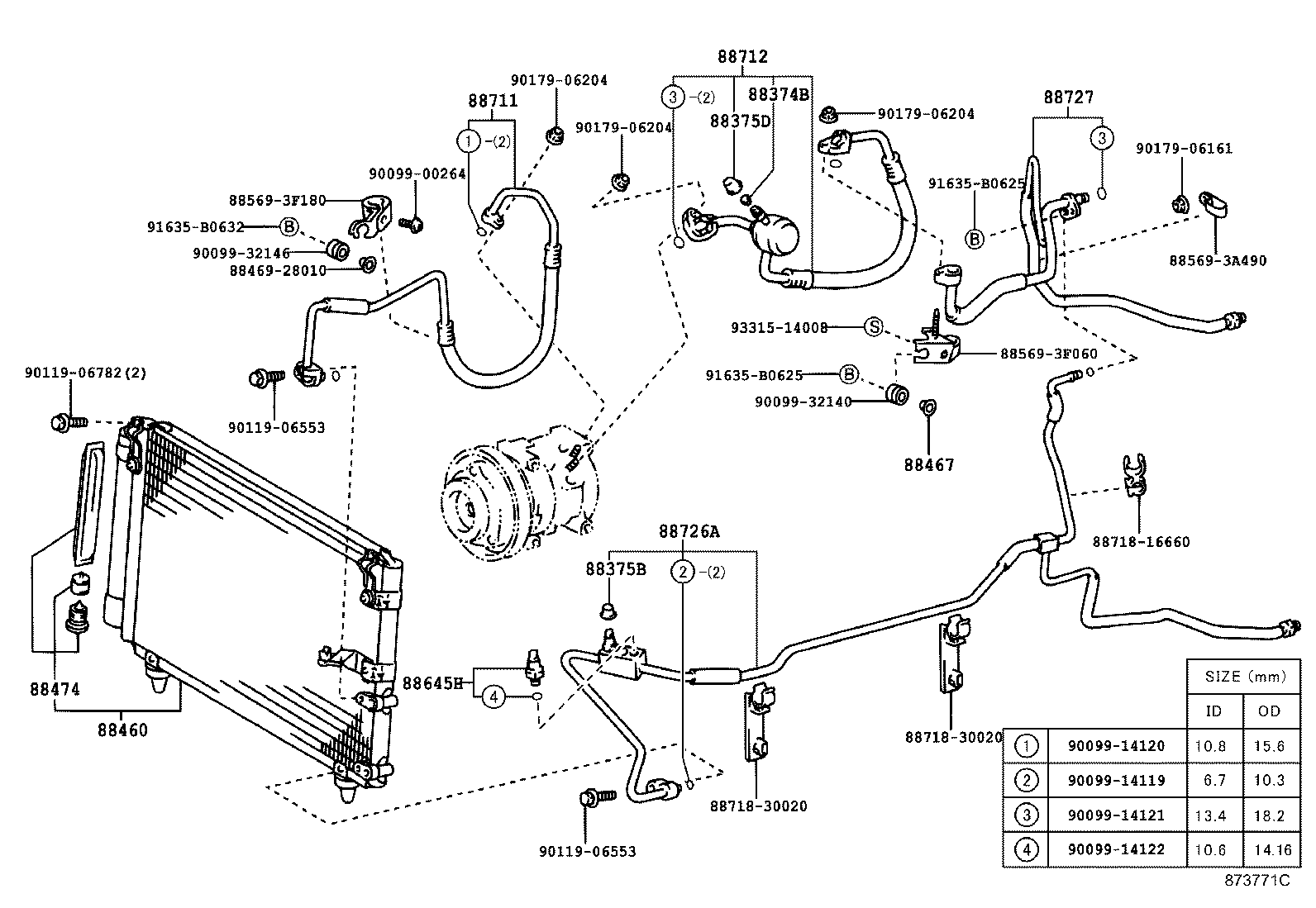

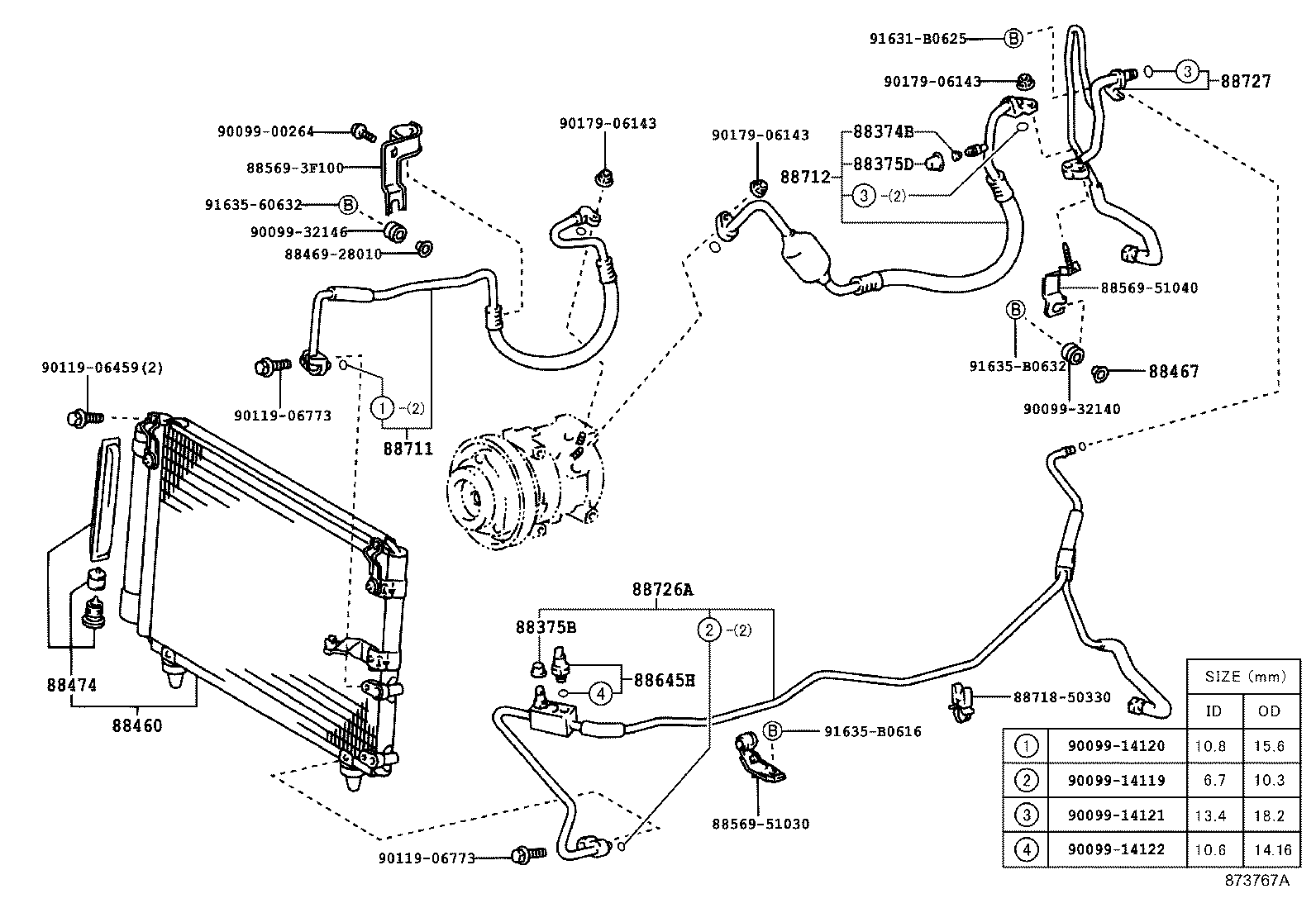

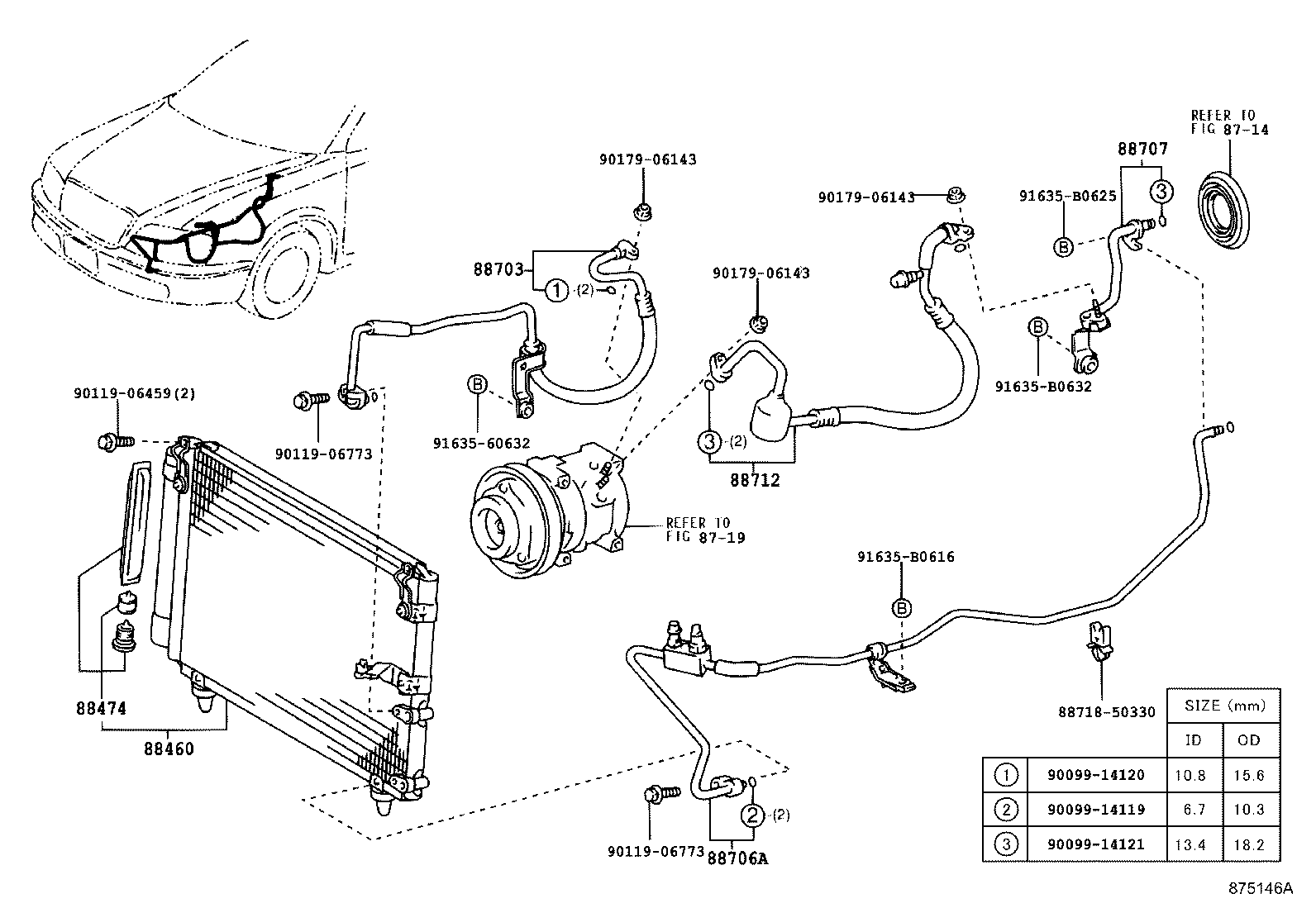

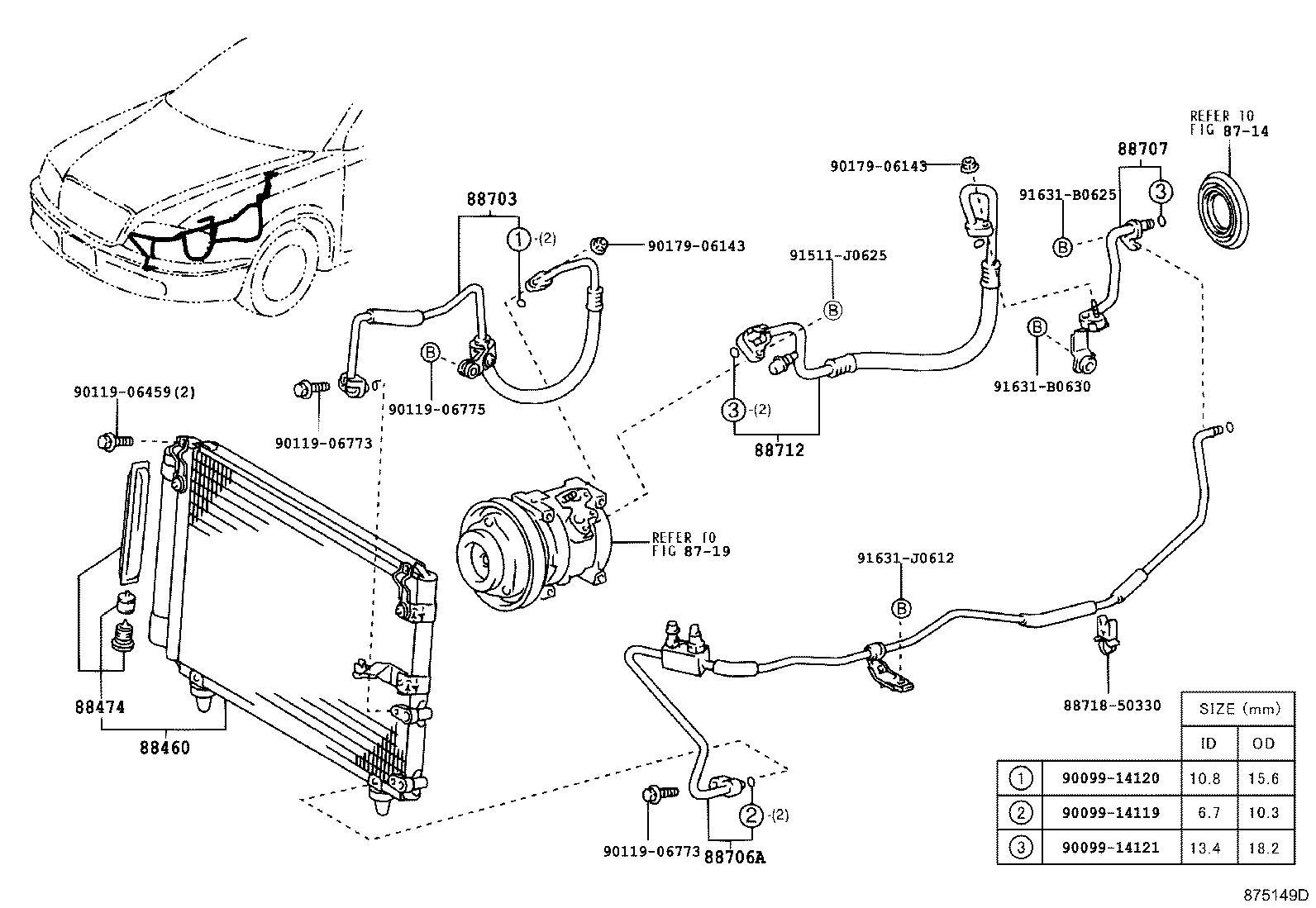

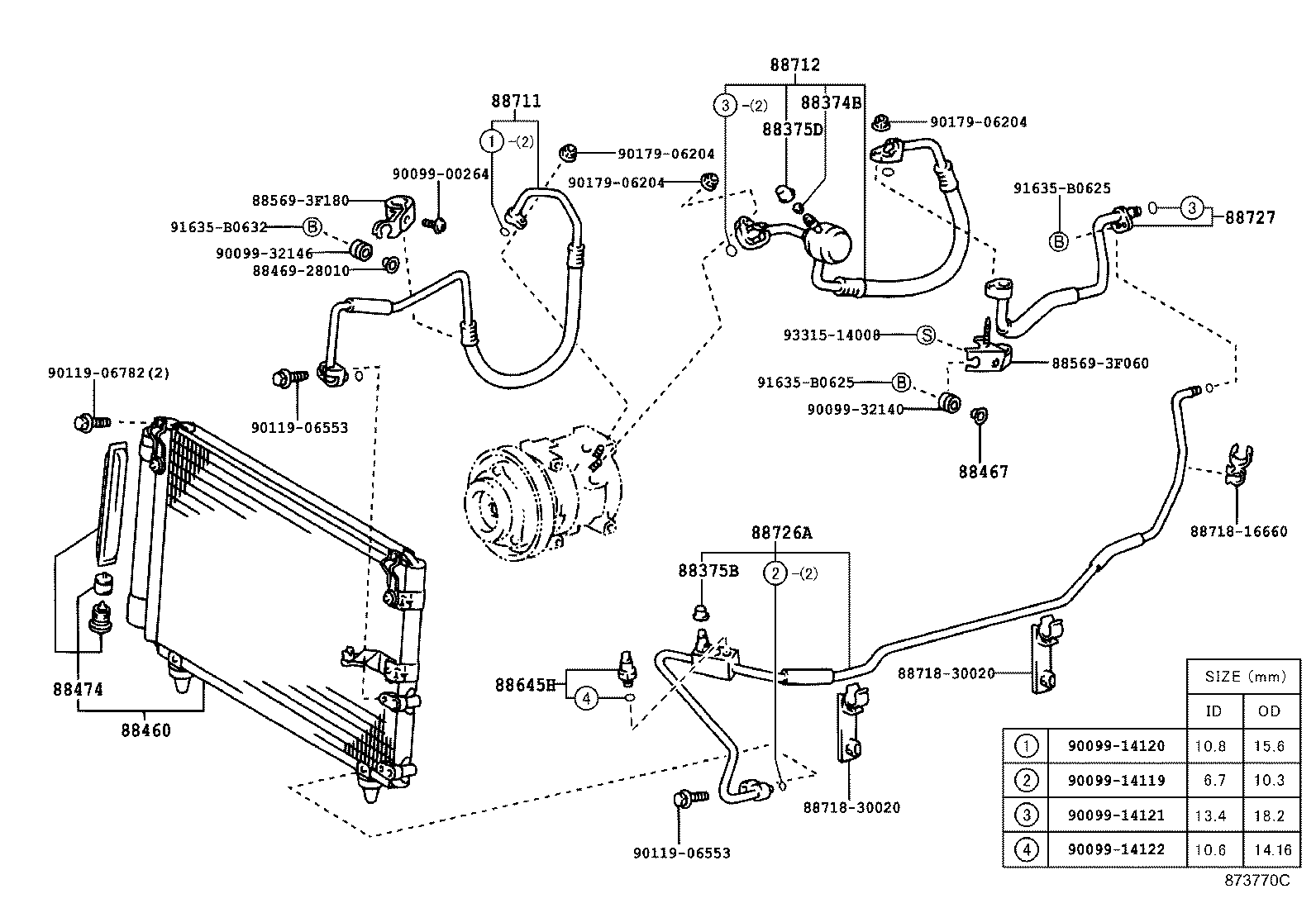

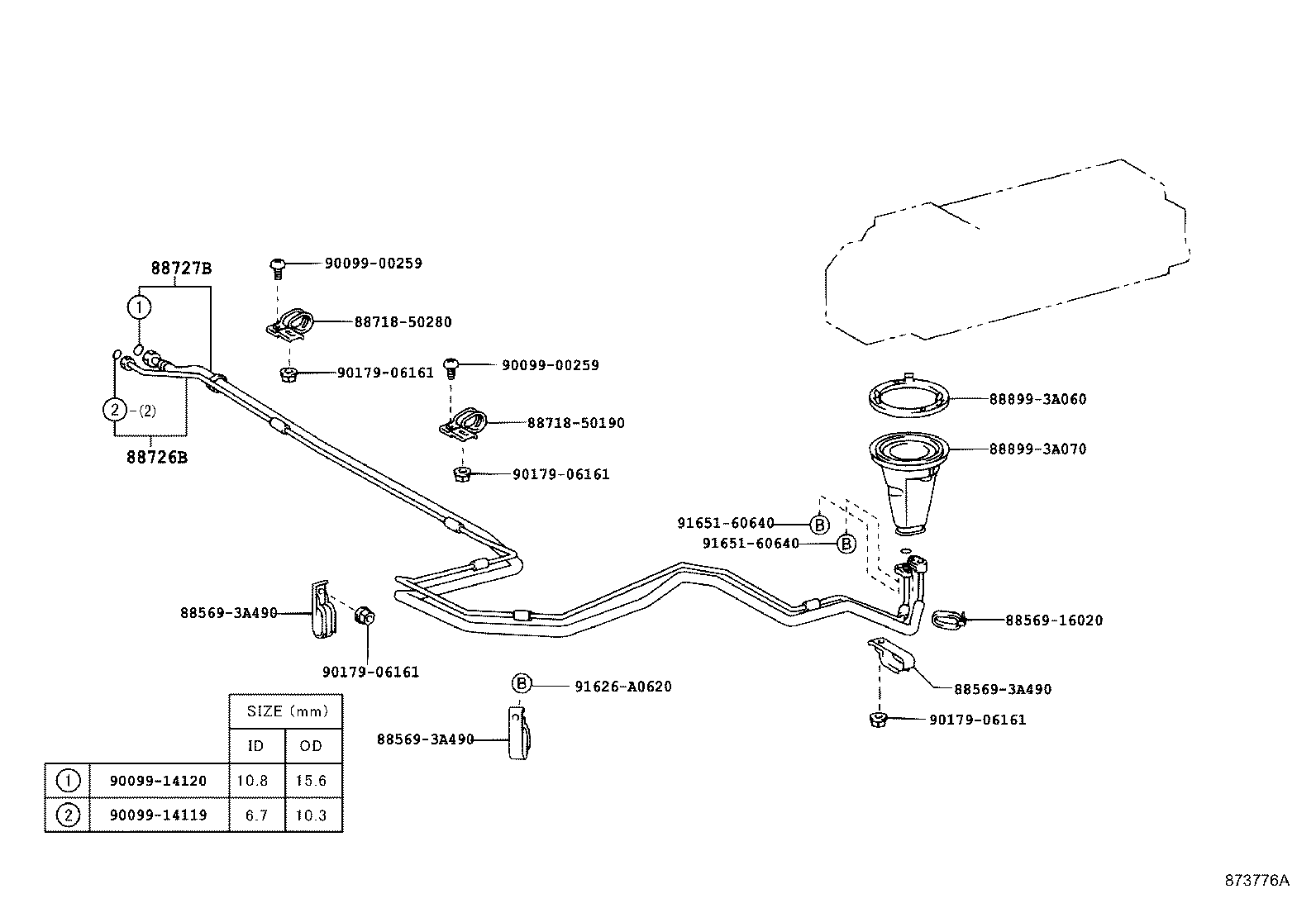

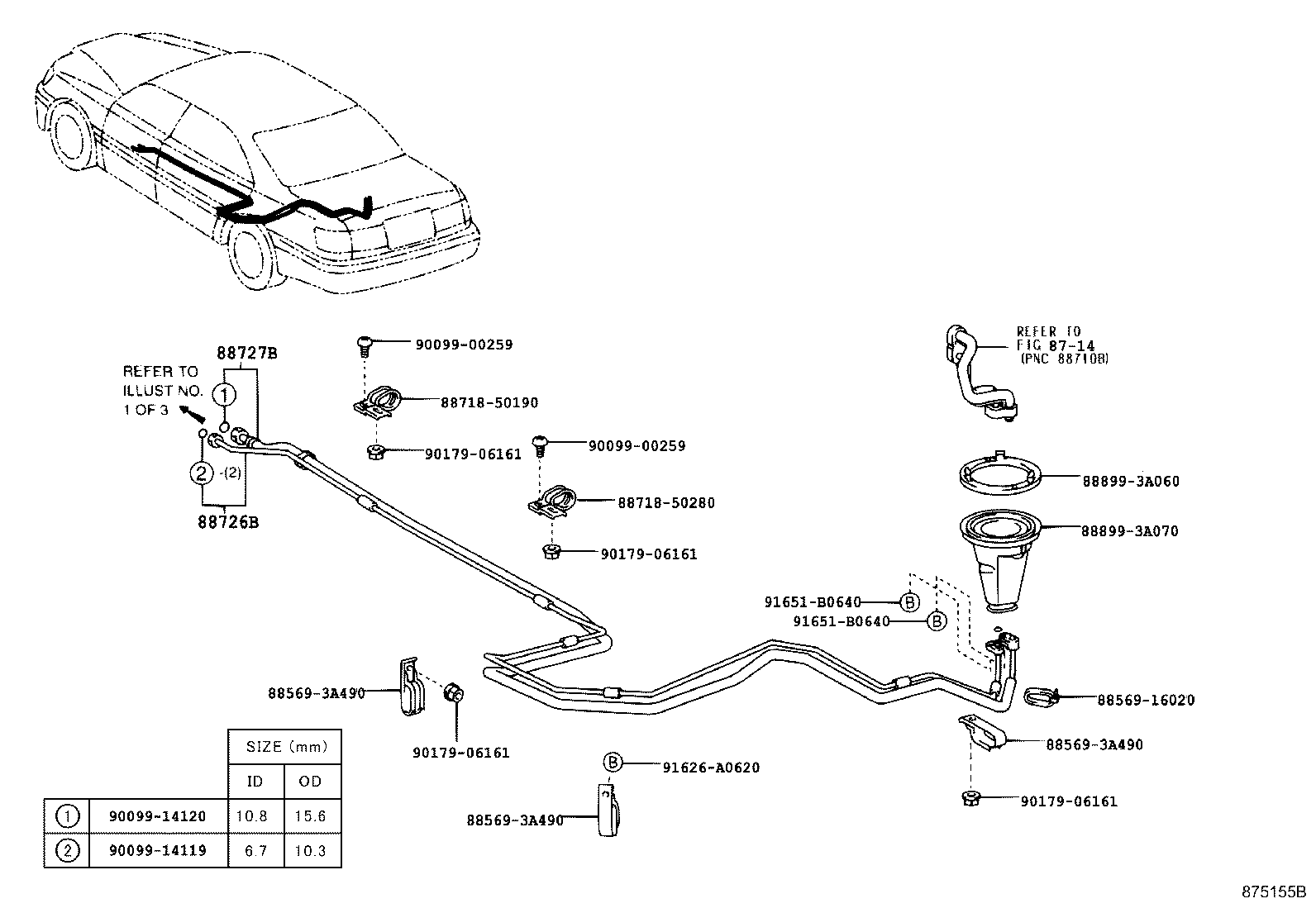

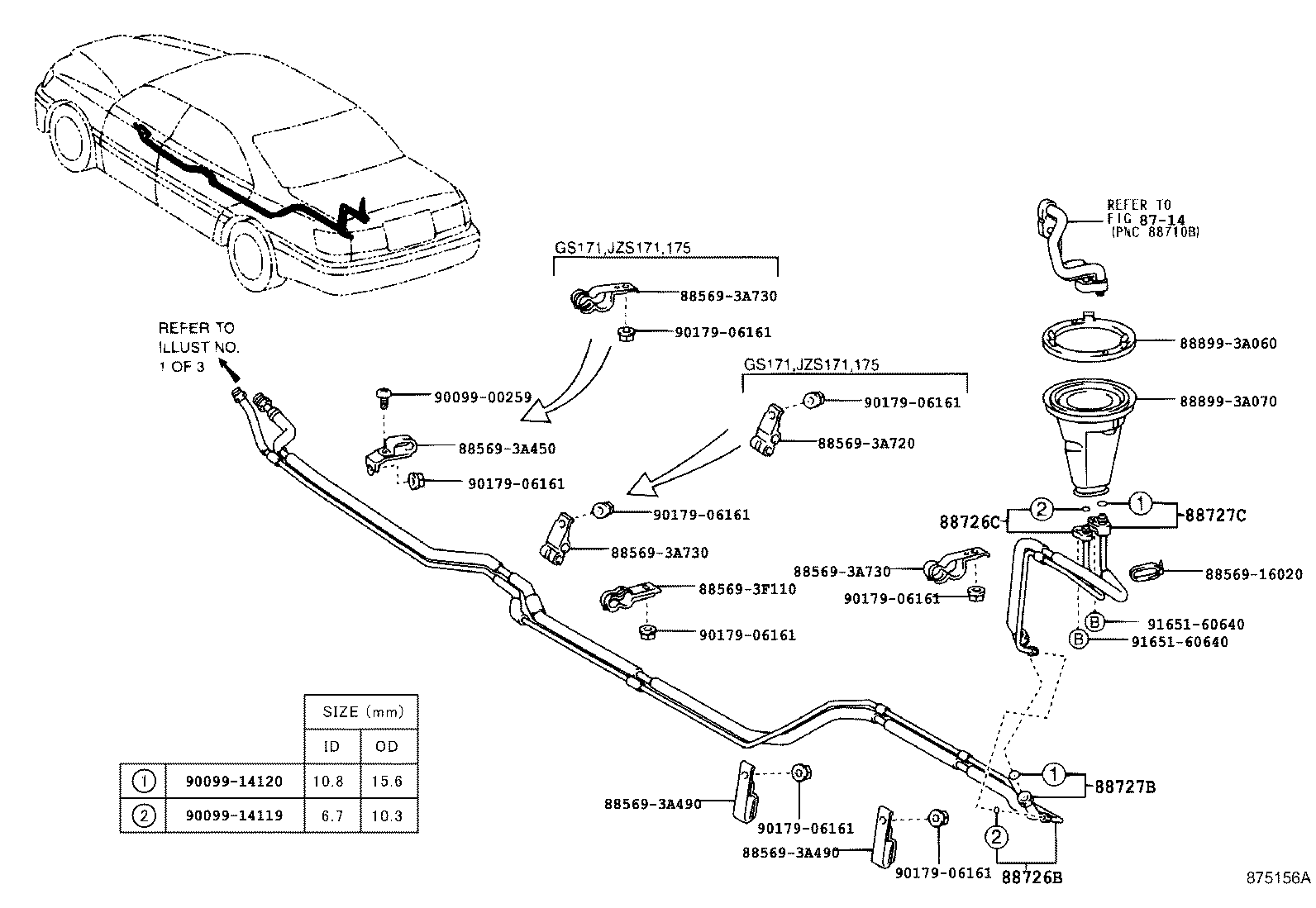

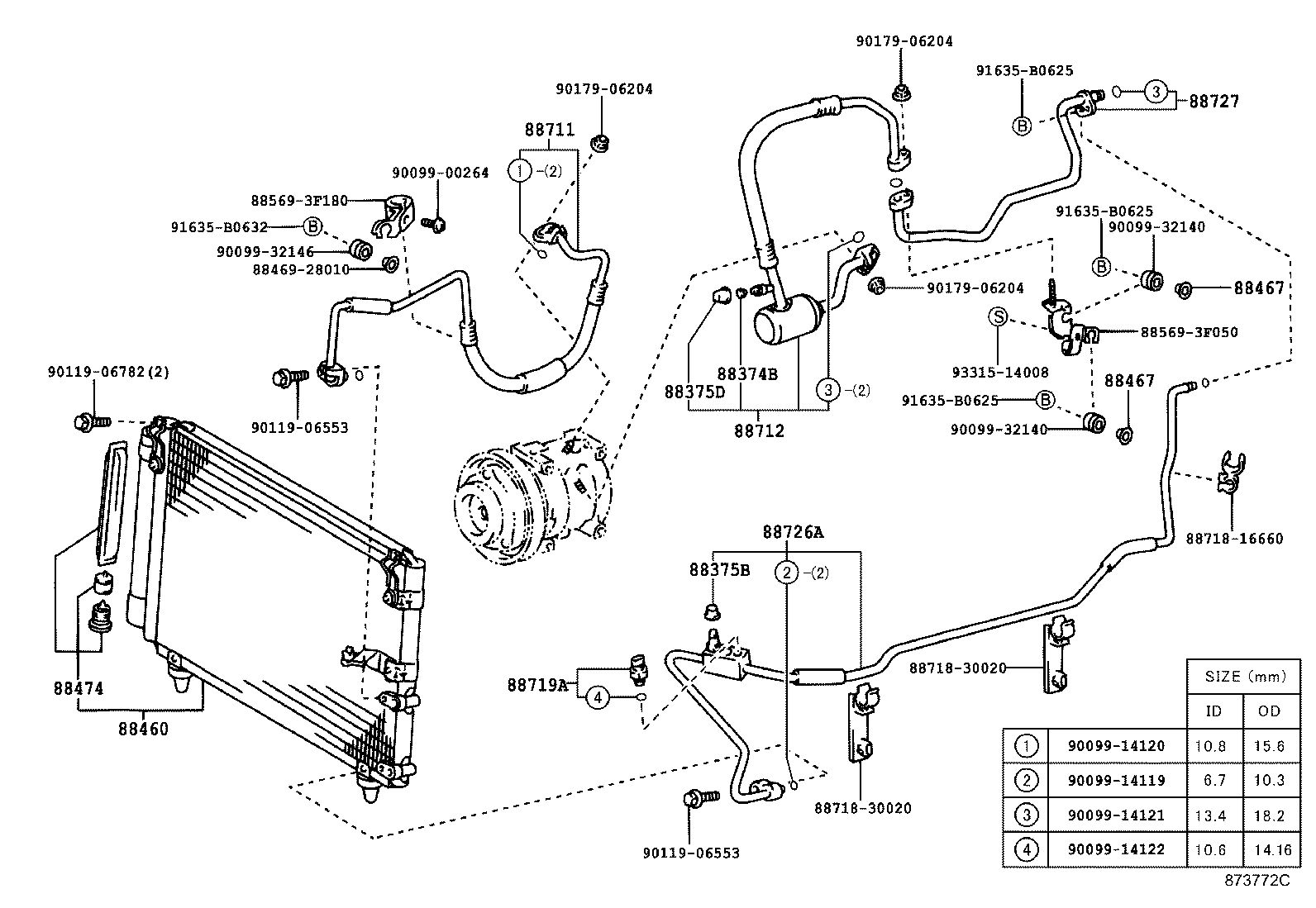

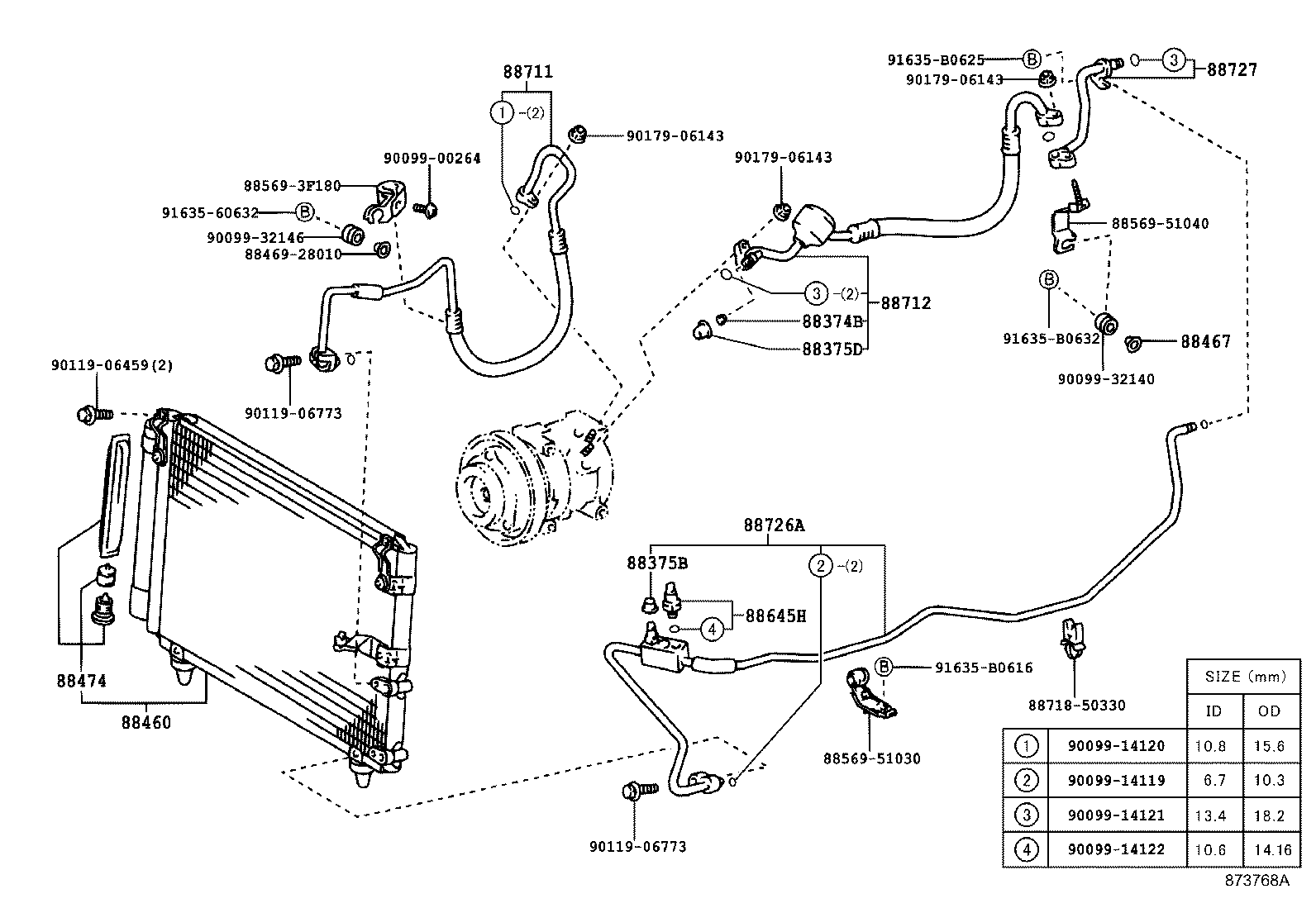

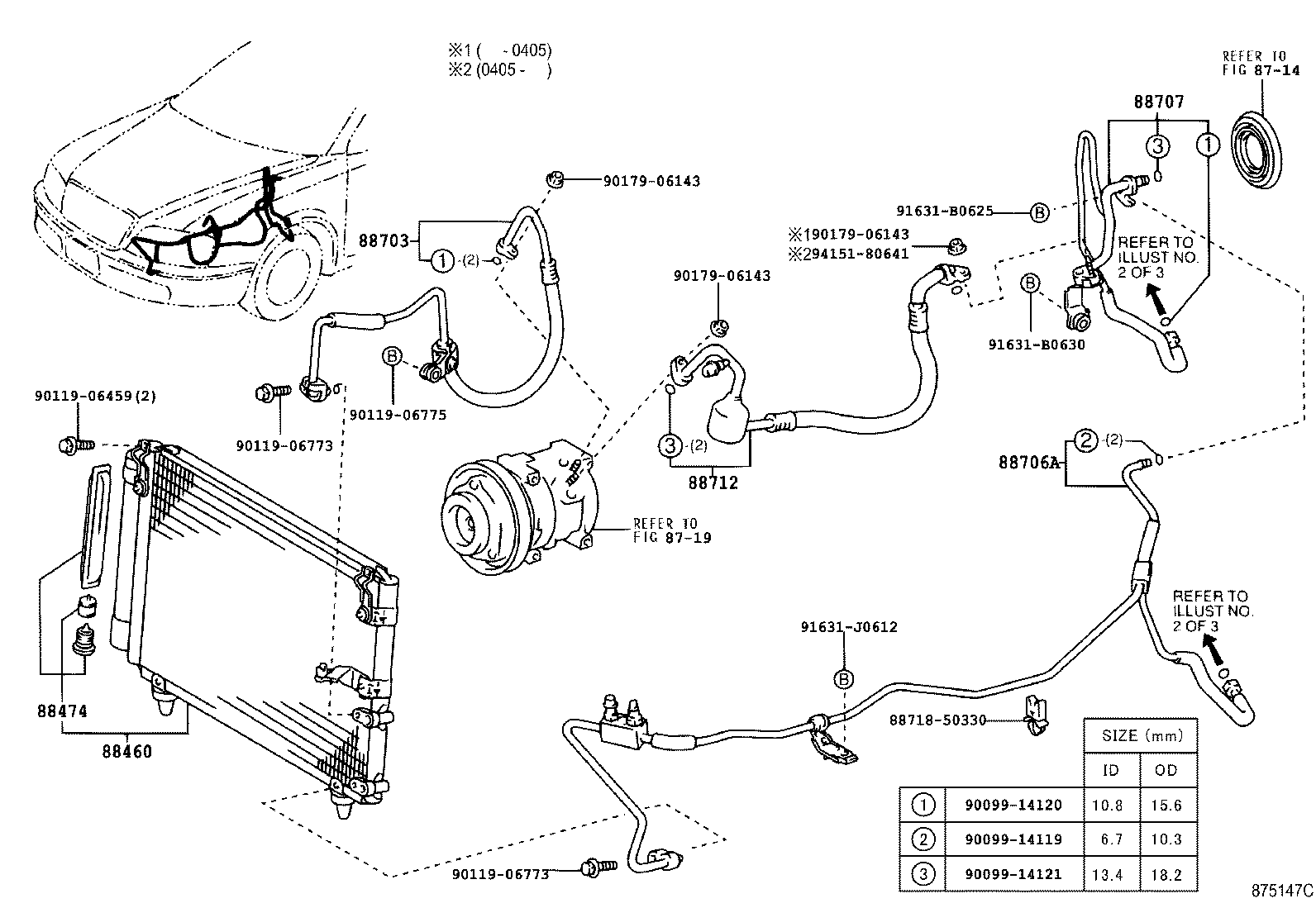

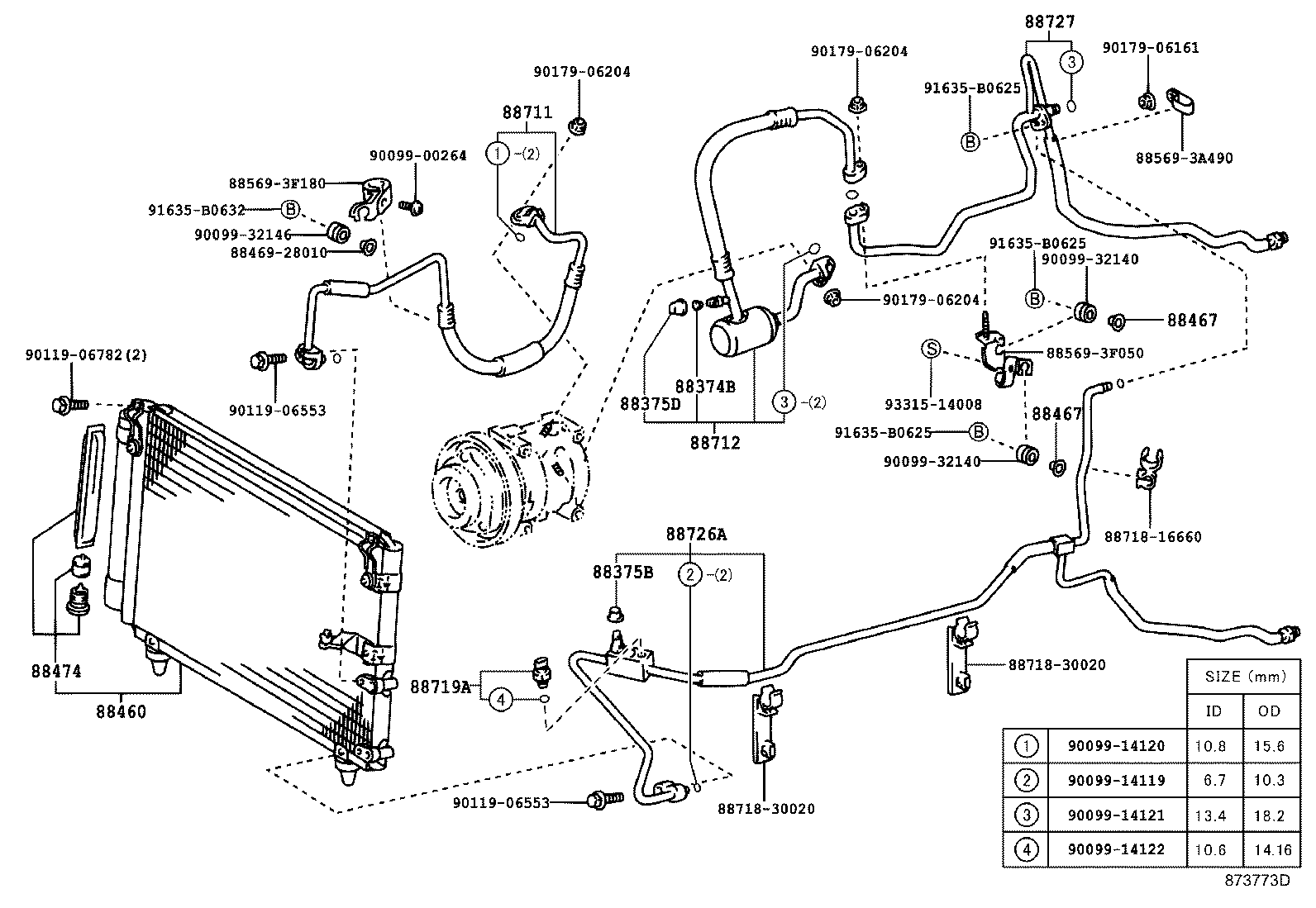

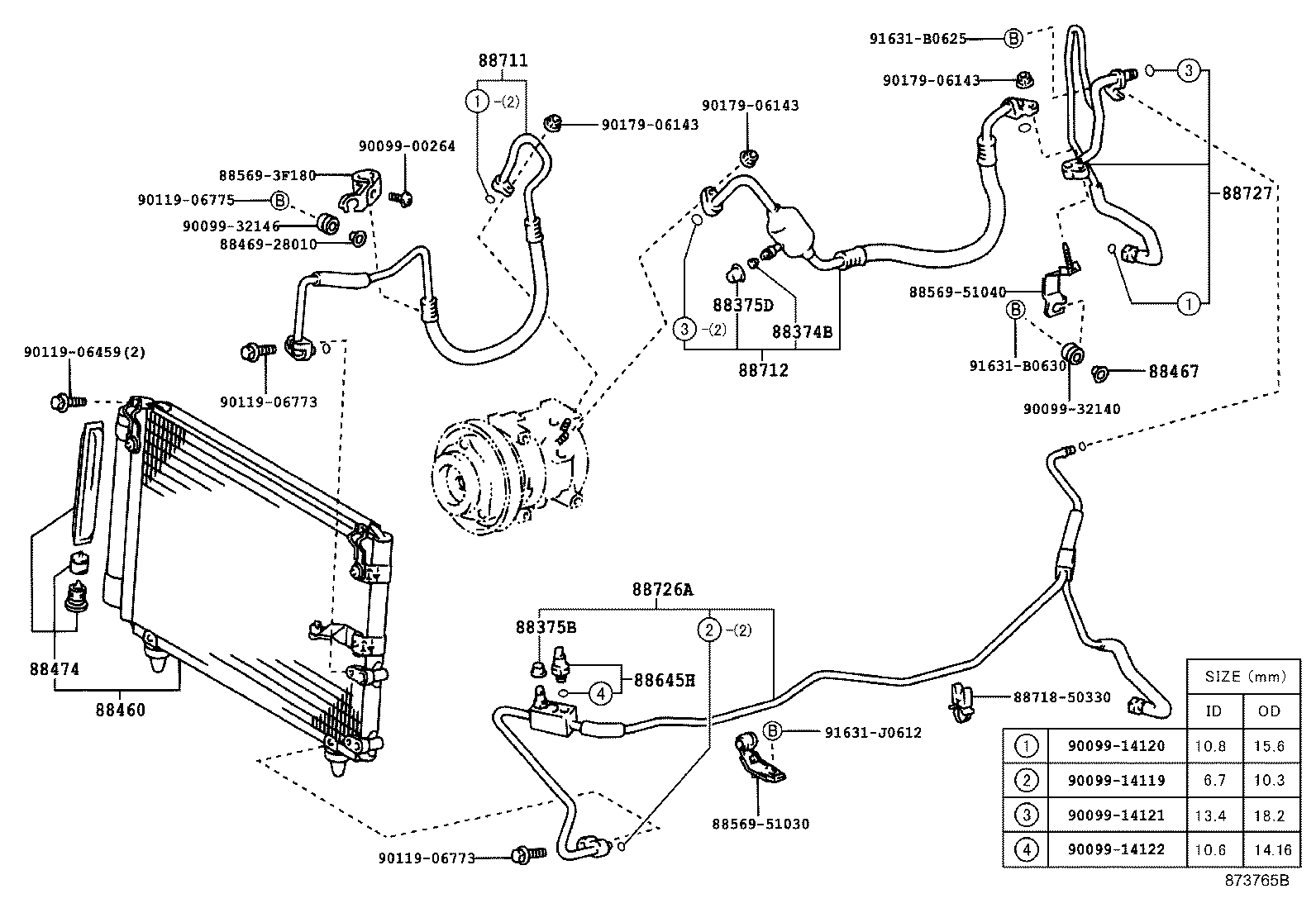

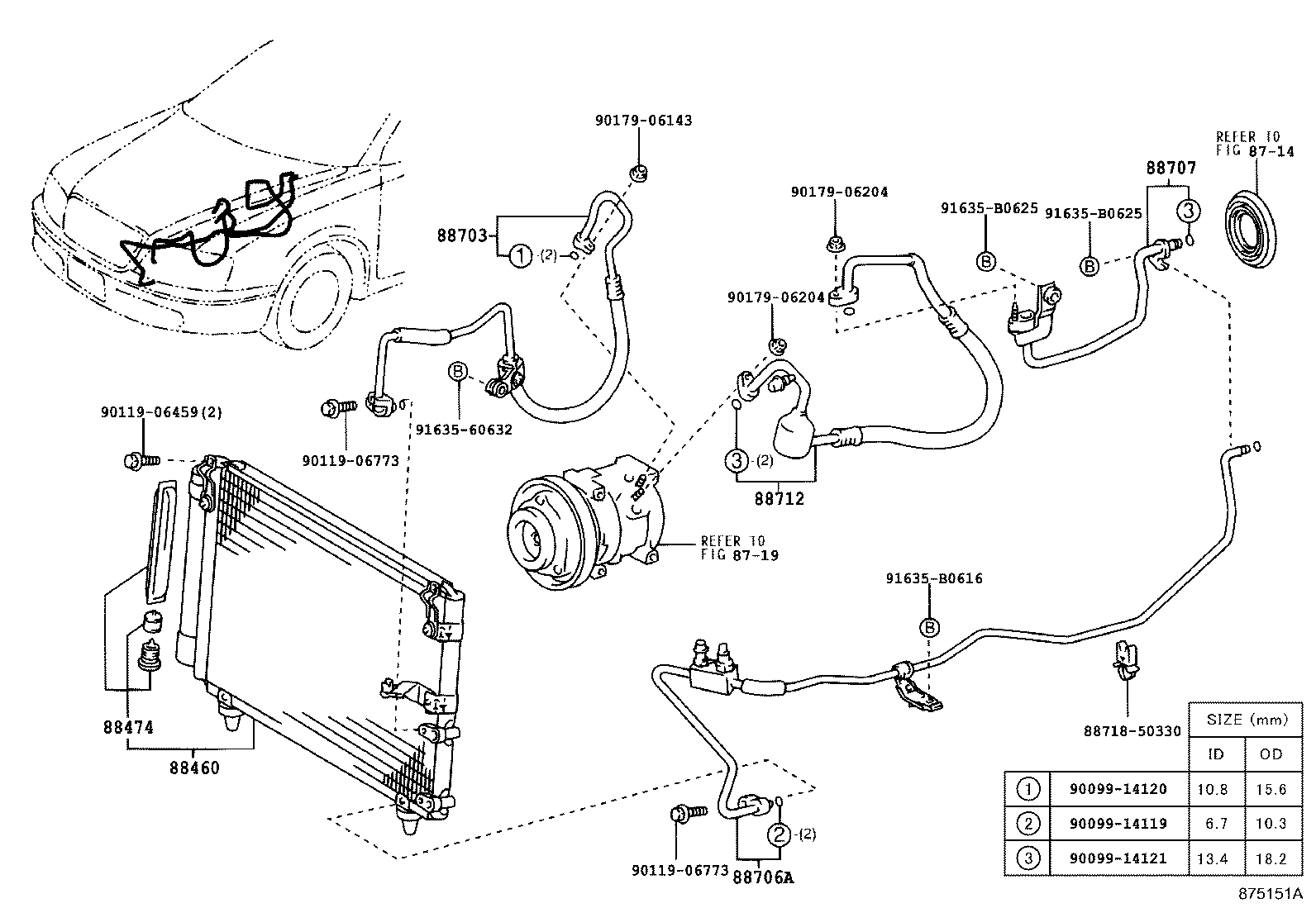

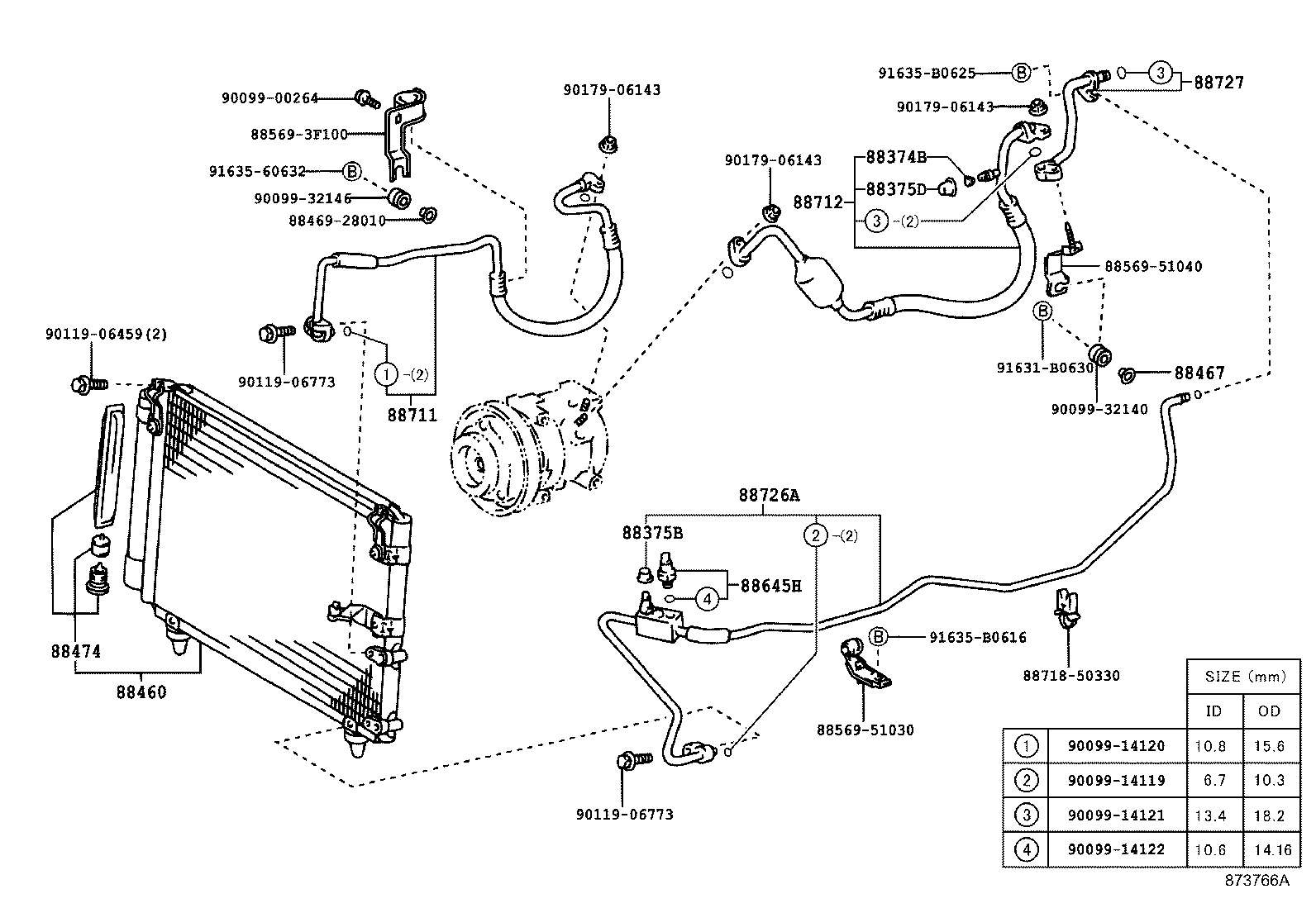

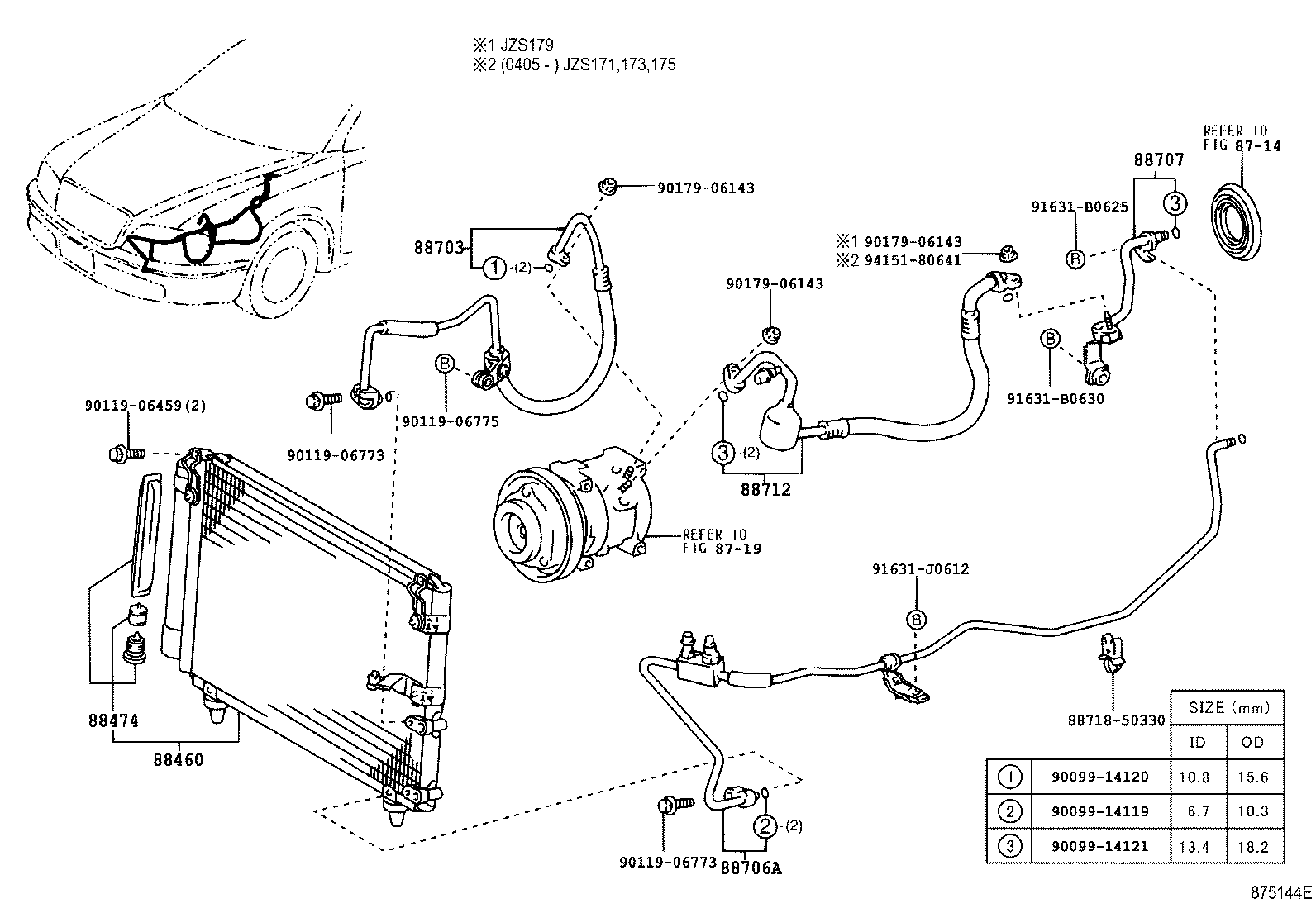

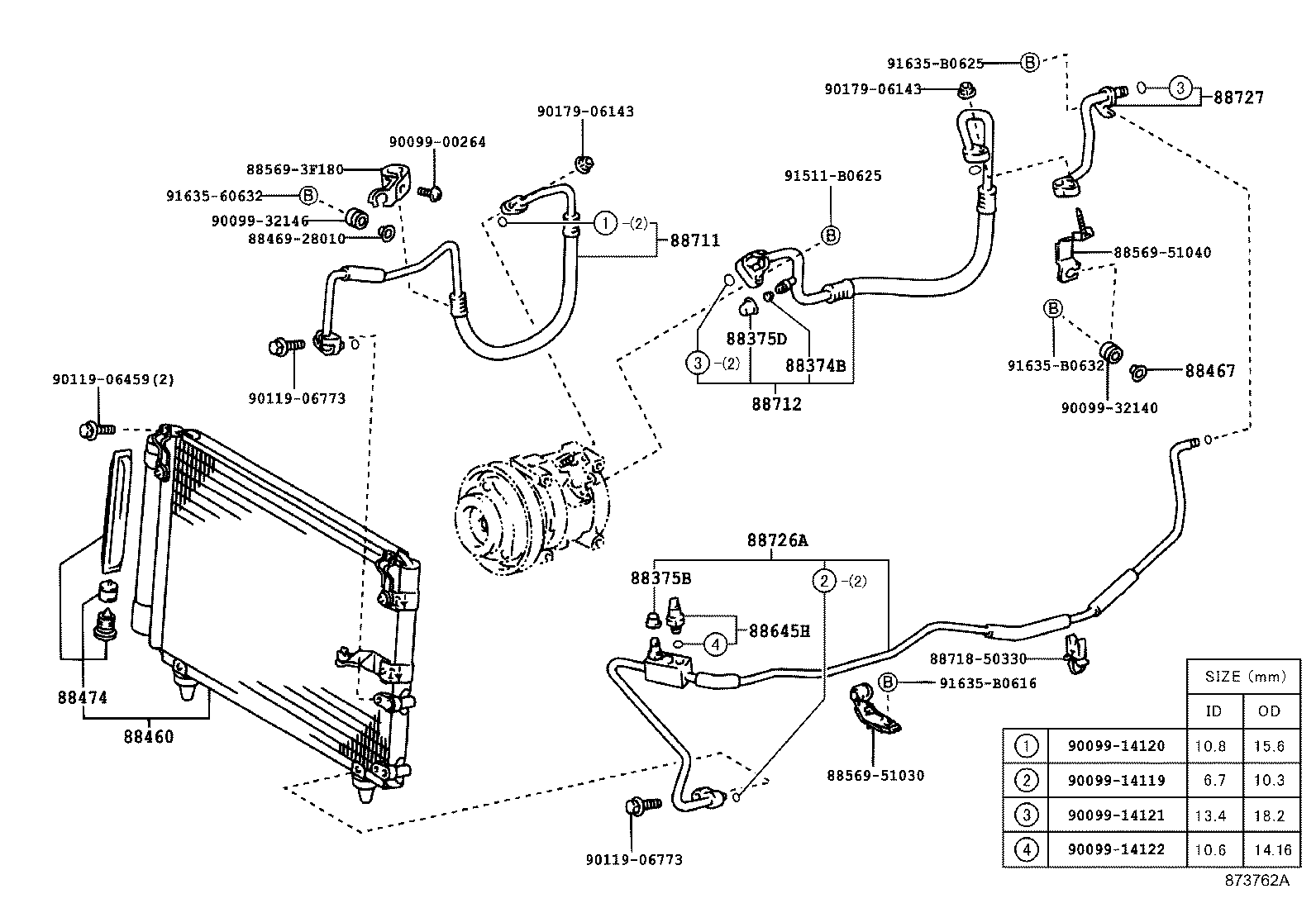

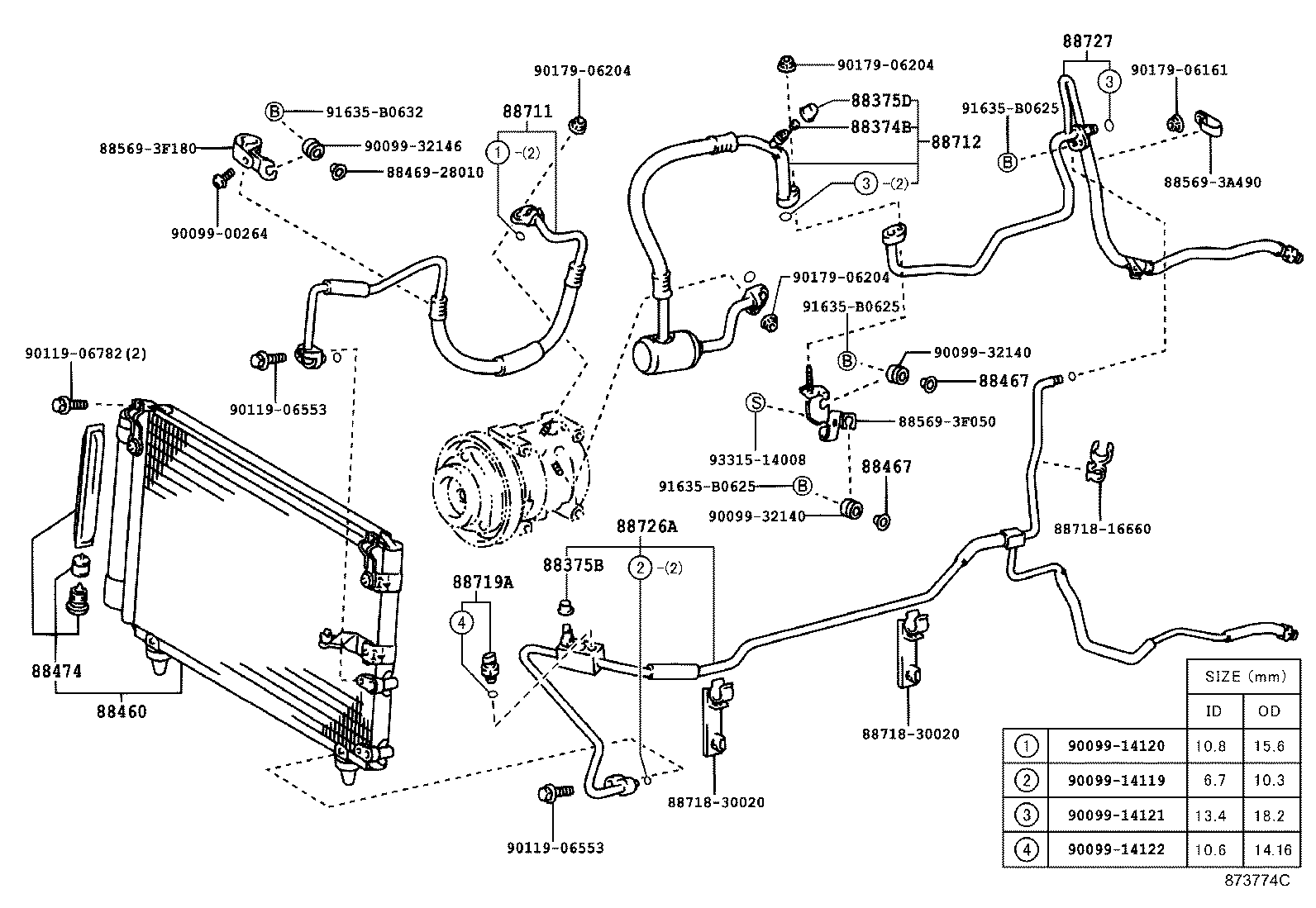

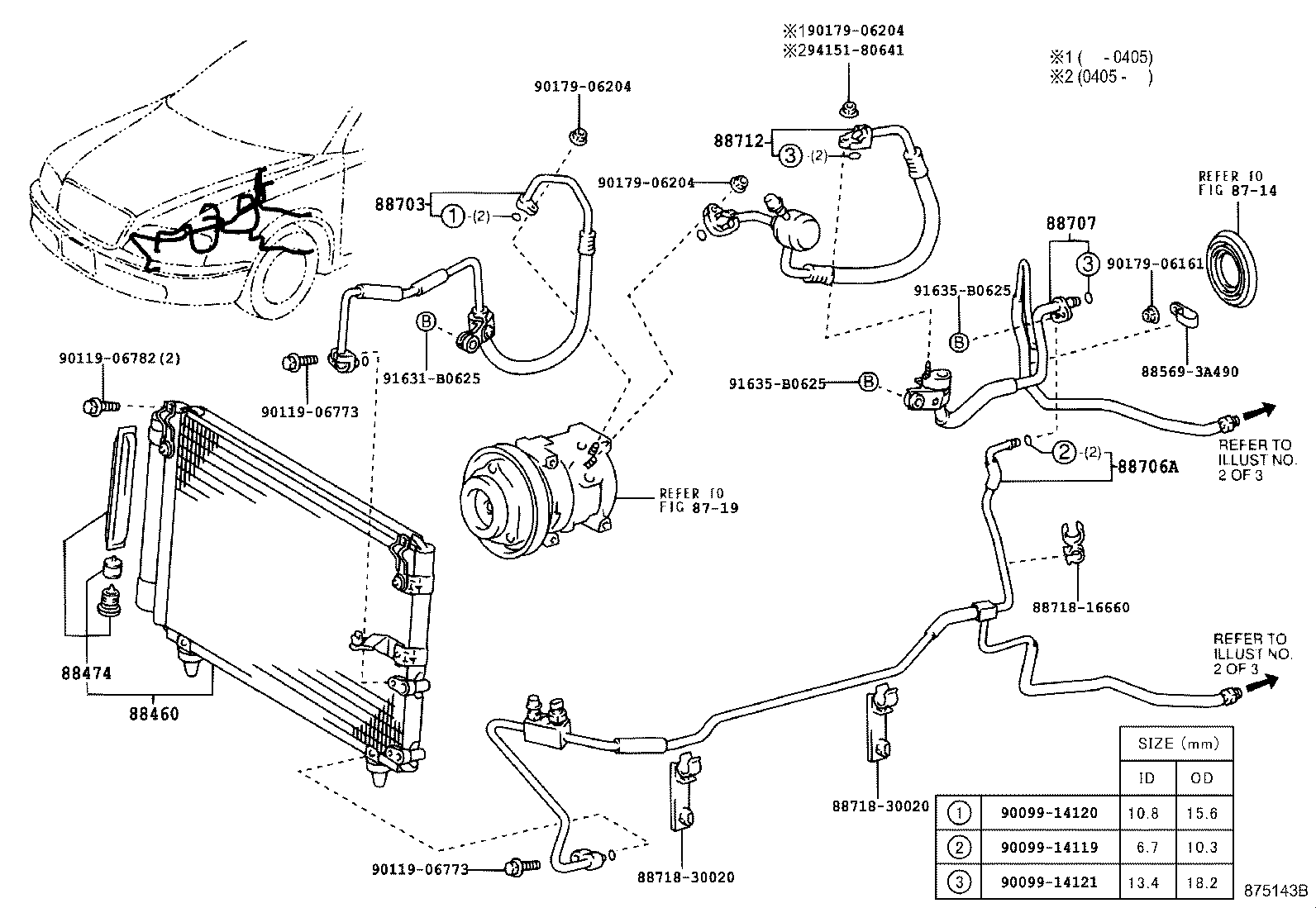

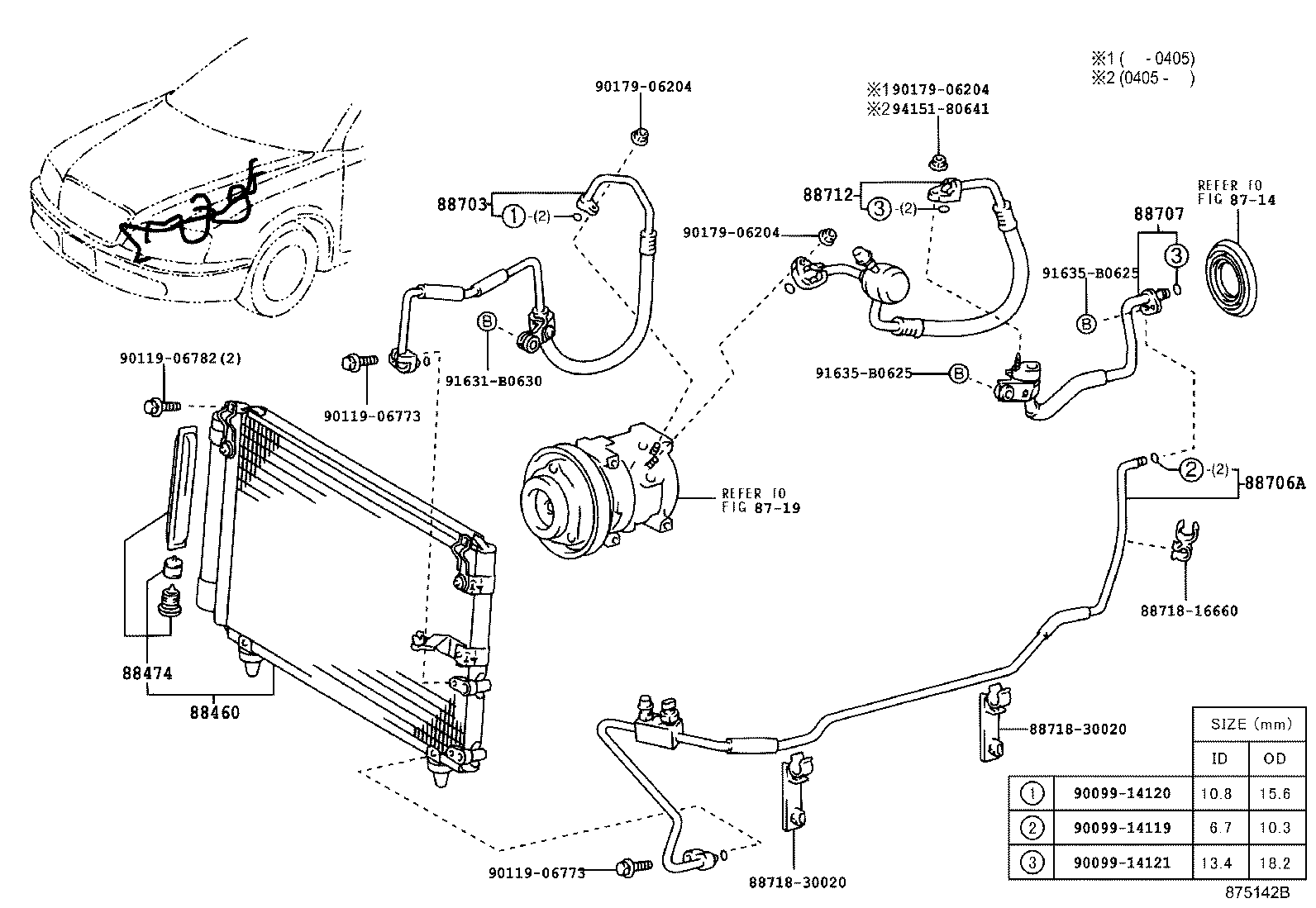

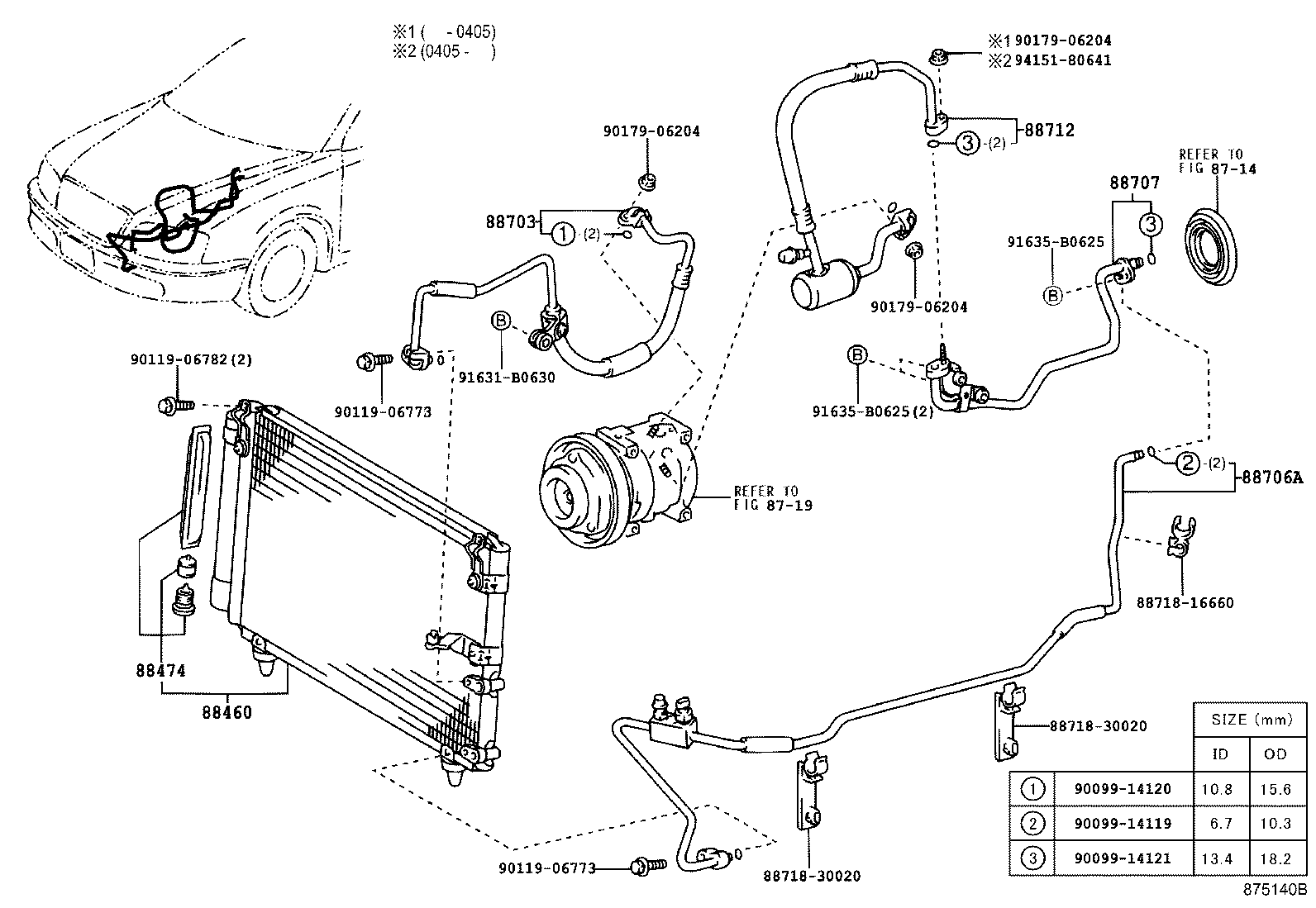

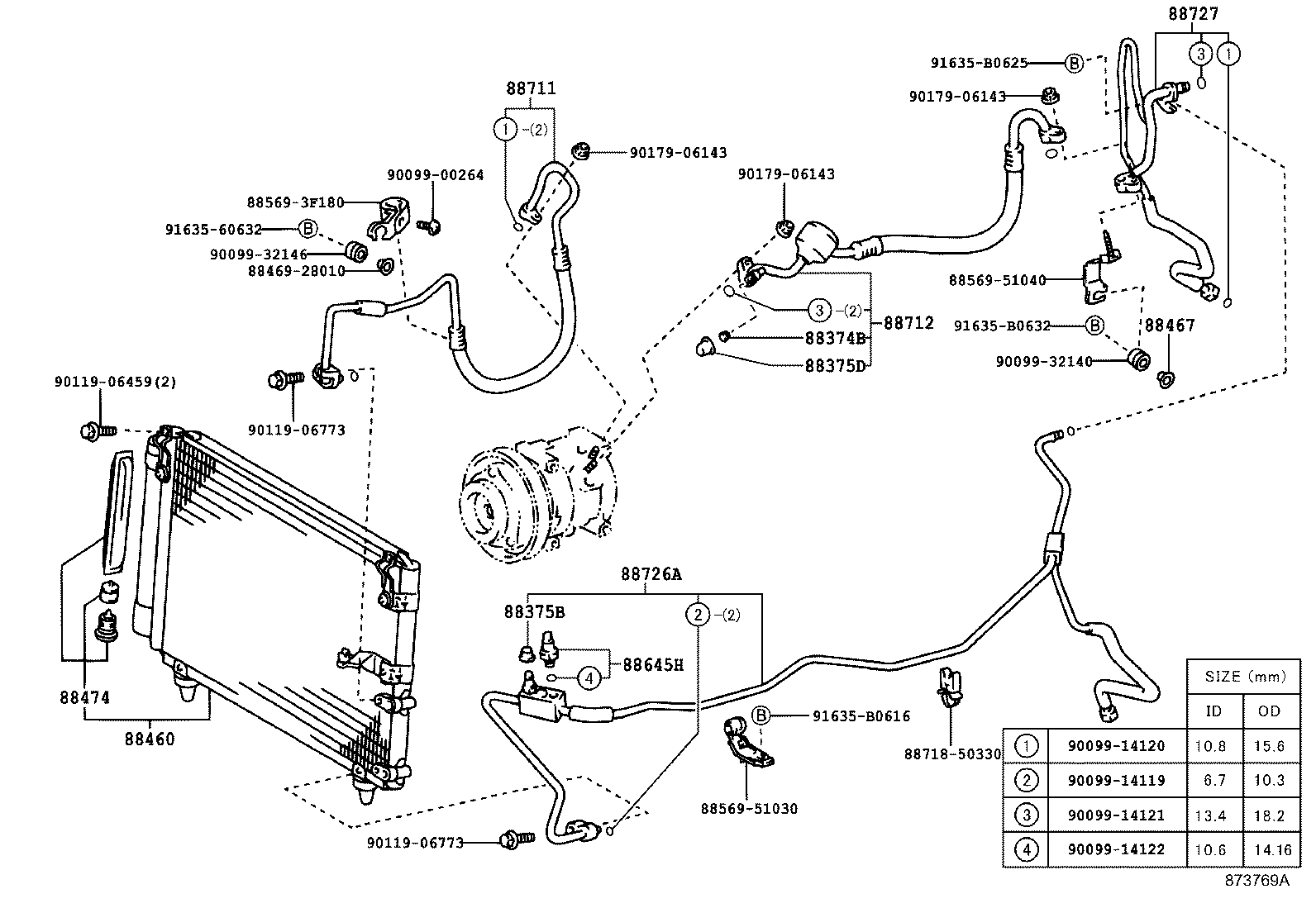

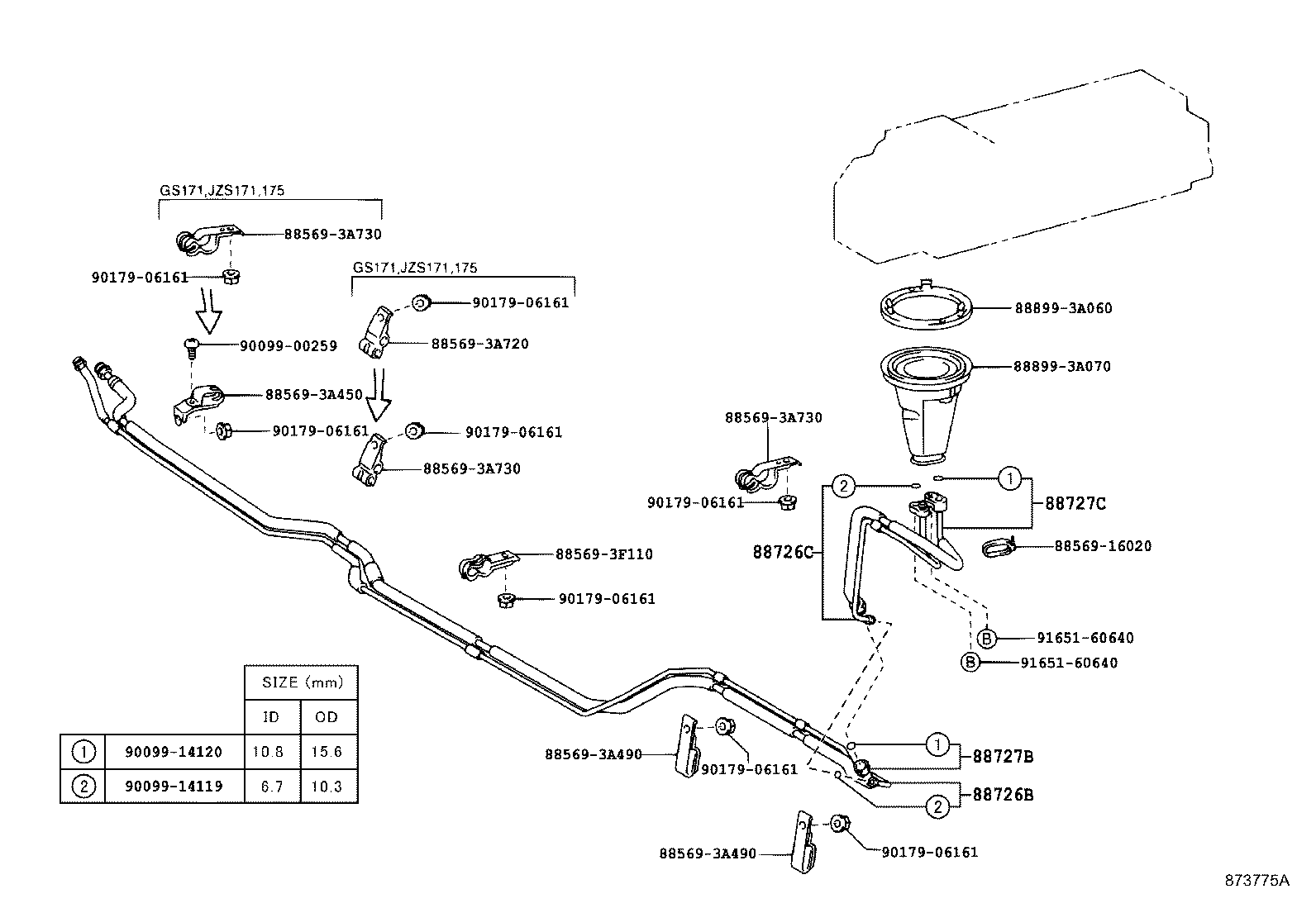

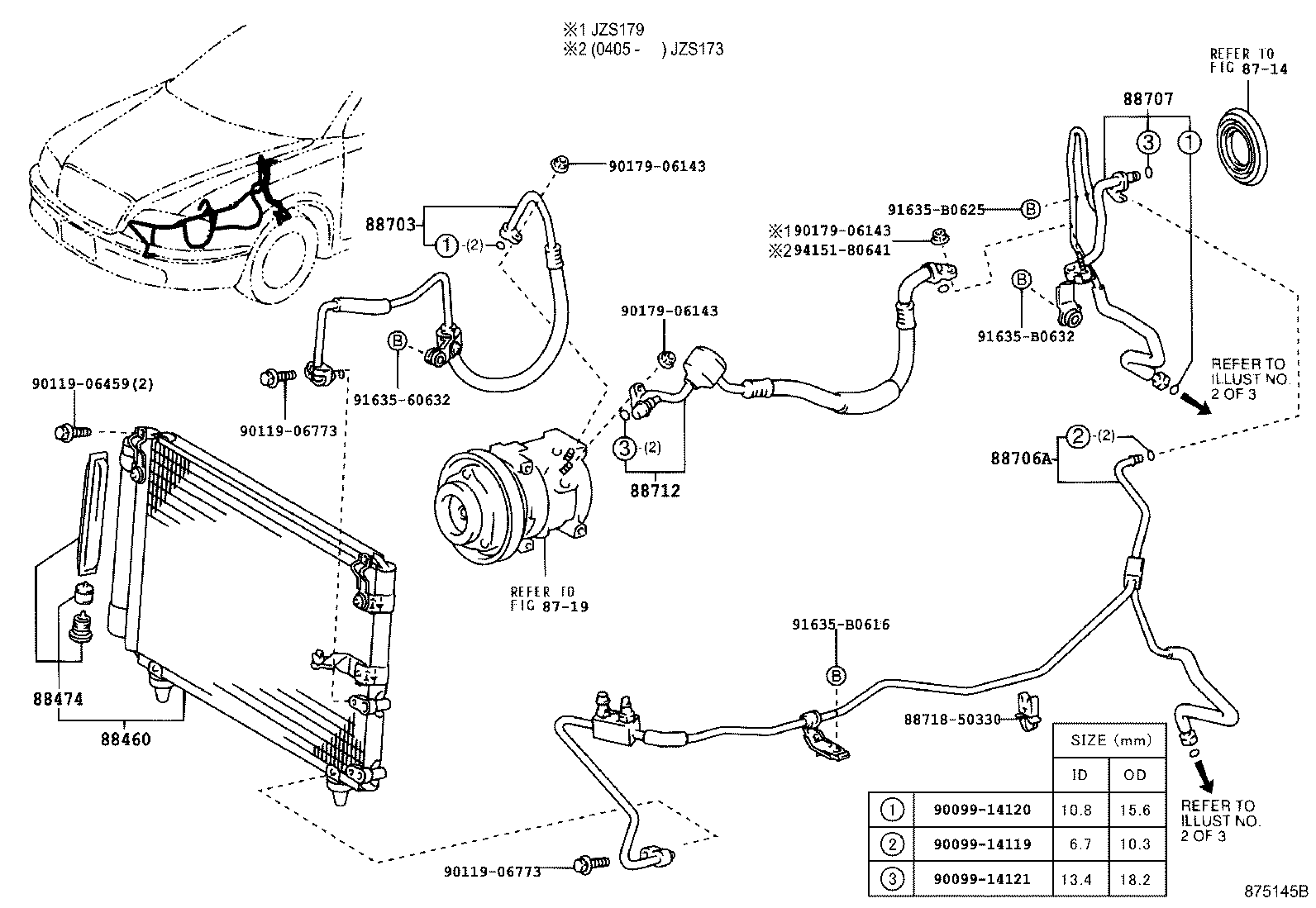

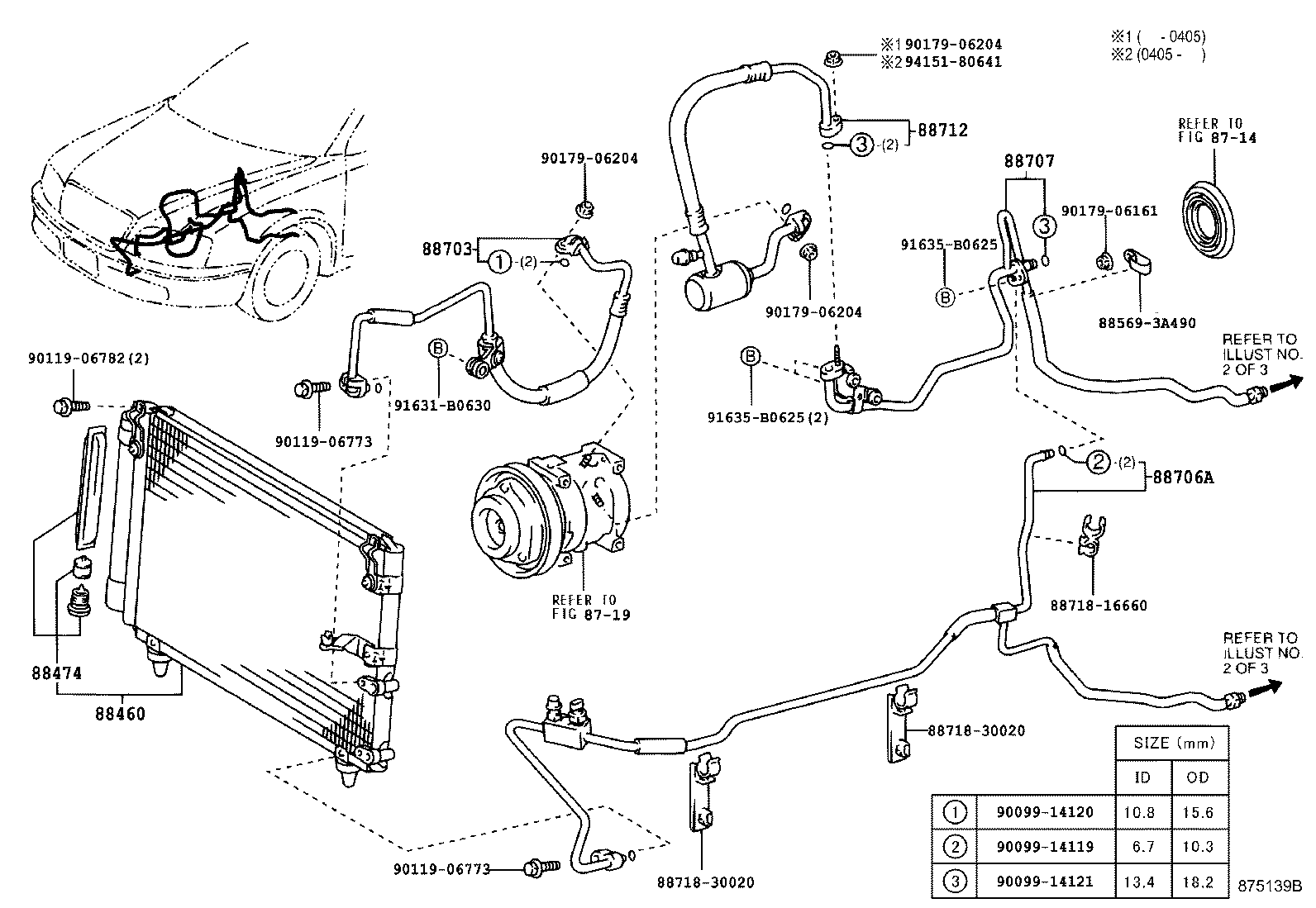

Figure 873764B 873764B 1999-09 → 2001-08 Figure 873765B 873765B 1999-09 → 2001-08 Figure 873766A 873766A 1999-09 → 2001-08 Figure 873767A 873767A 1999-09 → 2001-08 Figure 873768A 873768A 1999-09 → 2001-08 Figure 873769A 873769A 1999-09 → 2001-08 Figure 873770C 873770C 1999-09 → 2001-08 Figure 873771C 873771C 1999-09 → 2001-08 Figure 873772C 873772C 1999-09 → 2001-08 Figure 873773D 873773D 1999-09 → 2001-08 Figure 873774C 873774C 1999-09 → 2001-08 Figure 873762A 873762A 2000-04 → 2001-08 Figure 873763A 873763A 2000-04 → 2001-08 Figure 875144E 875144E 2001-08 → — Figure 875147C 875147C 2001-08 → — Figure 875145B 875145B 2001-08 → — Figure 875146A 875146A 2001-08 → — Figure 875148A 875148A 2001-08 → — Figure 875142B 875142B 2001-08 → — Figure 875143B 875143B 2001-08 → — Figure 875140B 875140B 2001-08 → — Figure 875139B 875139B 2001-08 → — Figure 875141B 875141B 2001-08 → — Figure 875149D 875149D 2001-08 → — Figure 875150A 875150A 2001-08 → — Figure 875151A 875151A 2001-08 → — Figure 873775A 873775A 1999-09 → 2001-08 Figure 873776A 873776A 1999-09 → 2001-08 Figure 875156A 875156A 2001-08 → — Figure 875155B 875155B 2001-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88727 Tube, Suction, NO.2
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
