Toyota Crown/Crown Majesta

1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

10 part groups · 7 illustrations

Illustrations

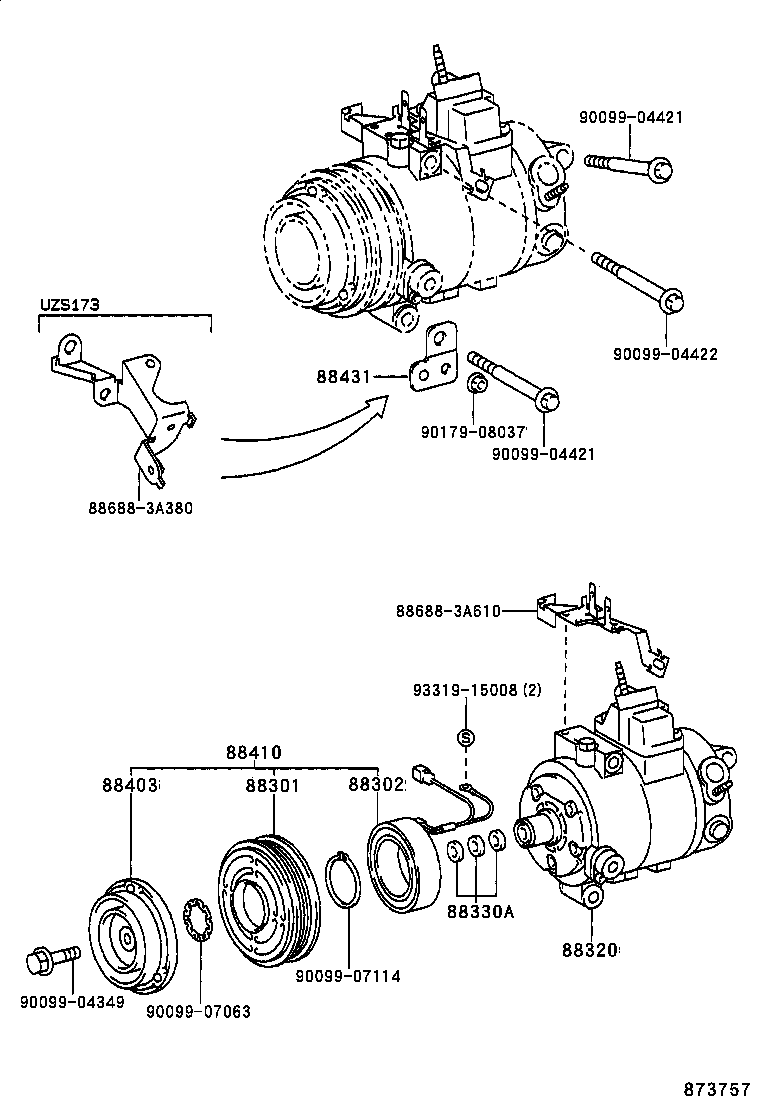

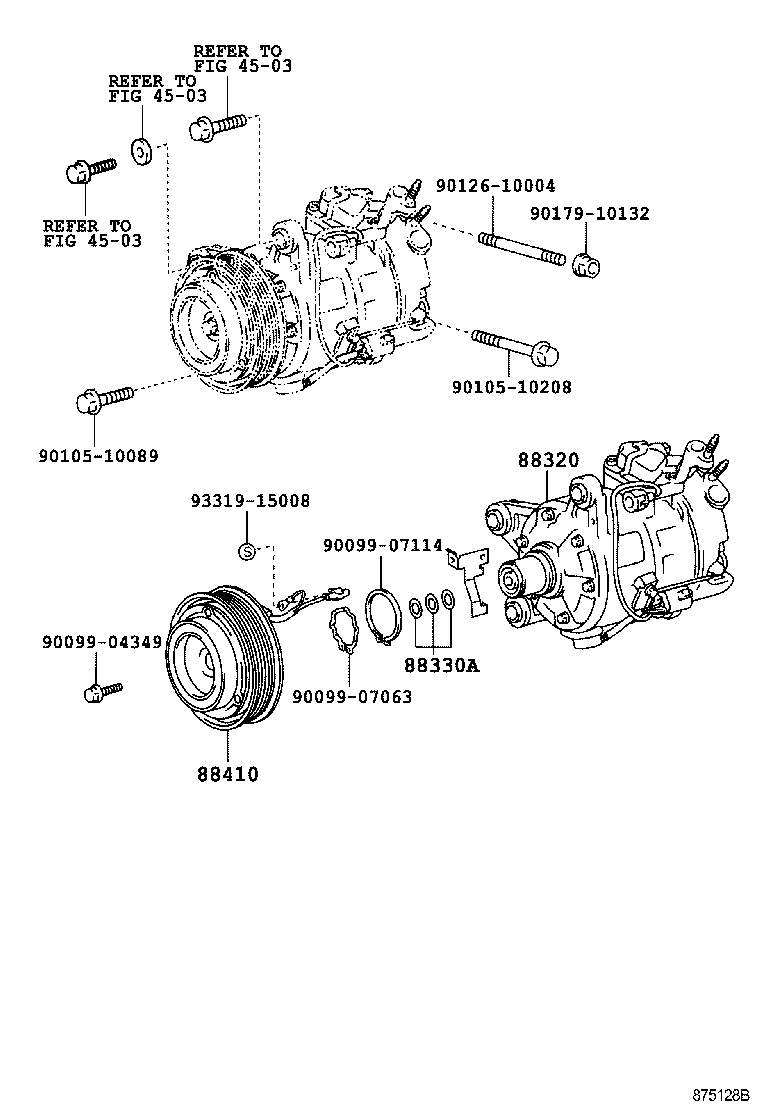

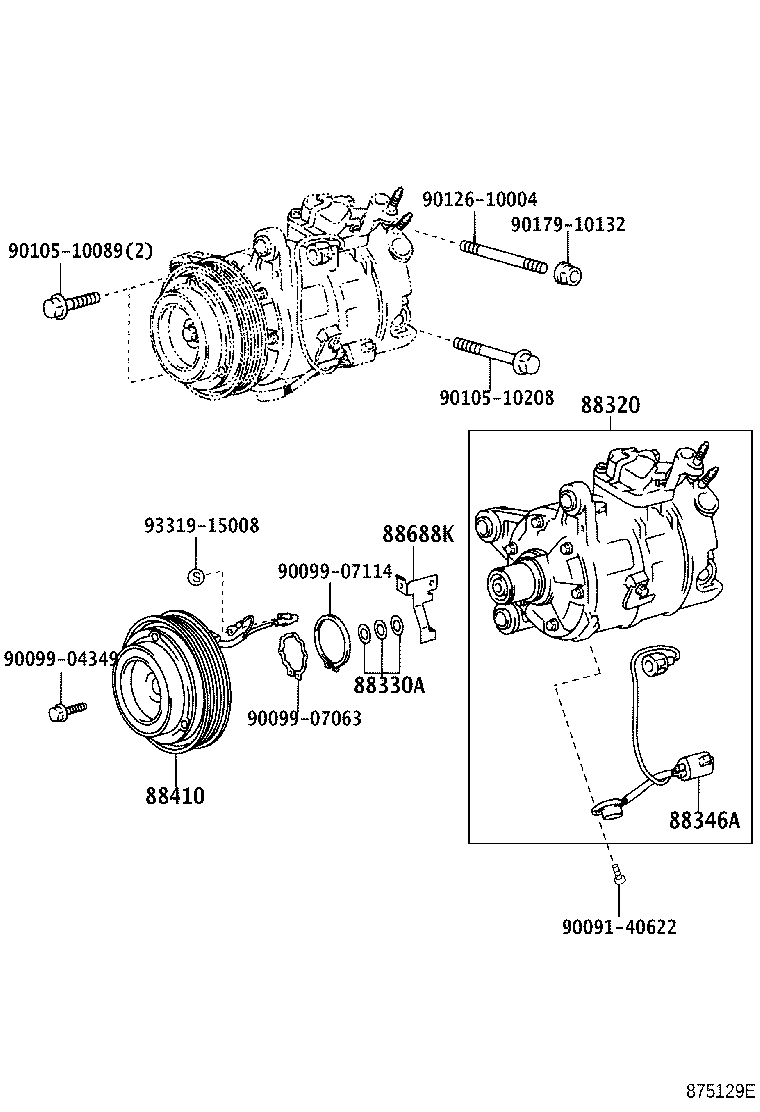

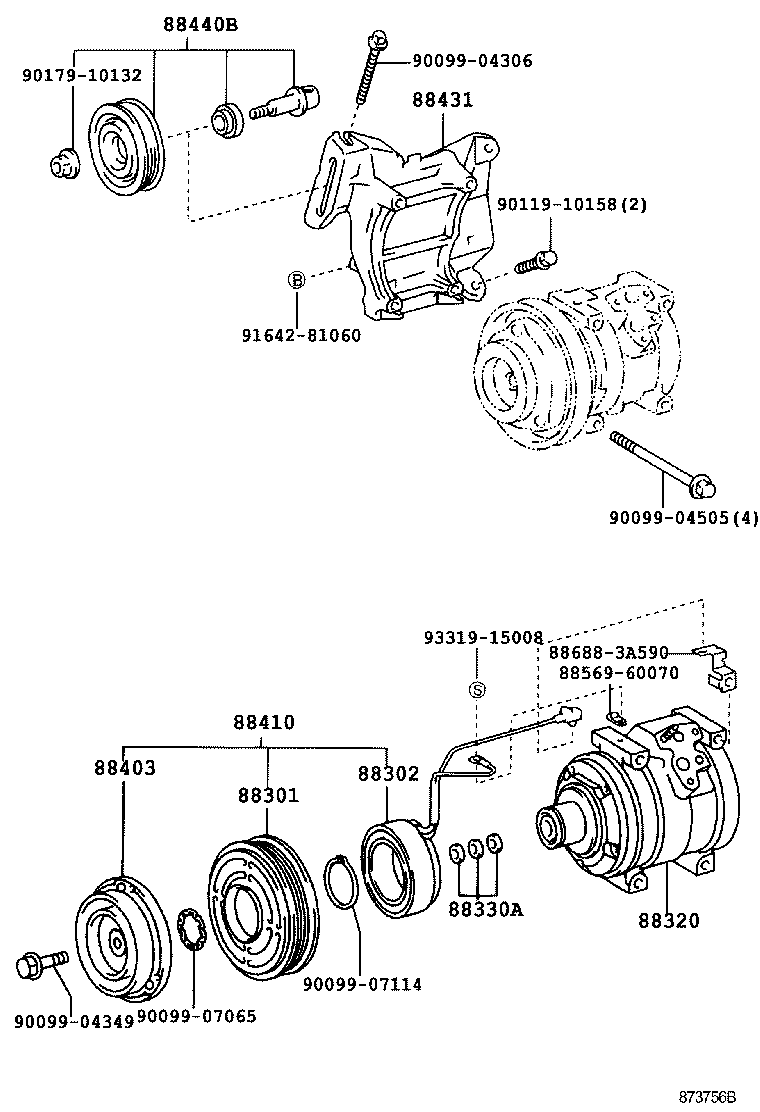

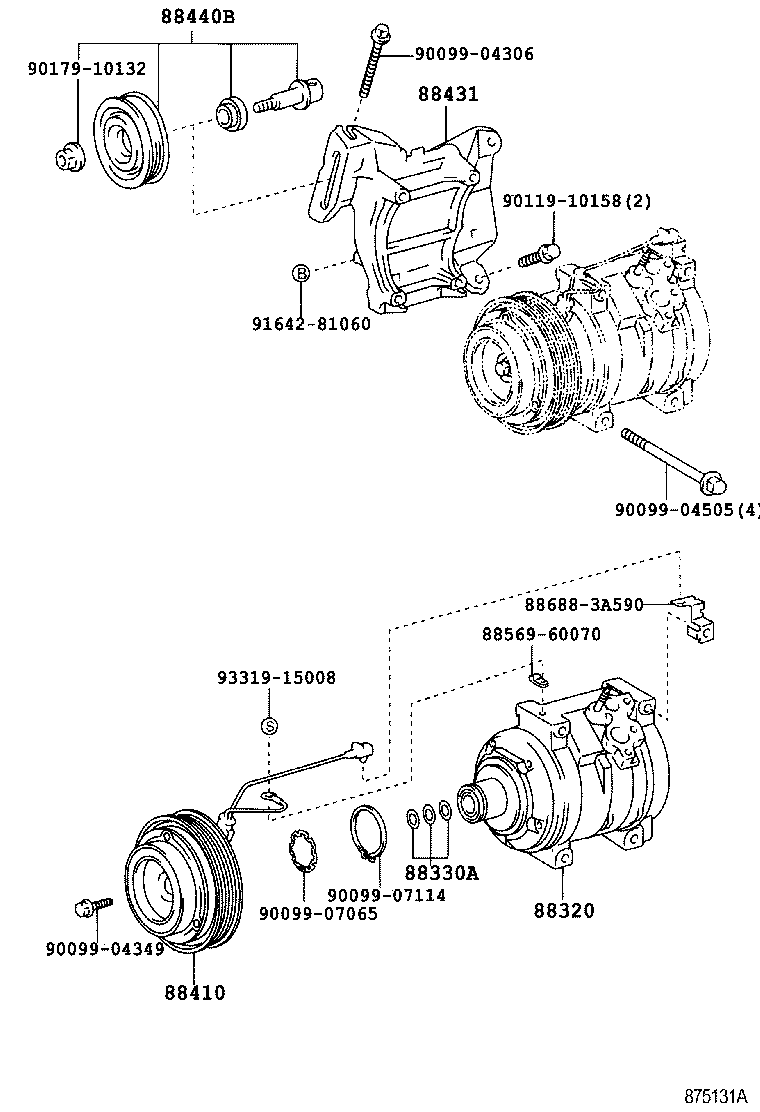

Figure 873758 873758 1999-09 → 2001-08 Figure 873757 873757 1999-09 → 2001-08 Figure 873756B 873756B 2000-04 → 2001-08 Figure 875128B 875128B 2001-08 → — Figure 875129E 875129E 2001-08 → — Figure 875130A 875130A 2001-08 → — Figure 875131A 875131A 2001-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88346A Sensor, Compressor Pick UP
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
