Toyota Crown/Crown Majesta
1999-09 → 2007-06 · chassis GS171,JKS175,JZS17#,UZS17# · catalogue 3311A0 · Japan
Discontinued model
Data version 2008-01

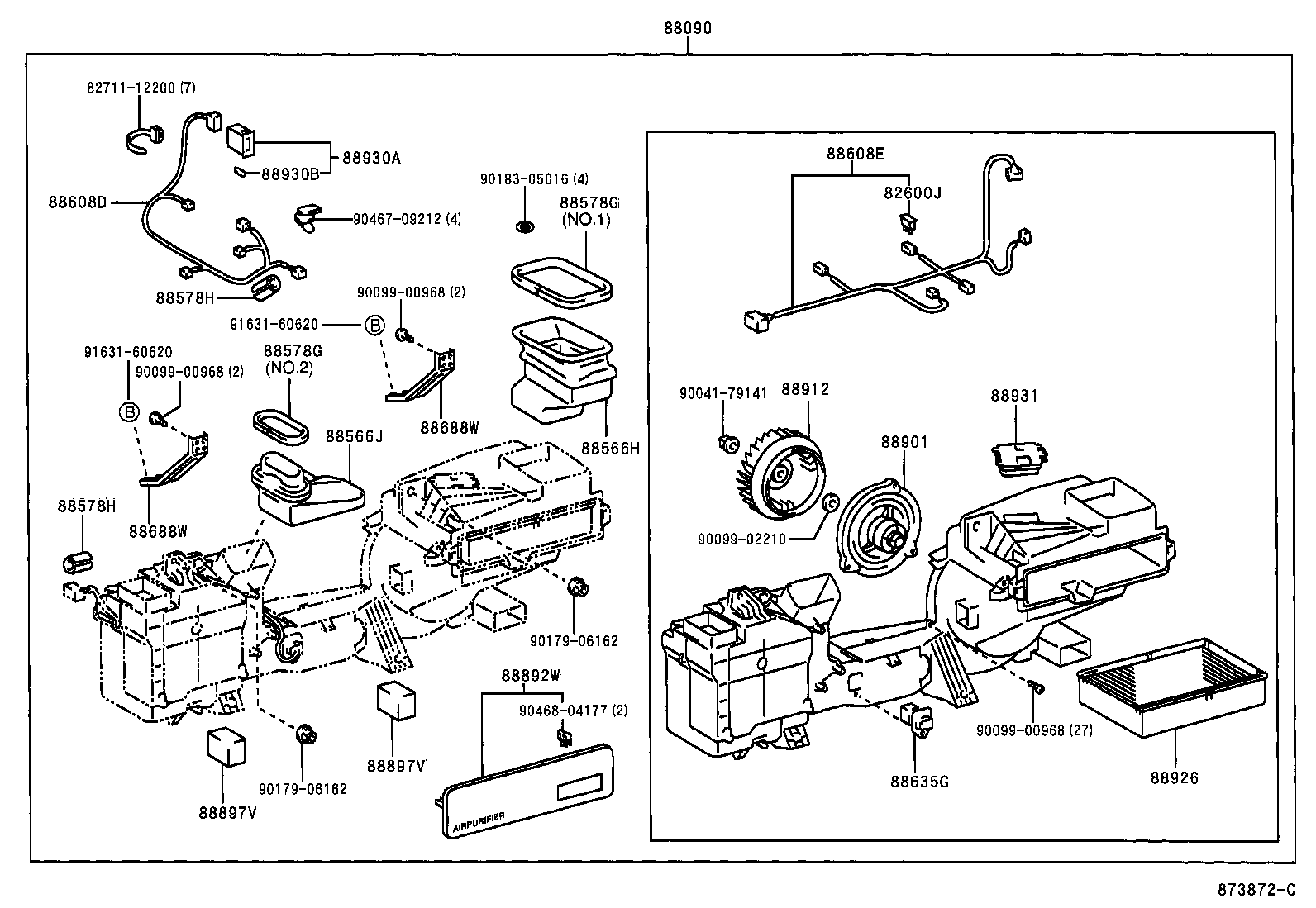

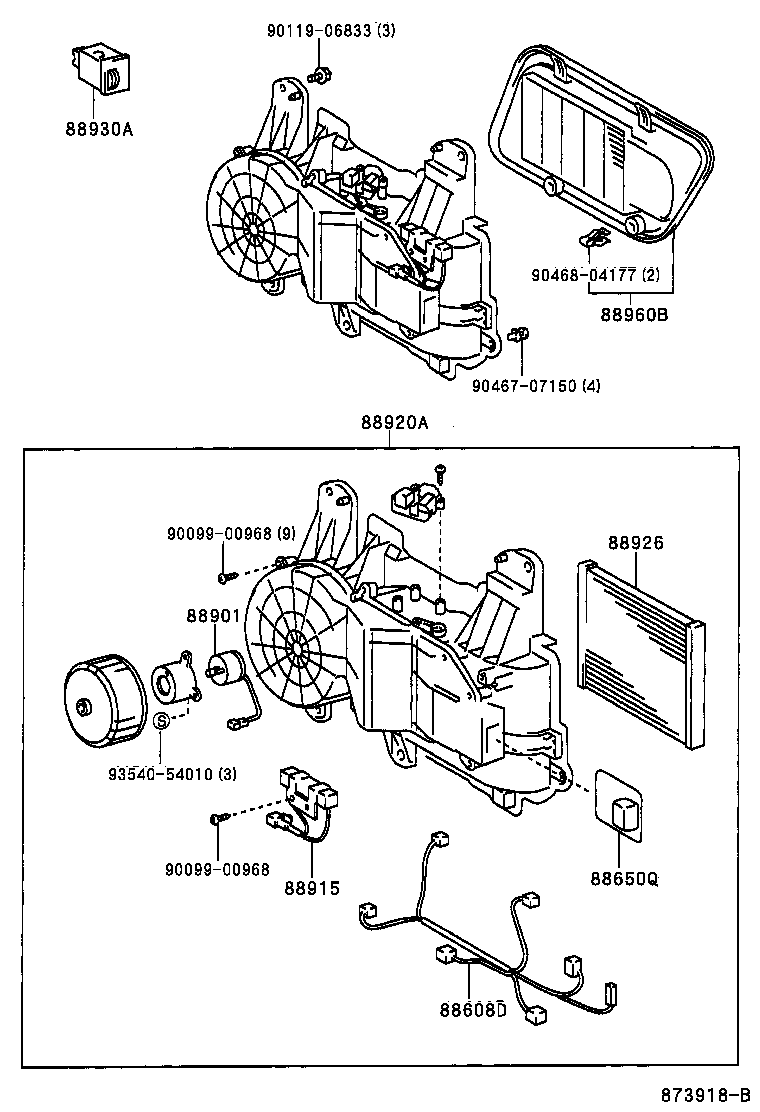

Air Purifier OR Ion Generator
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82600J | Fuse, Air Purifier |
| 88090 | Air Purifier & Accessory Assy |
| 88566H | Duct, Air, NO.1 |
| 88566J | Duct, Air, NO.2 |
| 88578G | Packing, Air Purifier, NO.1 |
| 88578H | Packing, Air Purifier, NO.2 |
| 88608D | Harness Sub-assy, Wiring Air Indicater, NO.2 |
| 88608E | Harness Sub-assy, Wiring Air Indicator, NO.3 |
| 88635G | Resistor, Air Purifier Blower |
| 88650Q | Amplifier Assy, Air Coditioner |
| 88688M | Bracket, Air Purifier, NO.2 |
| 88688W | Bracket, Air Purifier, NO.1 |
| 88892W | Cover, Air Purifier |
| 88897V | Cushion, Air Purifier |
| 88901 | Motor Sub-assy, Air Purifier |
| 88912 | Fan, Air Purifier |
| 88915 | Resistor, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88930A | Switch Assy, Air Purifier |
| 88930B | Bulb, Air Purifier Switch |
| 88931 | Sensor, Smoke |
| 88960B | Resistor Assy, Air Purifire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
