Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

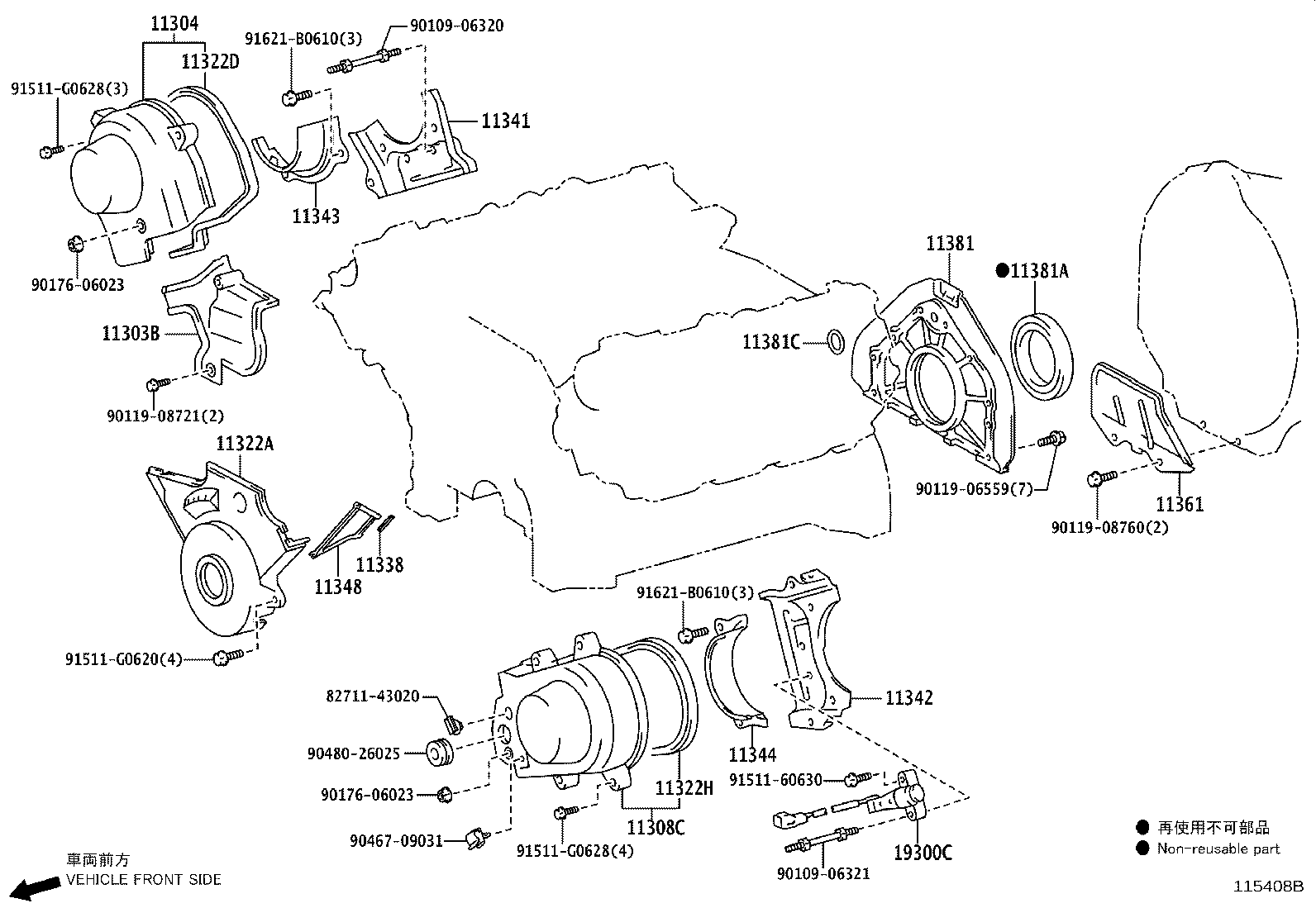

Timing Gear Cover & Rear End Plate
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11303B | Cover Sub-assy, Timing Belt, NO.2 |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11308C | Cover Sub-assy, Timing Belt, NO.3 LH |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322D | Gasket, Timing Belt Cover, NO.1 |
| 11322H | Gasket, Timing Belt Cover, NO.3 |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11338 | Gasket, Timing Chain Cover, NO.2 |
| 11341 | Plate, Timing Belt, Rear RH |
| 11342 | Plate, Timing Belt, Rear LH |
| 11343 | Plate, Timing Belt, Rear RH NO.2 |
| 11344 | Plate, Timing Belt, Rear LH NO.2 |
| 11348 | Spacer, Timing Gear Cover |
| 11361 | Cover, Flywheel Housing Under |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11381C | Ring, O(FOR OIL SEAL RETAINER) |
| 12601D | Cover, Engine, NO.1 |
| 12602C | Cover, Engine, NO.2 |
| 19300C | Sensor Assy, Cam Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
