Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 2 illustrations

Illustrations

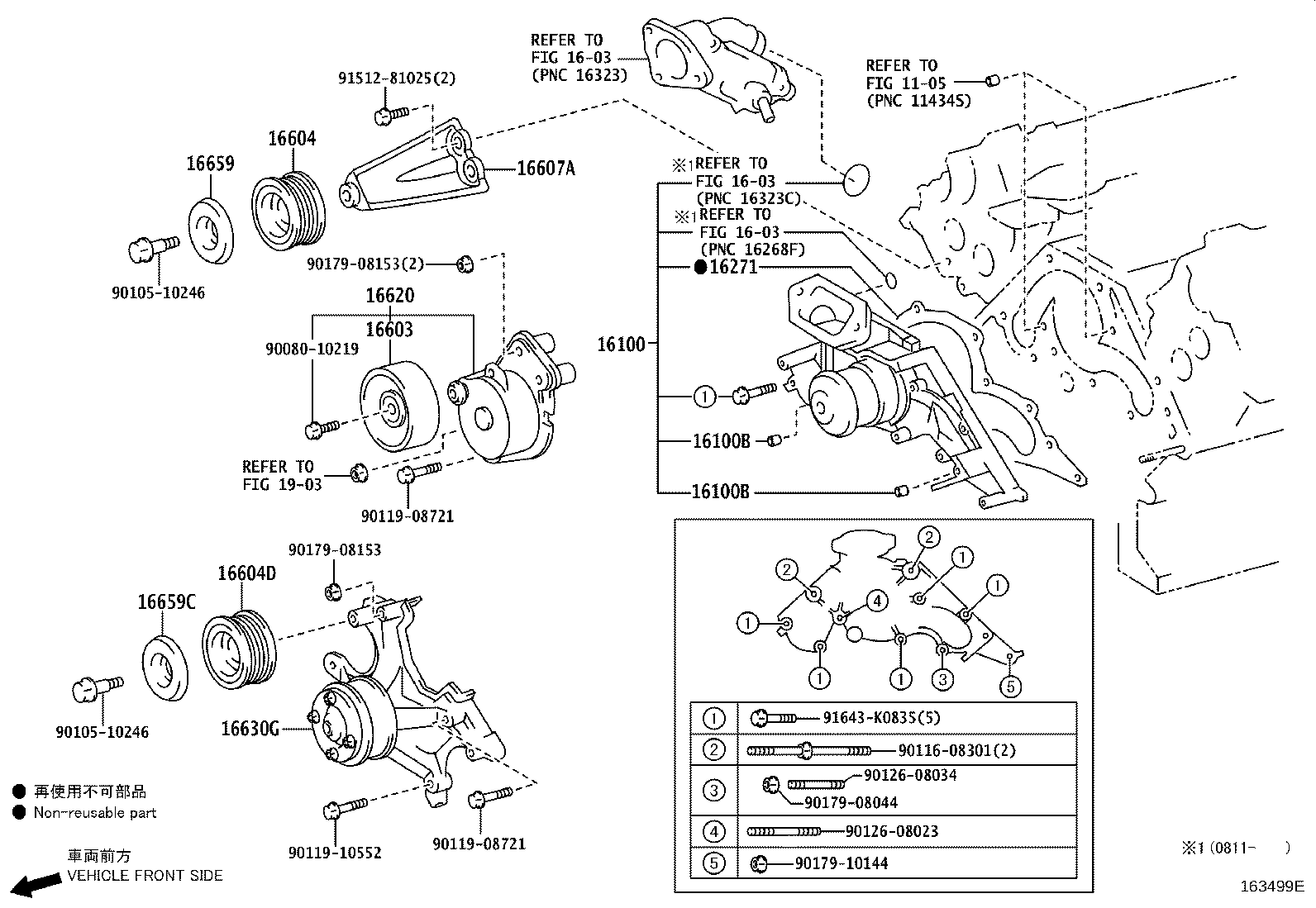

Figure 164477C 164477C 2003-12 → 2008-02 Figure 163499E 163499E 2004-06 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16604D Pulley Sub-assy, Idler, NO.3
16607A Bracket Sub-assy, Idler Pulley, NO.1
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16659 Plate, Idler Pulley Cover, NO.2
16659C Plate, Idler Pulley Cover, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
