Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 4 illustrations

Illustrations

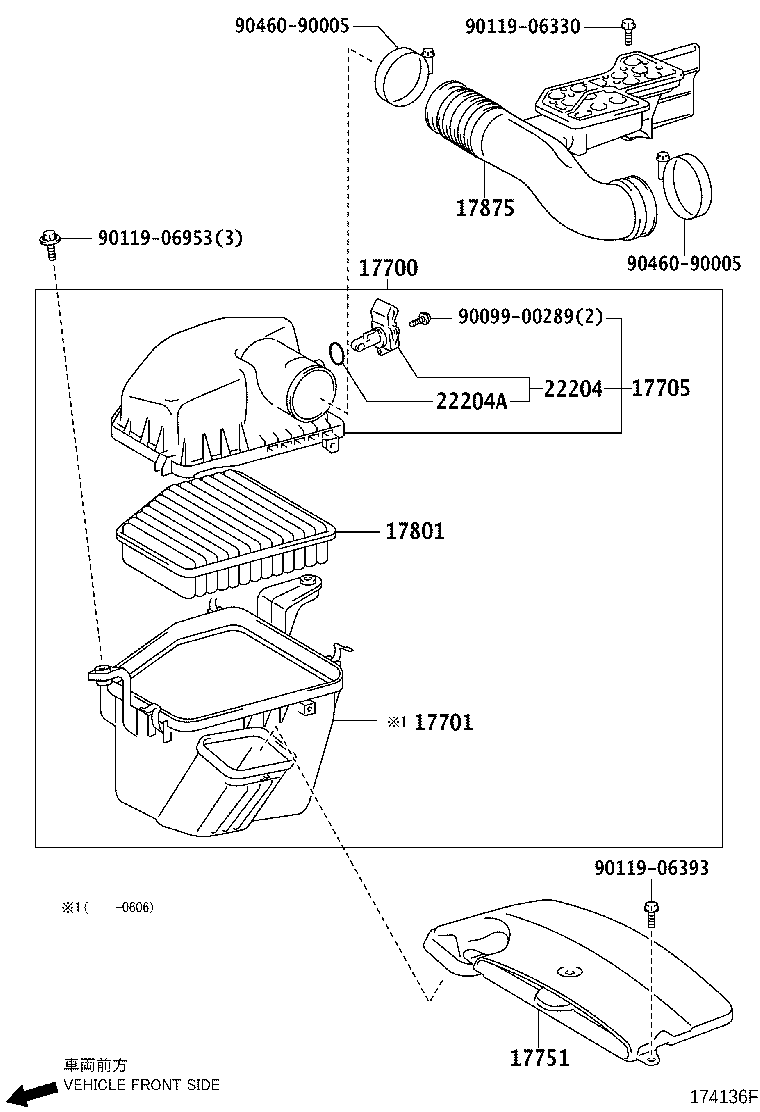

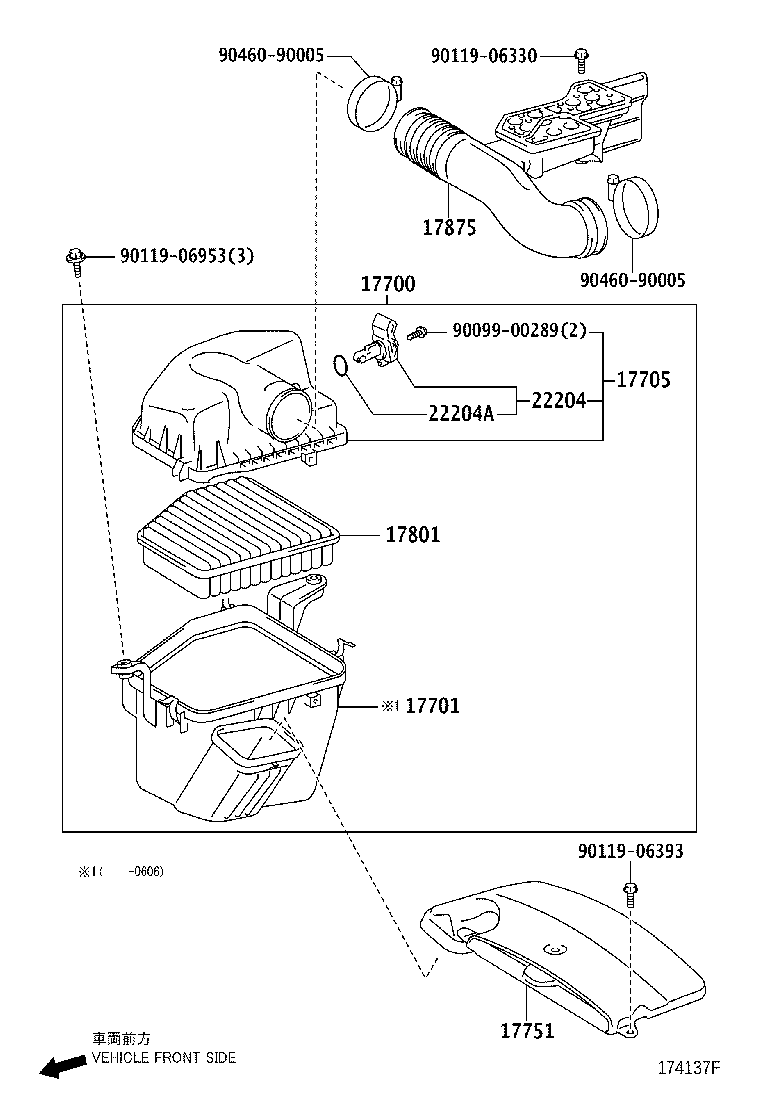

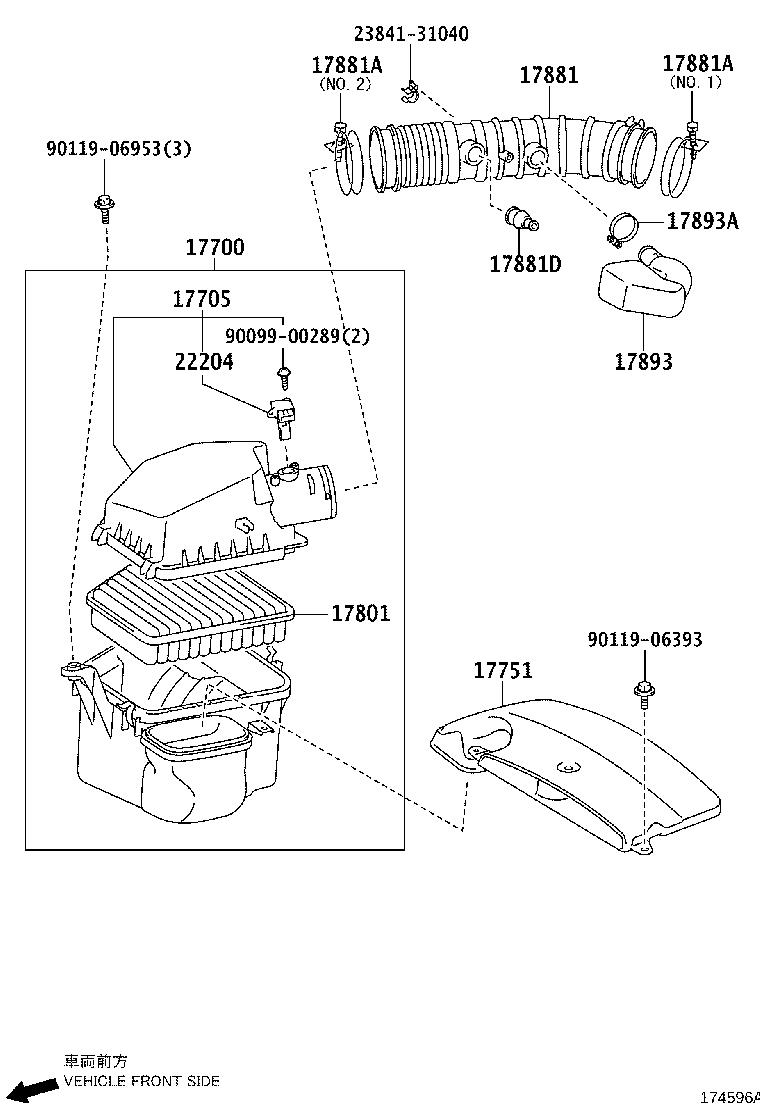

Figure 175921B 175921B 2003-12 → — Figure 174596A 174596A 2005-09 → — Figure 174136F 174136F 2004-06 → — Figure 174137F 174137F 2004-06 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17893 Resonator, Intake Air
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
