Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

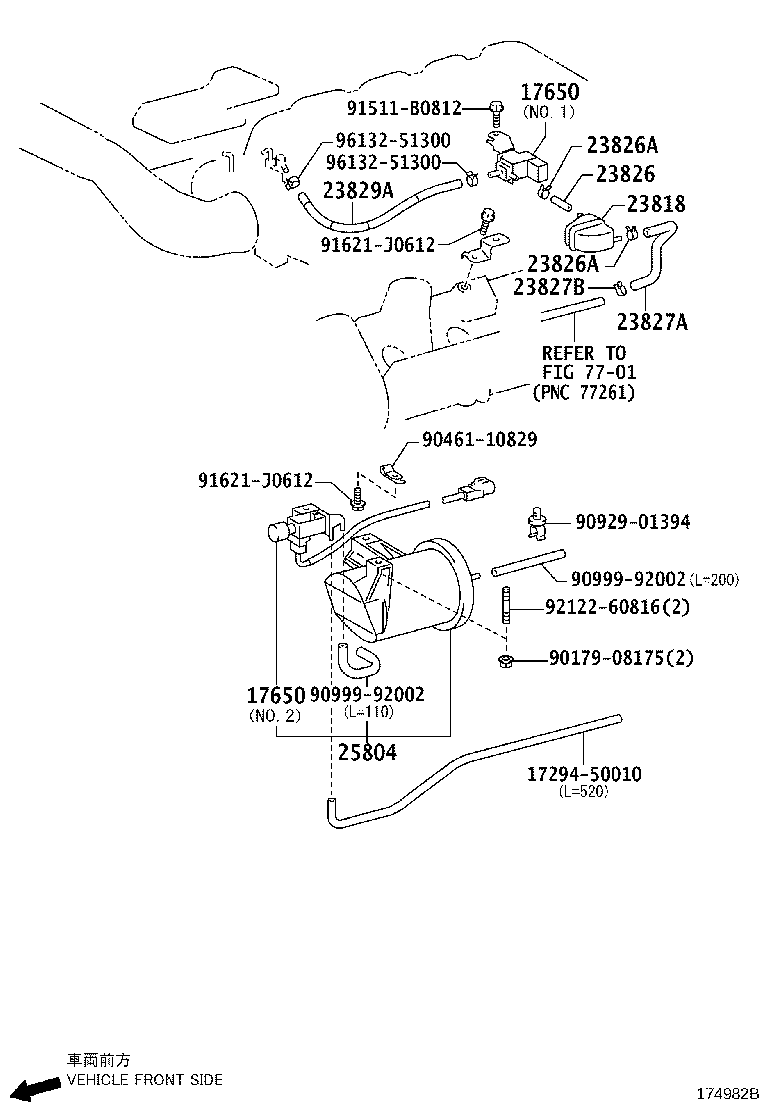

Vacuum Piping
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650 | Valve Assy, Vacuum Switching |
| 23818 | Pipe, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 25719 | Tank, Vacuum Surge |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
