Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

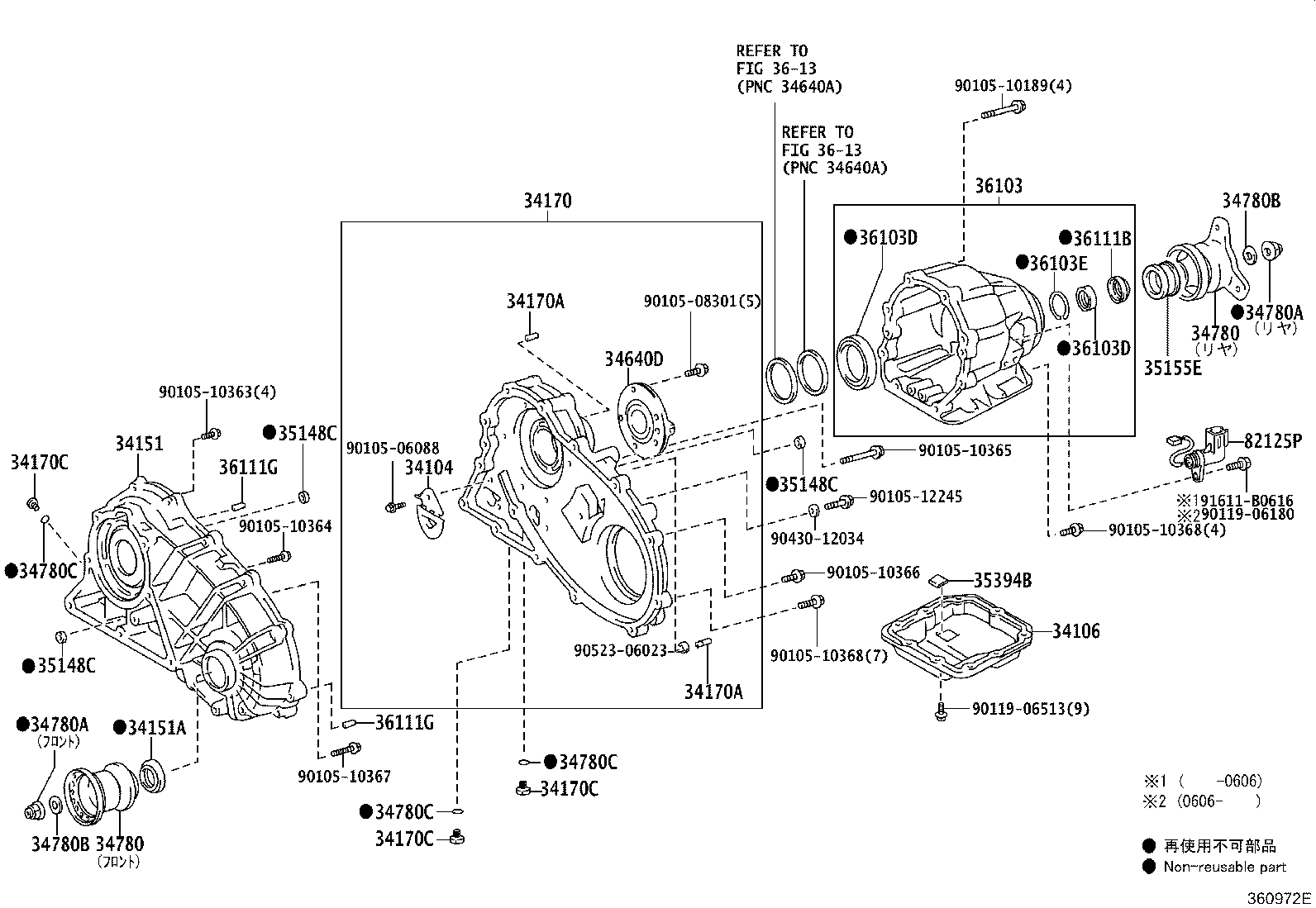

Transfer Case & Extension Housing
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33146A | Deflector, Transfer Extension Housing Dust |
| 33183 | Damper, Transfer Dynamic |
| 34104 | Valve Sub-assy, Transfer Baffle |
| 34106 | Pan Sub-assy, Transfer Oil |
| 34151 | Case, Transfer Chain, Front |
| 34151A | Seal, Oil (FOR TRANSFER CHAIN CASE) |
| 34170 | Case Assy, Transfer Chain, Rear |
| 34170A | Pin, Straight (FOR TRANSFER CHAIN CASE) |
| 34170C | Plug (FOR TRANSFER CHAIN CASE) |
| 34640D | Support Assy, Transfer Center |
| 34780 | Yoke Assy, Flange |
| 34780A | Nut (FOR FLANGE YOKE) |
| 34780B | Washer, Plate (FOR FLANGE YOKE) |
| 34780C | Ring, O (FOR FLANGE YOKE) |
| 35148C | Gasket, Governor Apply (FOR ATM TRANSFER CHAIN CASE) |
| 35155E | Sleeve, Rear Cover, NO.1 |
| 35394B | Magnet, Oil Cleaner (FOR TRANSFER) |
| 36103 | Case Sub-assy, Transfer |
| 36103D | Bearing (FOR TRANSFER CASE) |
| 36103E | Ring, Hole Snap (FOR TRANSFER CASE BEARING) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 82125P | Transmission Wire(FOR TRANSFER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
