Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

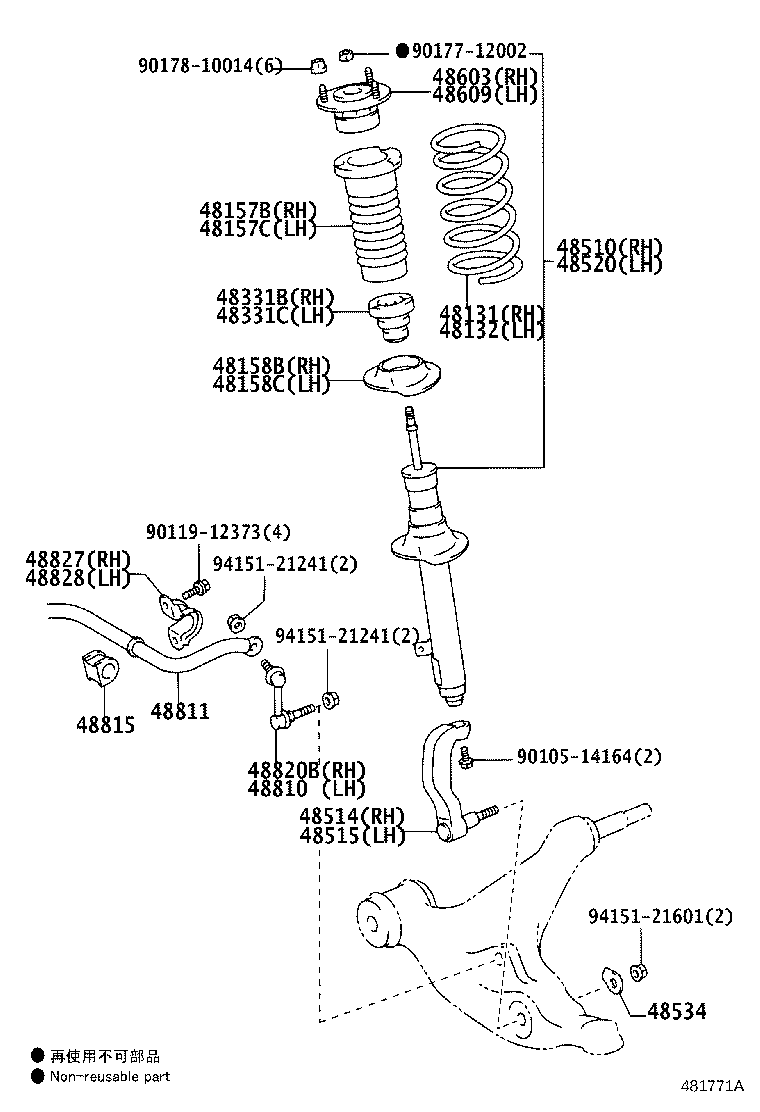

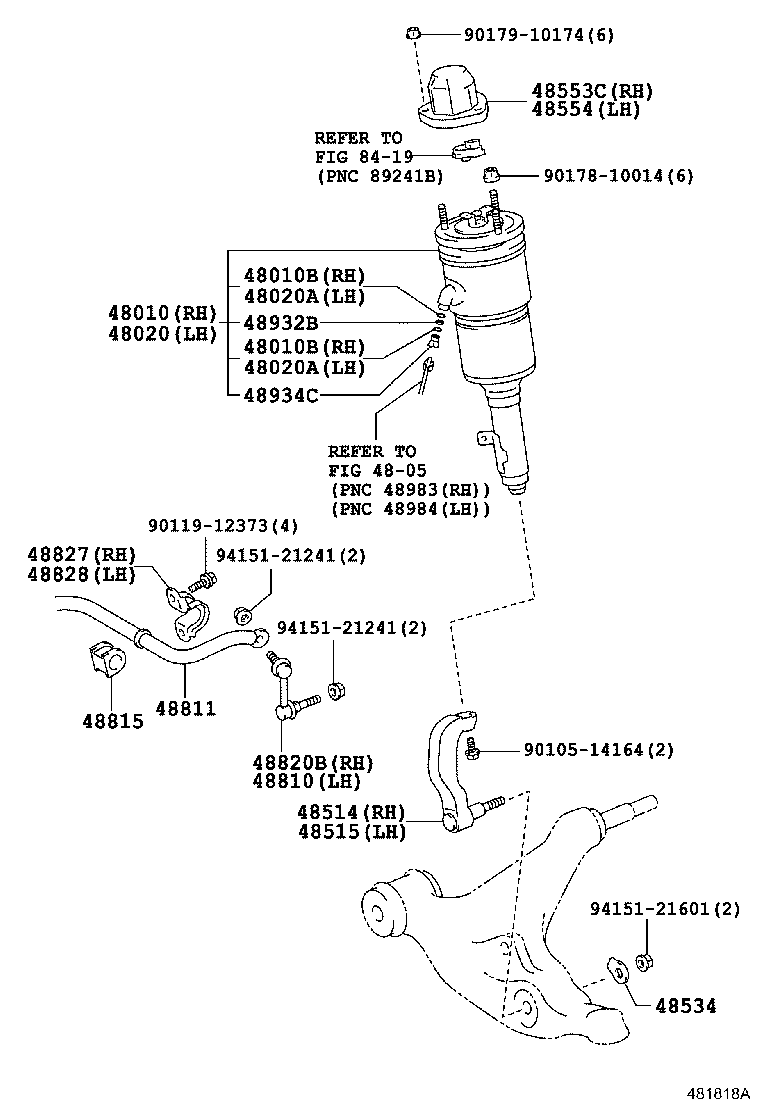

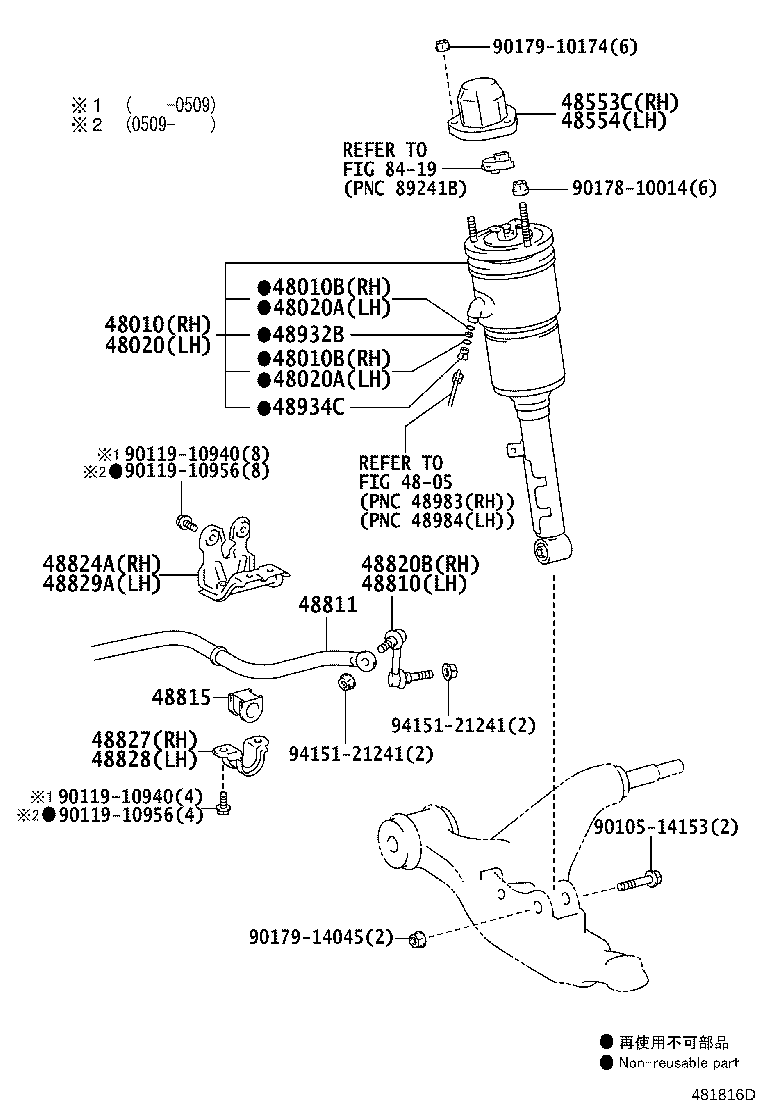

Front Spring & Shock Absorber
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48010 | Cylinder Assy, Pneumatic, Front RH W/Shock Absorber |
| 48010B | Ring, O(FOR FRONT PNEUMATIC CYLINDER RH) |
| 48020 | Cylinder Assy, Pneumatic, Front LH W/Shock Absorber |
| 48020A | Ring, O(FOR FRONT PNEUMATIC CYLINDER LH) |
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157B | Insulator, Front Coil Spring, Upper RH |
| 48157C | Insulator, Front Coil Spring, Upper LH |
| 48158B | Insulator, Front Coil Spring, Lower RH |
| 48158C | Insulator, Front Coil Spring, Lower LH |
| 48331B | Bumper, Front Spring, RH |
| 48331C | Bumper, Front Spring, LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48514 | Bracket, Front Shock Absorber, Lower RH |
| 48515 | Bracket, Front Shock Absorber, Lower LH |
| 48519B | Bracket, Actuator Support, Front RH |
| 48519C | Bracket, Actuator Support, Front LH |
| 48520 | Absorber Assy, Shock, Front LH |
| 48534 | Plate, Front Shock Absorber Upper Bracket |
| 48553 | Cap, Shock Absorber, Upper |
| 48553C | Cap, Front Shock Absorber, RH |
| 48554 | Cap, Front Shock Absorber, LH |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48827 | Bracket, Front Stabilizer, NO.2 RH |
| 48828 | Bracket, Front Stabilizer, NO.2 LH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
| 48932B | Plate, Height Control Tube |
| 48934C | Connector, Height Control Tube |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
