Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

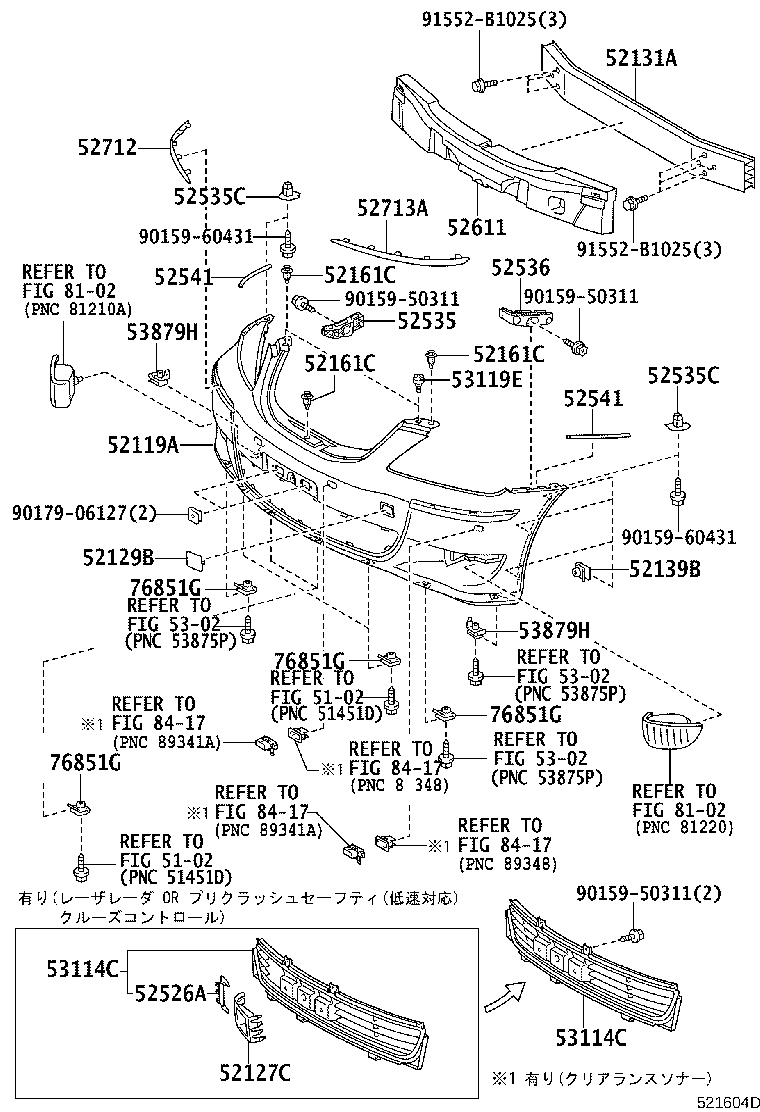

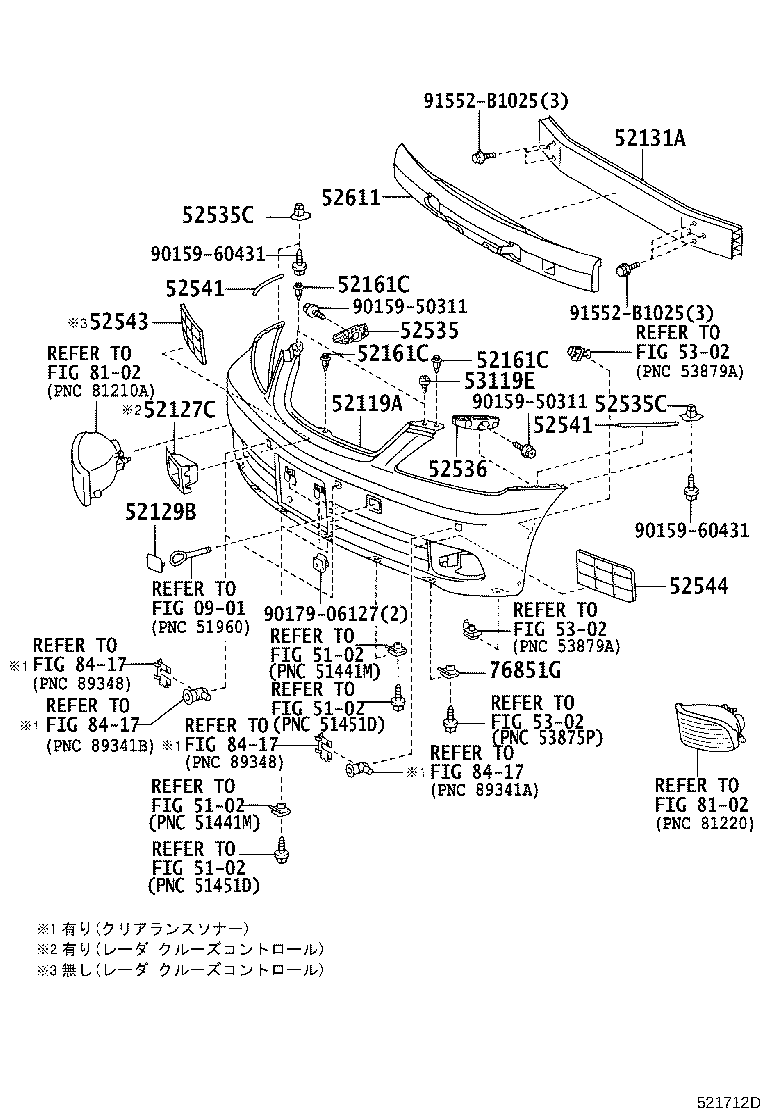

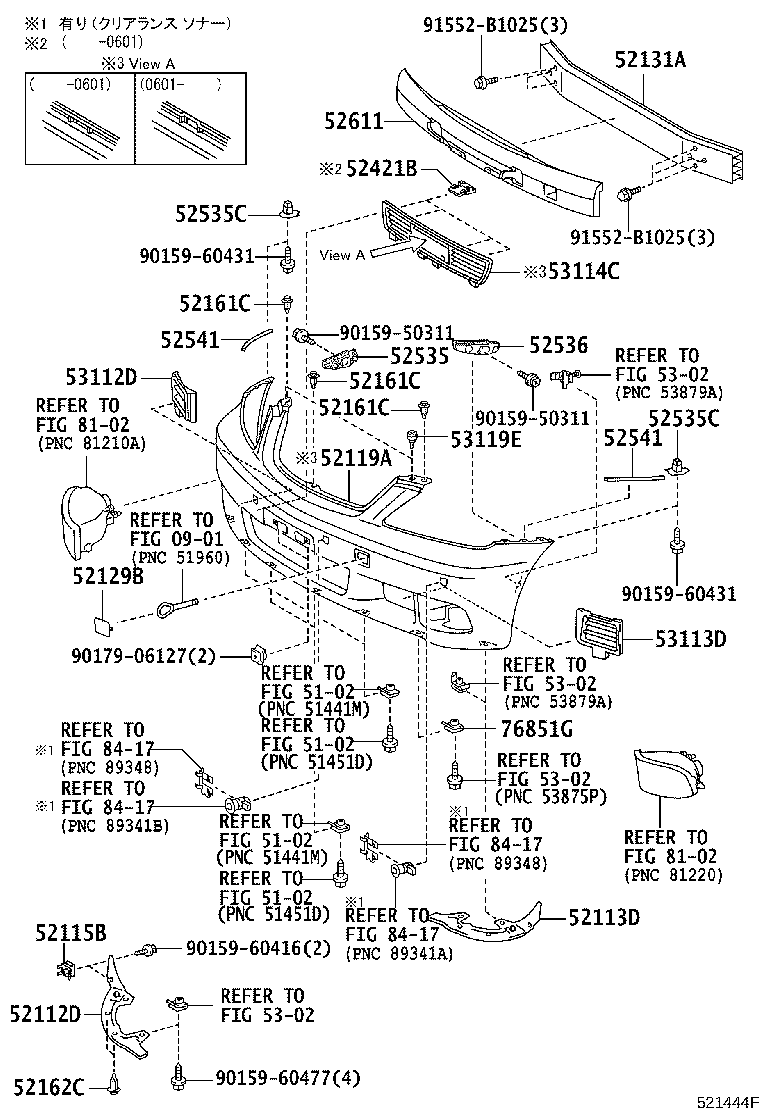

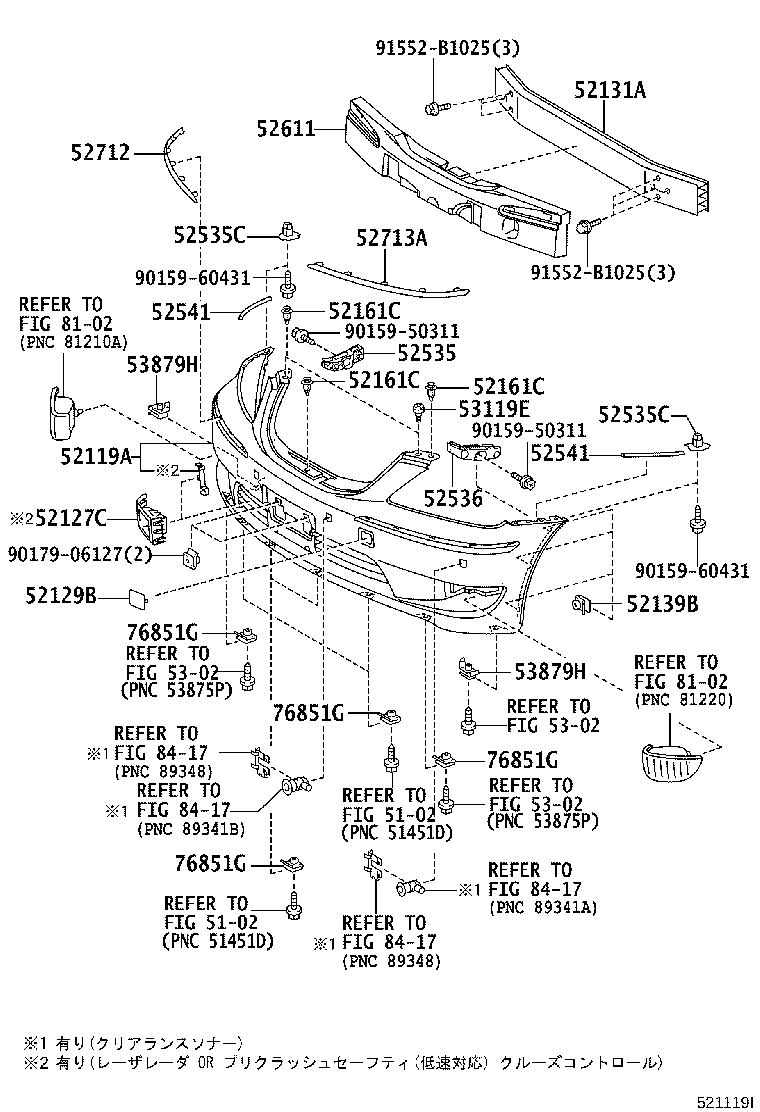

Front Bumper & Bumper Stay
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115B | Retainer, Front Bumper Extension, NO.1 |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52139B | Brace, Front Bumper, Center |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52421B | Spacer, Front Bumper, NO.1 |
| 52526A | Retainer, Front Bumper, Lower NO.1 |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535C | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 52543 | Seal, Front Bumper Side, RH |
| 52544 | Seal, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53112D | Grille, Radiator, Lower RH |
| 53113D | Grille, Radiator, Lower LH |
| 53114C | Grille, Radiator, Inner |
| 53119E | Protector, Radiator Grille |
| 53879H | Retainer, Front Fender Liner |
| 76851G | Grommet, Screw, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
