Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

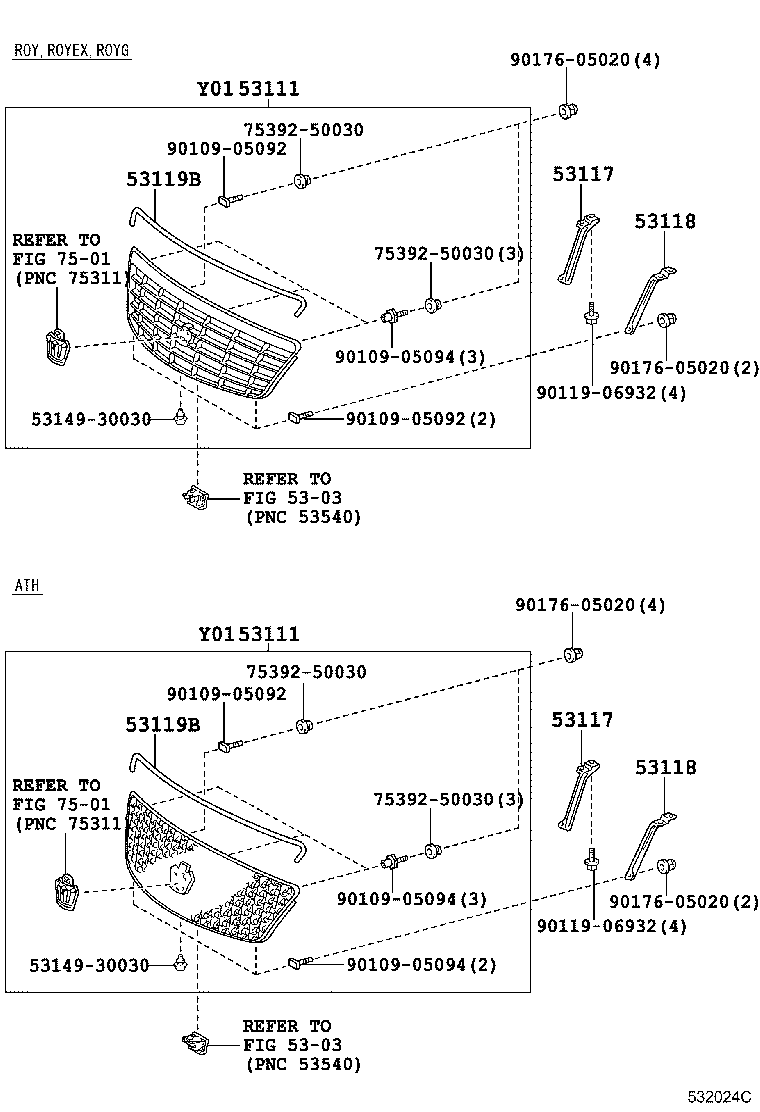

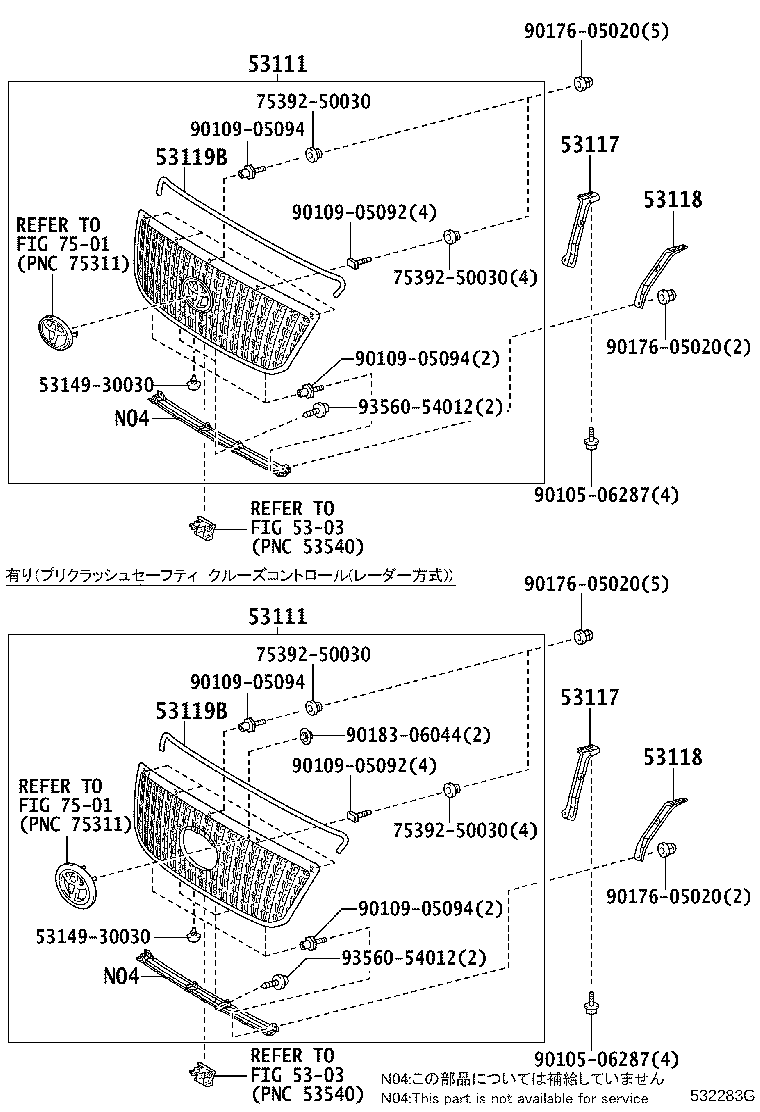

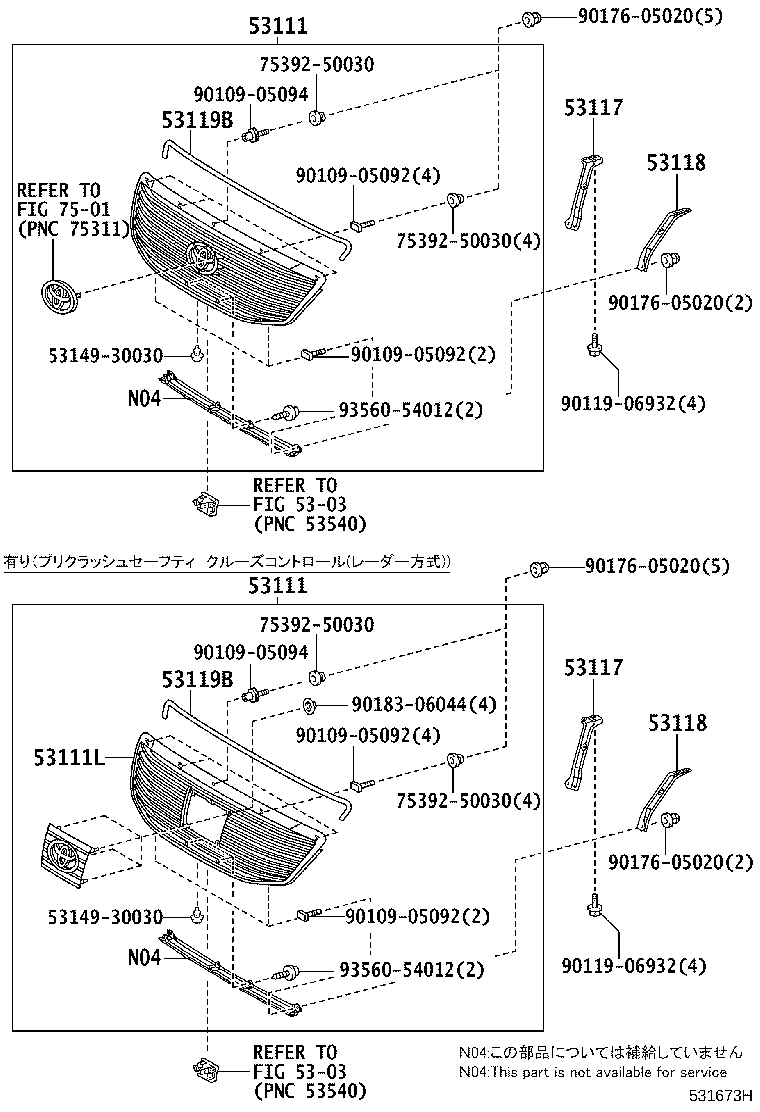

Radiator Grille
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53111L | Grille Sub-assy, Radiator, Center |
| 53117 | Bracket, Radiator Grille Support, RH |
| 53118 | Bracket, Radiator Grille Support, LH |
| 53119B | Protector, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
