Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

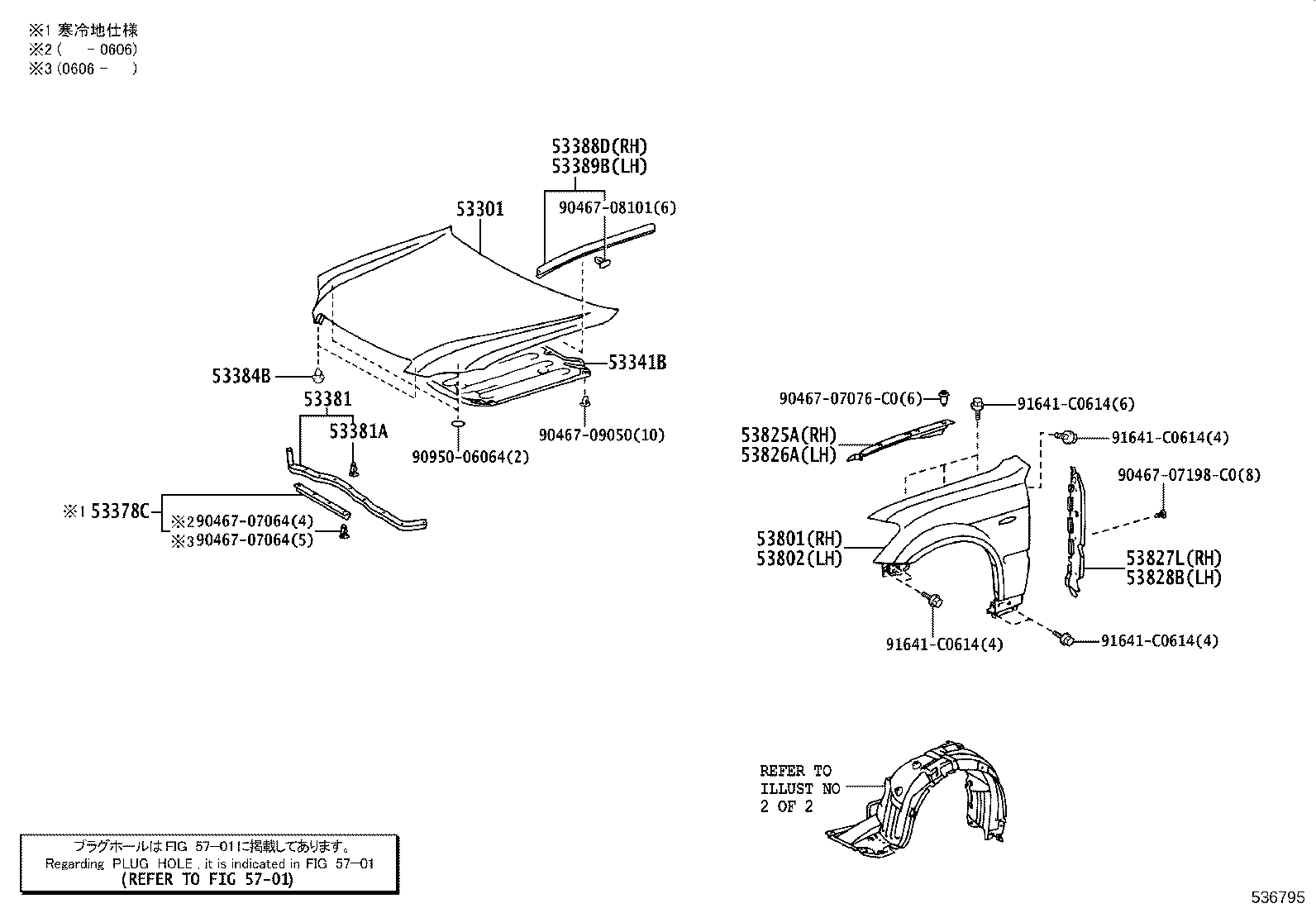

Hood & Front Fender
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

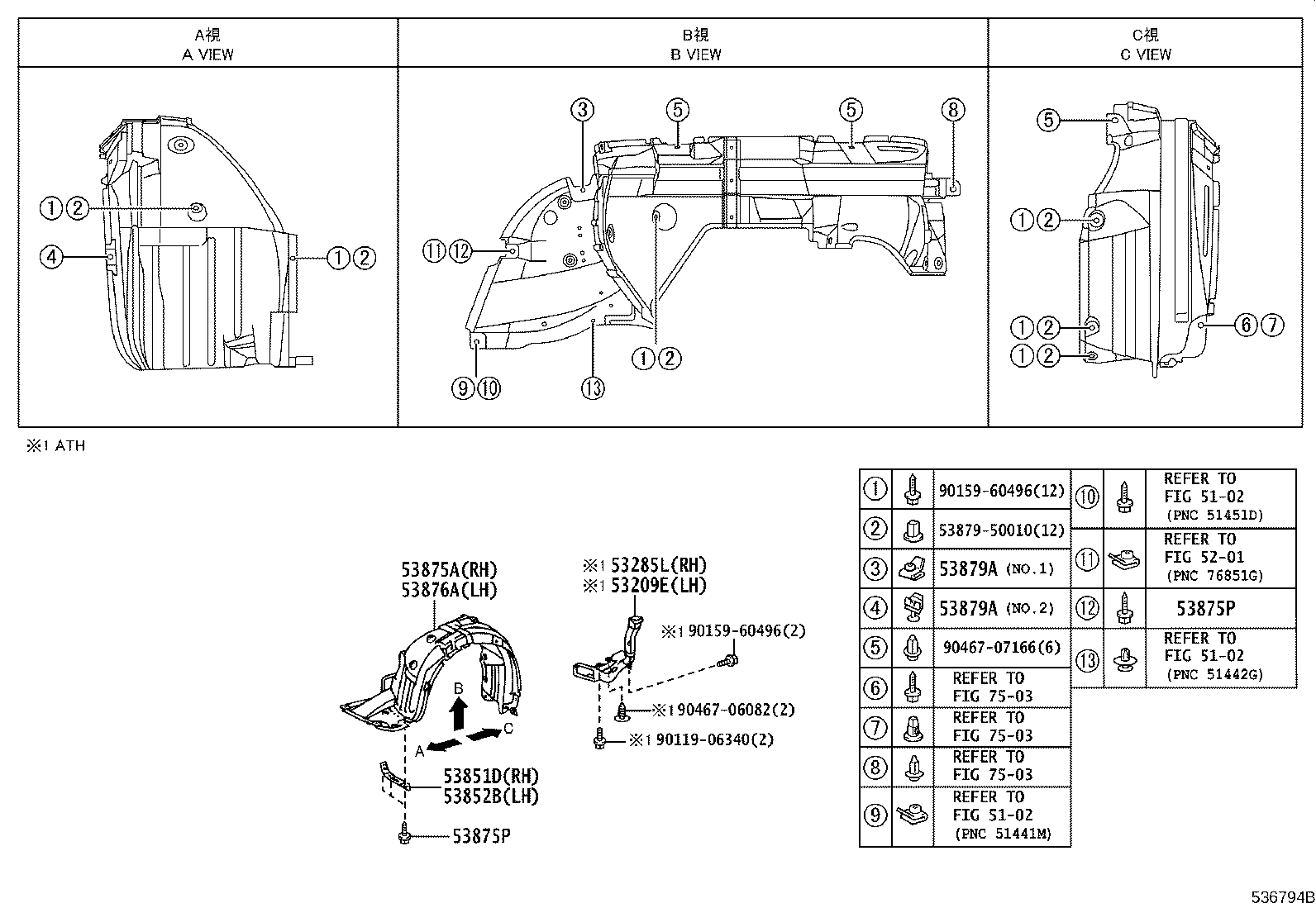

| 53209E | Duct Sub-assy, Cool Air Intake, NO.3 |
| 53285L | Duct, Cool Air Intake, NO.2 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53378C | Seal, Hood Air Intake Duct |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384B | Cushion, Hood, Center |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |

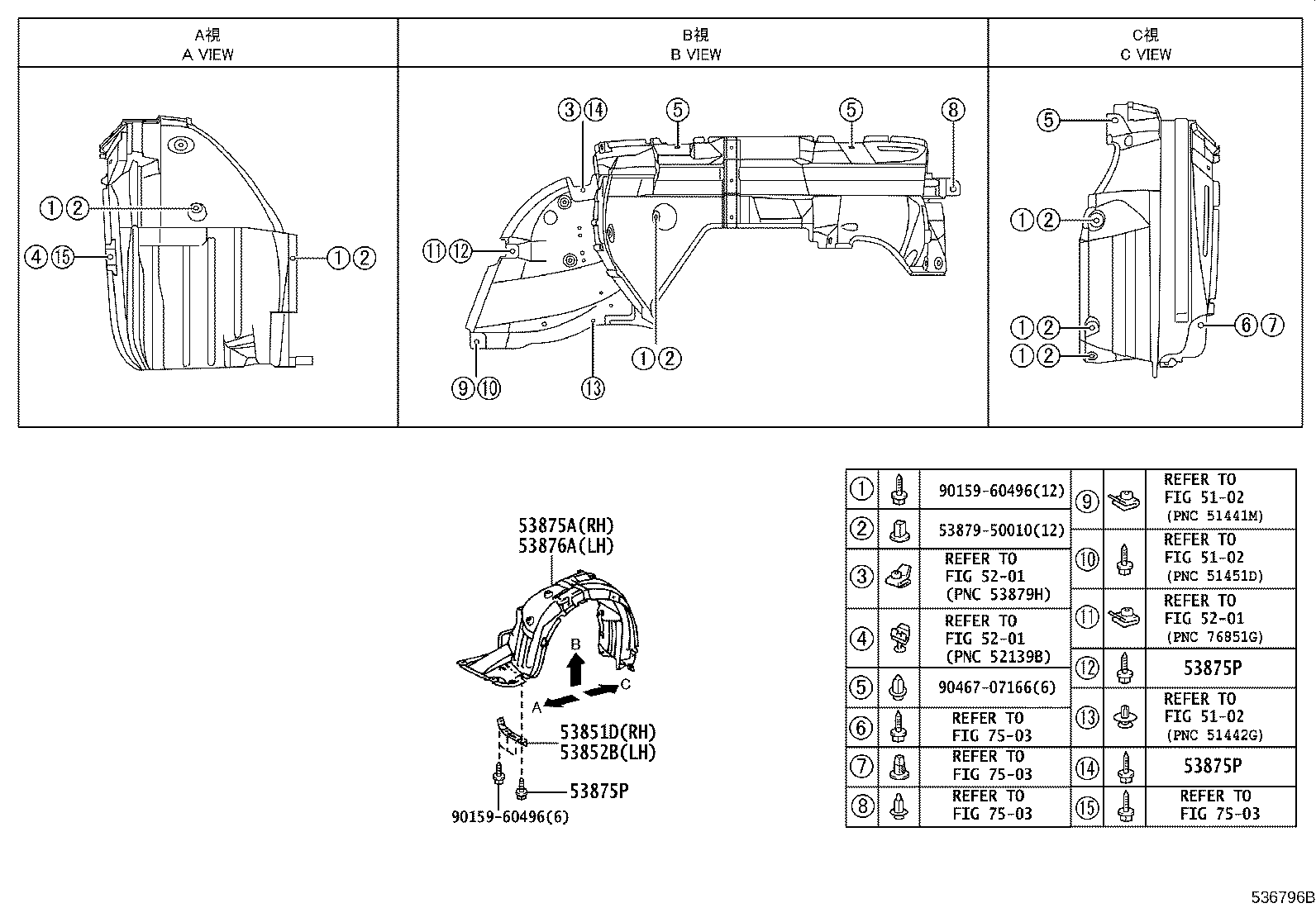

| 53875A | Liner, Front Fender, RH |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
